Summary of Contents for Clover TFT7001

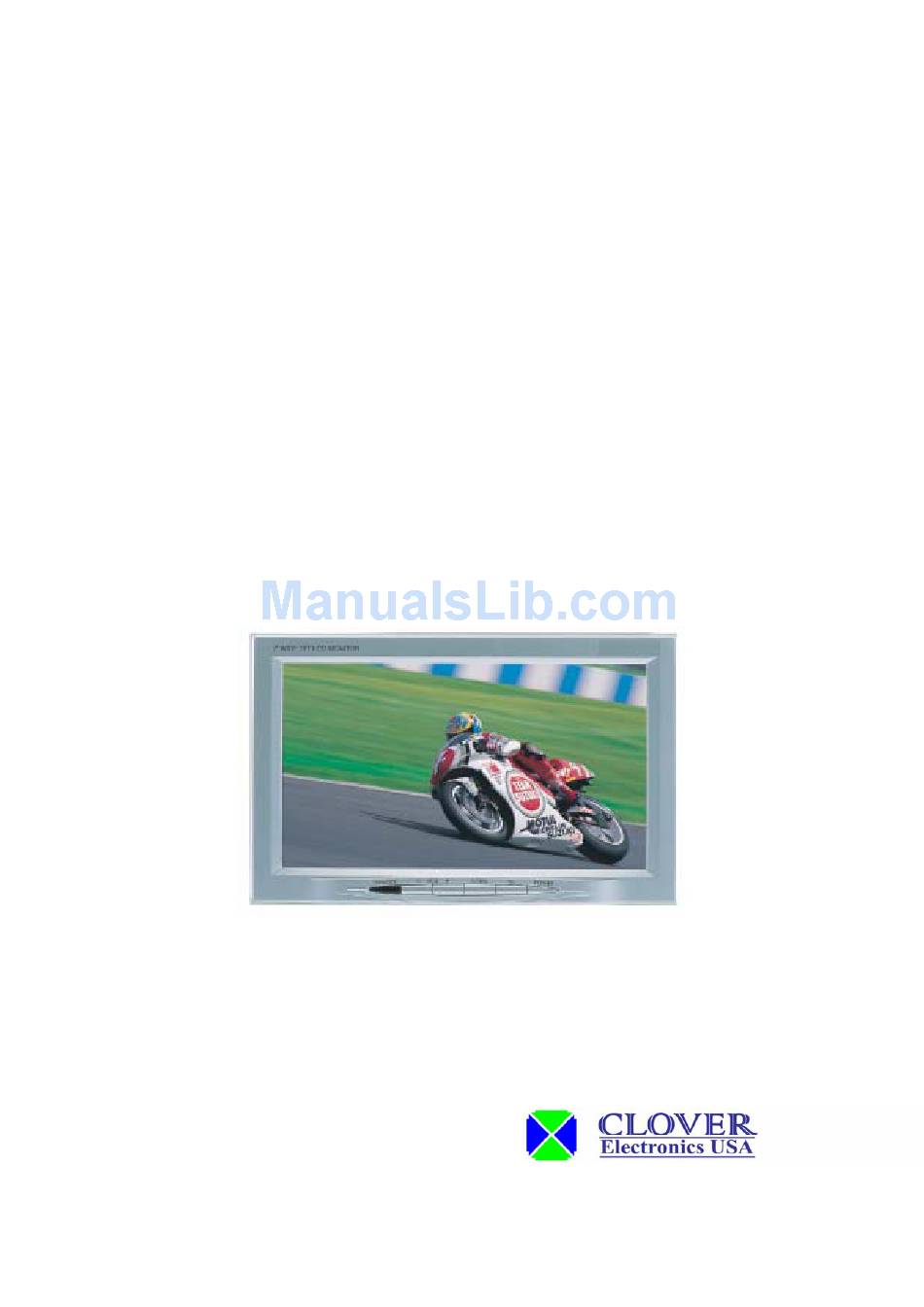

- Page 1 USER’S INSTRUCTION 7” TFT LCD COLOR REAR VIEW SYSTEM MODEL# TFT7001 Copyright © 2006 Clover Electronics U.S.A. All Rights Reserved.
-
Page 2: Table Of Contents
Contents ● Instructions ---------------------------------------------------- Front Panel of the Monitor ------------------------------------ Remote Control ----------------------------------------------- SETUP Menu ---------------------------------------------------- 3-1 Picture ----------------------------------------------------- 3-2 Function --------------------------------------------------- Installation ----------------------------------------------------- 4.1Installation of the Camera -------------------------------- 4.2 Specification ---------------------------------------------- ● LIMITED 2 YEAR WARRANTY ---------------------------------- ● HOW TO OBTAIN FACTORY SERVICE -------------------------... -
Page 3: Instructions
Important safety precautions ● Do not watch and operate the monitor while driving. It may cause a car accident because of the distraction. ● Do not install the monitor on a place where obstruct the driver’s viewing or near and airbag device. ●... -
Page 4: Front Panel Of The Monitor
1. Front Panel of the Monitor ① ② ③ ④ ⑤ ⑥ ① Receiver for Remote Controller ▼Button: Press to change menu values ② ▲ Button: Press to change menu values ③ SEL Button Press to navigate the menu items ④... -
Page 5: Setup Menu
3. SETUP Menu 3-1 PICTURE Press the Menu button to go into the PICTURE Setup menu. PICTURE ■ PICTURE OSD BRIGHTNESS 1. BRIGHTNESS: To adjust the brightness CONTRAST 2.CONTRAST: To adjust the contrast SHARPNESS 3. SHARPNESS: To adjust the color COLOR 4. -
Page 6: Installation
4. INSTALLATION 4-1.Installation of the Camera... -
Page 7: Specification
4-2. Specification Specifications are subject to change without notice. System Includes 1- 7” TFT LCD Monitor 1- Color CCD camera 1- 45” Cable 1- Remote controller 2- Batteries 1- Instruction manual 1- Warranty registration card Optional Accessories TFT7000 7” TFT LCD monitor RE600 Color CCD camera... -
Page 8: Limited 2Year Warranty
LIMITED 2YEAR WARRANTY This warranty gives the original purchaser specific legal rights and you may also have other rights, which vary from state to state. If our products do not function because of any defect in material or workmanship, we will repair free for 2 year on parts and labor from the date of original purchase. This warranty does not cover modification, abuse, incidental or consequential damages unless the state of owner’s residence specially prohibits limitations on incidental or consequential damages.
