User Manual
UN46C7000WFXZA

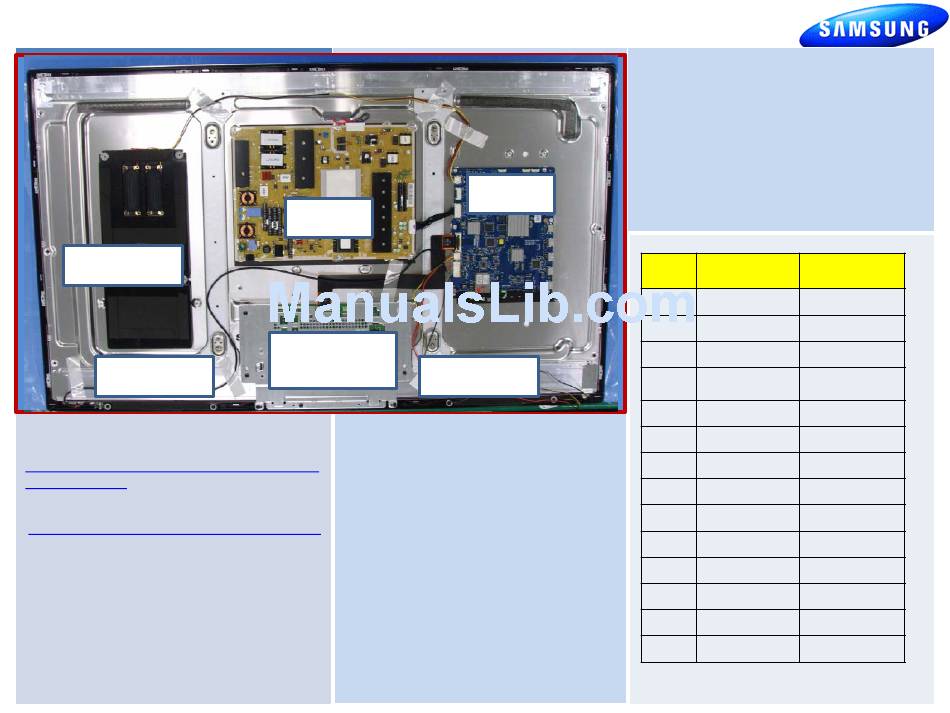

Insert Photo of TV Board Layout
Include Board Assy names (as appearing in parts) and any
special labels/items (i.e. Plasma voltage label)
Woofer
Speaker
HELP :
1-888-751-4086 (Tech Support)
1-866-894-0637 (FE)
GSPN
http://gspn3.samsungcsportal.com
PLUS ONE
http://my.plus1solutions.net/clientPortals/samsung
HOT TIPS
Power On Problems: (see page 2)
Video Problems: (see page 3.4)
Other:
HDMI Bleed-over
Fast Track Troubleshooting Manual Rev –
SMPS
T-CON
Speaker
(below Bracket)
FIRMWARE
Please check Samsung.com for latest update!
2/21/2011
(T-VALAUSC, 1035.0)
Reason:
Support Netflix 2.1 and MLB.tv
apps. Support new TV camera (Model:
CY-STC1100). Add "3D Optimize" option
on Menu for better 3D image.(Only
LCD/LED TV)
Previous: 1032.0
Prevents
:
-USB Power Overload' message pops up
even USB port is not connected
-Plug & Play is displayed upon power up.
No Bulletins listed as of 6/29/11
Main
Version Parts No
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
SERVICE BULLETINS
Short
Description
BN44-00375A
Power PCB
BN81-04356A
T-CON PCB
BN94-02757A
Main PCB
Function & IR
BN96-13847B
PCB
BN07-00863A
Panel
BN96-13119A
Front Cover
BN96-13126A
Rear Cover
BN96-13131A
Stand Guide
BN96-13133A
Stand Base
BN59-01055A
Remote
BN96-12723Q
LVDS Cable
BN96-12845D
Power Cord
BN96-12943B
Speaker Front
BN96-13406B
Speaker Rear
1
Advertisement
Related Manuals for Samsung UN46C7000WFXZA
Summary of Contents for Samsung UN46C7000WFXZA
- Page 1 Function & IR BN96-13847B HELP : 1-888-751-4086 (Tech Support) BN07-00863A Panel FIRMWARE 1-866-894-0637 (FE) BN96-13119A Front Cover Please check Samsung.com for latest update! GSPN 2/21/2011 BN96-13126A Rear Cover http://gspn3.samsungcsportal.com (T-VALAUSC, 1035.0) BN96-13131A Stand Guide Reason: Support Netflix 2.1 and MLB.tv PLUS ONE apps.
- Page 2 UN46C7000WFXZA Fast Track Troubleshooting Manual CN 201 P_ON/OFF 5.3V HSYNC STBY G_STBY Wiring Diagram 12.8V Include Connector Numbers , References, and 12.8V BL ON/OFF Locations. 5V DET INV ERROR N.C. N.C. Power On Sequence: To Force Backlight On 1. Standby Voltages:...
- Page 3 Fast Track Troubleshooting Manual TROUBLESHOOTING VIDEO PROBLEMS 2011 LED 8000 Series 1. Verify Video Operation a. Customer Picture Test (models available) b. “Display” (If display is OK source is suspected) C. Substitute with known good Source (external DVD or Signal Generator) 2.
-
Page 4: Special Notes
Fast Track Troubleshooting Manual ON SCREEN FAILURE EXAMPLES: ALIGNMENTS: 1. Check/Set Option Bytes: Green lines or a green screen If Picture & Display errors defective main board , LVDS , or Defective Main Board, LVDS, T-CON. or T-CON 2. Check/Perform Firmware Upgrade for all repairs.
