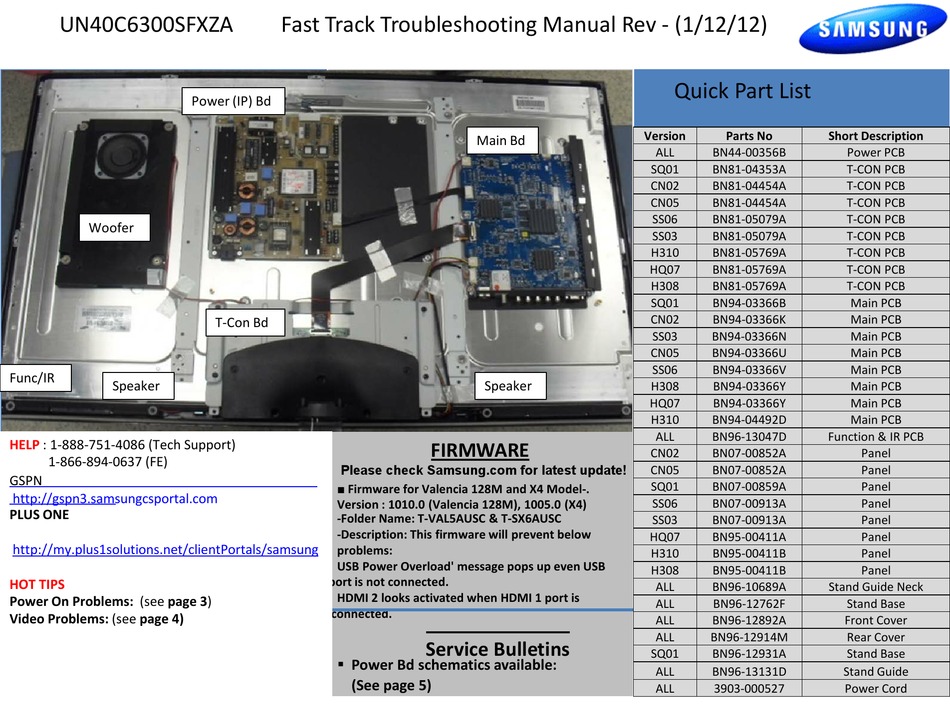

Samsung UN40C6300SFXZA Troubleshooting Manual

UN40C6300SFXZA
HELP :
1-888-751-
4086 (Tech Support)
GSPN
http://service.samsungportal.c
Woofer
om/EP/web/portal/jsp/EP_Def
ault1.jsp
PLUS ONE
http://my.plus1solutions.net/c
Func/IR
Speaker
lientPortals/samsung
HELP : 1-888-751-4086 (Tech Support)
1-866-894-0637 (FE)
GSPN
http://gspn3.samsungcsportal.com
PLUS ONE
http://my.plus1solutions.net/clientPortals/samsung
HOT TIPS
Power On Problems: (see page 3)
Video Problems: (see page 4)
Fast Track Troubleshooting Manual Rev - (1/12/12)
Power (IP) Bd
T-Con Bd
Please check Samsung.com for latest update!
■ Firmware for Valencia 128M and X4 Model-.
Version : 1010.0 (Valencia 128M), 1005.0 (X4)
-Folder Name: T-VAL5AUSC & T-SX6AUSC
-Description: This firmware will prevent below
problems:
USB Power Overload' message pops up even USB
port is not connected.
HDMI 2 looks activated when HDMI 1 port is
connected.
 Power Bd schematics available:
(See page 5)
Main Bd
Speaker
FIRMWARE
Service Bulletins
Quick Part List
Please check GSPN for parts update!
Version Parts No
ALL BN44-00356B
SQ01 BN81-04353A
CN02 BN81-04454A
CN05 BN81-04454A
SS06 BN81-05079A
SS03 BN81-05079A
H310 BN81-05769A
HQ07 BN81-05769A
H308 BN81-05769A
SQ01 BN94-03366B
CN02 BN94-03366K
SS03 BN94-03366N
CN05 BN94-03366U
SS06 BN94-03366V
H308 BN94-03366Y
HQ07 BN94-03366Y
H310 BN94-04492D
ALL BN96-13047D
CN02 BN07-00852A
CN05 BN07-00852A
SQ01 BN07-00859A
SS06 BN07-00913A
SS03 BN07-00913A
HQ07 BN95-00411A
H310 BN95-00411B
H308 BN95-00411B
ALL BN96-10689A
ALL BN96-12762F
ALL BN96-12892A
ALL BN96-12914M
SQ01 BN96-12931A
ALL BN96-13131D
ALL 3903-000527
Short Description
Power PCB
T-CON PCB
T-CON PCB
T-CON PCB
T-CON PCB
T-CON PCB
T-CON PCB
T-CON PCB
T-CON PCB
Main PCB
Main PCB
Main PCB
Main PCB
Main PCB
Main PCB
Main PCB
Main PCB
Function & IR PCB
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Panel
Stand Guide Neck
Stand Base
Front Cover
Rear Cover
Stand Base
Stand Guide
1
Power Cord
