Summary of Contents for KAS crease matic 150

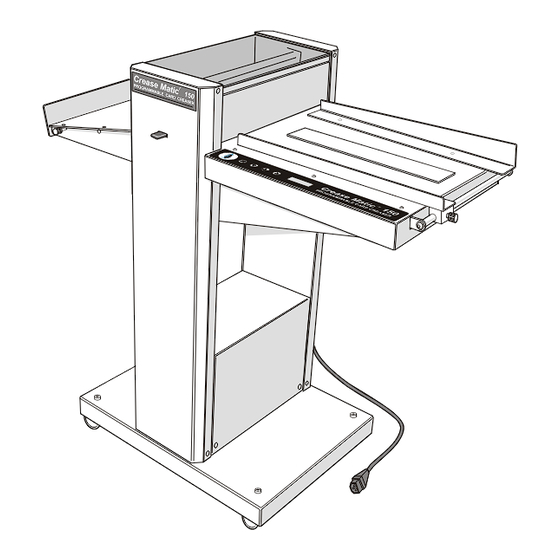

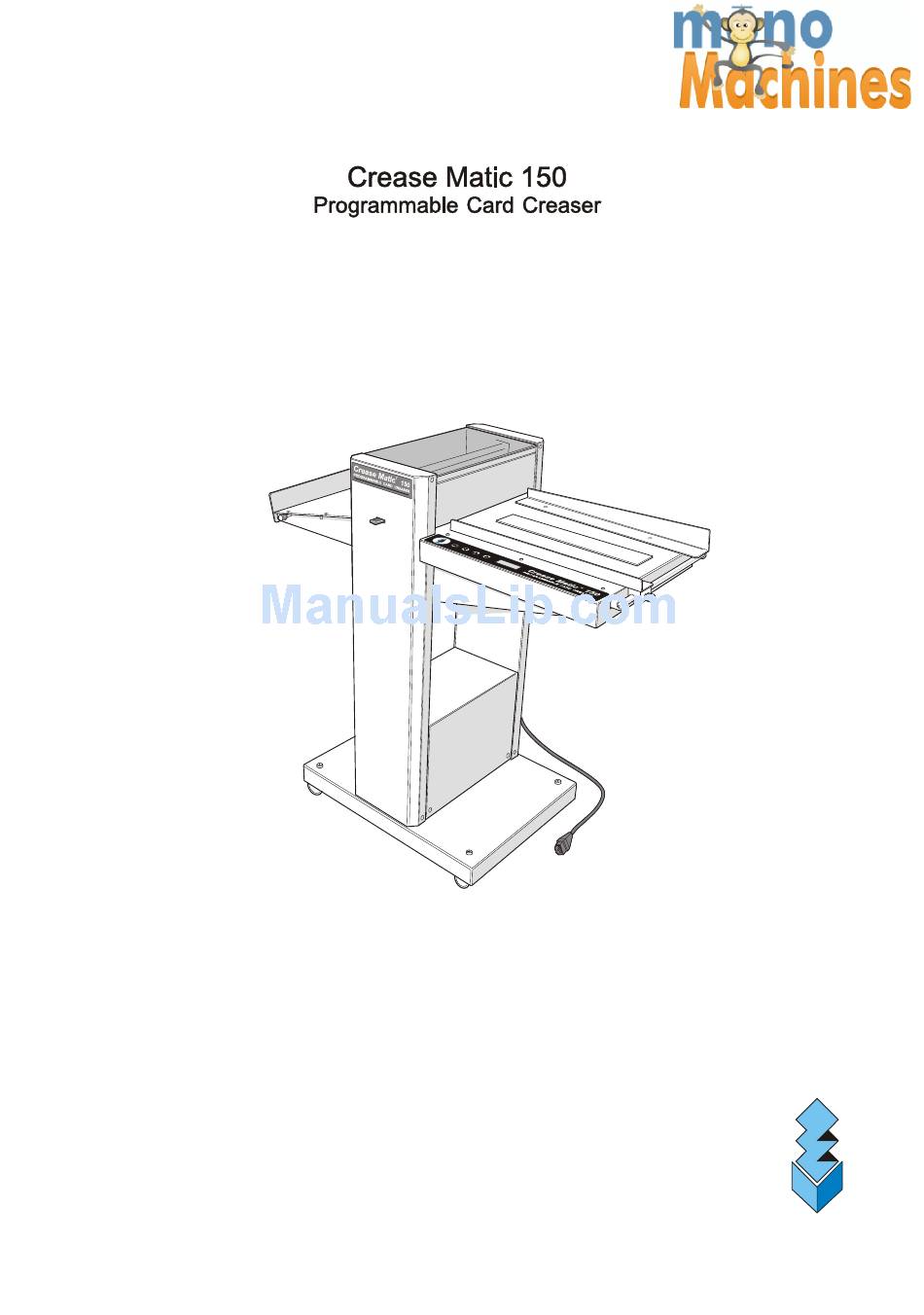

- Page 1 For More Info Click Here ---> KAS http://www.monomachines.com...
- Page 2 A slide-out, reversible creasing matrix allows card up to 350gsm to be creased. The Crease Matic 150 is quiet in operation and the drive motor shuts down if not used for a period of time. The floor-standing unit has wheels for ease of mobility and storage, and has a footprint of 103cm x 47cm.
- Page 3 Crease Matic 150 Operation: The creasing machine has five (5) programs that are saved on power down. Each program may contain up to nine (9) crease positions. There is no limit to how close together, or how close to the sheet edge, the creases may be.
- Page 4 Crease Matic 150 Operation (continued): In ‘run’ mode the feed motor and/or crease motor may be stopped at any time by pressing any of the four keys. To restart the feed motor, press the key. key is pressed, the sheet counter is reset to If the feed motor is stopped and the zero.
- Page 5 For More Info Click Here ---> Crease Matic 150 mechanical adjustment and maintenance: Knife Driver 2) Screws for Adjustment of RHS Lay 1) Knife Depth Adjustment Blocks 3) Bolts for Adjustment of LHS Lay RHS Lay LHS Lay Crease Block LHS Lay Support Bar Turn the Power off.
- Page 6 http://www.monomachines.com For More Info Click Here ---> New Job Setup: 1. Ensure Crease Matic is in ‘setup’ mode. Decimal 2. Push card gently to infeed wheels. The Crease point in last position of screen and LED off. Select Matic will feed the card to the creasing blade. job number to program, then press ‘crease’.
- Page 7 http://www.monomachines.com For More Info Click Here ---> CROSS LEFT RIGHT CREASE Power on Reset memory Edit sensor to crease If ‘9999’ displayed at Sensor to crease = 16 distance setting start up. Press to reset knife Setup mode Exit to run Index job Setup job Display job...
- Page 8 http://www.monomachines.com For More Info Click Here ---> CROSS LEFT RIGHT CREASE Power on If ‘9999’ displayed at start up. Press to reset knife Setup mode Exit to run Index job Setup job Display job Last D.P. on screen Setup Exit to run Forward Crease and save setting Back (slow)
- Page 9 http://www.monomachines.com For More Info Click Here ---> Upper perforator wheel Top perforating wheel is pushed against spring as perforator is closed Do not adjust this screw Upper shaft Control wheel Control wheel Lower shaft Lower perforating wheel 1/8”(3.17mm) 1/4” (6.35mm) Position of Perforating wheels when in open position Position of perforating wheels when in closed position Perforator Set-up...
