Contents Characteristics of Smart Home System ------------------------------------------------01 Packaging List -------------------------------------------------------------------------02 Operating Principle --------------------------------------------------------------- 03-04 Categories of Detector Zones ------------------------------------------------------03 Operate Together with Multiple Smart Switch --------------------------------------04 Introduction of Panel -------------------------------------------------------------- 05-07 Powering on the Panel -------------------------------------------------------------06 Positioning of Panel -----------------------------------------------------------------07 Use of Accessories ---------------------------------------------------------------- 08-11 Remote Control ---------------------------------------------------------------------08 Door/Window Contact --------------------------------------------------------------09... -
Page 3: Characteristics Of Smart Home System

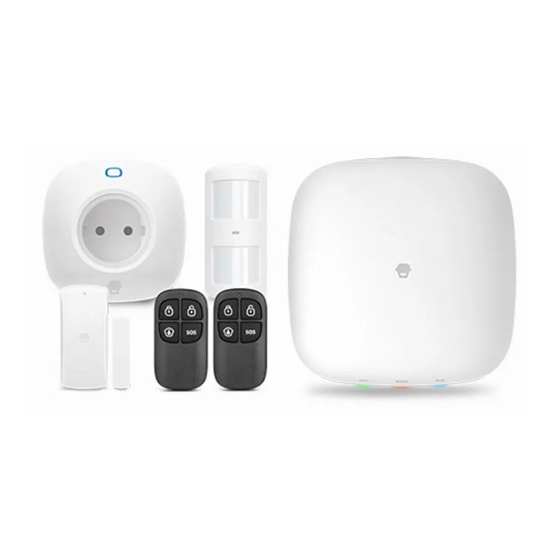

Supports 5 alarm notification numbers Supports 50 wireless accessories (10 remote controls, 40 detectors/smart switches) 3. High Level of Security H4 panel ×1 H4-PW smart switch ×1 RC-86 bidirectional Hidden tamper switch to prevent malicious damage remote control ×2 Built-in 1,000,000 RF codes 105-dB siren deterrence 4. -
Page 4: Operating Principle
App. Panel alarm/ Intrusion App notification/ detected phone call H4 Panel User PIR motion detector after pairing Manage through remote Door/window contact after pairing control/mobile phone Lamp Coffee machine Operating Principle of Panel Alarm... -
Page 5: Introduction Of Panel
Introduction of Panel Tamper Switch SIM Card Slot AC Adapter Port Power Switch Pairing Button WiFi SOS button Indicator GSM Indicator Light Light Back Side Status Indicator Light Top Side Front Side Note: After pressing the Tamper Switch, the panel will immediately sound the alarm. Description of Indicator Light Powering on the Panel Indicator Light... -
Page 6: Positioning Of Panel
Use of Accessories Positioning of Panel Place on the table. For best reception of the wireless signal, it is recommended that you place the panel in an open area that is located centrally to the whole alarm system. Remote Control Avoid placing the panel on a load-bearing wall or beside any electrical appliances. -
Page 7: Door/Window Contact
Door/Window Contact Note: Indicator light flashes once: Motion is detected. Door/window contact is for detection of the opening-closing state. If the system is set Flashes three times per second: The battery is running low. Please replace the battery as soon to Arm and the transmitter is more than 2cm apart from the magnet, the panel will as possible. -
Page 8: Smart Switch
Smart Switch Separate the transmitter from the magnet by at least 2 cm The H4 panel can be matched with multiple smart switches. You can control home appliances remotely using these switches. Place the PIR motion detector in a high position and then walk within... -
Page 9: Installation Of Accessories
Installation of Accessories Installation of PIR Motion Detector Insatallation notice: Should not face glass doors/windows; should not face objects that easily swing; should not face any source of cold or heat, such as a heater, air- Upon confirmation of successful pairing, enter installation processes. conditioner, refrigerator or microwave oven;... -
Page 10: App Setting And Operation
App Setting and Operation H4 has WiFi and GPRS dual-network function. During the use of WiFi, the GPRS network will be disconnected. If the WiFi connection fails (e.g. the Internet connection is unstable or there is no power supply from the adapter), it will be automatically... -
Page 11: Step 4: App Operation
Step 4: App Operation Rule Settings Rule settings refer to activating the whole set of smart switch modes according to Alarm Control different scenarios. When the panel is set to Arm, Disarm, Home Arm, or Alarm, the All paired accessories are shown in the alarm control interface. A bright image switches with preset rules will automatically turn on/off accordingly. - Page 12 System Settings Save Alarm Phone Number With a SIM card inserted into the panel, you may switch to the GPRS network to and enter the interface for system settings to perform operations. remote control the system during disconnection of WiFi network. After saving the Account Management alarm phone number in the App interface below, the user will receive an alarm call in case of emergency.
-
Page 13: Apn Settings
APN Setting If the system is controlled through GPRS data, some SIM cards may be required to set APN first to enable the GPRS function. so if the GPRS function of the SIM card in H4 doesn’t work. Do as follow: 1. -
Page 14: Remote Control By Phone
Remote Control by Phone FAQs 1. The authorized phone number (those you saved on App) can dial the SIM card No. If the alarm system does not function properly, please read the following FAQs and of the panel to remotely control the system. After getting through, the system will carry out troubleshooting before contacting the smanos service center. -
Page 15: Specification
Specification Confirm that the SIM card is not in arrears No phone call Confirm that the alarm number has been set notification upon If you set the system to Disarm immediately after the sounding of the sounding of alarm Panel alarm, there will be no phone call notification Model No sound emitted from... - Page 16 Bidirectional Door/Window Contact Smart Switch Model DWC-86 Model H4-PW Power Supply DC 3V (2 x 1.5V AAA LR03 Batteries) AC Input/Input Range AC 100 ~ 240 V, 50/60 Hz Standby Current <20 uA Maximum Load Operating Current <10 A Alarm Current <15 mA...
-
Page 17: Safety Reminder
Safety Reminder Maintenance and Repair Please read the following rules. Any non-compliance may cause damage to the The alarm system is produced with superior design and craftsmanship. Please use it equipment or affect its performance. carefully. The following advice will facilitate your adherence to the conditions stated in the warranty clauses and prolong product life. -
Page 18: Disclaimer
Disclaimer We have striven to provide accurate and complete information during the preparation of this manual, but we do not guarantee that this manual contains no inaccurate or missing parts. Smanos reserves the right to amend the specifications of the hardware and software mentioned in this manual at any time without prior announcement. - Page 19 部 件 名 称 说明书 材 料 80 克书写纸 工 艺 骑马钉 印 刷 尺 寸 258x185 设 计 林寿 成 品 尺 寸 129x185 注：双面四色印刷 36P...
