MC6DSP
MC10DSP
MC14DSP

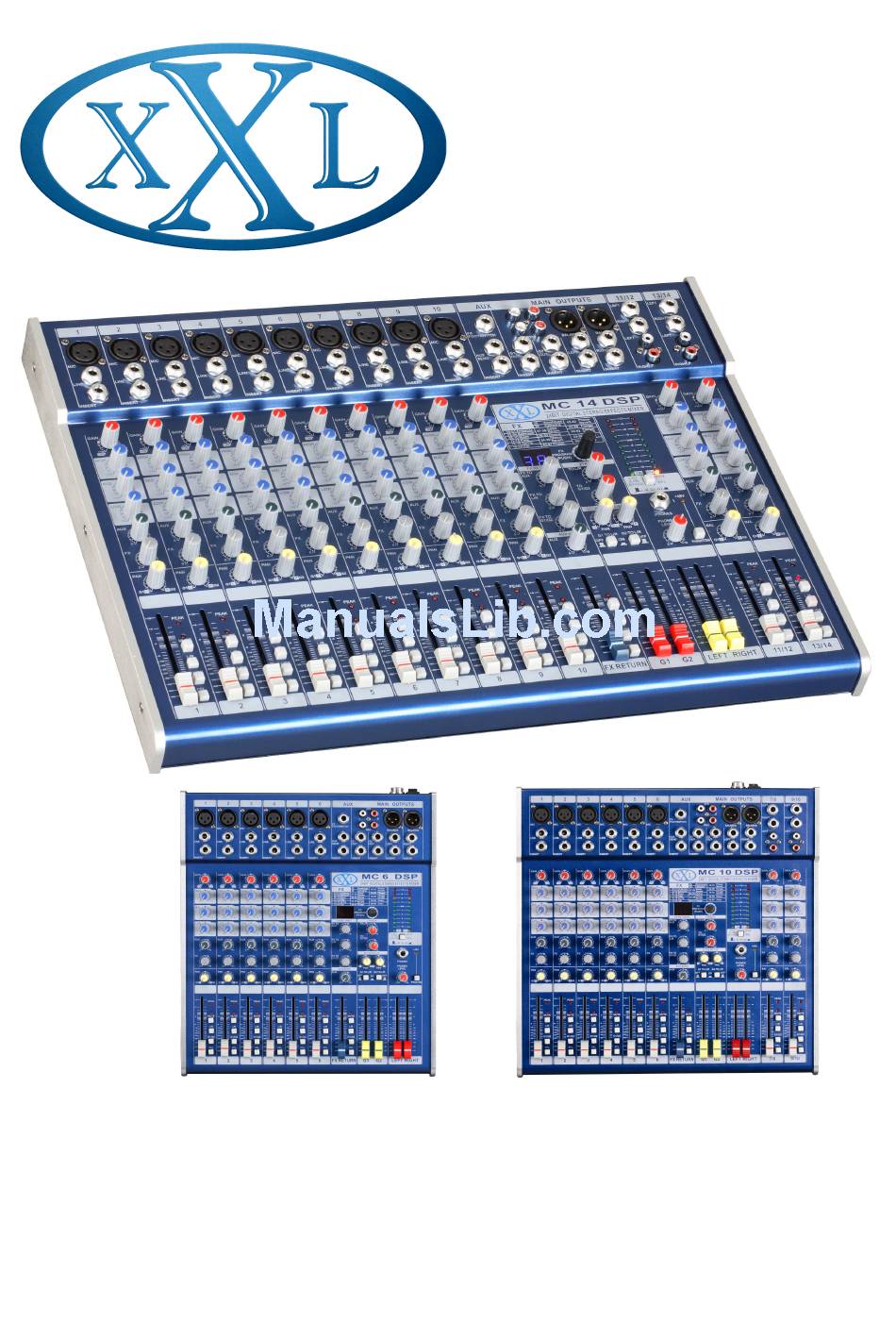

Compact mixers with DSP
Quick reference Manual
XXL product range is expanded with MC DSP mixer series, featuring:
Quality – Reliability - High Value
Powerful 99 preset on-board FX DSP
Aux and FX independent Sends
Versatile FX Return section for AUX; L/R & G1/G2
G1/G2 featured as Groups and/or as Sub-groups
Balanced Outputs
PFL & MUTE switches on each input channel
3-band EQ on each channel
Advertisement
Related Manuals for XXL MC6DSP
Summary of Contents for XXL MC6DSP
- Page 1 MC10DSP MC14DSP Compact mixers with DSP Quick reference Manual XXL product range is expanded with MC DSP mixer series, featuring: Quality – Reliability - High Value Powerful 99 preset on-board FX DSP Aux and FX independent Sends Versatile FX Return section for AUX; L/R & G1/G2...
- Page 2 Mono Input Channel (6 on MC6DSP, 6 on MC10DSP, 10 on MC14DSP) 1 - XLR mic input* 2 -1/4” line input jack 3 - 1/4" INSERT jack** 4 –Input GAIN control 5 – Hi +/-15dB @ 10kHz 6 – Mid +/-15dB 7 –...
- Page 3 Stereo Input Channel (0 on MC6DSP, 2 on MC10DSP, 2 on MC14DSP) 1 – LEFT & RIGHT 1/4” line input jack “A”* 2 – LEFT & RIGHT 1/4” line input jack “B”* 3 - Input GAIN control 4 – Hi Freq +/-15dB @ 10kHz 5 –...
-
Page 4: Master Section
Master section Master section connections FX FOOTSWITCH* – 1/4" jack AUX send - 1/4" jack (Aux send) INSERT** – 1/4” TRS jack 2TR (play)*** - pin-jack pair 2TK REC*** - pin-jack pair G1 output - 1/4" jack G2 output - 1/4" jack G1 INSERT** –... - Page 5 Conexiones sección Máster Connexions de la section Master Buchsen in der Master-Sektion Connessioni sezione Master FX FOOTSWITCH* – jack FX FOOTSWITCH* –Jack 6,35 FX FOOTSWITCH* –6,35mm FX FOOTSWITCH* – presa da 6,35mm Klinke 6,35mm. AUX send – jack 6,35mm AUX send - Jack 6,35 mm AUX send - 6,35mm Klinke.
- Page 6 NOTES NOTAS NOTES ANMERKUNGEN NOTE FOOTSWITCH* FOOTSWITCH* FOOTSWITCH (Pédale FOOTSWITCH* FOOTSWITCH* This ¼” jack is provided for Este enchufe de 6,35 mm. commutateur)* Diese 6,35 mm Buchse Questa presa da 6,35mm è Effect unit’s remote control. se suministra para el Cette prise jack 6,35 mm dient zur Fernbedienung fornita per il controllo a...
-
Page 7: Wichtige Sicherheitshinweise
10 LEDs Output Level Indicador del nivel de Indicateur de niveau de Ausgangspegelanzeige Indicatore del livello di meter******** salida a 10 LED******** sortie à 10 DEL******** mit 10 LED******** uscita a 10 LED******** Indicator Mode – Indicador Mode – Commutateur Indicator Indicator Mode–Schalter Indicator Mode –... - Page 8 T.H.D.+N <0.05% (20Hz-20kHz) Output Level & Imp. (Main, Groups and AUX Sends) +12db @600Ω AUX Return 75Ω Imp. MC6DSP MC10DSP MC14DSP Inputs 6 mono 6 mono + 2 stereo 10 mono + 2 stereo Dimensions 347 x 294 x 45...
