DRC MP
ACCESSORIES
USER'S
MANUAL
rev. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRC MP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audison DRC MP

Summary of Contents for Audison DRC MP

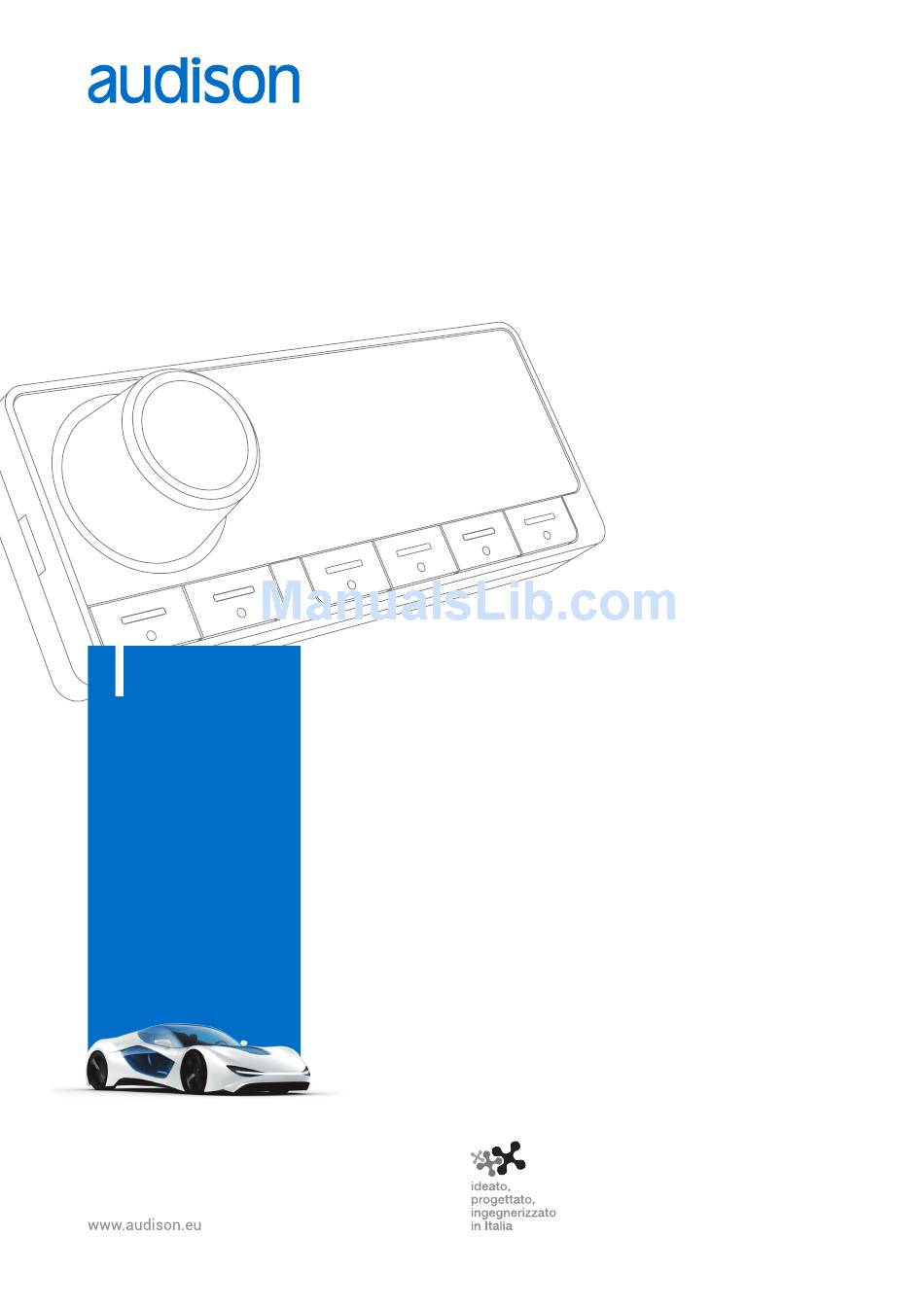

  • Page 1 DRC MP ACCESSORIES USER’S MANUAL rev. 1...

  • Page 2: External Dimension

    The matte black finish and the possibility of choosing among forty-two different colours for the keyboard make it easier for the DRC MP to integrate with the car dashboard. The new display with white characters features a built-in sensor, for brightness automatic adjustment of the characters according to the light conditions inside the car, and remains readable from any viewing angle.

  • Page 3: Installazione

    6. Make sure that the positioning does not interfere with the proper functioning of the car’s electrical or mechanical devices. After installation, verify that the light sensor on the front panel of the DRC MP is not obscured. This sensor, if the “Day & Night Mode”...
  • Page 4 ACCESSORIES DRC MP / MANUALE D’USO / USER’S MANUAL COLLEGAMENTO DRC MP HOW TO CONNECT DRC MP COLLEGAMENTO CAVO CABLE CONNECTION DRC/ACLink cable (provied) COLLEGAMENTO DISPOSITIVI DEVICES CONNECTION 5.2.1. Collegamento verso dispositivi dotati di ingresso DRC Devices with DRC Input connection...
  • Page 5 ACCESSORIES DRC MP / MANUALE D’USO / USER’S MANUAL 5.2.2. Collegamento DRC MP-bit Play HD + Dispositivi dotati di ingresso DRC DRC MP-bit Play HD with DRC Input connection Devices bit One HD OPTICAL INPUT, bit One OPTICAL INPUT, MAX 192KHz / 24 bit...
  • Page 6 FADER, BALANCE, VOLUME SUB. When an Audison bit Play HD is connected, by enabling the “Navi Command” function of the DRC MP (see xxx), it is possible to browse through the player main menu with the Joystick, in the same way as with the remote control.

  • Page 7: Power Off

    ACCESSORIES DRC MP / MANUALE D’USO / USER’S MANUAL DEFAULT MENU’ MUTE ON Press shorty MUTE OFF Press shorty Volume control POWER ON Default function Press shorty POWER OFF Press for 3 seconds Il volume indipendente per il Subwoofer agisce solo se nella configurazione è...
  • Page 8 MANUALE D’USO / USER’S MANUAL DEFAULT MENU’ E’ possibile richiamare direttamente le memorie settate (tramite il software) e memorizzata nel processore Audison bit. Questa funzione è disponibile soltanto con un prodotto Audison DSP/ AP Prima collegato. Set memories can be recalled (trought the software) and stored in the Audison bit processor.
  • Page 9 Tramite questo Menù è possibile intervenire sulle principali regolazioni del DRC MP, Colore tastiera, luminosità, contrasto, Logo, Night&Day, e visualizzare le informazioni del prodotto. Trought this Menu, you can act on key settigngs, of the DRC MP, keyboard color, brightness, contrast, Logo, Night&Day mode, and display product information Keyb.

  • Page 10: Dsp Settings

    ACCESSORIES DRC MP / MANUALE D’USO / USER’S MANUAL DSP SETTINGS Tramite questo menù è possibile agire sulle seguenti impostazioni. • “Auto IN Level Adj” consente di reimpostare il volume della sorgente principale a quello impostato nella fase di taratura iniziale del bit One.

  • Page 11: Player Menu

    This menu is available only if an Audison bit Play HD is presente in your audio system (Il bit Play HD deve essere aggiornato alla revisione control firmware 1.1.6.1e Media firmvare 1.1.1.0 o superiore). When a bit Play HD is connected, through this menu you can set the time the player remains on stand-by mode, after the turn off signal has been sent to the “Remote-In”.
  • Page 12 When an Audison bit Play HD is connected, by enabling the “Navi Command” function of the DRC MP, it is possible to browse through the player main menu with the Joystick, in the same way as with the remote control. The new Joystick has been developed according to the latest biometric techniques with the purpose of ensuring maximum user-friendliness, to keep the driver’s attention on the road for as long as possible.
  • Page 13 CONNESSIONE A PRODOTTI AUDISON AP Quando è connesso un amplificatore Audison AP bit, il DRC MP visualizza i seguenti alert: When an Audison AP bit amplifier is connected, the DRC MP can display the following alerts 1. “thermal protection” in caso di surriscaldamento.

  • Page 14: Aggiornamento Firmware

    - chiudere tutte le altre applicazioni aperte. - disabilitare temporaneamente i sistemi antivirus e antispyware. 7. Scegliere il dispositivo Audison bit connesso al DRC MP e di seguito premere il tasto 9, dalla tastiera del proprio PC. 8. Al termine dell’aggiornamento scollegare il cavo USB.
  • Page 15 3. Connect the DRC MP to an Audison bit product. 4. Connect the USB port of the PC to Audiosn bit product. The Audison bit product connected to your PC must have its appropriate PC software of Audison bit installed.

  • Page 16: Caratteristiche Tecniche

    MANUALE D’USO / USER’S MANUAL CARATTERISTICHE TECNICHE TECHNICAL SPECIFICATIONS CONNECTION FUNCTIONS To Audison Electronics: AC Link controls – cable provided (4.5 m / 177 in.) Default Menu: Master Volume, Subwoofer Volume, Fader, Balance, Source selector (Aux 1, Aux 2, Digital Electric, Digital Optical). SIZE...
  • Page 17 PART OF ELETTROMEDIA 62018 Potenza Picena (MC) Italy T +39 0733 870 870 - F +39 0733 870 880 www.elettromedia.it...
