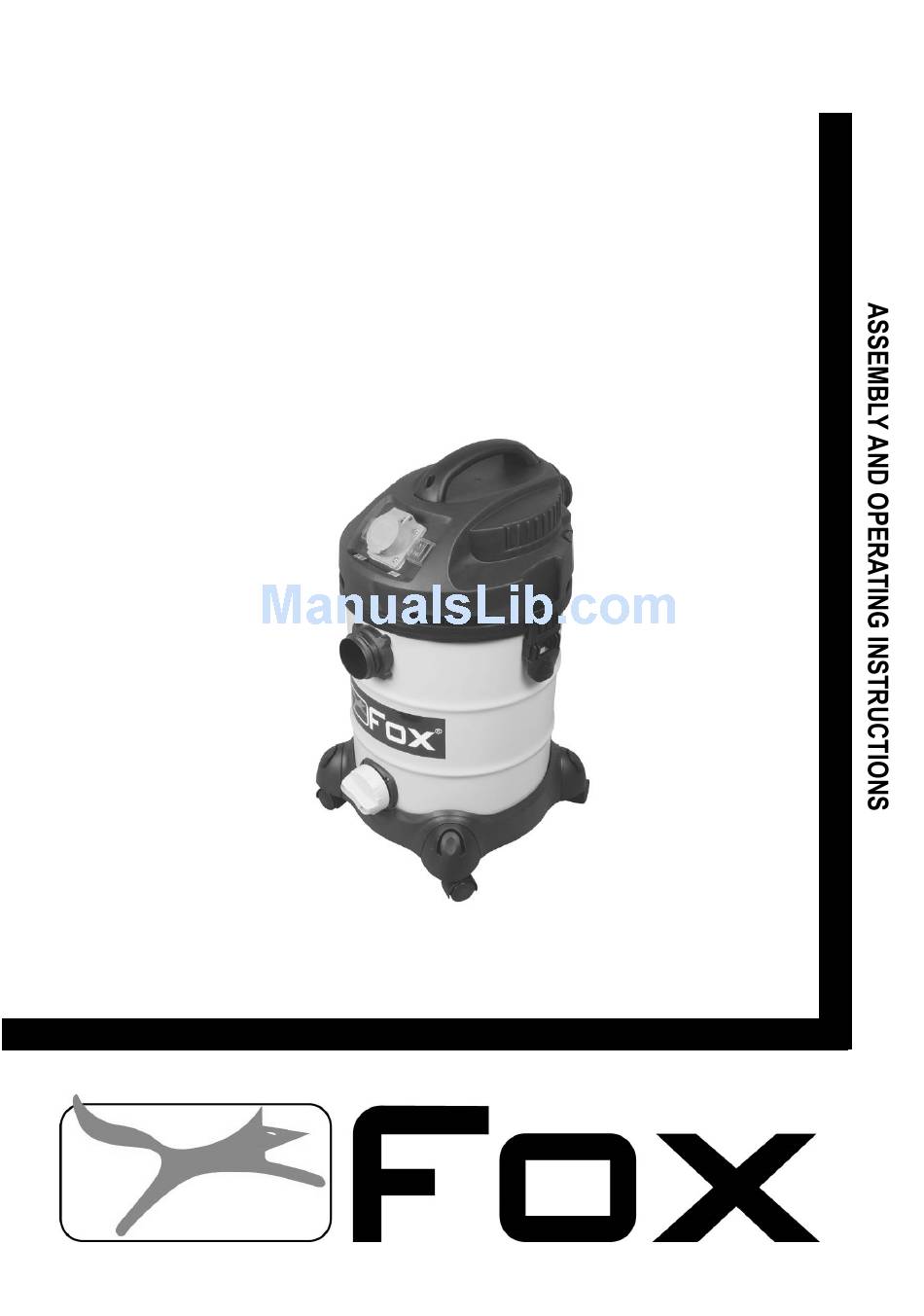

- Page 1 WET & DRY VACUUM EXTRACTOR Model F50-800...
-
Page 2: Table Of Contents
Wet & Dry Vacuum Extractor FOX MODEL F50-800 TABLE OF CONTENTS Safety instructions……………………………………………………………………………… Page 3 Specifications…………………………………………………………….……………………... Page 6 Electrical connections……………………………………………………………….………….. Page 7 Environmental protection……………………………………….……………………………… Page 8 Symbols…………………………………………………………………………………….……. Page 8 Package contents…………………………………………………………………………..…... Page 9 ... -
Page 3: Safety Instructions
ATTENTION : - Read the instructions for use carefully before using the machine - This device meets current safety standards for electrical machines. - Incorrect use may result in injury. Anyone not familiar with the instructions for use should not use the machine. - Page 4 6. Do not force the machine. It will work better when used with the pressure it was designed for. 7. Use the correct tools. Do not force a small tool to do the work of a bigger tool. For example, do not use a circular saw to cut branches or logs.
- Page 5 SPECIFIC SAFETY INSTRUCTIONS FOR VACUUM EXTRACTORS 1. The filtration housing contains a high speed fan blade that can amputate fingers, grab loose clothing and neckties, and propel dust at high velocities. DO NOT OPERATE WITHOUT ALL PARTS IN PLACE. 2. Do not attempt to clean, remove the filter, or service the unit when the power is on. Turn the unit off and disconnect the cord from the power source.
-
Page 6: Specifications
free of dust, lint, hair or anything that may reduce air flow. 19. Keep hair, loose clothing, fingers, and all body parts away from openings and moving parts. 20. Extension cords in poor condition or that are too small can cause fire and shock hazards. When using an extension cord, ensure it is in good condition. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS EXTENSION CORDS Before using an extension cord, ensure the insulation is not cut or worn. Immediately repair or replace a damaged or frayed cord. ATTENTION : Extension cords must be removed from the work area or located so that they will not get caught in parts, tools or other objects while using the tool. -
Page 8: Environmental Protection
ENVIRONMENTAL PROTECTION INFORMATION FOR USERS In accordance with art. 13 of Legislative Decree 25th July 2005, no. 151 “Implementation of Directives 2002/95/EEC, 2002/96/EEC and 2003/108/EEC, relative to reducing the use of hazardous substances in electric and electronic appliances and the disposal of waste”, please take note of the following: ... -
Page 9: Package Contents
PACKAGE CONTENTS Unpack your vacuum extractor carefully, taking care with the loose parts. Note : if any parts are damaged or missing, do not connect the machine to the power and do not switch it on until the missing/damaged parts are replaced. Do not throw away the cardboard box until you are sure the machine is working correctly. -
Page 10: Assembly
ASSEMBLY 1. Ensure the mains plug is disconnected (Fig. 1) 2. Undo the clasps (Fig. 2) 3. Lift off the top section assembly (Fig. 3) 4. Remove the contents from inside the container (Fig. 5. Turn the container upside down and insert the four feet with castor wheels at the rear of the tank. -
Page 11: Dry Vacuuming Cleaning
DRY VACUUM CLEANING Warning! Ensure you read, understand and follow the Safety Instructions on pages 3 to Reminder: DO NOT vacuum hazardous substances. Use of an incorrect dust bag will invalidate your warranty. 1. Ensure the machine is unplugged from the power supply (Fig. -
Page 12: Wet Vacuuming Cleaning
WET VACUUM CLEANING 1. Ensure the machine is unplugged from the power supply. Make sure the tank is clean and free from dust and dirt (Fig. 1) 2. Remove the cartridge filter/dust bag and fit a foam filter over the filter basket. -
Page 13: Blowing
BLOWING Push the large end of the flexible hose into the blow connection in the top of the motor housing (Fig. 1) Ensure the power switch is turned off and plug in the power supply (Fig. 2) Switch on the power (position ) (Fig. -
Page 14: Cartridge Filter Maintenance
CARTRIDGE FILTER MAINTENANCE Warning! Always disconnect the plug from the wall outlet before removing the tank cover. Notice: this filter is made of high quality paper designed to stop small particles of dust. The filter should be used for dry pick-up. A dry filter is necessary to pick up dust as, when the filter is wet, the filter will clog quickly and be very difficult to clean. -
Page 15: Consumables
CONSUMABLES Dust bags (standard) Dust bags (fine) Foam filter Cartridge filter Important! You must change the dust bag cartridge filter regularly. If the machine is used without the dust bag/cartridge filter, the motor will burn out eventually and your guarantee will be invalidated. -
Page 16: Dart Tool Group Guarantee
Power Tools and accessories which, upon examination, prove to be defective in workmanship or material. The warranty period for the FOX branded products is one year for parts and labour and three years for parts only. The guarantee does not include repair, labour or parts requiring replacement because of misuse, abuse, or normal wear and tear. -
Page 17: Declaration Of Conformity
Tel. +44 (0) 1592 652946 Fax: +44 (0) 1592 654854 Declares that the: WET & DRY VACUUM EXTRACTOR (F50-800) is in compliance with the regulations included in the Directives: CEE 2006/42-2004/108-2006/95 Person authorized to create the technical file: Robert Paterson 06.05.2011...
