Qvis TT-208 User Manual

300mps 5.8 ghz wireless transmission kit for ip cameras
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TT-208
300Mps 5.8 GHz
IP Camera Wireless Transmission Kit
User's Manual
V1.0 02 / 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT-208 and is the answer not in the manual?

Questions and answers

Summary of Contents for Qvis TT-208

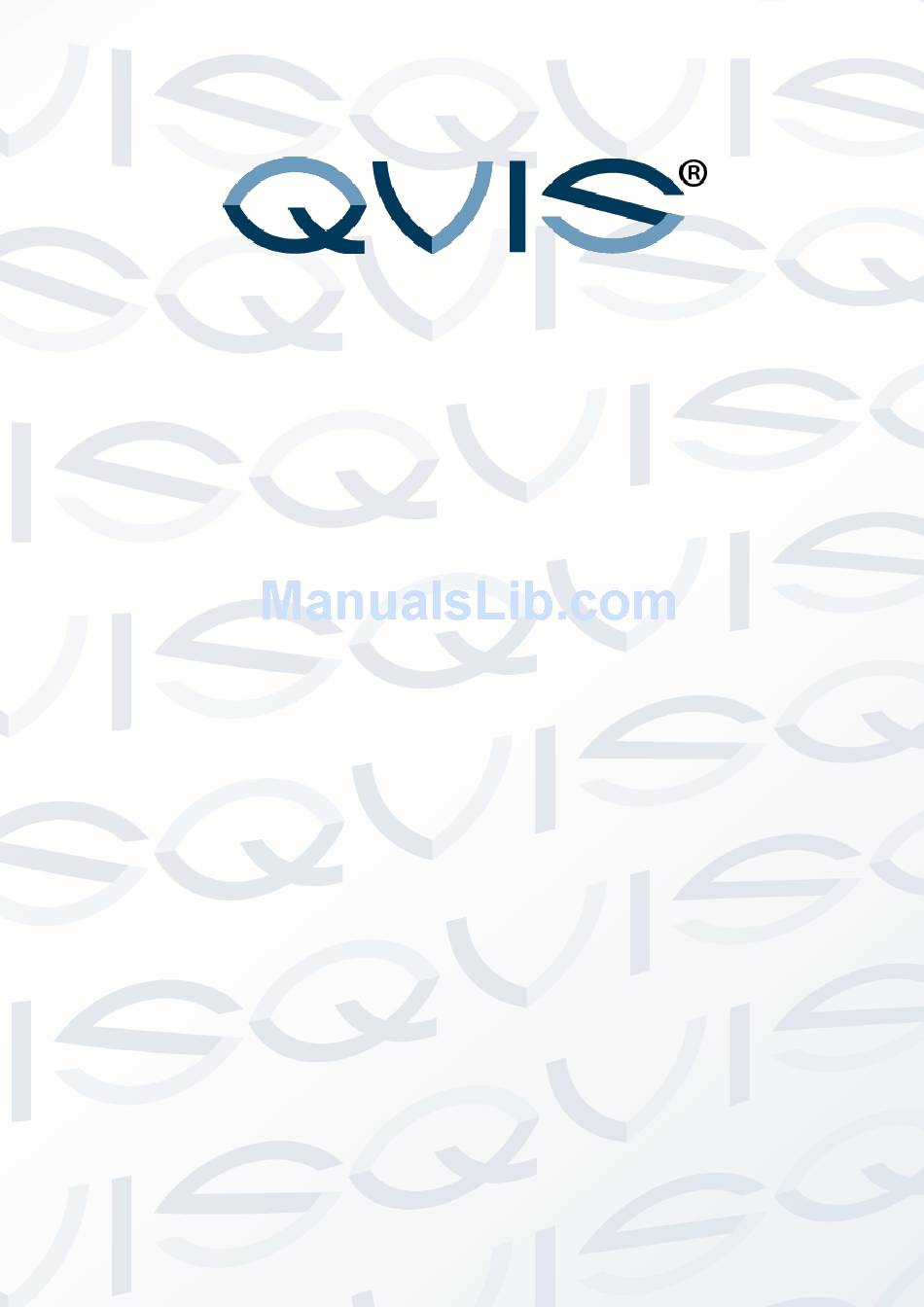

  • Page 1 TT-208 300Mps 5.8 GHz IP Camera Wireless Transmission Kit User’s Manual V1.0 02 / 2014...
  • Page 2 Welcome Thank you for purchasing the TT-208 Wireless Transmission Kit for IP Cameras. This user’s manual is designed to be a reference tool for the installation and operation of the device. Here you can find information about the corresponding model’s features and functions, as well as detailed instructions on how to operate the device.

  • Page 3: Table Of Contents

    Safety Precautions ....................5 Installation Precautions ..................6 Controls & Settings ..................... 7 Connecting up the device ..................7 Using the External Antenna ................10 Pole Mounting ....................12 Configuration ......................14 © Copyright Qvis ®. All documentation rights reserved.

  • Page 4: General Information

    1 General information Introduction TT-208 is a wireless transmission system designed to transmit audio / video in the 5GHz frequency band with a power rating of 1W (30dbi). The device transmits signals from IP cameras with high resolution (up to 5Mpixels). The built-in dual...

  • Page 5: Technical Specification

    5W in receiving mode Operational temperature -20°C ~ 70°C Product package contents  Wireless External Video Unit  Power cord & POE injector  Pole mounting ring x 2 pcs  Product CD © Copyright Qvis ®. All documentation rights reserved.

  • Page 6: Pre-Installation Precautions

    To keep you safe and to make sure you install the hardware properly, please read and follow these safety precautions. If you are installing the TT-208 Wireless External Unit for the first time, for your safety as well as others’, please seek assistance from a professional installer who has received safety training on the hazards involved.

  • Page 7: Installation Precautions

    Users MUST use the “Power cord & POE Injector” shipped in the box with the CDS-5IP. Use of other options will likely cause damage to the unit. Users MUST power off the TT-208 - Wireless External Video Unit first before connecting the external antenna to it. Do not switch from built-in antenna to the external antenna from WEB management without physically attaching the external antenna onto the unit;...

  • Page 8: Controls & Settings

    3 Controls & Settings Connecting up the device The bottom of TT-208- Wireless External Video Unit has a removable cover. Loosen the screw with a Philips screwdriver. Grip the cover and pull it back reasonably firmly so you can take it out as shown in the figure below.
  • Page 9 The secondary Ethernet port (labelled LAN 2) is for the IP camera or for next TT-208 unit’s video integration. To use it you need to enable the secondary port in advance before connecting with the IP camera from the TT-208`s Web...
  • Page 10 Figure 5: Plug the Ethernet cable to the RJ-45 jack of the injector Press the black PWR button beside the LAN 1 Ethernet port (highlighted by the red circle below). Figure 6: PWR button © Copyright Qvis ®. All documentation rights reserved.

  • Page 11: Using The External Antenna

    Attach and fasten the removable cover to the bottom of the unit with the screw. Figure 7: Remove cover Power on the TT-208 - Wireless External Video Unit by plugging the power adapter in to the power socket. Using the External Antenna The TT-208 - Wireless External Video Unit provides two reverse SMA antenna connectors.
  • Page 12 Connect your external antenna to the SMA-type connectors at the bottom of the Wireless External Video Unit. Figure 9: Connect external antenna © Copyright Qvis ®. All documentation rights reserved.

  • Page 13: Pole Mounting

    Figure 10 Pole Mounting – Step 1 Mount the TT-208 - Wireless External Video Unit steadily to the pole by locking the pole mounting ring tightly. The mounting ring supports pole diameter 32mm to 70mm. © Copyright Qvis ®. All documentation rights reserved.
  • Page 14 Now you have completed the hardware installation of the TT-208 - Wireless External Video Unit . © Copyright Qvis ®. All documentation rights reserved.

  • Page 15: Configuration

    4 Configuration Connect the TT-208 to your PC by plugging in an Ethernet cable into LAN port of POE injector in one side and in LAN port of PC in the other side. Next power on the TT-208 via the POE injector supplied and press the black power button beside the LAN1 port.
  • Page 16 Now, you will see the log-in page of the TT-208. The default Name and Password are “camsat” and “camsat” respectively. Enter the password and then click Login. We’ll elaborate the TT-208 - Wireless External Video Unit factory default settings. You can re-acquire these parameters by default. If necessary, please refer to the “Restore Factory Default Settings”.
  • Page 17 Enabled RTS Threshold (byte) 2346 Fragmentation Length (byte) 2346 Beacon Interval DTIM Interval Space in Meter Flow Control by AP Disable Security Open System Encryption None Wireless Separation Disable Access Control Disable © Copyright Qvis ®. All documentation rights reserved.
  • Page 18 For users who use the TT-208 - Wireless External Video Unit for the first time, it is recommended that you begin configuration from “ ” in “ ” shown Basic Settings System below: TCP/IP Settings Open “TCP/IP Settings” in “System” as on the next page to configure the parameters for LAN which connects to the LAN port of the CDS-5IP.
  • Page 19 TCP/IP Settings (Bridge) Obtain IP Address Automatically: If a DHCP server exists in your network, you can check this option, thus the TT-208 - Wireless External Video Unit is able to obtain IP settings automatically from that DHCP server. Since the TT-208 covers “Video Bridge mode”, “Master mode” as well as “Slave mode”, the following steps are categorised for convenience reading to describe how...
  • Page 20 2. Go to “WDS Settings ” in “Wireless”, input the MAC address of the remote bridge to “Remote AP MAC Address 1” field and click “Apply”; © Copyright Qvis ®. All documentation rights reserved.
  • Page 21 Mesh and Ring network topologies are not supported by WDS and should be avoided in all the use cases. 3. Repeat the above procedures to configure the remote TT-208. 4. Use the ping function to check whether the link between the two bridges is OK.
  • Page 22 Open “Connections” in “Status” as below, and click “Refresh” to view the current signal strength of the wireless connectivity. If the signal is not so good, align the antenna manually once again. © Copyright Qvis ®. All documentation rights reserved.
  • Page 23 Warning: Do not switch from built-in antenna to the external antenna from WEB management without physically attaching the external antenna onto the CDS-5IP; otherwise, damage might be caused to the device itself. © Copyright Qvis ®. All documentation rights reserved.
  • Page 24 “Apply”. Note: For longer transmission of the TT-208, you may also use an external antenna; if so, remember to set the antenna setting from “Internal (16 DBi)” to “SMA Connector” after your external antenna is successfully installed.
  • Page 25 TT-208; otherwise, damage may be caused to the device itself. Click the “Site Survey” button beside “SLAVE Mode”. It will scan all the available TT-208 units within the coverage. Select the one you prefer to connect to, and click “Selected” to establish the connection.
  • Page 26 Apply. Note: For to achieve longer distance transmissions using the TT-208, you may also use an external antenna; if so, remember to set the antenna setting from “Internal (16dBi)” to “SMA Connector” after your external antenna is successfully installed.
  • Page 27 Video Bridge Mode. To connect the wireless client to the MASTER, please follow the procedures described in the SLAVE Mode. Congratulations! You have completed the primary configuration on the TT-208 and they can now be put into operation.
  • Page 28 For more information about our accessories and other available cameras, NVRs & cameras, please visit our website: www.adata.co.uk Alternatively scan this QR code with your smart phone to be directed instantly to our website: © Copyright Qvis ®. All documentation rights reserved.
