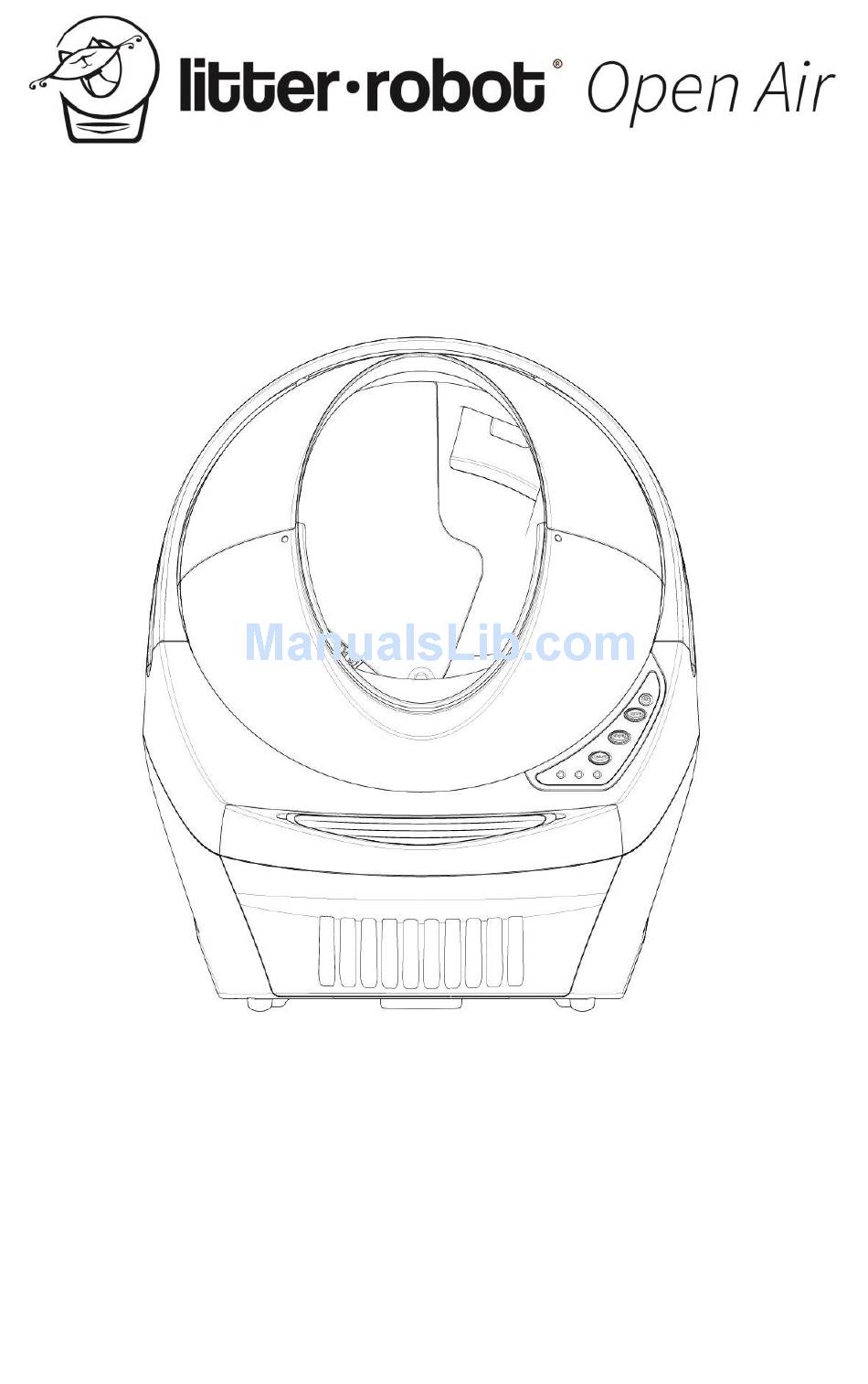

- Page 1 The Self-Cleaning Litter Box that Really Works! Instruction Manual Toll Free: 877-250-7729 www.Litter-Robot.com...
- Page 2 Toll Free: 877-250-7729 www.Litter-Robot.com...
- Page 3 Thank you for purchasing Litter-Robot ® that really works! the self-cleaning litter box At AutoPets™ (Automated Pet Care Products, Inc.), we aim to develop products that keep your pets happy and make your life easier. This manual will help you get the Open Air most out of your Litter-Robot ®...
-
Page 4: Important Safety Instructions
Never sit on or place anything on top of the Litter- Robot. Never push the Litter-Robot against a wall or into a corner (must not be touching any walls). Never remove the Globe or Bonnet while the unit is rotating or turn the unit on if the Globe or Bonnet are removed. -
Page 5: Table Of Contents
Table of Contents Important Safety Instructions .......... 3 Components and Dimensions ........... 5 Setting Up Your Litter-Robot ..........7 Introducing Your Cat to the Litter-Robot ......9 Ongoing Maintenance .............10 Cycles ................11 Control Panel - Button Functions ........13 Power Button ................13 Cycle Button ................. -
Page 6: Components And Dimensions
Night Light Internal Shield Fill Line Bonnet Flexible Liner Cat Entry/Exit Power Button Step Mat Control Panel Waste Drawer Indicator Lights Carbon Filter Base Front View Home Position Bonnet Globe Power Input Cat Sensor Rear View Toll Free: 877-250-7729 www.Litter-Robot.com... - Page 7 24 lbs. Assembled Waste 5” 12.5” 16” Drawer 15.5” 10.25” Entryway 15”-17” 20” 20” Inside Globe depending on litter level 14” 14” Litter Bed 7.1” Floor to Step Step to 6.3” Entryway Floor to 13.4” Entryway Toll Free: 877-250-7729 www.Litter-Robot.com...
-
Page 8: Setting Up Your Litter-Robot
Get started by following the steps below. Placement If possible, place the Litter-Robot in the same location as the old litter box (at least during transition). Make sure the unit is on a firm, level surface. Avoid soft, uneven, or unstable flooring. - Page 9 When filling the Litter-Robot for the first time, it is best to continue using the brand of litter you were using previously—as long as it is a clumping type of litter. Your cat will need to adjust to the new litter box, and introducing a new litter at the same time may increase its anxiety.
-
Page 10: Introducing Your Cat To The Litter-Robot
(make sure you add litter to the Globe), and make sure it is turned off. Give your cats a day or two to explore the Litter-Robot. If your cats show no interest, entice them to approach the Litter-Robot by using some catnip or a favorite treat. -
Page 11: Ongoing Maintenance
Pull out the Waste Drawer using the handle below the step, then gather the edges of the liner bag and dispose. You can use Litter-Robot custom-fit, biodegradable Waste Drawer liners or any 10-13-gallon trash bags. To install a new drawer liner, open the bag and roll down the edge about four times. -
Page 12: Cycles
Empty button to abort the cycle and return the Globe to the Home position. How it works: The Litter-Robot is ready for use when the Globe is at the Home position and the blue light on the Control Panel is on. ... -
Page 13: How It Works
After the litter is emptied, the Globe will stop with the yellow light on and await your action. (You may need to sweep any remaining litter toward the Waste Port.) Press any button to return the Globe to the Home position. Toll Free: 877-250-7729 www.Litter-Robot.com... -
Page 14: Control Panel - Button Functions
Press and Release: Turns the system power on and off. Press and Hold: Toggles the Automatic Night Light function on and off (see page 20). The Litter-Robot arrives with the Automatic Night Light function activated. When the light sensor detects low light conditions, the Night Light turns on automatically. -
Page 15: Cycle Button
To exit this mode, press and hold the Cycle button until the yellow light turns off, or, if only the blue light is on (you are not within the 8-hour sleep period), the yellow light will flash to indicate you have exited this mode. Toll Free: 877-250-7729 www.Litter-Robot.com... -
Page 16: Empty Button
However, reducing the Wait Time may reduce the cleaning effectiveness if clumps do not have enough time to set up. Extend the Wait Time when using a lower quality clumping litter that needs more time to set up. Toll Free: 877-250-7729 www.Litter-Robot.com... -
Page 17: Reset Button
Waste Drawer, or moving or cleaning the unit, press the Reset button once you are done. The Reset button adjusts the Cat Sensor automatically, ensuring the Litter-Robot will detect your cat and cycle properly. Press and Hold: Activates Control Panel Lockout (see page 23), indicated by the blue light blinking momentarily. -
Page 18: Control Panel - Indicator Lights
Cat Sensor. Blue and Yellow Lights On: Sleep Mode The Litter-Robot is in 8 Hour Sleep Mode (see page 22). Yellow Light On: Cycling/In Use The Litter-Robot is cycling (Clean or Empty cycle). - Page 19 Red Yellow Blue Flashing Sequentially: Cannot find Home position. Unit will continue to function in Automatic Mode. Contact Customer Service. Blue-Yellow-Red Flashing Simultaneously: Cannot find Home or Dump positions. Unit will not cycle. Contact Customer Service. Toll Free: 877-250-7729 www.Litter-Robot.com...
-
Page 20: Cat Sensor
Robot must be placed on firm, level flooring. Avoid soft, uneven, or unstable surfaces. The Litter-Robot relies on the Cat Sensor to know when your cat is inside the Globe and when it’s time to run a Clean cycle. Here’s how it works: ... -
Page 21: Drawer Full Indicator
Waste Drawer, adding or removing litter from the Globe, or cleaning or moving the unit. When you are done, turn the unit back on. The Litter-Robot will perform an initial Clean cycle and the Cat Sensor will take a new measurement of the unit’s weight. -
Page 22: Bonnet
Globe and the space used by your cat. The position of the Internal Shield during cycling is controlled by the Key located at the back of the Globe. Position the Key by snapping it into the pocket in the Base. Toll Free: 877-250-7729 www.Litter-Robot.com... -
Page 23: Step Mat
Cycle button until the yellow light turns on (in addition to the blue standby light). Both the yellow and blue lights will be on during the next 8 hours, indicating the unit is in 8-Hour Sleep Mode. Toll Free: 877-250-7729 www.Litter-Robot.com... -
Page 24: Wait Time Setting
Empty button to save the setting. The blue light will blink to confirm, then return to standby. Control Panel Lockout Control Panel Lockout disables button functions to prevent unwanted changes. The Litter-Robot functions normally in Automatic Mode during Control Panel Lockout. Toll Free: 877-250-7729 www.Litter-Robot.com... - Page 25 Press and hold the Reset button for about 5 seconds to enter or exit Control Panel Lockout. The blue light will blink to confirm status. While in Control Panel Lockout, you can still turn the unit off by pressing and holding the Power button for 3 seconds. Toll Free: 877-250-7729 www.Litter-Robot.com...
-
Page 26: Optional Backup Battery
Optional Backup Battery The Litter-Robot has the option of a Backup Battery. Using a sealed 12VDC, 1.3 Amp Hour battery allows the unit to continue working during power outages. When power to the Litter-Robot is interrupted, the unit automatically switches to Backup Battery power, indicated by the Power button becoming backlit by a yellow light. -
Page 27: Use & Care
Bag Installed Carbon Filter The Litter-Robot is equipped with a flexible carbon filter pad for absorbing odors in the drawer. Easily removed and installed, replace the carbon filter as needed. Under Toll Free: 877-250-7729 www.Litter-Robot.com... - Page 28 Replacement carbon filters (3 count) can be ordered at www.litter-robot.com or by calling 877-250-7729. Base Seal Strips The Litter-Robot is equipped with brush-type seal strips that help contain odors within the Waste Drawer and Base. Replace the seal strips when you notice they are worn flat or peeling up.
- Page 29 Globe—wet litter turns into messy clay! 2. Turn the Litter-Robot off and unplug the unit. 3. Remove the Bonnet: Press and release the snap tabs on both sides of the Bonnet, then lift and rotate the Bonnet off of the Globe and carefully set it aside.
- Page 30 Bonnet from the top and make sure the Bonnet snaps have latched into place and Bonnet is secure. Note: The unit will not run without the Bonnet installed. Toll Free: 877-250-7729 www.Litter-Robot.com...
- Page 31 Rotate Key into pocket in Base. on Globe with groove in Base. Located on each side of Bonnet, slide Rotate Bonnet downward, aligning tabs rear-facing tabs into slots in Base. with corresponding slots in Base. Snap Bonnet securely into Base. Toll Free: 877-250-7729 www.Litter-Robot.com...
-
Page 32: Safety Features
Globe rotation. If, however, the cat steps inside, the Globe will stop. Anti-Pinch Safety Feature The Litter-Robot is equipped with an Anti- Pinch Safety Feature to make the Litter-Robot extra safe for your cat. - Page 33 Control Panel will flash yellow then red lights. Turn unit off and remove Bonnet and Globe. Check for gear/motor obstruction. Reassemble unit and verify proper litter level. Power on and let cycle. If problem persists, contact Customer Service. Toll Free: 877-250-7729 www.Litter-Robot.com...
-
Page 34: Frequently Asked Questions
We recommend that you place the Litter-Robot in the same location as the old litter box. You can leave the old litter box near the Litter-Robot for a short time. Take a cup of litter from the old litter box and add it to the clean litter in the Litter-Robot. - Page 35 Are there any rakes or wires inside the Globe? No, the Globe does not contain any rakes or wires that could hurt or harm your cat. The Litter-Robot was designed with your cat’s safety in mind. Are the electronics or power source dangerous to my...
- Page 36 Some silica gel litter beads and crystals can also be used with the Litter Robot, as long as they pass through the screen. Litters that do not work in the Litter-Robot are the strictly absorbent, non-clumping or loose-clumping litters, newspaper-based litters and absorbent wood pellet litter.
- Page 37 How often do I need to add litter? The Litter-Robot uses litter very efficiently since the patented sifting system only removes the clumps. We recommend checking the litter level against the raised Fill Line (on the black rubber liner of the...
-
Page 38: Money-Back Guarantee And Warranty
Return Instructions insert shows a packaging diagram for the Litter-Robot. 18-Month Full Warranty Your Litter-Robot is covered by a full warranty for 18 months, starting from the date of shipment regardless of where purchased. The warranty covers all parts, labor, and shipping costs within the lower 48 states. -
Page 39: Contacting Customer Service
Automated Pet Care Products, Inc. 2900 Auburn Ct. Auburn Hills, MI 48326 Additional Support Resources http://litterrobot.kayako.com/Knowledgebase/List Repair & Returns If repairs are necessary, call us or email RMA@litter-robot.com to obtain an RMA number prior to sending in your Litter-Robot. Toll Free: 877-250-7729 www.Litter-Robot.com... - Page 40 Toll Free: 877-250-7729 www.Litter-Robot.com...
- Page 41 AutoPets™ 2900 Auburn Ct. Auburn Hills, MI 48326 877-250-7729 Support@Litter-Robot.com Open Air Litter-Robot ® Instruction Manual: RevC...
