manatee
TM
English manual
G
B
© 2010 R82 A/S. All rights reserved.
The R82 logo and the bathing chair Manatee are registered trademarks of R82 A/S.
11.2013 - rev.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the r82 and is the answer not in the manual?

Questions and answers

Lucie
April 19, 2025

How do you take out wheel caster from the frame to replace

1 comments:
Mr. Anderson
May 10, 2025

To remove the wheel caster from the frame of a Manatee R82, use a spanner to loosen and remove the 4 wheels that were previously fitted and tightened for safe fitting.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Manatee r82

  • Page 1 English manual © 2010 R82 A/S. All rights reserved. The R82 logo and the bathing chair Manatee are registered trademarks of R82 A/S. 11.2013 - rev.2...
  • Page 2: Table Of Contents

    ConTenTS Safety ................4 Warranty ................4 Maintenance ..............5 Preparing for use ............... 5 Back angling ..............6 Leg support angling ............6 Seat depth ................. 7 Seat height ................ 7 Seat angling............... 8 Head / sidesupport ............8 Hip support ................

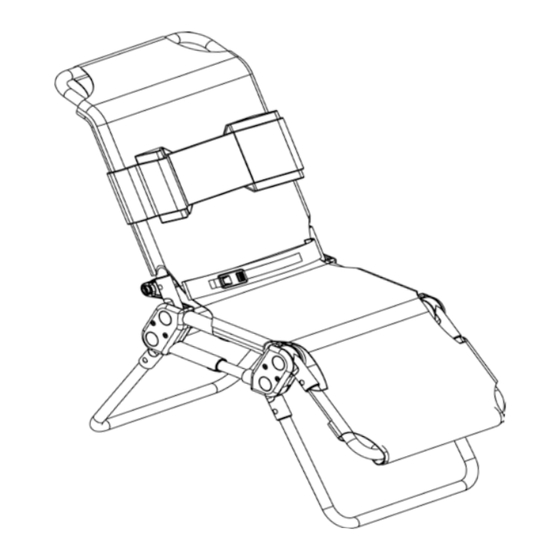

  • Page 3 MAnATee Congratulations on your new Manatee bathing chair. In choosing the Manatee, we are sure that you have got a bathing chair, which will live up to any expectations one can have for a modern aid for children. The Manatee is designed to be used in bathrooms, in which the child can not ever be left alone.
  • Page 4: Safety

    The durability of this product is 5 years when it is used on a daily basis. Hereafter the product must be renovated (by R82 personnel) to extend the lifetime. Remove the Ce-mark, when rebuilding the product or when using other than original R82 spare parts.
  • Page 5: Maintenance

    Adjustments which are not described in this manual, must only be made by authorized R82 personnel. PRePARInG FoR We deliver the Manatee folded which means it takes up as little space as possible during transport. Follow the instructions below to prepare your bathing chair for use: 1) Press the release buttons (A) on both sides and fold down the chair legs.
  • Page 6: Back Angling

    Then place the user into the Manatee. LeG SuPPoRT AnGLInG The leg support on the Manatee angles individu- ally. Please follow the description below when angling the back: 1) Press the release buttons (A) on both sides.
  • Page 7: Seat Depth

    SeAT DePTH The seat depth on Manatee (size 0) can be ad- justed in two positions: 1) Dismount the screws (A) in both sides with a 4 mm Allan key. 2) Replace the short tubes with the long enclo- sed ones. Fasten the screws (A) securely.
  • Page 8: Seat Angling

    Then place the user into the Manatee. HeAD / SIDeSuPPoRT As standard the Manatee is delivered with a head / sidesupport. The support can be used either as a head or as a sidesupport. Follow the description below to mount the support in the correct way: 1) Spread out the strap with the reverse up.
  • Page 9: Hip Support

    HIP SuPPoRT As standard the Manatee is delivered with a hip support. Follow the description below to mount the support the correct way: 1) Fasten the strap in the fittings (A) on both sides of the chair. 2) The hip belt is tightened with velcro and a buckle (B).
  • Page 10: Pommel With Strap

    Secure the chair when any adjustments have been made. Then place the user into the Manatee. STRAPS FoR LeG ConTRoL Please follow the description below to mount the...
  • Page 11: Dismounting And Mounting The Cover

    DISMounTInG AnD MounTInG THe CoveR Follow the description below when the cover needs to be dismounted and washed: 1) unzip the cover on the back (A) and under- neath the seat (B). 2) open the velcro underneath the chair (C) and the cover can be pulled up (D) and off the chair.
  • Page 12: Folding The Chair

    FoLDInG THe CHAIR The Manatee can easily be folded and stored without taking up much space. Follow the description below to fold the Manatee correctly: 1) Press the release buttons (A) on both sides and move the leg support up into the horizon- tal position.
  • Page 13: Frame

    FRAMe Adjusting the frame: * Loosen the fingerscrews (A) in both sides. * Pull out the frame to the desired position. * Make sure the fingerscrews (A) clicks into place in the holes in the bars. Please be aware of the max. indication on the bar.
  • Page 14: Height Adjustable Frame

    HeIGHT ADjuSTABLe FRAMe Mounting the wheels: * Fit the 4 wheels using a spanner and tighten to ensure safe fitting. Adjusting the frame: * Loosen the fingerscrews (A). * unfold the frame and rise to the desired height. * Make sure to tighten the fingerscrews (A) properly in the wished height.
  • Page 15: Wall Fittings For Frame

    * Drill 8 mm. holes for the screws (B). Place rawlplugs (C) in the holes. * Screw the 2 wall fittings (A) into the wall with the screws (B). * Hang the folded Manatee frame on the wall fittings. The wall fittings are only for the Manatee frame.
  • Page 16: Product Identification

    PRoDuCT IDenTIFICATIon Size 0 Size 0 A) Serial number The label is placed on the right side of the cross bar on the back. B) Manufacturer The label is placed on the right side of the cross bar on the back. Size 1+2+3 Size 1+2+3 A) Serial number...
  • Page 17: Product Identification

    The label is placed on the inside of the frame B) Manufacturer The label is placed on the inside of the frame Date: yyyy-MM-DD Max.Load: XX kG XXXXXX ver.: XX Art.no: XXXXXX Product - Size X (01)0570729530134(21)256829 Parallelvej 3 Dk-8751 Gedved www.R82.com Made in Denmark...
  • Page 18: Measurements

    MeASuReMenTS Size 0 Size 1 Size 2 Size 3 cm (inch) cm (inch) cm (inch) cm (inch) Seat width (A) 33 (12¾") 33 (12¾") 33 (12¾") 40 (15½") Seat depth (B) 22-25 (8¼-10") 30-37 (11¾-15½") 39-46 (15¼-18") 40-47 (15¾-18½") Back height (C) 43 (16¾") 43 (16¾") 58 (22½")
  • Page 19: Technical Data

    TeCHnICAL DATA Frame: Powder lacquered Aluminium tubes ABS parts: Glass fibre strengthened nylon Cover: Fire-resistant, 100% polyester DISTRIBuToR PRoDuCeR R82 A/S Parallelvej 3 8751 Gedved Denmark Please find your distributor on www.R82.com...
  • Page 20: Care And Maintenance

    R82 for repair. If fault occurs in the fundamental parts, the whole chair needs to be returned to R82 for repair. R82 will not be held responsible for damage or injury caused by use of non-original parts or repairs made by a non-authorized R82 person.
