State of the art hyper-optimized video management platform designed for ease, speed and efficiency.
Blackjack

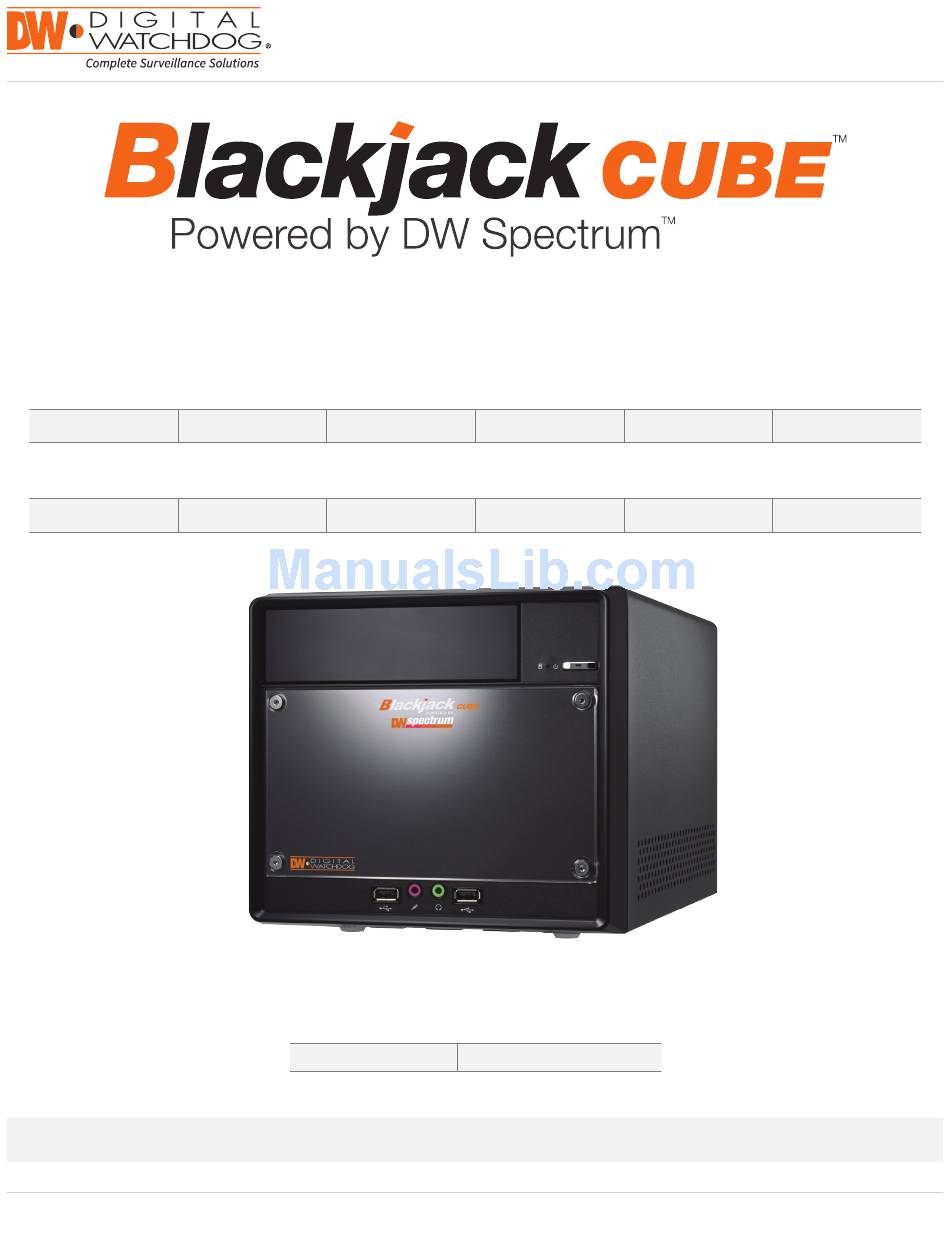

Cube — Up to 16 (Cube-LX) and 64 (Cube) 2.1MP Cameras (1080p True HD Resolution)
™
DW-BJCUBE2T-LX
DW-BJCUBE3T
Attention: This document is intended to serve as a quick reference page for initial set-up. See the DW Spectrum full manual for more information on features and functionality.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
DW-BJCUBE4T-LX
DW-BJCUBE6T-LX
DW-BJCUBE4T
DW-BJCUBE6T
Username: admin
Blackjack Cube-LX
DW-BJCUBE9T-LX
Blackjack Cube
DW-BJCUBE9T
Password: admin
Quick Start Guide
DW-BJCUBE12T-LX
DW-BJCUBE18T-LX
DW-BJCUBE12T
DW-BJCUBE18T
Blackjack Cube-LX
Blackjack Cube
digital-watchdog.com
Advertisement
Table of Contents
Summary of Contents for DIGITAL UNDERDOG Blackjack Cube-LX
- Page 1 Quick Start Guide State of the art hyper-optimized video management platform designed for ease, speed and efficiency. Blackjack Cube — Up to 16 (Cube-LX) and 64 (Cube) 2.1MP Cameras (1080p True HD Resolution) ™ Blackjack Cube-LX DW-BJCUBE2T-LX DW-BJCUBE4T-LX DW-BJCUBE6T-LX DW-BJCUBE9T-LX...
- Page 2 BLACKJACK CUBE HARDWARE HDD LED Power Button / Power LED 5.25" Bay Front Back USB 2.0 Port Microphone Jack Headphone Jack USB 2.0 Port AC Power Socket Kensington Lock DVI-I Output HDMI HD Output USB 3.0 Ports Microphone Jack Line-Out Jack Line-In Jack WAN &...
- Page 3 Quick Start Guide SETTING UP THE CUBE STEP 1: When setting up the Blackjack Cube, make sure the following are in the box: Cube Server Power Cable • • Recovery CD Accessory CD (Including Manual) • • Quick Start Guide •...
- Page 4 STEP 5: Network Configuration - Linux System The Cube’s Network Setup window will open automatically upon boot up. Linux OS Windows 7 NOTE The Blackjack Cube’s network settings are set by default to DHCP. To change the server’s network settings to Static IP, follow the instructions below. 1.
- Page 5 Quick Start Guide UPGRADING THE DW SPECTRUM IPVMS SOFTWARE ON LINUX CUBE MODELS Linux OS Windows 7 When installing or upgrading the DW Spectrum software, each component of the software must be installed separately. ™ To download the software, go to www.digital-watchdog.com, and search for ‘DW Spectrum’ to access the product page, documentation and software downloads.
-
Page 6: User Interface Overview
USER INTERFACE OVERVIEW Help Menu Login to Server Layout Management Screen Recording Controls Main Menu Button Popup Notifications Server / Camera Display Tree Server Health Monitoring Calendar Search Audio Controls Playback Controls Camera Popup Preview Thumbnail Toggle Button Camera Options Live / Playback Time Navigation Bar Zoom LICENSE REGISTRATION... -
Page 7: Manually Adding Cameras
Quick Start Guide MANUALLY ADDING CAMERAS Click on the Scan button Enter log-in information Cameras can also be manually added by right-clicking on the server icon and choosing the ‘Add camera(s)’ option Enter the camera’s IP address, URL, or RTSP information Check to select a range Cameras will populate the list automatically... -
Page 8: Troubleshooting Tips
TROUBLESHOOTING TIPS Problem Possible Solutions My camera does not 1. Is the camera in the same LAN network as the Media Server? auto-discover 2. Is your camera compatible with DW Spectrum? (Refer to our website for full list of supported cameras.) 3.
