CDX-CA700/CA700X
QQ
3 7 63 1515 0
SERVICE MANUAL
Ver 1.1 2003. 02
• The tuner and CD sections have no adjustments.
AUDIO POWER SPECIFICATIONS (US Model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
TE
L 13942296513
CD player section
Signal-to-noise ratio
90 dB
Frequency response
10 – 20,000 Hz
Wow and flutter
Below measurable limit
Tuner section
FM
Tuning range
87.5 – 107.9 MHz (US, Canadian Model)
87.5 – 108.0 MHz (AEP, UK Model)
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity
8 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
66 dB (stereo),
72 dB (mono)
Harmonic distortion at 1 kHz
0.6% (stereo),
0.3% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 – 15,000 Hz
AM (US, Canadian Model)
Tuning range
530 – 1,710 kHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
30 µV
MW/LW (AEP, UK Model)
Tuning range
MW : 531 – 1,602 kHz
LW : 153 – 279 kHz
Aerial terminal
External aerial connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
MW : 30 µV
LW : 40 µV
www
.
Sony Corporation
9-873-445-02
2003B0400-1
e Vehicle Company
© 2003. 02
Published by Sony Engineering Corporation
http://www.xiaoyu163.com
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8

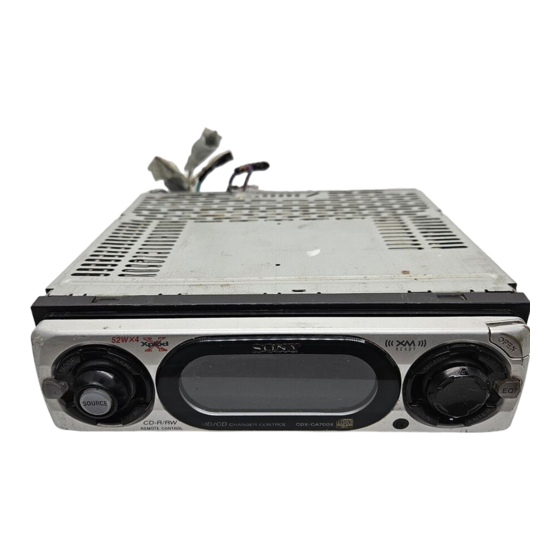

Photo: CDX-CA700
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
Q Q
3
6 7
1 3
1 5
Power amplifier section
Outputs
Speaker impedance
Maximum power output 52 W × 4 (at 4 ohms) (US, Canadian Model)
General
Outputs
Inputs
Tone controls
Loudness
FM/AM COMPACT DISC PLAYER
FM/MW/LW COMPACT DISC PLAYER
co
.
9 4
2 8
US Model
Canadian Model
CDX-CA700X
AEP Model
UK Model
CDX-CA700/CA700X
NEW
MG-393XA-121//Q
KSS-720A
0 5
8
2 9
9 4
2 8
Speaker outputs
(sure seal connectors)
4 – 8 ohms
50 W × 4 (at 4 ohms) (AEP, UK Model)
Audio outputs (front /rear)
Power antenna relay control terminal
Power amplifier control terminal
Telephone ATT control terminal
Illumination control terminal
BUS control input terminal
BUS audio input terminal
Remote controller input terminal
Antenna input terminal
Bass ±10 dB at 62 Hz (US, Canadian Model)
Bass ±8 dB at 100 Hz (AEP, UK Model)
Treble ±10 dB at 16 kHz (US, Canadian Model)
Treble ±8 dB at 10 kHz (AEP, UK Model)
+8 dB at 100 Hz
+2 dB at 10 kHz
– Continued on next page –
m
CDX-CA700/CA700X
9 9
9 9
CDX-CA700X
1
