Printing for
Professionals
Océ
VarioLink 9522
User's Guide
POD Administrator's
Reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VarioLink 9522 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ocean VarioLink 9522

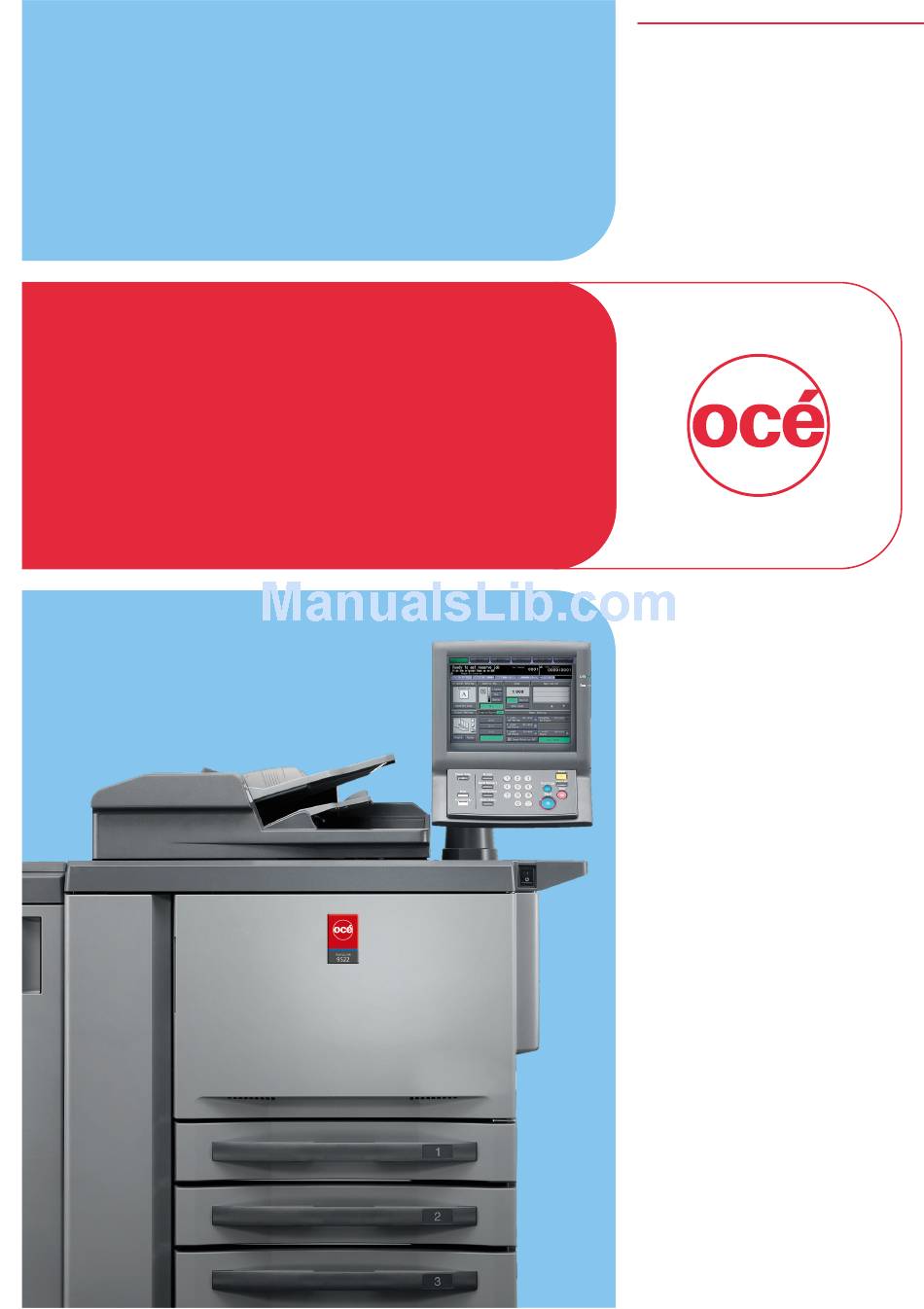

  • Page 1 Océ VarioLink 9522 Printing for Professionals User’s Guide POD Administrator’s Reference...

  • Page 3: Variolink 9522

    VarioLink 9522 POD Administrator’s Reference User’s Guide...

  • Page 5: Table Of Contents

    04 Hole-Punch Position Adjustment - 01 Punch Kit Vert. Pos. Adj....................3-13 3.2.5 04 Hole-Punch Position Adjustment - 02 Punch Kit Horiz. Pos. Adj....................3-15 3.2.6 04 Hole-Punch Position Adjustment - 03 Punch Unit Vert. Pos. Adj....................3-17 VarioLink 9522...
  • Page 6 01 Report Type ...................4-9 02 Printer Setting ................4-10 03 Select Printer Setting ..............4-16 04 Spool Print Jobs in HDD before RIP .........4-17 05 I/F Timeout ..................4-18 06 Plug-in Form Password .............4-19 07 Scan Setting ................4-20 08 Administrator Setting ..............4-22 VarioLink 9522...
  • Page 7 01 Reset Setting - 01 Initial Setting ..........5-39 5.4.2 01 Reset Setting - 02 Reset Function Setting ......5-42 5.4.3 01 Reset Setting - 03 Initial by Key Counter Insert ...... 5-43 5.4.4 02 Individual Function Change Setting ........5-44 VarioLink 9522...
  • Page 8 03 User Auth./ Account Track ............6-42 6.4.1 01 Authentication Method - 01 Authentication Setting ....6-45 6.4.2 01 Authentication Method - 02 Account Track Setting ....6-48 6.4.3 02 Account Track ................6-50 6.4.4 03 User Authentication Setting .............6-56 6.4.5 04 Non Registered User/Output Setting ........6-64 VarioLink 9522...
  • Page 9 02 HDD Management Setting - 04 Delete Temporary Data ..6-102 6.8.6 02 HDD Management Setting - 05 Delete All Data ....6-103 6.8.7 03 Security Strengthen Mode ............ 6-103 08 Scan Destination Register ............6-106 6.9.1 01 Destination Address Edit/Delete ........... 6-106 VarioLink 9522...
  • Page 10 Security Tab ..................8-16 8.5.1 Authentication ................8-16 8.5.2 User Registration ................8-17 8.5.3 Account Track Registration ............8-19 8.5.4 SSL/TLS Setting - SSL/TLS Setting ..........8-21 8.5.5 SSL/TLS Setting - Action for Invalid Certificate ......8-27 8.5.6 Auto Logout ..................8-28 8.5.7 Administrator Password Setting ...........8-29 VarioLink 9522...
  • Page 11 Web Service Setting - Scanner Settings ........8-59 8.9.19 Bonjour Setting ................8-60 8.9.20 NetWare Setting - NetWare Setting ..........8-61 8.9.21 NetWare Setting - NetWare Status ..........8-62 8.9.22 AppleTalk Setting ................. 8-62 8.9.23 OpenAPI Setting ................8-63 VarioLink 9522...
  • Page 12 JSP Setting ...................8-65 Appendix How to Input Characters ..............9-3 Importable/Exportable Setting Data - Devices .......9-5 Importable/Exportable Setting Data - Counters ......9-12 Importable/Exportable Setting Data - Authentication ....9-13 Demo Page ..................9-14 PCL Font List ...................9-22 Glossary ....................9-25 10 Index x-10 VarioLink 9522...

  • Page 13: Introduction

    Introduction...
  • Page 15 - No part of this manual may be used or duplicated without permission. - Manufacturer and Sales Company will have no liability for any influences caused by using the printing system and this User’s Guide. - The information written in this User’s Guide is subject to change without prior notice. VarioLink 9522...

  • Page 16: Composition Of User's Guide

    Be sure to read this guide before using the machine. User’s Guide - Printer This guide describes the operation of the printer function equipped for the machine. Please refer to this guide for how to use PCL driver, Adobe PS driver and Web Connection in user mode. VarioLink 9522...
  • Page 17 Please refer to this guide for how to use Plug-in driver in user mode. To operate safely, be sure to read "Section 1: Precautions for Installation and Use" in User’s Guide - Copier before using the machine. VarioLink 9522...

  • Page 18: Outline Of Machine Status Screen Settings

    Screen; however, accessed from the Machine Status Screen, this screen provides additional functions such as registering/deleting paper type/weight entries and changing detectable sizes for upper and lower trays of the op- tional post inserter. After completing the settings, touch [Close] to exit the Paper Setting mode. VarioLink 9522...
  • Page 19 After completing the settings, touch [Close] to exit the Custom Size Regist mode. [Adjustment] key: Displays the Adjustment Menu Screen. Make adjustments concerning image control and finishing options. After completing the adjustments, touch [Exit] to exit the Adjustment mode. VarioLink 9522...
  • Page 20 Introduction [Controller] key: Displays the Controller Setting Menu Screen. Make settings concerning an optional print controller. After completing the settings, touch the [MACHINE] tab to return to the Machine Status Screen. VarioLink 9522...

  • Page 21: Outline Of Utility Menu Settings

    Section 5 includes information on setting items available from the Utility Menu Screen except the administrator settings. Section 6 provides information on setting items available from the Administrator Setting Menu Screen. VarioLink 9522...
  • Page 22 - Utility Menu - 01 System Setting - 05 Default Screen Setting - Job List Note The setting to forbid the Job List Screen to be default is available only on the machine with optional RC-501 mounted. 1-10 VarioLink 9522...

  • Page 23: Outline Of Browser Settings

    PC. 6. Job History List Display the job history list of the machine using the web browser on a PC. For details, see Section 7: Web Utilities Setting. VarioLink 9522 1-11...

  • Page 24: Web Connection

    VarioLink 9522. This utility can be used with a web browser to display the status of the VarioLink 9522 printer, scanner and network, and to change default and network settings. For details, see Section 8: Web Connection Setting.

  • Page 25: Paper Setting

    Paper Setting...

  • Page 27: Paper Setting Outlines

    11-13 lb, 14-16 lb, 17-19 lb, 20-21 lb, 22-24 lb, 25-28 lb, 29-35 lb, 36-43 lb, 44-57 lb, 58-65 lb, 66-80 lb Detail See page 2-5 for details of paper type specifications and relation be- tween paper type and weight. VarioLink 9522...
  • Page 28 Select one of the following four types as paper size. - Standard - Custom - Wide Paper - Tab Paper (Standard/Custom) Colored Paper Select one of the following six types. White, Transparent, Yellow, Pink, Blue, Green Hole-Punch Select either condition. Pre-Punched or No Hole-Punch VarioLink 9522...

  • Page 29: Paper Type Specifications

    Sheet, or Blank mode of OHP interleave is used, select [Blank Insert] for the tray in which paper only to be fed is loaded. User When a paper type other than those can be specified on this machine is used, select [User]. For details, contact your service representative. VarioLink 9522...
  • Page 30 114.2 153.8 169.1 260.0 69.2 96.3 144.0 118.7 160.0 175.9 270.0 71.9 100.0 149.5 123.3 166.1 182.7 280.0 74.6 103.7 155.1 127.9 172.3 189.4 290.0 77.2 107.4 160.6 132.4 178.4 196.2 300.0 79.9 111.1 166.1 137.0 184.6 202.9 VarioLink 9522...
  • Page 31 Paper Setting Note The Help Screen provides the paper weight conversion table. Press [Help] on the control panel to display the Help Screen and find it from the Top Menu, if desired. VarioLink 9522...

  • Page 32: Registering Paper Type/Weight

    Note Paper size setting is not included in this procedure. Procedure Touch [Paper Setting] on the Machine Status Screen, then touch [Reg- ister Type/Weight]. Touch the key to be registered. The Input Condition Screen will be displayed. VarioLink 9522...
  • Page 33 The same name as the paper type specified in step 3 is currently displayed in the text field. To change it, enter a new name and touch [OK]. – For details on entering texts, see the appendix of this guide. VarioLink 9522...
  • Page 34 Paper Setting Similarly, touch [Weight], [Colored Paper], and [Hole-Punch] to specify each condition of the paper to be used. 2-10 VarioLink 9522...
  • Page 35 The Machine Status Screen will be restored. Detail For available setting range of the Both Size Adjustment, see page 2-4. Chart Adjustment is not available when programing paper conditions. For details of this adjustment, see page 2-4. VarioLink 9522 2-11...

  • Page 36: Deleting Paper Type/Weight

    Use [Next] or [Previous] to scroll to the desired entry on the list, touch the key to highlight it, then touch [OK]. A popup screen will appear to confirm that the selected entry is to be deleted. 2-12 VarioLink 9522...
  • Page 37 Touch [Yes] to delete it, or touch [No] to cancel. – If more than one entry is to be deleted, repeat steps 2 and 3. Touch [OK] to complete the setting. Touch [Close]. The Machine Status Screen will be restored. VarioLink 9522 2-13...

  • Page 38: Specifying Paper Size And Conditions For A Tray

    Procedure Touch [Paper Setting] on the Machine Status Screen, then touch [Tray Setting]. Touch the tray key to be specified, then touch [Size Setting]. The Size Setting Screen will be displayed. 2-14 VarioLink 9522...
  • Page 39 Use the vertical/horizontal size key and touch panel keypad, or ar- row keys (+/,) to enter the dimensions. From the minimum size of 140 × 182 mm to the maximum size of 314 × 445 mm can be en- tered. VarioLink 9522 2-15...
  • Page 40 314 × 445 mm. – Touch [Lead Edge], [Rear Edge], or [Center] to specify the desired image position. – Touch [OK] to complete the setting, then proceed to step 7. 2-16 VarioLink 9522...
  • Page 41 (+/,) to enter the dimensions. – Touch [Number of Tabs] to specify the number of tabs. Setting range is from 1 to 15. – Touch [OK] to complete the setting, then proceed to step 7. VarioLink 9522 2-17...
  • Page 42 [OK]. Touch [Close] repeatedly to return to the Machine Status Screen. Detail The minimum size provided in Custom size setting can be changed as desired. For details, contact your service representative. 2-18 VarioLink 9522...

  • Page 43: Changing Paper Type/Weight Already Specified For A Tray

    Procedure Touch [Paper Setting] on the Machine Status Screen, then touch [Tray Setting]. VarioLink 9522 2-19...
  • Page 44 Touch the key of the setting item to be changed, then change the cur- rent selection as desired. – To change the setting, follow the same procedure as registering the paper conditions. See page 2-9 to page 2-11. 2-20 VarioLink 9522...
  • Page 45 – With the front side selected, use a scale to measure each point, then enter the value from the screen keypad. Measurement point: (1) to (8) Adjustment range: 0.0–300.0, 1 step = 0.1 mm VarioLink 9522 2-21...
  • Page 46 Touch [OK] repeatedly to complete the setting and restore the Tray Setting Screen. To newly register the modified setting, touch [Register]. – To simply change the setting, touch [Close] repeatedly to return to the Machine Status Screen. 2-22 VarioLink 9522...
  • Page 47 If selected key has already been named, that name will be dis- played in the text field. Delete it and enter a new name, if desired. – For details on entering texts, see the appendix of this guide. Touch [Close] repeatedly to return to the Machine Status Screen. VarioLink 9522 2-23...

  • Page 48: Changing Paper Size Detected For Post Inserter Trays

    8.5 × 11 v, and 8 × 13 w, 8.12 × 13.2 w, 8.25 × 13 w, 8.5 × 13 w, and SRA4 w instead of 8.5 × 14 w. Procedure Touch [Paper Setting] on the Machine Status Screen. Touch [PI (Upper) Detect Size] or [PI (Lower) Detect Size]. 2-24 VarioLink 9522...
  • Page 49 Paper Setting Touch the desired paper size keys to highlight them. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. Touch [Close]. The Machine Status Screen will be restored. VarioLink 9522 2-25...

  • Page 50: Registering/Deleting Custom Sizes

    2.7.1 Registering/Editing Custom Sizes Procedure Touch [Custom Size Reg.] on the Machine Status Screen. The Custom Size Regist Screen will be displayed. Touch the number key to be registered, then touch [Add/Edit]. 2-26 VarioLink 9522...
  • Page 51 Touch [Lead Edge], [Rear Edge], or [Center] to specify the desired image position Touch [Set]. The Name Input Screen will be displayed. Enter the desired name, then touch [OK]. When setting is completed, touch [Close]. The Machine Status Screen will be restored. VarioLink 9522 2-27...

  • Page 52: Deleting Registered Custom Sizes

    Touch [Custom Size Reg.] on the Machine Status Screen. The Custom Size Regist Screen will be displayed. Touch the number key to be deleted, then touch [Delete]. A popup screen will appear to confirm that the selected entry is to be deleted. 2-28 VarioLink 9522...
  • Page 53 Paper Setting Touch [Yes] to delete it, or touch [No] to cancel. When setting is completed, touch [Close]. The Machine Status Screen will be restored. VarioLink 9522 2-29...

  • Page 55: Adjustment

    Adjustment...

  • Page 57: Function Overview

    11 × 17 w, 8.5 × 14 w, 8.5 × by Finisher FS-611. 11 w, 8K w, 11 × 17W w, A3W w, B4W w, A4W w, 8.5 × 11W w, Custom –128 (wide) to +127 (narrow), 1 step = 0.1 mm VarioLink 9522...
  • Page 58 –128 (wide) to +127 (narrow), 1 step = 0.1 mm 02 Second Fold Adjustment A3 w, B4 w, 11 × 17 w, 8.5 × 14 w, 8K w –128 (wide) to +127 (narrow), 1 step = 0.1 mm VarioLink 9522...
  • Page 59 –50 (fast) to +50 (slow), 1 step = 0.1 mm 09 ADF Registration Loop Adj. Adjust the amount of registered loop in scanning the orig- Side 1, Side2 inal from the ADF. –10 (short) to +10 (long), 1 step = 0.5 mm VarioLink 9522...
  • Page 60 1 step = 0.1 mm 03 ADF Centering Adj. Adjust the position of the image scanned from the ADF. Side 1: Small, Side 2: Small Side 1: Large, Side 2: Large –30 (forward) to +30 (back- ward), 1 step = 0.1 mm VarioLink 9522...

  • Page 61: Finisher Adjustment

    Touch [Next] or [Back] to select the paper size to be adjusted. Touch [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, and select the tray key. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522...
  • Page 62 [<<SET]. Available range: -128 (upward) to +127 (downward), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. VarioLink 9522...

  • Page 63: Half Fold Stopper Adjustment

    Touch [Next] or [Back] to select the paper size to be adjusted. Touch [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, and select the tray key. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522...
  • Page 64 [<<SET]. Available range: -128 to +127, 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-10 VarioLink 9522...

  • Page 65: Trimming Stopper Adjustment

    Touch [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, and select the tray key. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522 3-11...
  • Page 66 Repeat the adjustment steps from 3 to 9 until the desired result is ob- tained. Touch [Return] to restore the Adjustment Menu Screen. Note Enter the value so that the cover should be cut more than 2.0 mm. 3-12 VarioLink 9522...

  • Page 67: Hole-Punch Position Adjustment - 01 Punch Kit Vert. Pos Adj

    Load the desired size of paper to be adjusted on a tray, and select the tray key. If the machine is installed with Z Folding Unit ZU-607, load the paper size to be adjusted into the lower tray of the post inserter. VarioLink 9522 3-13...
  • Page 68 [<<SET]. Available range: -50 (forward) to +50 (backward), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-14 VarioLink 9522...

  • Page 69: Hole-Punch Position Adjustment - 02 Punch Kit Horiz. Pos

    To adjust the main body tray, load the paper on the desired main body tray, then press [Start] on the control panel. To adjust the post inserter tray, load the paper in the lower tray of the post inserter, then press the Start/Stop button. A sample pattern will be output. VarioLink 9522 3-15...
  • Page 70 [<<SET]. Available range: -50 (narrow) to +50 (wide), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-16 VarioLink 9522...

  • Page 71: Hole-Punch Position Adjustment - 03 Punch Unit Vert. Pos

    Touch [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, and select the tray key. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522 3-17...
  • Page 72 [<<SET]. Available range: -50 (forward) to +50 (backward), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-18 VarioLink 9522...

  • Page 73: Hole-Punch Position Adjustment - 04 Punch Unit Horiz. Pos

    The Punch Unit Horizontal Position Adjustment Screen is displayed. Touch [COPY] tab to display the Copy Screen. Load the paper on the desired main body tray, then press [Start] on the control panel. A sample pattern will be output. VarioLink 9522 3-19...
  • Page 74 [<<SET]. Available range: -50 (narrow) to +50 (wide), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 7 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-20 VarioLink 9522...

  • Page 75: Fold Position Adjustment - 01 First Fold Adjustment

    Touch [Next] or [Back] to select the paper size to be adjusted. Touch [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, and select the tray key. VarioLink 9522 3-21...
  • Page 76 [<<SET]. Available range: -128 (wide) to +127 (narrow), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is ob- tained. Touch [Return] to restore the Adjustment Menu Screen. 3-22 VarioLink 9522...

  • Page 77: Fold Position Adjustment - 02 Second Fold Adjustment

    Touch [Next] or [Back] to select the paper size to be adjusted. Touch [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, and select the tray key. VarioLink 9522 3-23...
  • Page 78 [<<SET]. Available range: -128 (wide) to +127 (narrow), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is ob- tained. Touch [Return] to restore the Adjustment Menu Screen. 3-24 VarioLink 9522...

  • Page 79: Tri-Fold Position Adjustment

    Touch [Next] or [Back] to select 8.5" × 11" w or A4 w. Touch [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, and select tray key. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522 3-25...
  • Page 80 [<<SET]. Available range: -128 (wide) to +127 (narrow), 1 step = 0.1 mm Repeat steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-26 VarioLink 9522...

  • Page 81: Staple Finisher Pitch Adjustment (Finisher Fs-611 Only)

    Touch [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray and select the tray key. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522 3-27...
  • Page 82 Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: 128 to 160, 1 step = 1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-28 VarioLink 9522...

  • Page 83: Fold & Staple Pitch Adjustment

    Touch [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray and select the tray key. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522 3-29...
  • Page 84 Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: 128 to 160, 1 step = 1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-30 VarioLink 9522...

  • Page 85: Timing Adjustment

    The Printer S1 Restart Timing Adjustment Screen will be displayed. Touch [Next] or [Back] to select the desired tray. Touch [COPY] tab to display the Copy Screen. Select 11" × 17" w paper. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522 3-31...
  • Page 86 [<<SET]. Available range: -30 (narrow) to +30 (wide), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-32 VarioLink 9522...

  • Page 87: Printer S2 Restart Timing Adjustment

    The Printer S2 Restart Timing Adjustment Screen will be displayed. Touch [Next] or [Back] to select the desired tray. Touch [COPY] tab to display the Copy Screen. Select 11" × 17" w paper. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522 3-33...
  • Page 88 [<<SET]. Available range: -30 (wide) to +30 (narrow), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-34 VarioLink 9522...

  • Page 89: Printer Registration Loop Adjustment

    Specify copy conditions according to the item selected in step 3, press [Start] on the control panel. A sample pattern will be output. If the machine still has the same trouble, touch [ADJUSTMENT] tab. The Printer Registration Loop Adjustment Screen will be restored. VarioLink 9522 3-35...
  • Page 90 Available range for S2 290/ S2 Thick 290: -10 to +10, 1 step = 4 ms Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-36 VarioLink 9522...

  • Page 91: Printer Pre-Registration Adjustment

    Load 11"x17" w paper into the tray selected in step 3, then select the tray on the screen. Press [Start] on the control panel. A sample pattern will be output. If the machine still has the same trouble, touch [ADJUSTMENT] tab. The Printer Pre-registration Adjustment Screen will be restored. VarioLink 9522 3-37...
  • Page 92 [<<SET]. Available range: -5(fast) to +5(slow), 1 step = 2 ms Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-38 VarioLink 9522...

  • Page 93: Printer Lead Edge Margin Adjustment

    Touch [02 Timing Adjustment], and then [05 Printer Lead Edge Margin]. The Printer Lead Edge Margin Adjustment Screen will be displayed. Touch [COPY] tab to display the Copy Screen. Select 11" × 17" w paper. Press [Start] on the control panel. A sample pattern will be output. VarioLink 9522 3-39...
  • Page 94 [<<SET]. Available range: -20 (narrow) to +40 (wide), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-40 VarioLink 9522...

  • Page 95: Scanner Restart Timing Adjustment

    A sample pattern will be output. Check the misalignment by comparing the original and output. Allowance: a=0 ± 1.5 mm or less If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Scanner Restart Timing Adjustment Screen will be restored. VarioLink 9522 3-41...
  • Page 96 [<<SET]. Available range: -40 (fast) to +40 (slow), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-42 VarioLink 9522...

  • Page 97: Adf Restart Timing Adjustment

    A sample pattern will be output. Check the misalignment by comparing the original and output. Allowance: a=0 ± 2 mm or less If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The ADF Restart Timing Adjustment Screen will be restored. VarioLink 9522 3-43...
  • Page 98 [<<SET]. Available range: -50 (fast) to +50 (slow), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-44 VarioLink 9522...

  • Page 99: Adf Registration Loop Adjustment

    Touch [+ <--> -] to specify the value to be positive or negative. Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -10 (narrow) to +10 (wide), 1 step = 0.5 mm VarioLink 9522 3-45...
  • Page 100 Adjustment Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu Screen. 3-46 VarioLink 9522...

  • Page 101: Centering Adjustment

    Fold the output sheet at the center to the direction of paper feed and measure the distance between the lines on both sides. Allowance: 0 ± 15 mm or less If the desired result cannot be obtained, touch the [ADJUSTMENT] tab. The Printer Centering Adjustment Screen will be restored. VarioLink 9522 3-47...
  • Page 102 Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -64(forward) to +63(backward), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is ob- tained. Touch [Return] to restore the Adjustment Menu Screen. 3-48 VarioLink 9522...

  • Page 103: Scanner Centering Adjustment

    Fold the output sheet at the center to the direction of paper feed and measure the distance between the lines on both sides. Allowance: 0 ± 1.5 mm or less If the desired result cannot be obtained, touch the [ADJUSTMENT] tab. The Scanner Centering Adjustment Screen will be restored. VarioLink 9522 3-49...
  • Page 104 Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -30(forward) to +30(backward), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is ob- tained. Touch [Return] to restore the Adjustment Menu Screen. 3-50 VarioLink 9522...

  • Page 105: Adf Centering Adjustment

    Place the original in ADF, then press [Start] on the control panel. A sample pattern will be output. Fold the output sheet at the center to the direction of paper feed and measure the distance between the lines on both sides. VarioLink 9522 3-51...
  • Page 106 Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -30(forward) to +30(backward), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 9 until the desired result is ob- tained. Touch [Return] to restore the Adjustment Menu Screen. 3-52 VarioLink 9522...

  • Page 107: Controller Setting

    Controller Setting...

  • Page 109: Function Overview

    PCL Demo Page Print Print the PCL demo page. PS Demo Page Print* Print the PS demo page. PCL Font List Print the PCL font list. PS Font List* Print the PS font list. * Available only with PS chip installed. VarioLink 9522...
  • Page 110 (8.5×14), Fold & Staple/Non Trim, Fold & Staple/Trim, Multi Tri-Fold (In-Print), Multi Tri-Fold (Out-Print), Multi Half Fold/Non Trim, Multi Half Fold/Trim 09 Offset Select whether or not to use Offset Sort or Offset Group as initial setting. On, Off VarioLink 9522...
  • Page 111 2 repeat-reversal(R), 2 repeat- reversal(U), 2 repeat-reversal(D) 20 Booklet Pagina- Select whether or not to use the tion Booklet function. Off, On 21 Adhesive Binding Select whether or not to use the Ad- hesive binding mode. Off, On VarioLink 9522...
  • Page 112 01 Auto Paper Select Select to use Auto Paper function. Off, On 02 Image Position Select the image position to be print- Center ed on a page. Left, Center * For the details of the symbol set, see the appendix. VarioLink 9522...
  • Page 113 Select the time for the network timeout and USB timeout. See page 4-18. Menu Items Description Default Network Set the timer to terminate the network port. 10 to 3,600 seconds Set the timer to terminate the network port. 10 to 1,000 seconds VarioLink 9522...
  • Page 114 01 Software Switch Make the software switch setting by en- On (1) tering the desired switch number and specifying Off/On for it. Switch Number 1–50, Off (0)/ On (1) 02 Default Setting Resume the default administrator set- Start tings. VarioLink 9522...

  • Page 115: Report Type

    The Controller Setting Menu Screen will be restored, and the Data LED on the control panel flashes to indicate that the printing operation is in progress. To return to the previous screen, touch [Return]. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. VarioLink 9522...

  • Page 116: Printer Setting

    Use the touch panel keypad to enter the setting number for your setting. Available range is from 1 to 6. – Touch [Set] to complete the setting. If a wrong number is entered, touch [Reset] to re-enter the correct number. 4-10 VarioLink 9522...
  • Page 117 16 Banner Option: Select whether or not to print the banner page. 17 Banner Tray: Select the paper feed tray for printing banner page. 18 Convert Paper Size: Select whether or not to change the paper size. VarioLink 9522 4-11...
  • Page 118 02 Symbol Set: Specify the symbol set to be used in PCL. 03 Line/Page: Specify the number of lines per page. 04 Points: Specify the font size by point. 05 Pitch: Specify the font pitch. 06 CR/LF Mapping: Select the mapping of line feed code. 4-12 VarioLink 9522...
  • Page 119 Controller Setting – Touch [Return] to complete the setting and restore the Printer Set- ting Screen. VarioLink 9522 4-13...
  • Page 120 Touch [Return] to complete the setting and restore the Printer Set- ting Screen. Perform the TIFF Setting. – Touch [04 TIFF Setting]. The TIFF Setting Screen will be displayed. – Make the desired setting. 01 Auto Paper Select: Select whether or not to use Auto Paper function. 4-14 VarioLink 9522...
  • Page 121 Touch [Return] to complete the setting and restore the Printer Set- ting Screen. Touch [Return] on the Printer Setting Screen. The Controller Setting Menu Screen will be restored. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. VarioLink 9522 4-15...

  • Page 122: Select Printer Setting

    Touch [Set] to complete the setting. If wrong number is entered before touching [Set], touch [Reset] to re-enter the correct number. Touch [Return]. The Controller Setting Menu Screen will be restored. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. 4-16 VarioLink 9522...

  • Page 123: Spool Print Jobs In Hdd Before Rip

    The Job Spool Setting Screen will be displayed. Touch the desired key to select it. Touch [OK] to complete the setting. The Controller Setting Menu Screen will be restored. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. VarioLink 9522 4-17...

  • Page 124: F Timeout

    If a wrong number is entered before touching [Set], touch [Reset] to re- enter the correct number. Touch [Return]. The Controller Setting Menu Screen will be restored. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. 4-18 VarioLink 9522...

  • Page 125: Plug-In Form Password

    Enter the current password, then touch [OK]. Enter the new password, then touch [OK]. Touch [Return]. The Controller Setting Menu Screen will be restored. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. VarioLink 9522 4-19...

  • Page 126: Scan Setting

    Touch the desired key to make a setting for each. – 01 Auto Delete Document: Select the desired time for the scanned data to be stored in a box. – 02 File Name: Enter the file name within 11 alphanumeric charac- ters. Touch [OK]. 4-20 VarioLink 9522...
  • Page 127 Controller Setting Touch [Return] when settings are completed. The Controller Setting Menu Screen will be restored. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. VarioLink 9522 4-21...

  • Page 128: Administrator Setting

    Password Input Screen will be displayed. Enter the eight-digit administrator password, and then touch [OK]. The Administrator Setting Menu Screen will be displayed. Make the software switch setting. – Touch [01 Software Switch] on the Administrator Setting Menu Screen. 4-22 VarioLink 9522...
  • Page 129 Touch [02 Default Setting], then touch [Start]. – Touch [Return] to return to the Administrator Setting Menu Screen. Touch [Return]. The Controller Setting Menu Screen will be restored. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. VarioLink 9522 4-23...

  • Page 131: Settings On Utility Menu Screen

    Settings on Utility Menu Screen...

  • Page 133: Outlines Of Settings On Utility Menu Screen

    Detail Please contact your service representative for setting the administrator password. 5.1.1 How to Access the Utility Menu Screen Procedure Press the [Utility/Counter] on the control panel. The Utility Menu Screen will be displayed. VarioLink 9522...
  • Page 134 Setting items 01 to 05 are available from this screen. To operate 06 Administrator Setting, proceed to the next step. Touch [06 Administrator Setting]. If the Password Input Screen is displayed, enter the eight-digit admin- istrator password, then touch [OK]. VarioLink 9522...
  • Page 135 Settings on Utility Menu Screen The Administrator Setting Menu Screen will be displayed. Make the desired administrator setting. When all settings are completed, touch [Exit]. The screen displayed before pressing [Utility/Counter] will be restored. VarioLink 9522...

  • Page 136: List Of Utility Menu Settings

    Normal/ 0.5 seconds/ 1 seconds/ 2 seconds/ 3 seconds 08 Change User Password Change a user password previously registered for user au- - - - thentication. 09 Function Key Setting Specify copy conditions for the function keys provided on - - - the Copy Screen. VarioLink 9522...
  • Page 137 Dark Tone Control Select whether or not, and how to control the dark tone image. Off/ Quality/ Performance Icon Display for Dark Tone Select whether or not to display the Dark Tone icon while controlling dark tone images. On/ Off VarioLink 9522...
  • Page 138 06 User Paper Selection* Preset the magnification ratio to be frequently used. User Paper 1 User Paper 1/ User Paper 2/ User Paper 3/ User Paper 4/ User Paper 5 VarioLink 9522...
  • Page 139 ADF. Select Tray when APS Cancel Specify the tray to be automatically selected when APS Select Tray APS is released. APS Select Tray/ Tray 1/ Tray 2/ Tray 3/ Tray 4/ By- pass VarioLink 9522...
  • Page 140 Package PDF/ Division PDF/ Package TIFF/ Division TIFF/ Package XPS/ Division XPS File Form Setting (SMB) Package PDF Select the default file form when transmitting data in SMB. Package PDF/ Division PDF/ Package TIFF/ Division TIFF/ Package XPS/ Division XPS 5-10 VarioLink 9522...
  • Page 141 06 Administrator Setting See section 6. - - - * “06 User Paper Selection” appears as menu item 05 when the machine is not set up for the tan- dem mode. VarioLink 9522 5-11...

  • Page 142: System Setting

    Touch [01 System Setting] on the Utility Menu Screen, then touch [01 Language Setting]. Select the desired language key to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. 5-12 VarioLink 9522...

  • Page 143: Unit Setting

    Touch [01 System Setting] on the Utility Menu Screen, then touch [02 Unit Setting]. Select the desired unit keys to highlight them. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. VarioLink 9522 5-13...

  • Page 144: Buzzer Setting - 01 Buzzer On/Off, Volume Set

    – To turn off the buzzer, touch [Off] to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Buzzer Setting Menu Screen will be restored. 5-14 VarioLink 9522...

  • Page 145: Buzzer Setting - 02 Buzzer For Job Stop Set

    Buzzer Setting] and [02 Buzzer for Job Stop Set] in sequence. Touch the desired time key to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Buzzer Setting Menu Screen will be restored. VarioLink 9522 5-15...

  • Page 146: 04 1 Shot Indication Time

    Touch [01 System Setting] on the Utility Menu Screen, then touch [04 1 Shot Indication Time]. Touch [3 seconds] or [5 seconds] to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. 5-16 VarioLink 9522...

  • Page 147: Default Screen Setting

    Touch [01 System Setting] on the Utility Menu Screen, then touch [05 Default Screen Setting]. Touch the desired initial screen to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. VarioLink 9522 5-17...

  • Page 148: Auto Reset Setting

    Touch [01 System Setting] on the Utility Menu Screen, then touch [06 Auto Reset Setting]. Touch the desired time key to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. 5-18 VarioLink 9522...

  • Page 149: Key Response Time

    Touch [01 System Setting] on the Utility Menu Screen, then touch [07 Key Response Time]. Touch the desired time key to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. VarioLink 9522 5-19...

  • Page 150: Change User Password

    Similarly, touch [Password] to enter the current password. Touch [OK] to continue. Enter a new user password. – Touch [New Password] to enter the new password. For confirmation, enter the new password also in the next row. 5-20 VarioLink 9522...

  • Page 151: Function Key Setting

    Touch [01 System Setting] on the Utility Menu Screen, then touch [09 Function Key Setting]. On the left side of the Function Key Setting Screen, touch and highlight the function key (F1 to F5) to be registered or deleted. VarioLink 9522 5-21...
  • Page 152 Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. Note Even though deleted from the function key, the job setting still remains in Mode Memory. 5-22 VarioLink 9522...

  • Page 153: Function Setting

    Select the tray to be detected when ATS (Auto Tray Switching) functions, and also specify the priority of the detection. Procedure Touch [02 Function Setting] on the Utility Menu Screen, then touch [01 Feed Tray Setting] and [01 Feed Tray Auto Selection] in sequence. VarioLink 9522 5-23...
  • Page 154 Touch and highlight the desired tray key under Tray Priority, then change its priority by touching [,] or [+]. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Feed Tray Setting Menu Screen will be restored. 5-24 VarioLink 9522...

  • Page 155: Feed Tray Setting - 02 Ats Permit

    Feed Tray Setting] and [02 ATS Permit] in sequence. Select [On] to use ATS, or [Off] to deactivate the function. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Feed Tray Setting Menu Screen will be restored. VarioLink 9522 5-25...

  • Page 156: Feed Tray Setting - 03 Auto Paper Type

    Weight, Colored Paper, and Hole-Punch. You may choose more than one key for each item. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Feed Tray Setting Menu Screen will be restored. 5-26 VarioLink 9522...

  • Page 157: Individual Function Change Setting

    Image Shift (Tab Print) to specify whether or not to use those func- tions. – Touch [Hold] or [Not Hold] to specify whether or not to retain the mode. – Touch [Long] or [Short] for Dash Length (Stamp Page) to specify the length of the dash. VarioLink 9522 5-27...
  • Page 158 Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Function Setting Screen will be restored. Note The Needless Tab Paper Exit key may not be displayed depending on the finisher type mounted on the machine. 5-28 VarioLink 9522...

  • Page 159: Density Setting - 01 Density By Original Type

    Touch the desired numeric key (from 0 to 5) for each mode to specify the desired shift amount. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Density Setting Menu Screen will be restored. VarioLink 9522 5-29...

  • Page 160: Density Setting - 02 Preset Density Setting

    Density] then touch the [COPY] tab. Place original on the original glass, then press [Start] on the control panel. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Density Setting Menu Screen will be restored. 5-30 VarioLink 9522...

  • Page 161: Density Setting - 03 Photo Mode Density Selection

    Density Setting] and [03 Photo Mode Density Selection] in sequence. Select the desired density key from [Lighter], [Standard] and [Darker]. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Density Setting Menu Screen will be restored. VarioLink 9522 5-31...

  • Page 162: Density Setting - 04 Image Density Selection

    Density Setting] and [04 Image Density Selection] in sequence. Touch the desired density key to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Density Setting Menu Screen will be restored. 5-32 VarioLink 9522...

  • Page 163: User Preset Zoom Setting

    Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Function Setting Screen will be restored. VarioLink 9522 5-33...

  • Page 164: Tandem Setting

    Select Off so that both machines complete the first determined distribution for each. 5-34 VarioLink 9522...
  • Page 165 Touch [02 Function Setting] on the Utility Menu Screen, then touch [05 Tandem Setting]. Touch the desired item key to make a selection for each. – Touch [01 Tandem Machine One Time Data Read], select [On] or [Off], then touch [OK]. VarioLink 9522 5-35...
  • Page 166 Settings on Utility Menu Screen – Touch [02 Tandem Machine Wait/Proof], select [Permit] or [Prohib- it], then touch [OK]. – Touch [03 Tandem Machine Shift Data Setting], select [Master Ma- chine Shift data] or [Tandem Machine Shift data], then touch [OK]. 5-36 VarioLink 9522...
  • Page 167 Settings on Utility Menu Screen – Touch [04 Tandem Setting after JOB completion], select [On] or [Off], then touch [OK]. – Touch [05 Distribution Recovery], select [On] or [Off], then touch [OK]. Touch [Return]. The Function Setting Screen will be restored. VarioLink 9522 5-37...

  • Page 168: User Paper Selection

    Procedure Touch [02 Function Setting] on the Utility Menu Screen, then touch [07 User Paper Selection]. Touch the desired User Paper key to highlight it. Touch [Previous]. The Function Setting Screen will be restored. 5-38 VarioLink 9522...

  • Page 169: Copy Setting

    - Original Setting: Standard - Quality Adjustment: Standard - AES: On - Zoom: 1.000 - Output Setting: To be specified in “02 Reset Function Setting” - Simplex/Duplex: 1->1 - Auto Paper: On - Image Rotation: On - ADF: On VarioLink 9522 5-39...
  • Page 170 1 as the initial setting. Touch [Factory Default] to restore the Full Auto (factory default) setting. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Reset Setting Menu Screen will be restored. 5-40 VarioLink 9522...
  • Page 171 Settings on Utility Menu Screen Note If [Full Auto] is selected in “02 Reset Function Setting”, the factory default setting will be restored when Auto Reset functions, irrespective of the in- itial setting selection made here. VarioLink 9522 5-41...

  • Page 172: Reset Setting - 02 Reset Function Setting

    Touch the desired key on the right side of “Finisher Mode when Full Auto” to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Reset Setting Menu Screen will be restored. 5-42 VarioLink 9522...

  • Page 173: Reset Setting - 03 Initial By Key Counter Insert

    Touch [On] to reset the machine, or touch [Off] to retain the current set- ting when the key counter or copy card is inserted. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Reset Setting Menu Screen will be restored. VarioLink 9522 5-43...

  • Page 174: Individual Function Change Setting

    Original Setting Screen and the binding direction setting made on the Output Setting Screen after completion of each copying job. - Status Hold When Auto Reset Select whether to reset the ADF mode to the initial setting or to save the previous setting when Auto Reset functions. 5-44 VarioLink 9522...
  • Page 175 Touch [03 Copy Setting] on the Utility Menu Screen, then touch [02 In- dividual Function Change Setting]. Select [On], [Off], or touch the desired key to each item on the left side of the screen. – Two setting screens are provided. Touch [Next] and [Previous] to scroll. VarioLink 9522 5-45...
  • Page 176 Settings on Utility Menu Screen Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy Setting Screen will be restored. 5-46 VarioLink 9522...

  • Page 177: Scan Setting

    Select one from the following four destinations: - E-mail (E-mail address) - HDD (Box No.) - FTP (FTP server address) - SMB (Shared folder) Procedure Touch [04 Scan Setting] on the Utility Menu Screen, then touch [01 De- fault Destination Set]. VarioLink 9522 5-47...
  • Page 178 Settings on Utility Menu Screen Touch the desired key for the destination. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Scan Setting Screen will be restored. 5-48 VarioLink 9522...

  • Page 179: Individual Function Change Setting

    - Default Special Original Set Select the default special original type from Normal, Mixed Original, Z- Folded Org, and Single Feed. - Default Scan Size Setting Select the default scanning size from Auto, Full Area, and specified 15 sizes. VarioLink 9522 5-49...
  • Page 180 Touch the desired key for each item on the left side of the screen. – Two setting screens are provided. Touch [Next] and [Previous] to scroll. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Scan Setting Screen will be restored. 5-50 VarioLink 9522...
  • Page 181 Settings on Utility Menu Screen Note When transmitting simultaneously to multiple destinations, the file form setting cannot be specified individually. When transmitting simultaneously, the file form setting will be selected in the following priority: E-mail>HDD>FTP>SMB VarioLink 9522 5-51...

  • Page 182: Touch Panel Adjustment

    Touch each [Check Button] at the upper left and lower right corners on the screen to check that the buzzer tone functions normally. 5-52 VarioLink 9522...
  • Page 183 4, repeat the adjustment pro- cedure from steps 3 to 4 or contact your service representative. Press [1] of the control panel keypad to return to the Utility Menu Screen. VarioLink 9522 5-53...

  • Page 185: Administrator Setting

    Administrator Setting...

  • Page 187: Administrator Setting Outlines

    Please contact your service repre- sentative to set up your password. 6.1.1 How to access the Administrator Setting Menu Screen Procedure Press the [Utility/Counter] on the control panel. The Utility Menu Screen will be displayed. VarioLink 9522...
  • Page 188 Enter the eight-digit administrator password, and then touch [OK]. The Administrator Setting Menu Screen will be displayed. Make the desired administrator setting. Touch [Exit] to exit the Utility mode and resume the screen displayed before pressing [Utility/Counter] on the control panel. VarioLink 9522...

  • Page 189: List Of The Administrator Setting

    Output the list of machine use operated by users and sections. 04 Font Pattern List Output the list of font patterns used with this ma- chine. 05 Audit Log Report Output the audit log report of the security mode. VarioLink 9522...
  • Page 190 Erase Mode: Oblique Erase/Rectangle Erase/Auto Original Density: Auto Original Density: Five levels/Auto 07 Size Setting Original Size Search Set the detected paper type of the original. Inch Series Metric A/B/ Inch Series / Only Metric A/ Full Size VarioLink 9522...
  • Page 191 Set to count the output of non-registered users and sec- tions On/Off 04 Network Setting 01 Machine NIC Setting Set the NIC settings. 01 TCP/IP Setting Set the TCP/IP settings. IP Address/Subnet Mask/Gateway Address/IP Ad- dress (Tandem)/Line Speed Setting VarioLink 9522...
  • Page 192 Set other detailed settings. 05 Copy/Printer Setting 01 JOB Offset Operating Set the machine to offset the copies/printouts of differ- ent jobs. On/Off 02 Continuous Print/Printer Set the machine to output multiple reserve jobs in suc- cession. On/Off VarioLink 9522...
  • Page 193 Set the exit direction when copying one set of the origi- Face Down nal on the original glass. Face Up/Face Down 11 SDF Auto Setting On/Off 06 System Connection 01 User Call - - - Touch [Start] when calling CSRC. Start VarioLink 9522...
  • Page 194 Overwrite all the image data. Erase mode: Mode 4 Erase mode: Mode 1–8 03 Security Strengthen Mode Set the Security Strengthen mode. On/Off 08 Scan Destination Register 01 Send Address Edit/Delete - - - Edit or delete the registered scan address. 6-10 VarioLink 9522...

  • Page 195: System Setting

    Low Power and Auto Shut Off. Procedure Touch [01 System Setting] on the Administrator Setting Menu Screen, then touch [01 Power Save Setting]. Touch [Auto Low Power] in the left side area of the screen to highlight it. VarioLink 9522 6-11...
  • Page 196 If the period of time selected for Auto Shut Off is shorter than that of for Auto Low Power, the selected time of Auto Low Power will be forcibly re- set to the same period of time as Auto Shut Off, being highlighted in white. Auto Low Power will not function. 6-12 VarioLink 9522...

  • Page 197: Time And Date Setting

    (e.g. Enter “-0600” for six hours later than the universal time.) – Use [+<->–] to display “+” when the local time is earlier than the uni- versal time, or “–” when the local time is later. VarioLink 9522 6-13...
  • Page 198 Administrator Setting Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. 6-14 VarioLink 9522...

  • Page 199: Weekly Timer Setting

    03 Weekly Timer Setting - 01 Weekly Timer On/Off Setting Enable or disable the Weekly Timer function. Procedure Touch [01 System Setting] on the Administrator Setting Menu Screen, then touch [03 Weekly Timer Setting] and [01 Weekly Timer On/Off Set] in sequence. VarioLink 9522 6-15...
  • Page 200 Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Weekly Timer Setting Menu Screen will be restored. 6-16 VarioLink 9522...

  • Page 201: Weekly Timer Setting - 02 Timer Reserve Setting

    [*]/[)] on the right side of the key to highlight On-time or Off-time. Enter a two-digit hour in 24-hour expression (ex. 2 p.m. is 14) and a two-digit minute (ex. 7 min. is 07) using the touch panel keypad. VarioLink 9522 6-17...
  • Page 202 (Timer Reserve Setting Screen). Specified On/Off times are reflected on the screen. Touch [OK] on the Timer Reserve Setting Screen to complete the set- ting, or touch [Cancel] to resume the previous setting. The Weekly Timer Setting Menu Screen will be restored. 6-18 VarioLink 9522...

  • Page 203: Weekly Timer Setting - 03 Timer Action On/Off Set

    If any change is made in the collective setting area, a popup menu will appear for confirmation. – The collective setting has priority to the individual setting made on the calendar. Touch [Yes] to change the timer action, or touch [No] to cancel. VarioLink 9522 6-19...
  • Page 204 Administrator Setting Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Weekly Timer Setting Menu Screen will be restored. 6-20 VarioLink 9522...

  • Page 205: Weekly Timer Setting - 04 Lunch Hour Off Setting

    Also enter the Restart time. – Touch [Function Invalid] to deactivate the lunch hour off function. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Weekly Timer Setting Menu Screen will be restored. VarioLink 9522 6-21...

  • Page 206: Weekly Timer Setting - 05 Timer Interrupt Password

    [03 Weekly Timer Setting] and [05 Timer Interrupt Password] in sequence. Use the touch panel keypad to enter a four-digit password. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Weekly Timer Setting Menu Screen will be restored. 6-22 VarioLink 9522...

  • Page 207: Management List Print

    6.2.9 04 Management List Print Use this function to print out the list selected from the following items. - Mode Memory List: Programmed contents of Mode Memory - User Management List: Home position settings selected by user VarioLink 9522 6-23...
  • Page 208 Administrator Setting - Use Management List: Information controlled by user authentication/ account track - Font Pattern List: Font patterns used in the machine - Audit Log Report: Audited log 6-24 VarioLink 9522...
  • Page 209 Press [Start] on the control panel to start printing the selected list. – To suspend printing, press Stop. Touch [UTILITY] tab to return to the Management List Print Screen. Touch [Return]. The System Setting Screen will be restored. VarioLink 9522 6-25...

  • Page 210: Restrict User Access Setting

    Locked entry of Mode Memory can be deleted with the lock deleted from that key. Note that the entry once deleted cannot be recalled. 30 job settings can be stored in Mode Memory. Use [Next] or [Previous] to display the desired entry. 6-26 VarioLink 9522...
  • Page 211 Touch the key on the left side of the desired entry to lock it with a lock mark displayed. Touching the locked key will clear the lock mark and release the lock. Touching the key without a name entered will neither lock the key nor display the lock mark. VarioLink 9522 6-27...
  • Page 212 (HDD), Scan Function (FTP), and Scan Function (SMB), select [Permit] or [Prohibit] to highlight it for each. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. 6-28 VarioLink 9522...

  • Page 213: Expert Adjustment - 01 Original Scan Area Setting

    [06 Expert Adjustment] and [01 Orig. Scan Area Setting] in sequence. Touch the desired setting key to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Expert Adjustment Menu Screen will be restored. VarioLink 9522 6-29...

  • Page 214: Expert Adjustment - 02 Adf Frame Erase Setting

    Touch the key of the desired erasure amount to highlight it. Touch [None] if Frame Erasure is not necessary. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Expert Adjustment Menu Screen will be restored. 6-30 VarioLink 9522...

  • Page 215: Expert Adjustment - 03 Non-Image Area Erase Setting

    To select the erase mode manually, touch [Oblique Erase] or [Rec- tangle Erase], then select the desired original density from five ex- posure levels. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Expert Adjustment Menu Screen will be restored. VarioLink 9522 6-31...

  • Page 216: Size Setting

    Select the minimum size of the original to be detected in Auto Paper. – Touch the desired size key to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The System Setting Screen will be restored. 6-32 VarioLink 9522...

  • Page 217: Annotation Setting

    Specify the character size and font of the item to be printed as annota- tion. (Character size: 8/10/12/14 point, Font: Gothic/Ming) - Combination method for items Select to print the specified items either in a line or in three lines. VarioLink 9522 6-33...
  • Page 218 Touch a non-registered title key on the Annotation Setting Screen, then touch [New Register]. The Annotation New Register Screen will be displayed. If selected title key has already been registered, [New Register] re- mains dimmed and cannot be touched. 6-34 VarioLink 9522...
  • Page 219 Touch one of the key from [Type In], [Date/Time], [Annotation No.], and [No Print] to select it. When [Type In] is selected: The Input Type In Screen will be displayed. Enter the desired words to be printed, then touch [OK]. VarioLink 9522 6-35...
  • Page 220 The Date/Time Setting Screen will be displayed. Select the desired style for each from 5 Date keys and 3 Time keys, then touch [OK]. When [Annotation No.] is selected: The Annotation No. Setting Screen will be displayed. 6-36 VarioLink 9522...
  • Page 221 Touch [Character Set] to specify the character size and font type of the Item 1. The Print Character Setting Screen will be displayed. Select the desired size from 4 character size keys, and font type be- tween the two font keys, then touch [OK]. VarioLink 9522 6-37...
  • Page 222 Touch [3 Lines] or [1 Line] under the Combination method for items indication to select the desired print style of the annotation. Touch [OK] to complete the setting, or touch [Cancel] to clear the setting. The Annotation Setting Screen will be restored. 6-38 VarioLink 9522...
  • Page 223 [Delete]. A popup menu will be displayed to confirm that the selected regis- ter will be deleted. – Touch [Yes] to delete, or [No] to cancel. Touch [Return] to return to the System Setting Screen. VarioLink 9522 6-39...

  • Page 224: Admin./Machine Setting

    Touch [02 Admin./Machine Setting] on the Administrator Setting Menu Screen, then touch [01 Register Administrator]. Enter the administrator name. – Touch [Input Name] to display the Administrator Name Input Screen. Use the touch panel keyboard to register the administrator name. 6-40 VarioLink 9522...
  • Page 225 Touch [E-mail Address Input] to display the E-mail Address Input Screen. Use the touch panel keyboard to register the E-mail address of the administrator. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Admin./Machine Setting Menu Screen will be restored. VarioLink 9522 6-41...

  • Page 226: User Auth./ Account Track

    Counters for printing/scanning by each user – Management of group user boxes and personal user boxes for each own- – Delete jobs of other users - Account Track – Counters for printing/scanning from each account – Operates the group box 6-42 VarioLink 9522...
  • Page 227 Select “On” (“On (MFP)” for Web Connection). Account Authentication Select “On”, and then specify the account name and password. Synchronize User/Account Track Select “On” (“Synchronize” for Web Connec- tion). Account Name Input Select an account name if “On (MFP)” was se- lected. VarioLink 9522 6-43...
  • Page 228 Setting items on Authentication Setting Required setting Screen User Authentication Select “On” (“On (MFP)” for Web Connection). Account Authentication Select “On”, and then specify the account name and password. Synchronize User/Account Track Select “Off” (“Do Not Synchronize” for Web Connection). 6-44 VarioLink 9522...

  • Page 229: Authentication Method - 01 Authentication Setting

    Enter the number of accounts. The total number of authentication to be distributed is 1,000 for both user and account. The remaining number from which the number of account is subtracted from 1,000 will be the users. VarioLink 9522 6-45...
  • Page 230 Touch [03 User Auth./ Account Track] on the Administrator Setting Menu Screen, then touch [01 Authentication Method] and [01 User Au- thentication] in sequence. Select [On] or [Off] on the right side of User Authentication, Account Authentication, Account Name Input, and Synchronize User/Account Track. 6-46 VarioLink 9522...
  • Page 231 Touch [Account Distribute Number] to display the touch screen key- pad, then enter the number to distribute. Touch [OK] to continue. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Authentication Method Setting Menu Screen will be restored. VarioLink 9522 6-47...

  • Page 232: Authentication Method - 02 Account Track Setting

    The message “Copy limit reached” is dis- played, and the machine stops its operation. When [Warning Only] is selected, the message “Copy limit reached” is dis- played as reaching the copy limit, and the machine is still available for the next job. 6-48 VarioLink 9522...
  • Page 233 Touch [Stop Immediately], [Stop After Print], or [Warning Only] on the right side of Limit Reached Stop Setting to select it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Authentication Method Setting Menu Screen will be restored. VarioLink 9522 6-49...

  • Page 234: Account Track

    Follow the instructions below to change an account data. – Touch [Next]/[Previous] to display the account name to be changed, then touch the key to highlight it. – Touch [Change] to display the Change Account Track Screen. 6-50 VarioLink 9522...
  • Page 235 Touch [OK] to complete the entry. If changed password or account name is duplicated, a confirmation message will be displayed. Touch [No] to accept the duplication, or touch [Yes] to enter anoth- er password or section name. VarioLink 9522 6-51...
  • Page 236 Enter the account number, then touch [OK]. You may enter four dig- its for the account number. – Touch [Account Name] to display the input screen. Enter the ac- count name and touch [OK]. You may enter eight characters for the account name. 6-52 VarioLink 9522...
  • Page 237 Follow the instructions below to delete the account data. – Touch [Next]/[Previous] to display the account name to be deleted, then touch the key to highlight it. – Touch [Delete]. The confirmation popup menu will appear. VarioLink 9522 6-53...
  • Page 238 Touch [Next]/[Previous] to display the account name to be reset, then touch the key to highlight it. – Touch [Counter Clear]. The confirmation popup menu will appear. – Touch the desired key to reset. Touch [Cancel] to cancel the oper- ation. 6-54 VarioLink 9522...
  • Page 239 – Touch [All Counters Clear]. The confirmation popup menu will ap- pear. – Touch the desired key to reset. Touch [Cancel] to cancel the oper- ation. Touch [Return] to return to the User Auth./ Account Track Screen. VarioLink 9522 6-55...

  • Page 240: User Authentication Setting

    Follow the instructions below to change a user data. – Touch [Next]/[Previous] to display the user name to be changed, then touch the key to highlight it. – Touch [Change] to display the Change Registered User Screen. 6-56 VarioLink 9522...
  • Page 241 [OK]. You may enter 64 letters for the user name. For the details on entering texts in the input screen, see the appendix. – Touch [Password] to display the input screen. Enter the password and touch [OK]. You may enter 64 digits for the password. VarioLink 9522 6-57...
  • Page 242 Use [Next]/[Previous] to display the desired account name, touch to highlight it, then touch [OK]. – Touch any key on the right side of [Useable Function] to select the job necessary to authenticate a newly registered user. Touch [OK] to complete the setting. 6-58 VarioLink 9522...
  • Page 243 – Touch [Add] to display the Add New User Screen. – Touch [User Number] to display the touch panel keypad. – Enter the user number and touch [OK]. You may enter four digits for the user number. VarioLink 9522 6-59...
  • Page 244 The account name can be specified when Synchronize User/Ac- count Track of the Authentication Method settings is set to On. Use [Next]/[Previous] to display the desired account name, touch to highlight it, then touch [OK]. 6-60 VarioLink 9522...
  • Page 245 Administrator Setting – Touch the desired key on the right side of [Useable Function] to se- lect the job necessary to authenticate a newly registered user. – Touch [OK] to complete the setting. VarioLink 9522 6-61...
  • Page 246 Touch [Next]/[Previous] to display the user name to reset the count, then touch the key to highlight it. – Touch [Counter Clear]. The confirmation popup menu will appear. – Touch the desired key to reset. Touch [Cancel] to cancel the oper- ation. 6-62 VarioLink 9522...
  • Page 247 – Touch [All Counters Clear]. The confirmation popup menu will ap- pear. – Touch the desired key to reset. Touch [Cancel] to cancel the oper- ation. Touch [Return] to return to the User Auth./ Account Track Screen. VarioLink 9522 6-63...

  • Page 248: Non Registered User/Output Setting

    Menu Screen, then touch [04 Non Register/Output Set]. Touch [On] to activate, or touch [Off] to deactivate this function. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The User Auth./ Account Track Screen will be restored. 6-64 VarioLink 9522...

  • Page 249: Network Setting

    [01 Machine NIC Setting] and [01 TCP/IP Setting] in se- quence. Specify the following items. Use the touch panel keypad to enter numeric values. Touching [Set] will shift the cursor to the next setting area. Continue in this manner. VarioLink 9522 6-65...
  • Page 250 Line Speed Setting Specify the line speed of the network. Choose from the options pro- vided. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Machine NIC Setting Menu Screen will be restored. 6-66 VarioLink 9522...

  • Page 251: Controller Nic Setting

    Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Machine NIC Setting Menu Screen will be restored. VarioLink 9522 6-67...

  • Page 252: List Of Ip Nic Setting

    0: 0: 0: 0: 0: 0: 0: 0 (1–39 byte) Secondary DNS Server 1 IPv4/ IPv6 0.0.0.0 (0–255) 0: 0: 0: 0: 0: 0: 0: 0 (1–39 byte) Secondary DNS Server 2 IPv4/ IPv6 0.0.0.0 (0–255) 0: 0: 0: 0: 0: 0: 0: 0 (1–39 byte) 6-68 VarioLink 9522...
  • Page 253 Start 0.0.0.0 - End 0.0.0.0 (0–255) Range 2: Start 0.0.0.0 - End 0.0.0.0 (0–255) Range 3: Start 0.0.0.0 - End 0.0.0.0 (0–255) Range 4: Start 0.0.0.0 - End 0.0.0.0 (0–255) Range 5: Start 0.0.0.0 - End 0.0.0.0 (0–255) VarioLink 9522 6-69...
  • Page 254 Group 1–Group 10 Enable/ Disable Perfect Forward Secrecy 02 NetWare Setting <NetWare Print Setting> IPX Setting Enable/ Disable Ethernet Frame Type Auto Detect/ 802.2/ 802.3/ Ethernet II/ 802.3SNAP Netware Print Mode Disable/ Pserver/ Nprinter/Rprinter 6-70 VarioLink 9522...
  • Page 255 Enable/ Disable Open Job Enable/ Disable Open Printer Attributes Enable/ Disable Printer Information Printer Name Max. 127 characters combining symbols and alphanumerics can be used. Printer Location Max. 127 characters combining symbols and alphanumerics can be used. VarioLink 9522 6-71...
  • Page 256 1–65535 (21) FTP Server Setting Enable/ Disable 05 SNMP Setting <SNMP Setting> SNMP Setting SNMP Setting Enable/ Disable SNMPv1/v2c Enable/ Disable SNMPv3 (IP) Enable/ Disable SNMPv1 (IPX) Enable/ Disable UDP Port Number SNMP Set/ SNMPv1/v2c Set 1–65535 (161) 6-72 VarioLink 9522...
  • Page 257 Max. 32 characters combining symbols and alphanumerics can be used. Security Level No Admission/ auth-password/ auth- password/priv-password Password Setting Write User auth-Password 8 to 32 characters combining symbols and alphanumerics can be used. MAC Address (Colons “:” excluded) VarioLink 9522 6-73...
  • Page 258 GEN + the last 6 digits of MAC address Max. 31 characters combining symbols and alphanumerics can be used. Zone Name Asterisks (*) Max. 31 characters combining symbols and alphanumerics can be used. Current Zone Cannot be changed. 6-74 VarioLink 9522...
  • Page 259 SMTP Authentication Setting User ID Max. 255 characters combining symbols and alphanumerics can be used. Password Max. 128 characters combining symbols and alphanumerics can be used. realm Max. 255 characters combining symbols and alphanumerics can be used. VarioLink 9522 6-75...
  • Page 260 1–65535 (59158) SSL Setting Enable/ Disable Port Number (SSL) 1–65535 (59159) TCP Socket (ASCII Mode) TCP Socket (ASCII Mode) Enable/ Disable Port Number (ACSII Mode) 1024–65535 (59160) 11 CSRC Setting <CSRC Send Setting> CSRC Send Setting Enable/ Disable 6-76 VarioLink 9522...
  • Page 261 APOP authentication Enable/ Disable Port number 1–65535 (110) Connection time out 30/ 60/ 90/ 120/ 150/ 180/ 210/ 240/ 270/ 300 (sec.) Auto Receive Check Enable/ Disable Polling interval 1–60 (15) (min.) CSRC Communication Test Start VarioLink 9522 6-77...
  • Page 262 GEN + the last 6 digits of MAC address Max. 63 characters combining symbols and alphanumerics can be used. Scanner Establish. Place Max. 63 characters combining symbols and alphanumerics can be used. Scanner Information Max. 63 characters combining symbols and alphanumerics can be used. 6-78 VarioLink 9522...
  • Page 263 Search Base Max. 255 characters combining symbols and alphanumerics can be used. SSL Setting Enable/ Disable Port number 1–65536 (30081) Port number (SSL) 1–65536 (30082) Authentication Method Anonymous/ Simple/ Digest-MD5/ GSS- SPNEGO/ NTML v1/ NTML v2 VarioLink 9522 6-79...
  • Page 264 Trans Setting Enable/ Disable Trans Address IPv4 0.0.0.0 (0–255) IPv6 0: 0: 0: 0: 0: 0: 0: 0 (1–39 bytes) Host Name Max. 253 characters combining symbols and alphanumerics can be used. Trans Port No. 1–65535 (162) 6-80 VarioLink 9522...
  • Page 265 *4: Unavailable for the ranges fe80: : –febf: ffff: ffff: ffff: ffff: ffff: ffff: ffff and ff00: : –ffff: ffff: ffff: ffff: ffff: ffff: ffff: ffff. *5: XXXX will be calculated from the MAC address. *6: Unavailable only for the range fe80: 0: 0: 0: : –fe80: 0: 0: 0: ffff: ffff: ffff: ffff. VarioLink 9522 6-81...
  • Page 266 If an error is found in Web Connection, a message will be displayed. *11: Discover User Name cannot be set with the same entry as that for Read User Name or Write User Name. *12: Tunnel mode in ESP AH setting is not supported. 6-82 VarioLink 9522...

  • Page 267: Copy/Printer Setting

    Touch [05 Copy/Printer Setting] on the Administrator Setting Menu Screen, then touch [01 Job Offset Operating]. Touch [On] or [Off] to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. VarioLink 9522 6-83...

  • Page 268: Continuation Print (Printer)

    Touch [05 Copy/Printer Setting] on the Administrator Setting Menu Screen, then touch [02 Continuation Print/Printer]. Touch [On] or [Off] to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. 6-84 VarioLink 9522...

  • Page 269: Page No. Position (Booklet)

    Screen, then touch [03 Page No. pos. (Booklet)]. Touch [On (Outside Page Print)] or [Off] to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. VarioLink 9522 6-85...

  • Page 270: Fixing Prerotation Setting

    With [Rotation On (Base + 30 sec)], [Rotation On (Base + 10 sec)], or [Ro- tation On (Base)] selected, the message “Machine is warming up” may be displayed on pressing [Start] after the paper type/weight has been changed. Please wait until copying becomes available. 6-86 VarioLink 9522...

  • Page 271: Automatic Image Rotation Setting

    Screen, then touch [05 Automatic Image Rotation]. Touch the desired setting key to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. VarioLink 9522 6-87...

  • Page 272: Interruption Suspend Setting

    Screen, then touch [06 Interruption suspend]. Touch [When Current Set Completed] or [Stop Immediately] to high- light it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. 6-88 VarioLink 9522...

  • Page 273: Copy Reserve Operation

    Screen, then touch [07 Copy Reserve Operation]. Touch [Enabled by Operation] or [Enabled by Set Original] to highlight Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. VarioLink 9522 6-89...

  • Page 274: Scan Stop By Pulling Out Tray

    Screen, then touch [08 Scan Stop (pull out tray)]. Touch [On] or [Off] to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. 6-90 VarioLink 9522...

  • Page 275: Continuation Print (Copy)

    Touch [05 Copy/Printer Setting] on the Administrator Setting Menu Screen, then touch [09 Continuation Print (Copy)]. Touch [On] or [Off] to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. VarioLink 9522 6-91...

  • Page 276: Original Glass Sdf Method

    Screen, then touch [10 Original Glass SDF Method]. Touch [Face Up] or [Face Down] to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. 6-92 VarioLink 9522...

  • Page 277: Sdf Auto Setting

    Touch [05 Copy/Printer Setting] on the Administrator Setting Menu Screen, then touch [11 SDF Auto Setting]. Touch [On] or [Off] to highlight it. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Copy/Printer Setting Menu Screen will be restored. VarioLink 9522 6-93...

  • Page 278: System Connection

    The monitored information will be useful for maintenance. Procedure Touch [06 System Connection] on the Administrator Setting Menu Screen, then touch [01 User Call]. Touch [Start]. Touch [Return] to restore the System Connection Screen. 6-94 VarioLink 9522...

  • Page 279: Security Setting

    Security Setting Menu Screen 6.8.1 01 Administrator Password Set the new administrator password. Procedure Touch [07 Security Setting] on the Administrator Setting Menu Screen, then touch [01 Administrator Password]. Touch [Input Administrator Password] to display the touch screen key- board. VarioLink 9522 6-95...
  • Page 280 Administrator Setting Enter the new e password. Touch [OK]. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The Security Setting Menu Screen will be restored. 6-96 VarioLink 9522...

  • Page 281: Hdd Management Setting - 01 Folder/User Box List Delete

    [02 HDD Management Setting] and [01 Folder/User Box List Del.] in sequence. Refer the detailed information of the folder and the box. – Touch [Personal Folder], [Public Folder], or [Secure Folder] to refer to the details of the desired folder or box. VarioLink 9522 6-97...
  • Page 282 Select the folder or box to be deleted, referring to the procedure in step 2. – Check that the name of the desired folder or box is displayed in the Folder/User Box Name area of the screen. 6-98 VarioLink 9522...

  • Page 283: Hdd Management Setting - 02 Hdd Data Auto Delete Period

    The initial setting is [Not Delete]. Procedure Touch [07 Security Setting] on the Administrator Setting Menu Screen, then touch [02 HDD Management Setting] and [02 HDD Data Auto Del. Period] in sequence. VarioLink 9522 6-99...

  • Page 284: Hdd Management Setting - 03 Change Hdd Lock Password

    The HDD lock password cannot be changed unless the security strength- en mode is set to ON. Procedure Touch [07 Security Setting] on the Administrator Setting Menu Screen, then touch [02 HDD Management Setting] and [03 Change HDD Lock Password] in sequence. Specify the current password. 6-100 VarioLink 9522...
  • Page 285 Touch [Check Input] to re-enter the same new password. Enter new password once more for confirmation, then touch [OK]. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The HDD Management Setting Menu Screen will be restored. VarioLink 9522 6-101...

  • Page 286: Hdd Management Setting - 04 Delete Temporary Data

    Two erase modes are provided. With [On] selected for Setting Switch, the selected erase mode (either Mode 1 or Mode 2) will function. Touch [OK] to complete the setting, or touch [Cancel] to resume the previous setting. The HDD Management Setting Menu Screen will be restored. 6-102 VarioLink 9522...

  • Page 287: Hdd Management Setting - 05 Delete All Data

    When the machine is turning into the security strengthen mode, various se- curity settings are activated in order to increase security when managing the scanned data. Restrictions are applied to user operations, public user ac- cess is prohibited, and box operations and print jobs are limited. VarioLink 9522 6-103...
  • Page 288 Specify 5 minutes or longer. Functions When Authentication Error/Release Time Settings Detail [SSL] appears when a certificate is registered with Web Connection. Procedure Touch [07 Security Setting] on the Administrator Setting Menu Screen, then touch [03 Security Strengthen Mode]. 6-104 VarioLink 9522...
  • Page 289 Touch [Yes] to complete the setting. The machine power will be turned off, then on. Touch [No] to cancel the setting. Touch [Cancel] at the lower right side of the screen to return to the Security Setting Menu Screen. VarioLink 9522 6-105...

  • Page 290: Scan Destination Register

    The group of registered E-mail addresses can also be deleted. Procedure Touch [08 Scan Destination Register] on the Administrator Setting Menu Screen, then touch [01 Destination Address Edit/Delete]. Select the address type to be changed/deleted. – To change/delete E-mail address: Touch [E-mail]. 6-106 VarioLink 9522...
  • Page 291 To change the address, touch [Change]. Select the changing item from [Address], [Register Name] and [Ref- erence Name], and change it from the input screen. Touch [On] to specify it for daily use. Touch [OK] to complete the setting. VarioLink 9522 6-107...
  • Page 292 To change the address, touch [Change]. Select the changing item from [Register Name], [Reference Name] and [Password], and change it from the input screen. Touch [On] to specify it for daily use. Touch [OK] to complete the setting. 6-108 VarioLink 9522...
  • Page 293 To delete the address, touch [Delete]. Touch [Yes] on the confirma- tion popup menu. To suspend deleting, touch [No]. To delete the unregistered box, touch [Non Register Box] and touch [Delete]. Touch [Yes] on the Delete Confirmation popup screen. To suspend deleting, touch [No]. VarioLink 9522 6-109...
  • Page 294 Touch [On] to specify it for dai- ly use. Touch [OK] to complete the setting. To delete the address, touch [Delete]. Touch [Yes] on the confirma- tion popup menu. To suspend deleting, touch [No]. 6-110 VarioLink 9522...
  • Page 295 Search], [Password], [Login Name], [Host Address] and [File Path], and change it from the input screen. Touch [On] to specify it for dai- ly use. Touch [OK] to complete the setting. To delete the address, touch [Delete]. Touch [Yes] on the Delete Confirmation popup screen. VarioLink 9522 6-111...
  • Page 296 To suspend deleting, touch [No]. – To delete a group: Touch [Group]. Display the register name of the group using [,]/[+] keys, then touch the desired register name to highlight it. Touch [Delete]. Touch [Yes] on the confirmation popup menu. 6-112 VarioLink 9522...
  • Page 297 Administrator Setting To suspend deleting, touch [No]. Touch [Return] to restore the Scan Destination Register Screen. VarioLink 9522 6-113...

  • Page 299: Web Utilities Setting

    Web Utilities Setting...

  • Page 301: Web Utilities Outlines

    - The user name “admin” (for accessing to the Administrator Setting Menu) cannot be changed. Enter the administrator password previously specified on the machine. 00000000 is initially applied. Once entered, the user name and password are not necessary to be re- entered unless the web browser is restarted. VarioLink 9522...
  • Page 302 Activate the web browser, then select [Open] from the File menu. Enter the URL (http:// [IP address or host name of the machine]), then click on [OK]. The Main Page of the Web Utilities will be displayed. Detail The Web Utilities window is subject to change without notice. VarioLink 9522...

  • Page 303: Setting Account Track Data

    7.2.1 Adding Account Track Add a new account track data (password, name, and limit value). Procedure Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialogue box will be displayed. VarioLink 9522...
  • Page 304 [OK]. The Machine Manager Setting menu will be displayed. Click on [Volume Track setting]. The Volume Track Setting menu will be displayed. Click on [Volume Track data add]. The Volume Track Data Add window will be displayed. VarioLink 9522...
  • Page 305 Password: 8 digits max. Limit: 99,999,999 copies max. Click on [Apply]. The registered content will be displayed in the window. The new account track data will be transmitted to the machine imme- diately so that is valid for the user operations. VarioLink 9522...

  • Page 306: Editing Account Track Data

    Editing Account Track Data Change or delete the account track data (password, account name, or limit value, or reset the counters). Procedure Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialogue box will be displayed. VarioLink 9522...
  • Page 307 [OK]. The Machine Manager Setting menu will be displayed. Click on [Volume Track setting]. The Volume Track Setting menu will be displayed. Click on [Volume Track data list]. The Volume Track List will be displayed. VarioLink 9522...
  • Page 308 The edited content will be displayed in the window. The edited data will be transmitted to the machine immediately so that is valid for the user operations. – Click on [Back] to return to the Account Track Data List window. 7-10 VarioLink 9522...
  • Page 309 Count reset.” or “Scan Count reset.” – Click on [Apply]. The Counter Reset Confirmation window will be displayed. – Click on [Apply] to immediately reset the counters to zero. The message “Setting was changed” will be displayed. VarioLink 9522 7-11...
  • Page 310 If all the data are to be cleared, click on [Select All]. – Click on the radio button (a white circle) heading the “Delete (Ex- cept for Another user count)”. – Click on [Apply]. The Delete Confirmation window will be displayed. 7-12 VarioLink 9522...
  • Page 311 Click on [Apply] to immediately delete the data. The message “Setting was deleted” will be displayed. – Click on [Back] to return to the Account Track Data List or any menu item to jump to the desired window. VarioLink 9522 7-13...
  • Page 312 Web Utilities Setting Save Counter. – Click on [Save this table as a file]. – Click on [Save]. In the dialogue box, designate the folder for saving the data, then click on [Save]. 7-14 VarioLink 9522...
  • Page 313 Account Track Data List for starting over. Example: Account track data list stored as a file The “Another user count” will be stored by the name of “UNKNOWN” in the last line. VarioLink 9522 7-15...

  • Page 314: Remote Panel Setting/Job History Setting

    - The machine should be connected with a PC over a network with TCP/IP enabled. - Set the Enhance Security mode OFF on the machine. Procedure Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialogue box will be displayed. 7-16 VarioLink 9522...
  • Page 315 Click on [Remote Panel setting/Job History Setting]. The Remote Panel Setting/Job History Setting menu will be displayed. Make settings for Remote Panel. Specify the IP address of the PC to be used for Remote Panel. Up to 3 addresses can be entered. VarioLink 9522 7-17...
  • Page 316 Select the location of the remote monitors (mini panels) from either the top or left side of the browser. To complete the entry, click on [Registration], then click on [Adminis- trator Setup Menu] to return to the Machine Manager Setting menu. 7-18 VarioLink 9522...
  • Page 317 Selecting [OFF] will allow the machine to accept print jobs normally. Click on [Registration]. The newly entered data will be registered on the machine immediately. Click on [Administrator Setup Menu] to restore the Administrator Set- ting menu. VarioLink 9522 7-19...

  • Page 318: Setting Scan Transmission Function

    - The HDD Box No. will be registered as a 9-digit number. For example, entering [1] will be registered as [000000001]. Procedure Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialogue box will be displayed. 7-20 VarioLink 9522...
  • Page 319 Enter “admin” in the User Name text box, and an 8-digit administrator password in the password text box, then click on [OK]. The Administrator Setting menu will be displayed. Click on [Scan transmission setting]. The Scan Transmission Setting window will be displayed. VarioLink 9522 7-21...
  • Page 320 Web Utilities Setting Register the E-mail, HDD, FTP, and SMB, as required. 7-22 VarioLink 9522...
  • Page 321 Click on [Back] to return to the Scan Transmission Setting window. Display the Entry List. Click on [Entry List] of the desired item under the entry box to display the Entry List. Click on [Back] to return to the Scan Transmission Setting window. VarioLink 9522 7-23...
  • Page 322 Click on the entry name to be changed. The window for changing the selected item will be displayed. Change the contents as desired, then click on [Registration]. The registered content will be displayed. Click on [Back] to return to the Scan Transmission Setting window. 7-24 VarioLink 9522...
  • Page 323 The window for deleting the selected item will be displayed. Confirm the registered name to be deleted, then click on [Yes]. Click on [Back] to return to the Entry List window. Click on [Back] to return to the Scan Transmission Setting window. VarioLink 9522 7-25...

  • Page 324: Transmitting Machine Setting File

    (account track data) ip_email.txt (E-mail data of Scan Transmission Setting data) ip_hdd.txt (HDD data of Scan Transmission Setting data) ip_ftp.txt (FTP data of Scan Transmission Setting data) ip_smb.txt (SMB data of Scan Transmission Setting data) 7-26 VarioLink 9522...
  • Page 325 Enter “admin” in the User Name text box, and an 8-digit administrator password in the password text box, then click on [OK]. The Machine Manager Setting menu will be displayed. Click on [Setting data Import/Export]. The Setting Data Import/Export window will be displayed. VarioLink 9522 7-27...
  • Page 326 Select the desired file type from the pull-down menu, then click on [Ex- port….] The File Download dialogue box will be displayed. Click on [OK]. In the dialogue box, designate the folder for saving the machine setting file, then click on [Save]. 7-28 VarioLink 9522...
  • Page 327 The machine setting file transmitted to a PC is a TAB separated text file which can be edited using an application software such as Text Editor or Table Editor. A new setting file can also be created according to the specifications for each file type. See page 7-32 for details. VarioLink 9522 7-29...
  • Page 328 Web Utilities Setting Import the machine setting file. Click on [Browse…] to designate the machine setting file to be import- ed, then click on [Import]. The result message will be displayed when the registration is complet- 7-30 VarioLink 9522...
  • Page 329 - A line should be 300 bytes or less. - The file size should be 100,000 bytes or less. - The line that begins with “#” is a comment. ex. Machine setting file of an account track data VarioLink 9522 7-31...
  • Page 330 - A line should include NAME, ADDRESS, FILEPATH, LOGINNAME, PASSWORD, REFERENCE, or DAILY being separated by a tab. - NAME should be 24 bytes or less. - ADDRESS should be 63 bytes or less. - FILEPATH should be 96 bytes or less. 7-32 VarioLink 9522...
  • Page 331 - LOGINNAME should be 47 bytes or less. - PASSWORD should be 14 bytes or less. - REFERENCE should be 24 bytes or less. - Mark DAILY USE with “1” or DAILY NOT USE with “0” in each column. VarioLink 9522 7-33...

  • Page 332: Box Edit

    The Enter Network Password dialog box will be displayed. Enter “admin” in the User Name text box, and an 8-digit administrator password in the password text box, then click on [OK]. The Machine Manager Setting menu will be displayed. 7-34 VarioLink 9522...
  • Page 333 Selected box name will be marked with an asterisk (*) at its head. The box name marked with “L” is locked and cannot be selected. To change the box name, proceed to the next step. To change the file name or check the thumbnail, proceed to step 8. VarioLink 9522 7-35...
  • Page 334 Click on the desired file name to display the thumbnail. – Selected file name will be marked with an asterisk (*), and the thumbnail of the top page of selected file will be displayed in the File Name area. 7-36 VarioLink 9522...
  • Page 335 File Name area. – Click on [Change] on the right side of the text box. The new name will be registered and enabled immediately. – Enter the new name within 30 alphanumeric characters. VarioLink 9522 7-37...
  • Page 336 Only the top page of the file can be displayed as thumbnail. You cannot specify any other page. Note When changing the file name, a message may inform you that the entered name has been already used. In this case, reenter a new name or consult your service representative. 7-38 VarioLink 9522...

  • Page 337: Displaying Job History

    The Enter Network Password dialog box will be displayed. Enter “admin” in the User Name text box, and an 8-digit administrator password in the password text box, then click on [OK]. The Machine Manager Setting menu will be displayed. VarioLink 9522 7-39...
  • Page 338 Click on [Registration], then turn off/on the main power switch. When turning the main power switch off then on, be sure to wait 10 seconds or longer before turning it on again; otherwise the machine may not be operate properly. 7-40 VarioLink 9522...

  • Page 339: Displaying Job History List

    Click on [Job History List]. The Job History List menu will be displayed. Check the job history in the list. The list provides the history number (No.), job number (JobId), mode, and the date when the job was performed (Date). VarioLink 9522 7-41...
  • Page 340 [Job History List]: Displays last 100 jobs. [Previous]: Scrolls to the previous 100 jobs. [Next]: Scrolls to the next 100 jobs. The items provided in the job history list can be changed. For details, contact your service representative. 7-42 VarioLink 9522...

  • Page 341: Web Connection Setting

    Web Connection Setting...

  • Page 343: Web Connection Outlines

    Web Connection is a device control utility program provided by the HTTP server built into the image controller of the VarioLink 9522. This utility can be used with a Web browser to display the status of the VarioLink 9522 printer, scanner, and network, and to change the default settings of printer and net- work settings.

  • Page 344: Web Browser Settings

    Select [Preferences] under [Edit]. Click [Advanced] and then click [Cache]. Check [Every time I view the page] under [Compare the page in the cache to the page on the network:]. – FireFox Select [Options] under [Tools]. Select [Contents] and then check [Enable JavaScript for]. VarioLink 9522...

  • Page 345: Access

    Language can be selected as desired. Select it from the Language drop-down list. – View mode can be selected from Flash/HTML. Click the desired mode to select it before logging in. – In this guide, “English” and “Flash” are selected for instructions. VarioLink 9522...
  • Page 346 Make the desired settings selected from the six tab settings. – Web Connection operation is identical to Internet Web pages. You can click a link on the Web page to jump to the link destination. To log out, click [Logout]. VarioLink 9522...

  • Page 347: Configuration Of Administrator Mode Screen

    If an online manual URL has been set, the online manual will appear. For details, see page 8-14. 5. Reload Clicked to reload the current page. 6. Tabs Select the categories of items to be displayed. – Maintenance VarioLink 9522...
  • Page 348 Selects the information or setup item to be displayed. The menus that ap- pear vary according to the tab selection. For the details of each menu, see the following sections. 8. Information and setting details Displays the details of the selected menu. VarioLink 9522...

  • Page 349: Maintenance Tab

    - Copy Counter: Displays the total copy counter and large size copy counter. - Print Counter: Displays the total print counter and large size print counter. - Scan Counter: Displays the total scan counter and large size scan counter. VarioLink 9522...

  • Page 350: Rom Version

    PC. Import 1. Select Device Setting or User Information to be imported from a PC, then click [OK]. 2. Click [Import]. 3. Click [Browse] to search the desired file in a PC and select it. 8-10 VarioLink 9522...

  • Page 351: Status Notification Setting

    The alert checked in the check box will be reported to the specified destina- tion. Edit Specify the destination and select the contents of notification. 1. Click [Edit] for the desired destination on the list. VarioLink 9522 8-11...
  • Page 352 2. Specify the notification address and contents. 3. Click [OK]. Delete Delete previously specified destination and contents of notification. 1. Click [Delete] for the desired destination on the list. 2. Click [OK] on the confirmation screen. 3. Click [OK]. 8-12 VarioLink 9522...

  • Page 353: Machine Setting

    8 alphanumeric characters can be entered. - Admin. E-mail Address: Enter the E-mail address of the administrator. Maximum 250 alphanumeric characters can be entered. - [OK]: Click to complete the setting. - [Cancel]: Click to clear the information entered. VarioLink 9522 8-13...

  • Page 354: Online Assistance

    - Supplies and Accessories: Enter the contact for ordering consumables. Maximum 127 alphanumeric characters can be entered. - [OK]: Click to complete the setting. - [Cancel]: Click to clear the information entered. 8-14 VarioLink 9522...

  • Page 355: Reset - Network Setting Clear

    You can use this function to restore the factory default for the network set- tings. Click [Clear], then click [OK]. Turn the main power switch off then on. Clicking [Cancel] will not restore the factory default, even with [Clear] clicked. VarioLink 9522 8-15...

  • Page 356: Security Tab

    1,000 for both user and account. The remaining number from which the number of user authentication is subtracted from 1,000 will be the accounts. - [OK]: Click to complete the setting. - [Cancel]: Click to clear the information entered. 8-16 VarioLink 9522...

  • Page 357: User Registration

    Selecting a range of numbers from Search from Number drop-down list, and clicking [Go] will display the registration list of the selected range. 2. Enter a registration number. Available range is 0 to 1000. This step is un- available when editing a former entry. VarioLink 9522 8-17...
  • Page 358 9. Click [OK] on the setting complete screen. Deleting user 1. Click [Delete] for the desired user on the list. 2. Click [OK] on the confirmation screen. 3. Click [OK]. 4. Click [OK] on the setting complete screen. 8-18 VarioLink 9522...

  • Page 359: Account Track Registration

    Selecting a range of numbers from Search from Number drop-down list, and clicking [Go] will display the registration list of the selected range. 2. Enter a registration number. Available range is 0 to 1000. This step is un- available when editing a former entry. VarioLink 9522 8-19...
  • Page 360 7. Click [OK] on the setting complete screen. Deleting account 1. Click [Delete] for the desired account on the list. 2. Click [OK] on the confirmation screen. 3. Click [OK]. 4. Click [OK] on the setting complete screen. 8-20 VarioLink 9522...

  • Page 361: Ssl/Tls Setting - Ssl/Tls Setting

    8.5.4 SSL/TLS Setting - SSL/TLS Setting This screen appears when you click [SSL/TLS Setting] on the [Security] tab. When the SSL certificate is not installed: When the SSL certificate is installed: The SSL/TLS information will be displayed. VarioLink 9522 8-21...
  • Page 362 11. Select the mode using SSL/TLS from the drop-down list. 12. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 13. Click [OK] on the setting complete screen. The SSL/TLS Information Screen will be displayed. 8-22 VarioLink 9522...
  • Page 363 8. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 9. Click [OK] on the setting complete screen. The Certificate Signing Re- quest Data Screen will be displayed. VarioLink 9522 8-23...
  • Page 364 2. Paste the CSR (Certificate Signing Request) in PEM text format delivered from an independent CA into the “Install a Certificate” window. Click [OK] on the Install Certificate Screen. The Encryption Strength/ Mode Using SSL Screen will be displayed. 8-24 VarioLink 9522...
  • Page 365 2. Select the desired encryption strength from the drop-down list. 3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. Click [OK] on the setting complete screen. The SSL/TLS Information Screen will be displayed. VarioLink 9522 8-25...
  • Page 366 2. Click [OK]. Clicking [Cancel] will cancel the setting. The screen to turn off/on the power will be displayed. 3. Turn the machine power off then on, then click [OK]. The SSL/TLS Infor- mation Screen will be restored. 8-26 VarioLink 9522...

  • Page 367: Ssl/Tls Setting - Action For Invalid Certificate

    Use this screen to select the machine response to the job of which certificate is invalid. 1. Select [Continue] or [Delete Job] from the drop-down list. 2. Click [OK]. Clicking [Cancel] will cancel the setting. 3. Click [OK] on the setting complete screen. The SSL/TLS Information Screen will be displayed. VarioLink 9522 8-27...

  • Page 368: Auto Logout

    2. Select the desired log out time from the drop-down list on the right side of User Mode Logout Time. 3. Click [OK]. Clicking [Cancel] will cancel the setting. 4. Click [OK] on the setting complete screen. 8-28 VarioLink 9522...

  • Page 369: Administrator Password Setting

    The text box always appear blank, even if a password has already been established. 2. Again, enter the new password in Retype Administrator Password text box. 3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. Click [OK] on the setting complete screen. VarioLink 9522 8-29...

  • Page 370: Box Tab

    The contents of the [Box] tab on the Administrator Mode Screen is equivalent to those on the User Mode Screen. For details of the operation, please refer to the User’s Guide - Printer. User Mode Screen Administrator Mode Screen 8-30 VarioLink 9522...

  • Page 371: Print Setting Tab

    Printer Setting - 03 PS Setting. - TIFF Setting: Make settings for TIFF printing. The setting contents are the same as those described in Section 4: Controller Setting - 02 Printer Set- ting - 04 TIFF Setting. VarioLink 9522 8-31...
  • Page 372 2. Select the desired option from the drop-down list provided for each set- ting item. If any entry is required, click the text box to type in. 3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. Click [OK] on the setting complete screen. 8-32 VarioLink 9522...
  • Page 373 1. Click [Edit] in PS Setting column. 2. Select [ON] or [OFF] from the drop-down list of PS Error Print. 3. Click [OK]. Clicking [Cancel] will cancel the setting. 4. Click [OK] on the setting complete screen. VarioLink 9522 8-33...

  • Page 374: Job Spool Setting

    Set the spool function for printing jobs. 1. Select [Auto], [ON], or [OFF] from the drop-down list of Spool Setting. 2. Click [OK]. Clicking [Cancel] will cancel the setting. 3. Click [OK] on the setting complete screen. 8-34 VarioLink 9522...

  • Page 375: Interface Setting

    1. Enter the desired time in Network Timeout text box. Available range is 10–3600 seconds. 2. Enter the desired time in USB Timeout text box. Available range is 10– 1000 seconds. 3. Click [OK]. Clicking [Cancel] will cancel the setting. 4. Click [OK] on the setting complete screen. VarioLink 9522 8-35...

  • Page 376: Select Printer Setting

    RAW port numbers. 1. Select the desired default setting number from the drop-down list of Set- ting No. 2. Click [OK]. Clicking [Cancel] will cancel the setting. 3. Click [OK] on the setting complete screen. 8-36 VarioLink 9522...

  • Page 377: Scan Tab

    3. Enter the new subject in the Subject text box. Maximum 64 alphanumeric characters can be entered. 4. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 5. Click [OK] on the setting complete screen. VarioLink 9522 8-37...

  • Page 378: Text

    1. Click the radio button of the text to be edit. 2. Click [Edit] in the same row as the selected text. 3. Enter the new text in the Text text box. Maximum 256 alphanumeric char- acters can be entered. 8-38 VarioLink 9522...
  • Page 379 1. Click the radio button of the text to be deleted. 2. Click [Delete] in the same row as the selected text. 3. Click [OK]. Clicking [Cancel] will cancel the setting. 4. Click [OK] on the setting complete screen. VarioLink 9522 8-39...

  • Page 380: Scanner Setting

    The date, time, extension, and division number will be added to the actual file name. 3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. Click [OK] on the setting complete screen. 8-40 VarioLink 9522...

  • Page 381: Network Tab

    3. If any setting with an asterisk (*) has been changed, turn the machine power off then on. 4. When the IP address and IP Address Setting Method have been changed, the following message will be displayed. 5. Access the new IP address. VarioLink 9522 8-41...

  • Page 382: Tcp/Ip Setting - Ip Filtering

    Up to 5 ranges can be specified. In the same ways as permission, only one IP address can be denied. 5. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 6. Click [OK] on the setting complete screen. 8-42 VarioLink 9522...

  • Page 383: Tcp/Ip Setting - Ipsec Setting

    [Edit]. If the setting has already been made, an asterisk (*) appears in the Set field for each. 4. Select the desired option from the drop-down list for each. For details of these setting items, see page 6-70 of Network Setting. VarioLink 9522 8-43...
  • Page 384 6-70 of Network Setting. Some setting item cannot be enabled depending on the combination of selection. 4. Click [OK]. Clicking [Cancel] will cancel the setting. 5. To delete the setting, click [Cancel] of the desired item. 8-44 VarioLink 9522...
  • Page 385 Network Setting. 3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. To delete the setting, click [Cancel] of the desired item. 5. Click [OK]. Clicking [Cancel] will cancel the deletion. VarioLink 9522 8-45...

  • Page 386: Time Adjustment Setting

    2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. 8.9.5 E-mail RX (POP) This screen appears when you click [E-mail RX (POP)] on the [Network] tab. 8-46 VarioLink 9522...

  • Page 387: E-Mail Tx (Smtp)

    For details of these setting items, see page 6-75 of Network Setting. 2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. VarioLink 9522 8-47...

  • Page 388: Ldap Setting - Ldap Setting

    Setting up LDAP server 1. Click [Edit]. 2. Select the desired option from the drop-down list, or click the text box to make an entry for each. For details of these setting items, see page 6-79 of Network Setting. 8-48 VarioLink 9522...
  • Page 389 3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. Click [OK] on the setting complete screen. Checking connection 1. Click [Check Connection]. 2. The checking connection screen will be displayed. Clicking [Cancel] will cancel the connection. VarioLink 9522 8-49...
  • Page 390 LDAP server did not support the SASL authen- tication system. Or, the main body did not sup- port the SASL authentication system. Authentication failed. The authentication was false in LDAP server. Connection timed out. Connection timeout occurred in checking LDAP connection. 8-50 VarioLink 9522...

  • Page 391: Ipp Setting

    For details of these setting items, see page 6-72 of Network Setting. 2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. VarioLink 9522 8-51...

  • Page 392: Ftp Setting - Ftp Send Setting

    For details of these setting items, see page 6-72 of Network Setting. 2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. 8-52 VarioLink 9522...

  • Page 393: Ftp Setting - Ftp Server Setting

    Use this screen whether or not to enable the FTP server setting. 1. Select [Enable] or [Disable] from the drop-down list of FTP Server Setting. 2. Click [OK]. Clicking [Cancel] will cancel the setting. 3. Click [OK] on the setting complete screen. VarioLink 9522 8-53...

  • Page 394: Snmp Setting

    2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. 8.9.13 SMB Setting - WINS Setting This screen appears when you click [WINS Setting] on the [Network] tab. 8-54 VarioLink 9522...

  • Page 395: Smb Setting - Client Setting

    1. Select [Enable] or [Disable] from the drop-down list of SMB Send Setting. 2. Select the desired option from the drop-down list of NTLM Setting. 3. Click [OK]. Clicking [Cancel] will cancel the setting. 4. Click [OK] on the setting complete screen. VarioLink 9522 8-55...

  • Page 396: Smb Setting - Print Setting

    2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. 4. If any setting change has been made, turn off then on the main power switch of the machine. 8-56 VarioLink 9522...

  • Page 397: Web Service Setting - Web Service Setting

    3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. Click [OK] on the setting complete screen. 5. If any setting with an asterisk (*) has been changed, turn off then on the main power switch of the machine. VarioLink 9522 8-57...

  • Page 398: Web Service Setting - Print Setting

    3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. Click [OK] on the setting complete screen. 5. If any setting with an asterisk (*) has been changed, turn off then on the main power switch of the machine. 8-58 VarioLink 9522...

  • Page 399: Web Service Setting - Scanner Settings

    3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. Click [OK] on the setting complete screen. 5. If any setting with an asterisk (*) has been changed, turn off then on the main power switch of the machine. VarioLink 9522 8-59...

  • Page 400: Bonjour Setting

    2. Enter the desired name into the Bonjour Name text box. Maximum 63 al- phanumeric characters can be entered. 3. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 4. Click [OK] on the setting complete screen. 8-60 VarioLink 9522...

  • Page 401: Netware Setting - Netware Setting

    2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. 4. If any setting with an asterisk (*) has been changed, turn off then on the main power switch of the machine. VarioLink 9522 8-61...

  • Page 402: Netware Setting - Netware Status

    This screen displays the status of NetWare connection. - Server Name: Displays the server name detected in NetWare connection. - Queue Name: Displays the detected queue name. 8.9.22 AppleTalk Setting This screen appears when you click [AppleTalk Setting] on the [Network] tab. 8-62 VarioLink 9522...

  • Page 403: Openapi Setting

    Use this screen to make the setting for Open API. 1. Enter the desired port number into the text box. 2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. VarioLink 9522 8-63...

  • Page 404: Tcp Socket Setting

    2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. 4. If any setting change has been made, turn off then on the main power switch of the machine. 8-64 VarioLink 9522...

  • Page 405: Jsp Setting

    2. Click [OK]. Clicking [Cancel] will cancel the setting and delete the entered information. 3. Click [OK] on the setting complete screen. 4. If any setting change has been made, turn off then on the main power switch of the machine. VarioLink 9522 8-65...
  • Page 406 Web Connection Setting 8-66 VarioLink 9522...

  • Page 407: Appendix

    Appendix...

  • Page 409: How To Input Characters

    This key determines the characters you input, and the character input screen closes. [Cancel] This key cancels the characters you input, and the character input screen closes. [Shift] This key switches between an upper case letter and a lower case letter, and between numbers and signs. VarioLink 9522...
  • Page 410 The followings describe basic steps to input characters on the character in- put screen. Touch the corresponding key to input the desired character. Touch [OK]. The character input screen closes. The input characters are displayed on the corresponding column. VarioLink 9522...

  • Page 411: Importable/Exportable Setting Data - Devices

    Appendix Importable/Exportable Setting Data - Devices VarioLink 9522...
  • Page 412 Appendix VarioLink 9522...
  • Page 413 Appendix VarioLink 9522...
  • Page 414 Appendix VarioLink 9522...
  • Page 415 Appendix VarioLink 9522...
  • Page 416 Appendix 9-10 VarioLink 9522...
  • Page 417 Appendix VarioLink 9522 9-11...

  • Page 418: Importable/Exportable Setting Data - Counters

    Appendix Importable/Exportable Setting Data - Counters 9-12 VarioLink 9522...

  • Page 419: Importable/Exportable Setting Data - Authentication

    Appendix Importable/Exportable Setting Data - Authentication VarioLink 9522 9-13...

  • Page 420: Demo Page

    Appendix Demo Page PCL Demo Page Print (Print Sample) 9-14 VarioLink 9522...
  • Page 421 Appendix PS Demo Page Print (Print Sample) VarioLink 9522 9-15...
  • Page 422 Appendix PCL Font List (Print Sample) 9-16 VarioLink 9522...
  • Page 423 Appendix (Print Sample) VarioLink 9522 9-17...
  • Page 424 Appendix (Print Sample) 9-18 VarioLink 9522...
  • Page 425 Appendix PS Font List (Print Sample) VarioLink 9522 9-19...
  • Page 426 Appendix (Print Sample) 9-20 VarioLink 9522...
  • Page 427 Appendix (Print Sample) VarioLink 9522 9-21...

  • Page 428: Pcl Font List

    Appendix PCL Font List 9-22 VarioLink 9522...
  • Page 429 Appendix VarioLink 9522 9-23...
  • Page 430 Appendix 9-24 VarioLink 9522...

  • Page 431: Glossary

    Abbreviation of Line Printer Request/Line Printer Daemon. A type of printing through a network of the WindowsNT system or UNIX sys- tem. Printing data from Windows or UNIX can be transmitted to a printer on a network using TCP/IP. VarioLink 9522 9-25...
  • Page 432 One of the file formats to save image data (extension; .tif). Various types of image information can be saved in one image data with the “tag” representing the data type. Web browser Software to access web pages. Internet Explorer, Netscape Navigator, etc. are examples. 9-26 VarioLink 9522...
