GLW AC 100T Operating Instructions Manual

Pneumatic crimper
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AC 100T
Operating instructions
Pneumatic Crimper AC 100T
Date of issue: 05/2010
Keep for future use!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC 100T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GLW AC 100T

  • Page 1 AC 100T Operating instructions Pneumatic Crimper AC 100T Date of issue: 05/2010 Keep for future use!

  • Page 3: Basic Information

    AC 100T SAFETY Basic information The basic prerequisite for ensuring safe use and continuous operation of the AC 100T is knowledge of and compliance with the safety instructions. It is a question of your own safety! All persons working with the AC 100T must observe the notes on safety.
  • Page 4 SAFETY Designated use The AC 100T is to be used exclusively for crimping wire-end ferrules with cross sections between 4 and 10 mm². Under no circumstances should large metal parts or similar objects be introduced, the die set will be ruined.
  • Page 5  Inappropriate use and use which goes beyond that described in the operating instructions.  Unauthorised structural amendments to the AC 100T.  Continued use of the AC 100T when a malfunction has been established.  Repairs carried out inappropriately.

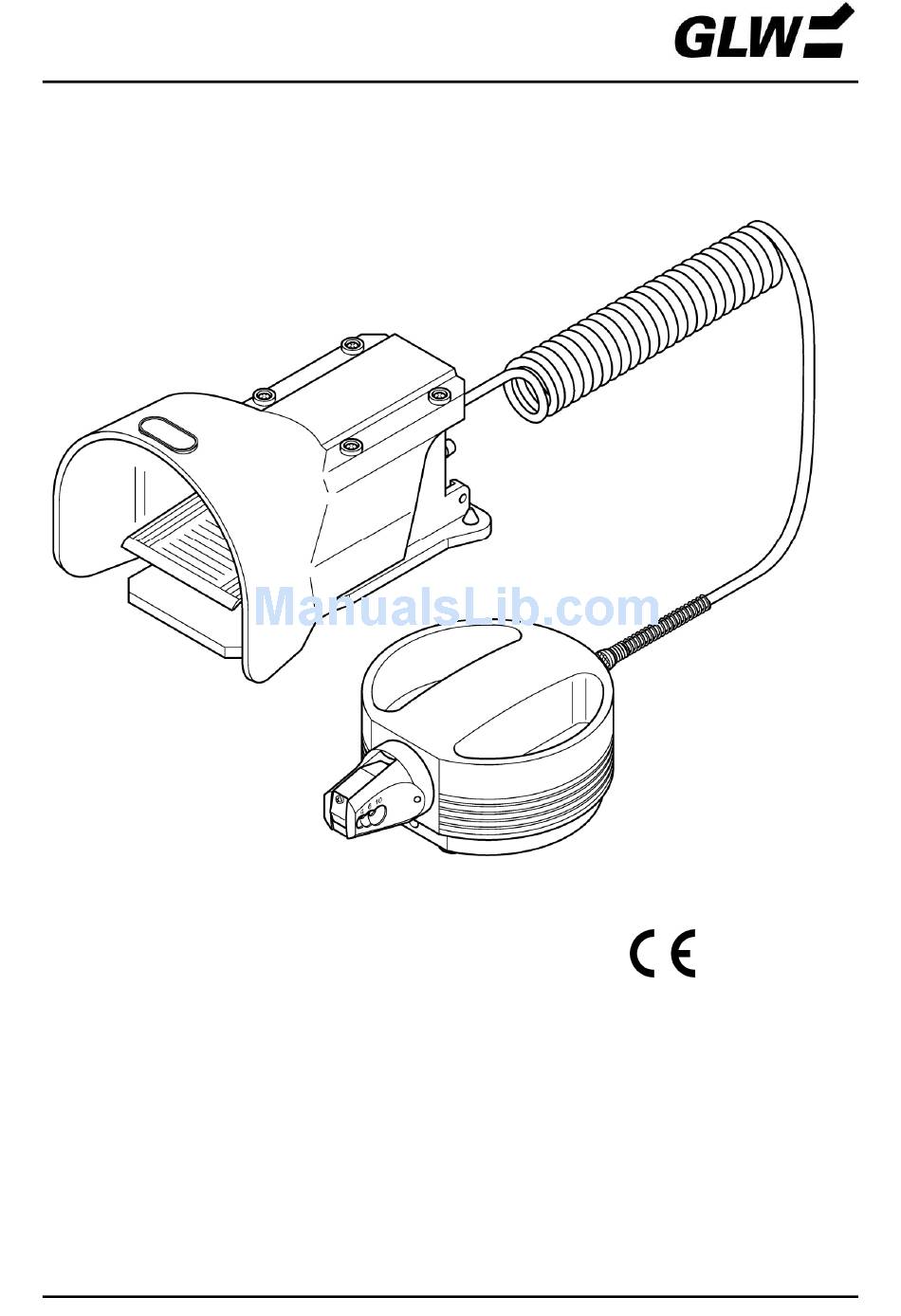

  • Page 6 The AC 100T is a pneumatic crimping tool for wire-end ferrules with a cross-section of between 4 and 10 mm². The AC 100T comprises a tabletop unit and a foot-operated switch. As both hands are free to insert the wire with fitted wire-end ferrules, the AC 100T is ideally suited to pre-confectioning cables.

  • Page 7: Operation

    AC 100T OPERATION Commissioning  Check whether finger guard plate (1) is present and is sitting firm.  Check whether the die set (2) is free from foreign matter.  Check whether the pneumatic tubing nuts (3) have been tightened firmly.

  • Page 8: Maintenance

    AC 100T MAINTENANCE The AC 100T must be opened. Disconnect compressed air! Cleaning  Unscrew hexagon socket screw (1).  Pull out the die set (2).  Clean die set (3) and lightly oil pivot (4).  Push in die set (5).

  • Page 9: Spare Parts

    AC 100T SPARE PARTS The following spare parts can be ordered with the Address appropriate Article No. GLW GmbH Steinbeisstraße 2 D-88353 Kisslegg Tel. 00 49 (0) 7563 9123-0 Fax 00 49 (0) 7563 9123-99 Fig.6 Spare parts No. Part Article No.

  • Page 10: Technical Data

    AC 100T TECHNICAL DATA Instrument......................Pneumatic Crimper Crimping range ......................... 4 -10 mm² Compressed-air connection ....................min. 4 bar ............................max. 6 bar Air consumption ..................... 0.2 l/Crimping at 5 bar Dimensions (diameter x length x height) ............. 200 x 135 x 75 mm Weight ........................approx.

  • Page 11: Ec Declaration Of Conformity

    AC 100T EC Declaration of conformity Manufacturer: GLW GmbH Address: Steinbeisstraße 2 88353 Kisslegg Germany We hereby declare that the machine described in the following complies with the appropriate fundamental health and safety requirements of the EC Directives regarding machinery with regard to its design and construction as well as the equipment that we have introduced onto the market.
  • Page 12 GLW GmbH The company GLW retains the copyright to these Steinbeisstraße 2 operating instructions. 88353 Kisslegg It is not permitted to reprint, reproduce or Germany translate, even excerpts, without our consent. Tel. 00 49 (0) 7563 9123-0  2010 GLW GmbH...
