FLOR CRAFT
PRODUCT
MANUAL
SKU NUMBER
709-4249
SERIAL NUMBER
CAUTION:
FOR YOUR OWN SAFETY READ
INSTRUCTION MANUAL
COMPLETELY AND
CAREFULLY BEFORE

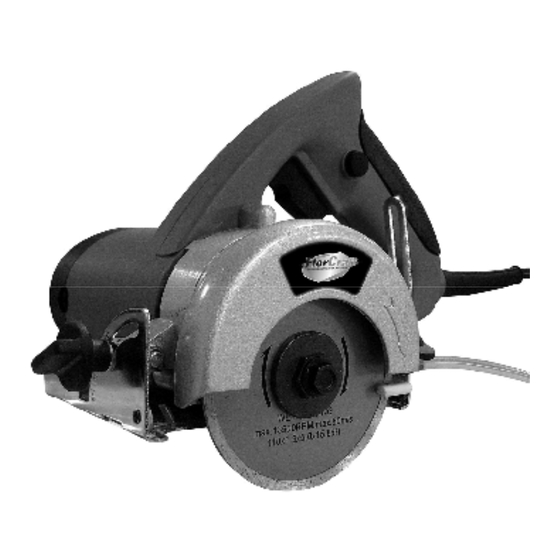

OPERATING THIS 4-1/2"
CIRCULAR TILE SAW
SPECIFICATIONS
Voltage: 120V AC
Cycle: 60Hz, single phase
Power: 10 Amp
No Load Speed: 11,800 rpm
Blade Size: 4-1/2"
Arbor Size: 7/8"
Depth of Cut: 1-1/4"
Angle Capability: 0-45 Degrees
Cord length: 6 ft.
Weight: 7.7 lbs
SAVE THIS MANUAL FOR
FUTURE REFERENCE.
PDF 文件使用 "pdfFactory Pro" 试用版本创建
®
4-1/2" CIRCULAR TILE SAW
. Operation
. Parts List and Diagram
For questions or problems please call our customer
service line at (888) 315-3080 M-F 8-5 Central Time.
www.fineprint.cn
ALWAYS WEAR ANSI Z87.1 APPROVED
EYE PROTECTION!
Advertisement
Table of Contents
Summary of Contents for FLOR CRAFT 709-4249
-
Page 1: Parts List And Diagram
® FLOR CRAFT PRODUCT MANUAL SKU NUMBER 709-4249 SERIAL NUMBER CAUTION: FOR YOUR OWN SAFETY READ INSTRUCTION MANUAL COMPLETELY AND CAREFULLY BEFORE OPERATING THIS 4-1/2” CIRCULAR TILE SAW ALWAYS WEAR ANSI Z87.1 APPROVED EYE PROTECTION! SPECIFICATIONS Voltage: 120V AC Cycle: 60Hz, single phase 4-1/2”... - Page 2 GENERAL SAFETY INSTRUCTIONS WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electrical shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA • Keep your work area clear, clean and well lit. Cluttered work surfaces and dark areas invite accidents. •...
-
Page 3: Functional Description
• Store the tool in a secure place out of reach of children. A secure storage location will prevent the unauthorized use by untrained users. • Properly maintain tools. Keep all cutting tools sharp and clean. Remove contaminants from the tool and keep clean. Check for broken parts or binding of moving parts before use. -
Page 4: Operation Of Saw
CONTENTS This package contains: ● 1 Marble/tile saw with water tube and hose attachment ● 1 Diamond blade 4-1/2” x 7/8”(bore) ● 1 Socket wrench ● 1 Box wrench ● 1 instruction manual Check the tool and accessories for damage, which could have occurred during transportation. USAGE TIPS ●... - Page 5 ● To re-install, fit the blade supplied onto the motor shaft . ● Fit the outer flange and spindle bolt. ● Tighten the spindle bolt by gripping outside flange with box wrench, place socket wrench on spindle bolt and turn socket wrench counter clockwise. Do not over-tighten! Trigger Button (On-Off) The tool can only be put into service if both the Lock Off button and the trigger are depressed.
-
Page 6: Troubleshooting
● Hold the tool firmly and turn on the tool. Don’t allow the blade to touch the material until it has attained full speed. ● Slowly and smoothly move the tool forward to cut, keeping the base plate flat on the surface. CAUTION: Don’t forget to open the water value to let the water flow onto the surface of the blade while you start cutting the tile material. -
Page 7: Parts List
PARTS LIST No. Description Description Adjustable Depth Guide Water Valve Locking Knob Washer Washer Water Pipe Guide Plate Connector Rivet Screw Pole Small Gear inner Flange Bearing Washer Armature Damping Washer Gear Box Nozzle Sealing Loop Screw Bearing Stator Big Gear House Label Spindle... -
Page 8: Schematic Drawing
SCHEMATIC DRAWING - 8 - PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
