OMNI-IP KNC-p3DR28V12IR Quick Operation Manual

Ip66 varifocal ir dome camera
Hide thumbs Also See for KNC-p3DR28V12IR:
Table of Contents

Advertisement

Quick Links

Download this manual

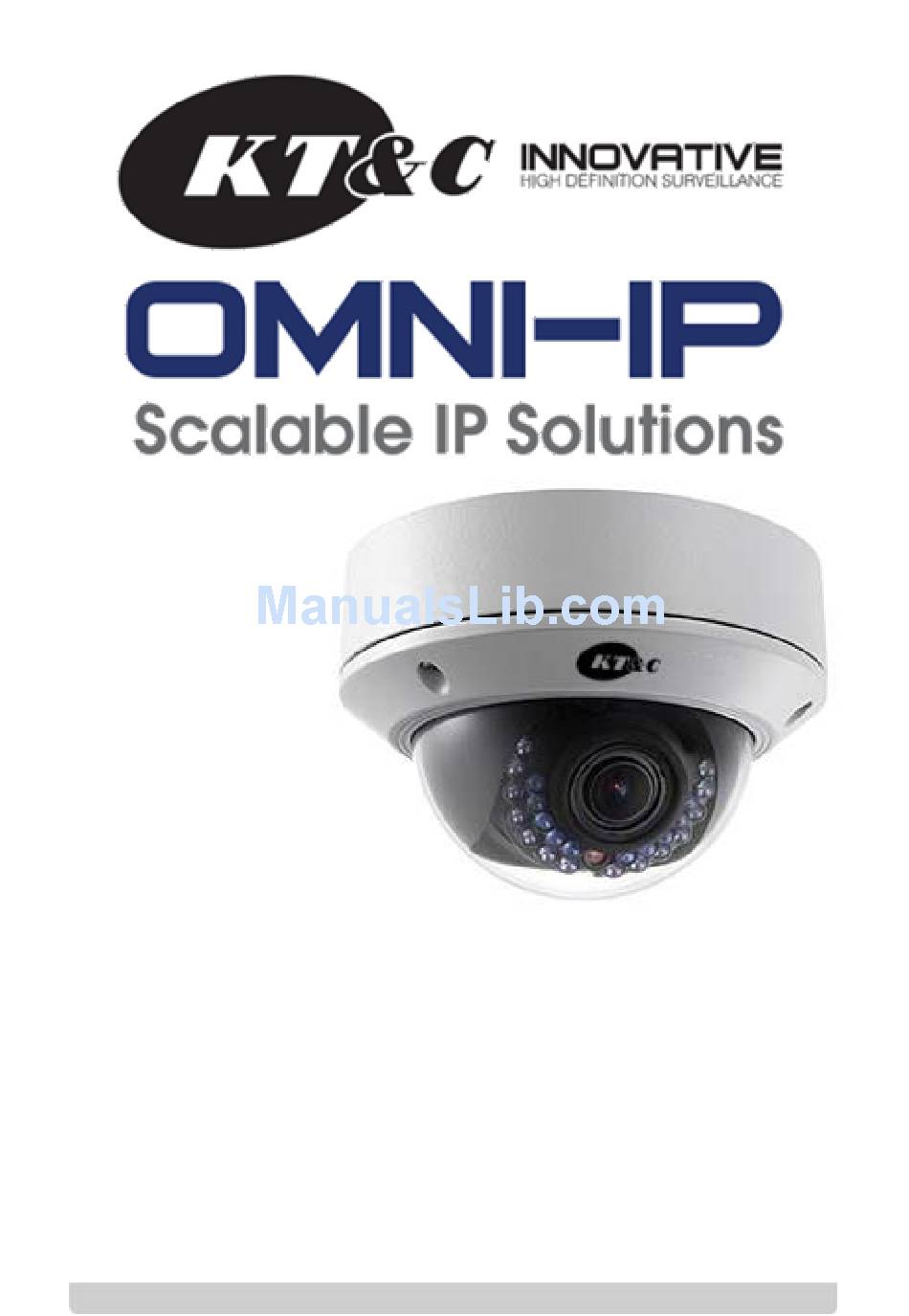

KNC-p3DR28V12IR
IP66 Varifocal IR Dome Camera
Quick Operation Guide
Network Dome Camera
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNC-p3DR28V12IR and is the answer not in the manual?

Questions and answers

Related Manuals for OMNI-IP KNC-p3DR28V12IR

Summary of Contents for OMNI-IP KNC-p3DR28V12IR

  • Page 1 KNC-p3DR28V12IR IP66 Varifocal IR Dome Camera Quick Operation Guide Network Dome Camera...
  • Page 2 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Thank you for selecting this KT&C Omni IP Series product. For additional information please refer to the complete User Guide for this cameras series. End users should contact their KT&C Certified Dealer for service. Certified Dealers can obtain support directly from KT&C.

  • Page 3: Regulatory Information

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.

  • Page 5: Safety Instructions

    KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide Safety Instructions These instructions are intended to ensure that the camera is installed in a manner that avoids danger to persons or property loss. These precautionary measures are divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 6 KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide according to the IEC60950-1 standard; or 802.3af PoE. Please refer to technical specifications for detailed information. ● If connecting several devices to one power supply, to avoid any overload that may cause over-heating or a fire hazard insure that the power supply is adequate for the power load.
  • Page 7 KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide (which is not a malfunction), and could compromise the performance of the sensor. ● The sensor may be damaged if exposed to laser energy, so when any laser equipment is in use, make sure that the sensor will not be exposed to the laser beam.

  • Page 8: Table Of Contents

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Table of Contents 1 Appearance and Description ............8 2 Installation ..................10 2.1 Disassembling ............... 10 2.2 Mounting ..............12 2.2.1 Wall/Ceiling Mounting........12 2.2.2 Wall/Ceiling Mounting with Gang Box ....16 2.2.3 Wall Mounting ............

  • Page 9: Appearance And Description

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide 1 Appearance and Description The overview of the network dome camera is shown below. Figure 1-1 Overview...
  • Page 10 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Table 1-1 Description Description Dome cover with clear bubble Black Liner (conceals direction of aim) Lens Mounting Plate Reset Button CVBS Video Output Micro SD Card Slot Network Cable Power Cable  Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, and port No., etc.

  • Page 11: Installation

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide 2 Installation Before you start:  Make sure the camera is in good condition and all the accessory parts are included.  Make sure all related equipment is powered-off during the installation.  Check to insure that the specifications of the camera are correct for the installation environment.

  • Page 12: Disassembling

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing haze, distortion or improper scene exposure.

  • Page 13: Mounting

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide 2.2 Mounting Wall/Ceiling Mounting Steps: 1. Disassemble the camera. Refer to the section 2.1. 2. You may mount the camera directly to the surface, or you may use the included mounting plate and screws (recommended). Attach the drill template (supplied) to the location where you want to place the camera.
  • Page 14 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide to route the cables on the surface of the ceiling. Refer to Conduit Installation on the Side for side cable routing. 5. Route the cables through the cable hole and connect to network and power (if used).
  • Page 15 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide 8. Adjust the image and focus. The supplied accessory cable may be used to access the local CVBS aim/focus video output. Please refer to the section 2.3 for more detailed information. 9. Install the inner black liner back onto the camera.
  • Page 16 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 2-5 Remove the water-proof plug 2. Route the power cable and network cable through the side outlet to the conduit. 3. Align and rotate clockwise the conduit to the side outlet tightly.

  • Page 17: Wall/Ceiling Mounting With Gang Box

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide For wall mounting, position the side outlet directly downward to insure resistance to infiltration of water. Figure 2-7 Side Outlet Direction 2.2.2 Ceiling Mounting with Gang Box Steps: 1. Disassemble the camera. Refer to the section 2.1.
  • Page 18 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Mounting Base Figure 2-8 In-ceiling Mount 4. Route the cables through the hole in the center of the mounting base and connect them. 5. Align the camera with the mounting base. 6. Tighten the screws to secure the camera with the mounting base.
  • Page 19 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 2-9 Secure Camera 8. Install the inner black liner back to the camera. 9. Align the cover/bubble with the camera. 10. Tighten the cover screws to secure the cover/bubble to the camera as shown in Figure 2-10.

  • Page 20: Wall Mounting

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 2-10 Secure the Bubble 2.2.3 Wall Mounting Accessory wall mounts are sold separately. Steps: 1. Disassemble the camera. Refer to the section 2.1. 2. Install the wall mount and mounting adapter as shown in Figure 2- 3.
  • Page 21 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Mounting Adapter Mounting Base Figure 2-11 Install the Mounting Base 5. Route the cables through the hole in the center of the wall mount and connect them. 6. Align the camera with the mounting base.
  • Page 22 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 2-12 Secure Camera 9. Install the inner black liner back to the camera. 10. Align the cover/bubble with the camera. 11. Tighten the screws to secure the cover/bubble to the camera.

  • Page 23: Image And Focus Adjustment

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 2-13 Secure Black Liner and Bubble 2.3 Image and Focus Adjustment Steps: 1. 3-axis adjustment. View the camera image using the CVBS test monitor output, on a PC or NVR. Rotate the entire camera module to adjust the pan direction of the camera.
  • Page 24 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Tilting Panning Rotation Figure 2-14 3-axis Adjustment 2. Zoom and focus adjustment. View the camera image using the CVBS test monitor output, on a PC or NVR. Loosen the zoom lever and move the lever between T (Tele) and W (Wide) to obtain the appropriate field of view.
  • Page 25 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 2-15 Lens Adjustment...
  • Page 26 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide 3 Setting the Camera Parameters over the LAN Purpose: To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the OMNI Finder or OMNI CMS software to search and change the IP of the network camera.
  • Page 27 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide  Use OMNI CMS software and to list the online devices. Please refer to the user manual for the OMNI CMS software for detailed information. 2. Change the IP address and subnet mask to the same subnet as that of your computer, or change your computer to match the address/subnet of the camera.
  • Page 28 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 3-2 Search Online Devices Devices can be discovered and displayed in the list in 15 seconds after they go online; devices will be removed from the list in 45 seconds after going offline.
  • Page 29 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide You can also click to refresh the online device list manually. The newly searched devices will be added to the list. You can click on each column heading to order the information; you can click...
  • Page 30 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 3-3 Select a Device Figure 3-4 Modify Network Parameters 4) Enter the IP address of network camera in the address field of the web browser to view the live video.

  • Page 31: Accessing Via Web Browser

    KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”. For accessing the network camera from different subnets, please set the gateway for the network camera after you log in.
  • Page 32 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- It is recommended to close the web browser before finishing the...
  • Page 33 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in (1)
  • Page 34 KNC-p3DR28V12IR Varifocal Dome Camera Quick Operation Guide Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For more detailed instructions about further configuration, please refer to the user manual for this series of network cameras.
