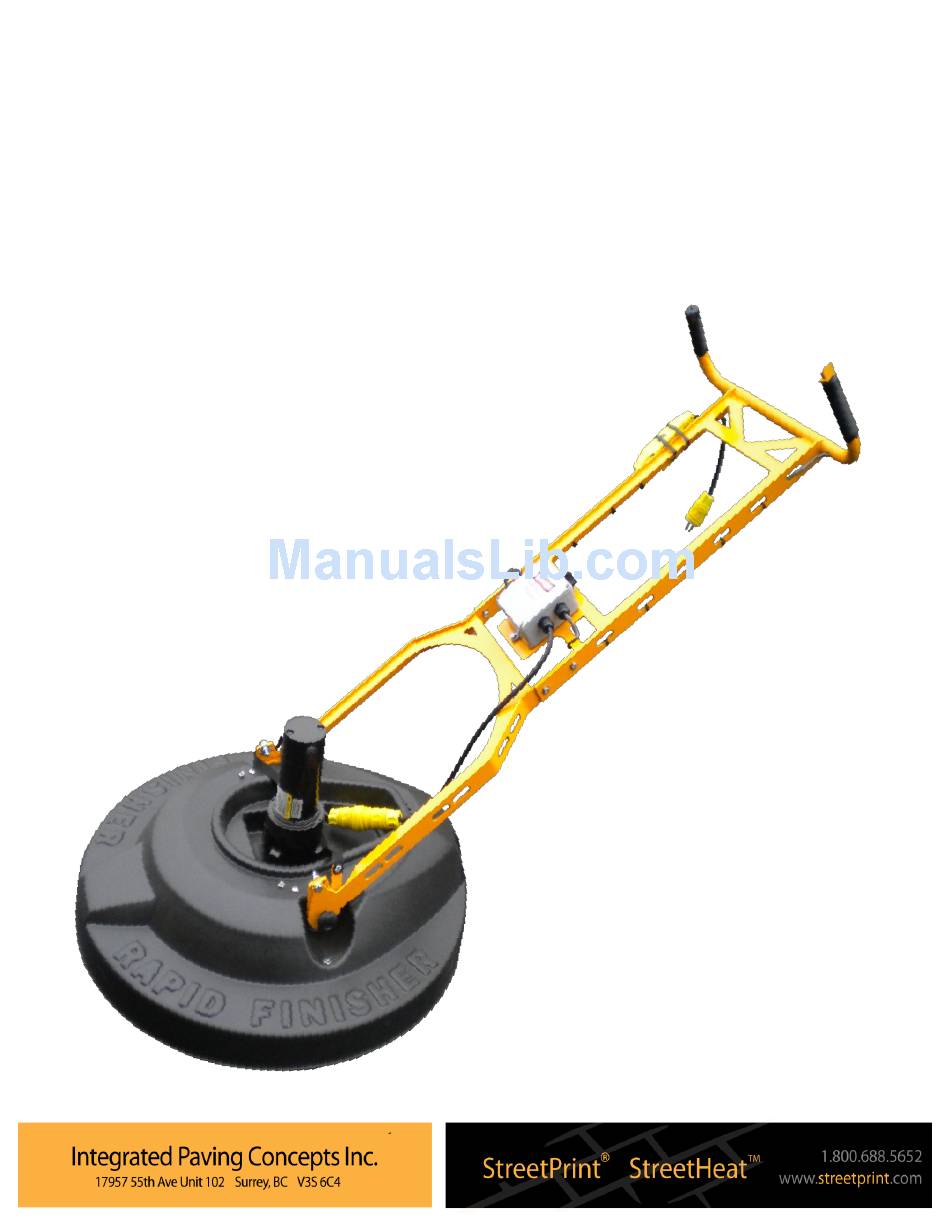

Page 1 Rapid Finisher 2 Operations Manual Updated: Nov 2012...
Page 2: Table Of Contents
Contents Introduction Safety Parts List Specifications & Dimensions Storage Case Preparing for Work Operating Procedure Cleanup Parts List Service...
Page 3: Introduction
Introduction The Rapid Finisher 2 is designed for the application of asphalt coatings. This electrically powered brush will enable the applicator to apply coatings to large projects quickly and efficiently reducing both time and labor costs. This fast and easy machine works in a similar manner to a floor polisher, with a multi-brush Cartridge that effortlessly works the coatings into the asphalt surface at variable speeds up to 70 rpm.
Page 4: Safety
Safety Ensure that everyone who operates this machine has read and understood this manual. Danger Electric Shock! ∆ Never operate machine without the Ground Fault Interrupt (GFI) in line. Failure to do so could result in death from electric shock ∆...
Page 5: Parts List
Parts List A. Main Body and Motor Assembly with 2 replaceable liners B. Lower Handle C. Upper Handle Assembly D. Brush Cartridge Assembly with brushes E. Spare Brush Cartridge F. Spare Brushes (6 pieces) G. Brush mounting hardware H. Lower Case Assembly with 2 replaceable liners...
Page 6: Specifications & Dimensions
Specifications and Dimensions Rapid Finisher 2 Specifications 62” Machine Weight 1.57 m (Not including Case) (kg) Source Electrical Power 110 or 220 VAC ¼ HP (186 Watts) Electric Gear Motor Gear Ratio 40:1 32.5” 0.83 m Motor Voltage Up to 110 VDC 2.5 Amps Max.
Page 7: Preparing For Work
Preparing for Work Preventing Coating Buildup Using a bond breaker on the lower and upper surfaces of the main body can extend the life of your machine, as coating buildup on the motor will prevent proper cooling Use WD40 or cooking oil spray to lightly coat the upper and lower surfaces.
Page 8 Preparing for Work – Cont’d Attaching and Locking the Brush Cartridge First, make sure the “legs” on the Cartridge Place the Brush Cartridge onto the Aluminum Lock are aligned with the three protrusions on Clutch the Aluminum Clutch Rotate the Cartridge clockwise with a sharp Rotate the Cartridge Lock counterclockwise to motion to seat the Cartridge onto the Clutch lock the Cartridge onto the Clutch.
Page 9 Preparing for Work – Cont’d Attach Lower Handle Remove the Lobed Hand Wheel fasteners and Ball Lock Pins and place the lower handle in position Secure and tighten the handle with the Lobed Hand Wheel fasteners… use the Ball Lock Pins to select the desired handle height By using both the upper and lower holes for the Ball Lock Pins the handle angle can be adjusted in 5°...
Page 10: Operating Procedure
Operating Procedure Throttle Control Make sure you are holding both handles securely before pushing the throttle button. To adjust the rotation speed of the brushes simply adjust the dial on the control box.
Page 11 Operating Procedure – Cont’d Directional Control Let the machine do the work for you. Depending on how you manipulate the handle, the machine will move in different directions LIFT the handle and the machine will move to LOWER the handle and the machine will move the RIGHT.
Page 12: Cleanup
To extend the life of the brushes place the Rapid Finisher 2 in water when it is not being used. The motor can be washed with standard hose pressure. CAUTION: ALWAYS UNPLUG THE MACHINE FROM THE GENERATOR FIRST.
Page 13: Parts List
Parts List (See the Following Page for Illustrations) DESCRIPTION PART NUMBER RF2 Main Body Asbly 80-0-400E1 RF2 Main Body ABS 80-0-40002 DC Gear Motor EC-0-0-034 RF2 Handle Receiver RF2 Bridge Bracket RF2 Handle Backing Bracket RF2 Aluminum Clutch 80-0-40094 RF2 Brush Cartridge Lock Bracket RF2 Brush Cartridge Lock Spring MC-0-0-109 RF2 Handle Asbly...
Page 14 Parts List - Illustrations 2.2.1 2.2.2 2.2.3 2.2.4 2.1.2 2.1.1...
Page 15 Parts List – Illustrations (cont’d)
Page 16: Service
Service Integrated Paving Concepts Inc. is committed to providing the best possible after-market service. If you require parts, warranty information or service please visit our website at: www.streetprint.com Or call our Technical Assistance line: 1-800-688-5652...
