Summary of Contents for F&J PAH-9027

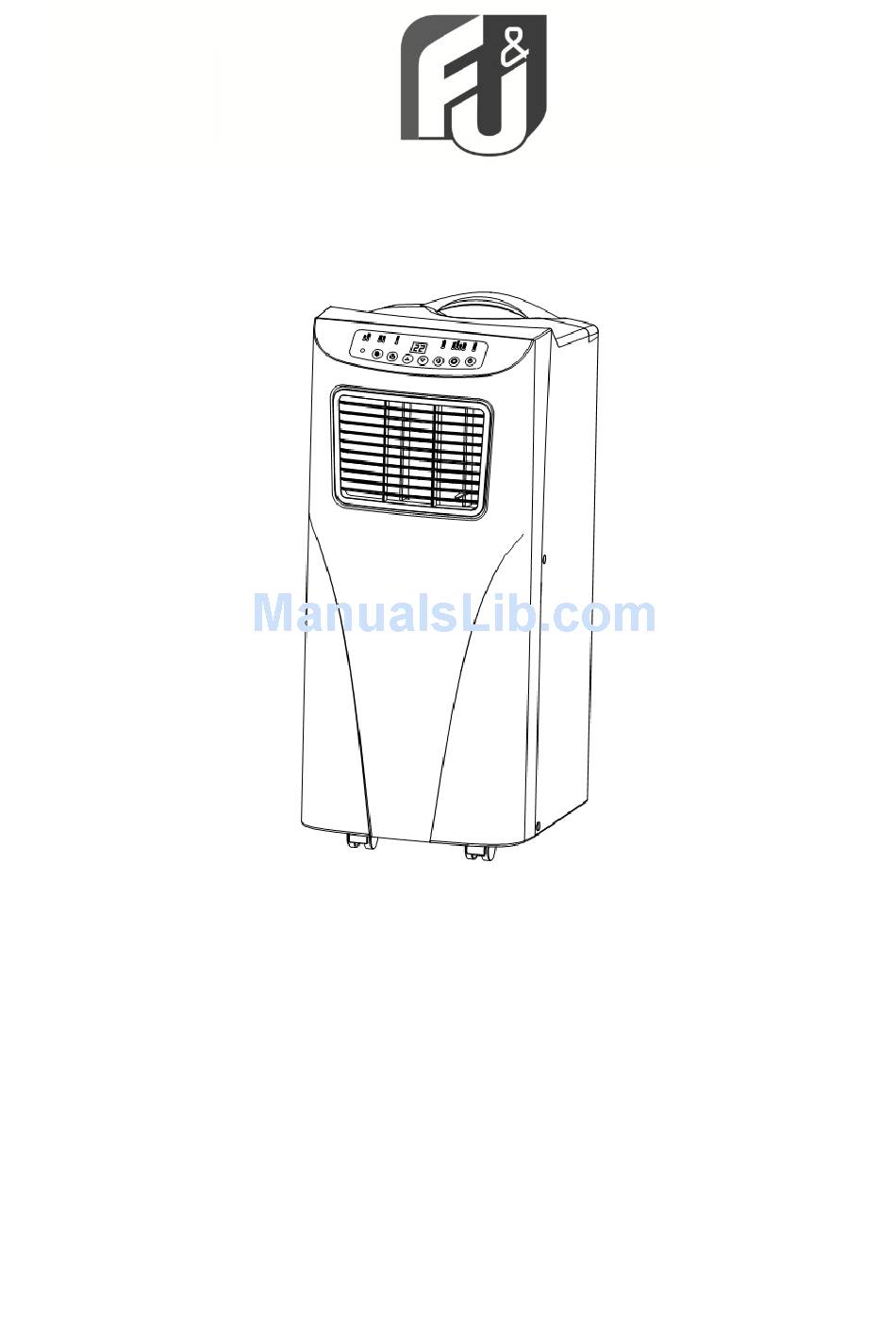

- Page 1 USER’S MANUAL MODEL : PAH-9027 PORTABLE AIR CONDITIONER Thank you for choosing super quality air conditioner. Please be sure to read this user’s manual carefully before using the machine. Any problem, please contact the professional service for help.
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS…................3 PLACEMENT AND INSTALLATION…...............6 PARTS NAME….......................8 CONTROL PANEL…....................9 OPERATION METHODS…..................10 WATER DRAINAGE…..................15 MAINTENANCE…....................15 TROUBLE SHOOTING…..................17... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Please read following safeguards carefully before using the machine: ·This machine just for domestic use, please don’t use it in any other places. ·Please use this machine indoor not outdoor, and place it in a dry environment. ·Don’t use the machine when any damage in power cord, plug or machine itself. Any damage, please contact professional serviceman for help. -
Page 4: Placement And Installation
Note : ·Place the machine on flat ground, and keep it far from around things at least 50cm. ·Make sure the socket can be reached from machine location. ·Keep the machine stand upright so that compressor can work well. ·Don’t run the machine near to gasoline or any other flammable liquids. ·Make sure free access of air-inlet and air-outlet. - Page 5 Installation ·Spin slide bar connector into exhaust hose first, then spin the exhaust hose into exhaust connector (counter-clockwise) . ·Put slide bar connector into adjustable slide bar, adjust window open width in order slide bar match window well, and the length of slide bar is adjustable. (fig.2) (fig.2) Installation Errors ·Free access of exhaust pipe is important, installation errors will bring bad influence of...
-
Page 6: Parts Name
Warning Length of exhaust pipe according to the machine features, please don’t replace or lengthen it freely, otherwise errors will be easily caused. Note: extreme length of unfolding exhaust pipe is 1500mm, please shorten the length as much as possible and keep it level as much as possible when installing Parts Name Front side(fig.5) 1. -
Page 7: Control Panel
Check packing accessories, read user’s manual to get how to use them. (fig.4) (fig.4) 1. Exhaust hose 2. Slide bar connector 3. Remote control 4. Ajustable slide bar 5. Drain connector(only for heating model) 6. Drain pipe ( ID: 10mm) Control Panel 9 10 11 12 15 16 17 18 19 20... -
Page 8: Remote Control
and heating mode(Optional For heating function unit only) 3. FAN: after machine turns on, press this key to select fan speed (high and low). 4. DOWN: under cooling or heating mode, press this key to downward setting temperature from 16~31 ℃... -
Page 9: Operation Methods
Operation Methods Cooling mode ·After machine turns on, default value is cooling mode with 22℃ and low fan speed. ·Press “ MODE” to select cooling mode, cooling mode indictor turns on . ·Press “ UP” or “ DOWN” to adjust temperature ( from 16℃ to 31℃). ·Press “... -
Page 10: Water Drainage
later, setting temperature will go down 1℃, the second one hour later , the setting temperature will go down another 1℃, and then keep the same . · Sleeping mode is invalid under dehumidifying and fan mode. Under water full, machine standby and mode conversion, sleeping mode will be cancelled . -
Page 11: Maintenance
Maintenance Note: in order to avoid electric shocks, please power-off the machine and pull out plug before maintenances or repairs. Cleaning ·Please pull out plug before cleaning . ·Use soft semi-dry cloth to clean the machine. Don’t use chemical agents, such as benzene, alcohol, gasoline and so on ;... -
Page 12: Trouble Shooting
· Let the machine runs under fan mode for 2 hours to dry out the machine internal · Turn off machine and pull out plug . · Clean and dry filters , then reinstall them . · Pull out exhaust pipe for safekeeping . ·... -
Page 13: Declaration Of Conformity
Notice about recycling Your product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre.
