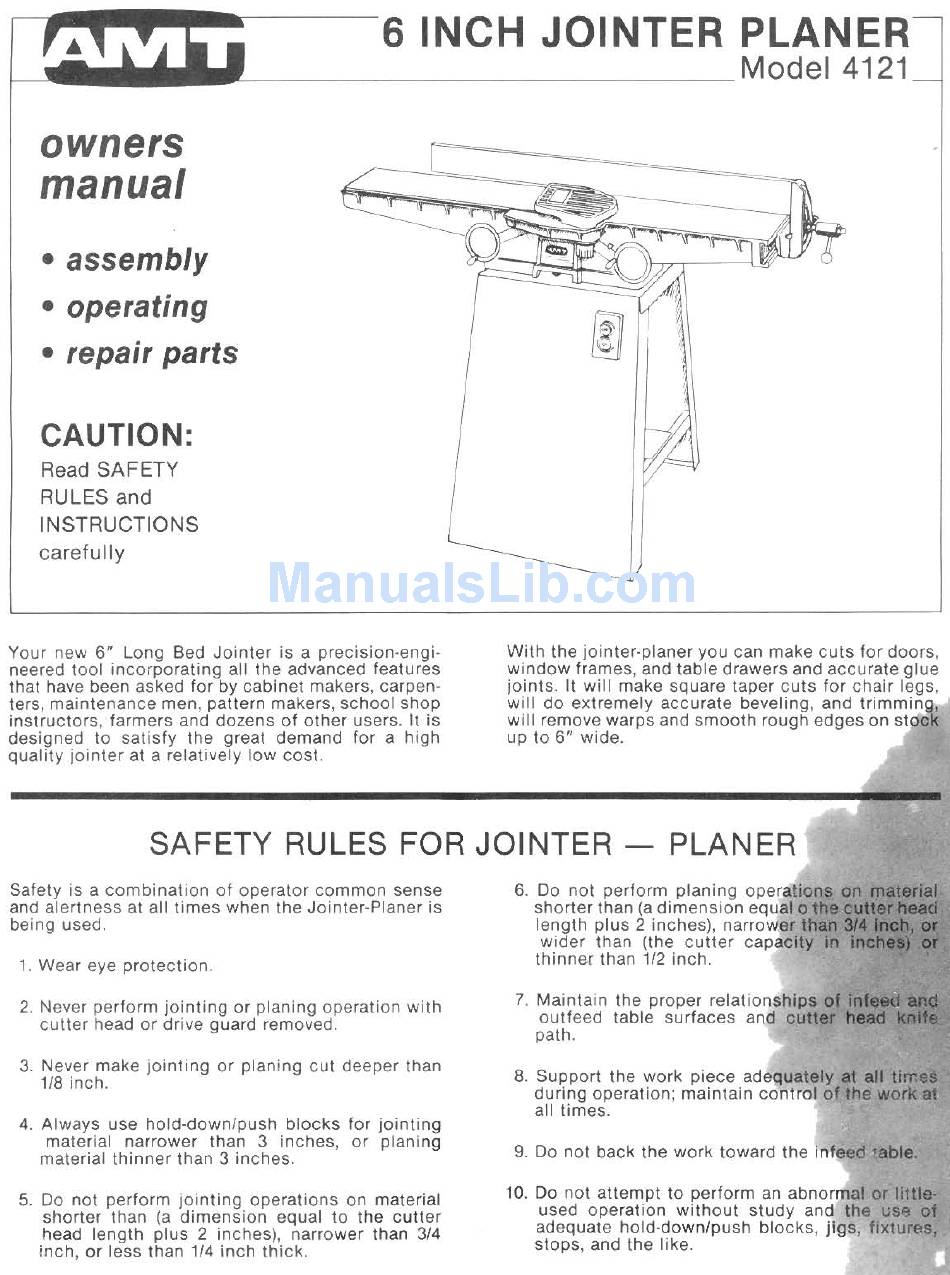

AMT 4121 Owner's Manual

... ..--- -6 INCH JOINTER PLANE--'
'-----_ _ _ _ _ _ _ _ _ _ _ Model 4121
owners
manual
•
assembly
•
operating
•
repair parts
CAUTION:
Read SAFETY
RULES and
INSTRUCTIONS
carefully
Your new 6" Long Bed Jointer is a precision-engi-
neered tool incorporating all the advanced features
that have been asked for by cabinet makers, carpen-
ters, maintenance men, pattern makers, school shop
instructors, farmers and dozens of other users. It is
designed to satisfy the great demand for a high
quality jointer at a relatively low cost.
@
With the jo inter-p laner you can make cuts for doors,
window frames, and table drawers and accurate glue
joints. It will make square taper cuts for chair legs,
will do extremely accurate beveling, and trimming,
will
remove warps
and smooth rough edges on 51
:k
up to 6" wide.
SAFETY RULES FOR JOINTER - PLANER
Safety is a combination of operator common sense
and alertness at all times when the Joi nter-Planer is
being used.
1. Wear eye protection .
2. Never pe rform jointing or planing operation with
cutter head or drive guard removed.
3. Never make jointing or planing cut deeper than
1/8 inch.
4. Always use hold-down/push blocks for jointing
material narrower than 3 inches, or planing
material thinner than 3 inches.
5. Do not perform jointing operations on material
shorter than (a dimension equal to the culler
head length plus 2 inches), narrower than
3/4
inch, or less than 1/4 inch thick.
6. Do not perform planing
oper<.tic'll4
shorter than (a dimension
length plus 2 inches),
na'~~;~~~~It~
wider than (the cutter
thinner than 1/2 inch .
7. Maintain the proper
relation~h,jp~:~
outfeed table surfaces
path .
8. Support the work piece adeQuately at alii I
, ~ ~:~~
during operation; maintain control of the
~
all times.
9. Do not back the work toward the infeed
table_
10. Do not attempt to perform an abnormal
or IUU.
used operation without study and the use of.,.
adequate hold-down/push blocks, jigs, fixtures,
stops, and the like.
