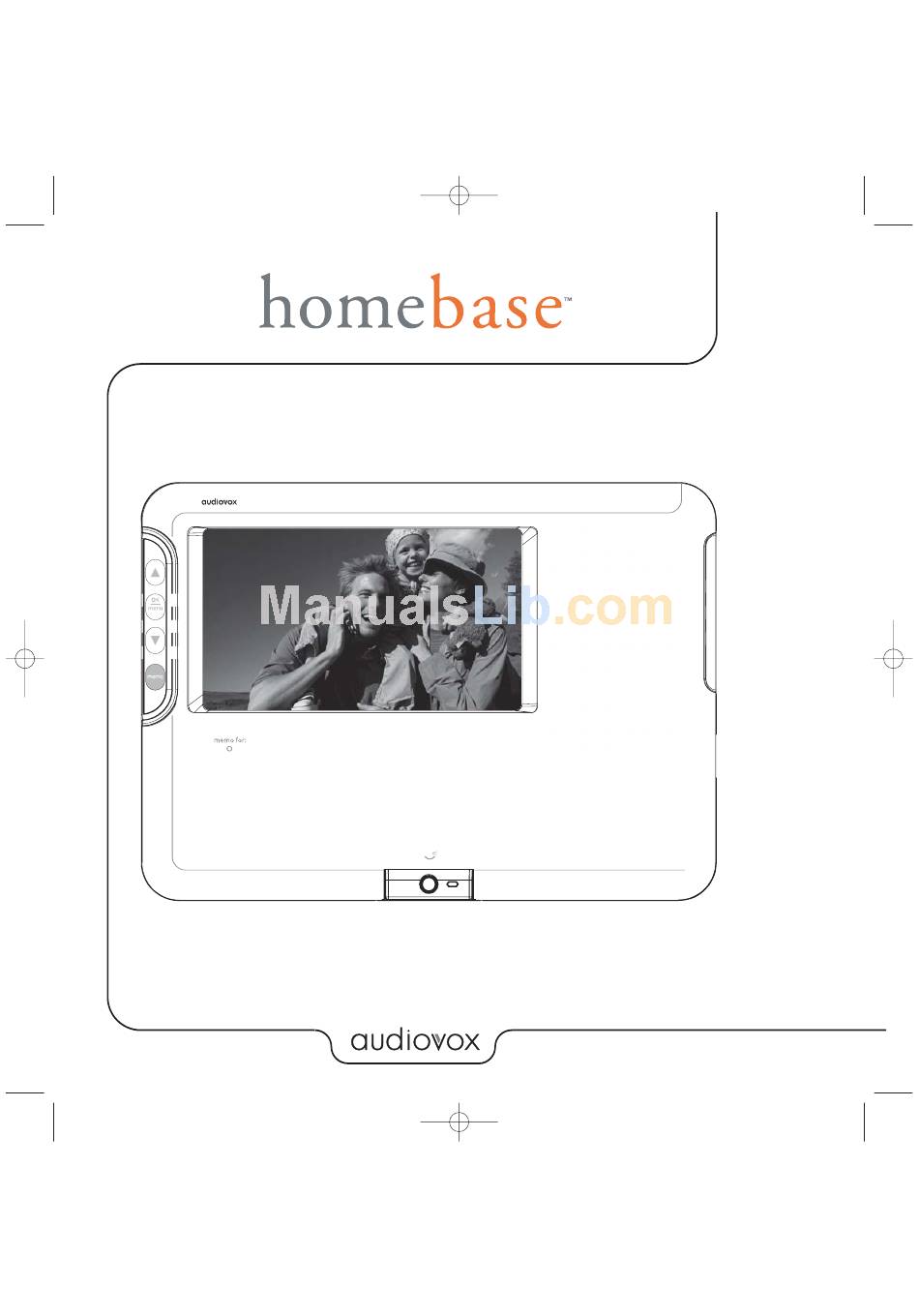

  • Page 1 HB-711-OM-128-8270-Eng.qxp 6/5/08 9:37 AM Page 1 DPF711K smil...

  • Page 2: Table Of Contents

    HB-711-OM-128-8270-Eng.qxp 6/5/08 Important Safety Instructions ............3 Introduction .

  • Page 3: Important Safety Instructions

    HB-711-OM-128-8270-Eng.qxp 6/5/08 IMPORTANT SAFETY INSTRUCTIONS Please read all safety and operating instructions carefully before installation, and keep these instructions handy for future reference. Take special note of all warnings listed in these instruc- tions and on the unit. Water and Moisture: The unit should not be used near water. For example: near a bathtub, swimming pool, etc.

  • Page 4: Introduction

    HB-711-OM-128-8270-Eng.qxp 6/5/08 9:37 AM Page 4 INTRODUCTION Consider homebase your one-stop home message center and digital picture frame. The whole family can use homebase to communicate with one another and to keep each other in the know. Your homebase allows you to: •...

  • Page 5: Product Features

    HB-711-OM-128-8270-Eng.qxp 6/5/08 Here’s Everything You Get: • 7-inch color LCD screen for displaying photos, the calendar and clock • 1 GB of memory -enough for more than 125 high resolution pictures (Much more with standard pictures) -enough for 20 minutes of video memos; 40 memos max -enough for 30 minutes of audio memos;...

  • Page 6: What's In The Box

    HB-711-OM-128-8270-Eng.qxp 6/5/08 9:37 AM Page 6 WHAT’S IN THE BOX? homebase Wall Mount Bracket (1) Angle Mount Bracket (2) smil AC to DC Power Adapter (1) ® Post-It Note Pad (1) Button Magnet (2) Adhesive Foam Pad (2) Wire Management System (3) (Black, White, Clear) Dry Erase Marker (1) Plastic Wall Anchor (2)

  • Page 7: Installation

    HB-711-OM-128-8270-Eng.qxp 6/5/08 homebase Bracket Mounting Holes Wire Post(s) Power Adapter Wire Notch Adhesive Foam Pads Refrigerator Surface Installation 1. Remove the protective backing from one side only of the two adhesive foam pads; position them on the back of the wall mount bracket as shown.

  • Page 8: Homebase Countertop Installation

    HB-711-OM-128-8270-Eng.qxp 6/5/08 Angle Bracket Mounting Holes homebase Unit Angle Mount Brackets Countertop Installation 1. Find a suitable location on the countertop near an AC wall outlet. 2. Connect the power adapter plug to the DC input connector at the rear of the homebase. 3.

  • Page 9: Homebase Wall Mount Installation Using The Wall Mount Bracket

    HB-711-OM-128-8270-Eng.qxp 6/5/08 Flat-Head Self-Tapping Screw (2) Mounting Tabs Wall Mount Installation Using the Wall Mount Bracket NOTE: To mount the homebase to a wall using the adhesive pads, follow the same instructions indicated earlier in “refrigerator surface installation” – page 7. To mount using screws, proceed as follows: 1.

  • Page 10: Homebase Wall Mount Installation Using The Angle Mount Brackets

    HB-711-OM-128-8270-Eng.qxp 6/5/08 Angle Mount Bracket Mounting Tabs Flat-Head Self-Tapping Wall Mount Installation Using the Angle Mount Brackets NOTE: It is not recommended that you use the foam adhesive pads when mounting the angle mount brack- ets to a wall surface; in this case, always use screws. 1.

  • Page 11: Internal Battery Activation And/Or Replacement

    HB-711-OM-128-8270-Eng.qxp 6/5/08 Internal Battery Activation and/or Replacement A type CR2032 battery is installed in a compartment behind the front panel of the homebase. If the unit is being used for the first time, the battery must be activated. A plastic insulator pre- vents contact with the battery terminals.

  • Page 12: Controls, Indicators And Connectors

    HB-711-OM-128-8270-Eng.qxp 6/5/08 CONTROLS, INDICATORS AND CONNECTORS 1. Power On/Off Switch 2. USB Connector 3. SD/MMC/MS/xD Connector 4. CF Connector 5. Up ( ) Navigation Button 6. OK / MENU Button 7. Down ( ) Navigation Button 8. MEMO Button 9:37 AM Page 12 10.

  • Page 13: Accessory Placement

    HB-711-OM-128-8270-Eng.qxp 6/5/08 9:37 AM Page 13 ACCESSORY PLACEMENT Note Pad Storage Receptacle ® Post-It Note Pad Dry Erase Marker Marker Storage homebase Receptacle DPF711K...

  • Page 14: Operating The Homebase

    HB-711-OM-128-8270-Eng.qxp 6/5/08 9:37 AM Page 14 OPERATING THE HOMEBASE Preliminary Connections Prior to initial operation, the unit must be plugged in, and the tab (“REMOVE THIS TAB”) on the right side of the unit must be removed to enable backup battery operation. Connecting the power Power to the homebase is provided by the AC-to-DC wall adapter, which delivers +9VDC to the DC input con- nector at the rear of the unit.

  • Page 15: Getting Started

    1. Turn homebase on by moving the power switch on the left side upward. After just a few seconds, you will see a white welcome screen that says “audiovox homebase.” IF YOUR MEMORY CARD IS CONNECTED… a slide show with your pictures will automatically start.

  • Page 16: Family Names

    HB-711-OM-128-8270-Eng.qxp 6/5/08 Your Homebase can be customized for your family by inputting you family member names into the unit. This will allow you to leave video and voice memos for specific family members. If there is a message waiting for someone, their name(s) will appear on the screen indicating they have a memo.

  • Page 17: Memos

    HB-711-OM-128-8270-Eng.qxp 6/5/08 How do I leave a video memo? 1. Press the orange button that says memo. (This button will take you straight to the “memo” menu no matter where you are.) You can also press the menu button then highlight “memo” and press OK/menu.
  • Page 18 HB-711-OM-128-8270-Eng.qxp 6/5/08 Now, what would you like to do? To save your video memo… Highlight “keep/exit” and then press OK/menu. Your memo is saved. The orange light in front will stay lit and homebase will go back home. NOTE: If one of the clock display options is active you will also see “memo(s) for:” followed by the family members name displayed on the screen.
  • Page 19 HB-711-OM-128-8270-Eng.qxp 6/5/08 How do I leave a voice memo? 1. Press the orange button that says memo. (This button will take you straight to the “memo” menu no matter where you are.) You can also press the menu button then highlight “memo” and press OK/menu.
  • Page 20 HB-711-OM-128-8270-Eng.qxp 6/5/08 How do I listen to a voice or view a video memo? 1. Press memo. 2. Highlight “play/erase” and press OK/menu. All saved voice memos will pop up with dates and times. Unheard memos are left in orange. 3.
  • Page 21 HB-711-OM-128-8270-Eng.qxp 6/5/08 Now, what do you want to do? “play” – will play your memo again and return you to this menu. “erase” – will erase your memo again and return you to this menu. “keep” – will save your memo and change the color to gray indicating that it has already been heard. “keep as new”...
  • Page 22 HB-711-OM-128-8270-Eng.qxp 6/5/08 How do I listen to a voice or video memo, but not delete it? 1. Press memo. 2. Highlight “play/erase” and press OK/menu. 3. Highlight the memo you want to hear and press OK/menu. 4. Highlight “play” and press OK/menu. 5.

  • Page 23: Calendar

    HB-711-OM-128-8270-Eng.qxp 6/5/08 How do I leave a voice or video memo for a specific date? NOTE: Dated voice memos are automatically deleted 72 hours after scheduled date. 1. Press the OK/menu button. You will see the main “menu” (“exit”, “memo”, “calendar”, “timer”, “photo”...
  • Page 24 HB-711-OM-128-8270-Eng.qxp 6/5/08 Now, what would you like to do? To save your voice or video memo… Highlight “keep/exit” and then press OK/menu. Your memo is saved. The orange light in front will stay lit and homebase will go back home. Be sure to use the marker to write down to whom the memo is intended for on the marker board under the “memo for:”...
  • Page 25 HB-711-OM-128-8270-Eng.qxp 6/5/08 Now, what would you like to do? To erase a voice or video memo… a. Highlight “erase” and press OK/menu. Screen will automatically return to calendar memo screen and memo will be gone from list. b. Highlight “exit” and press OK/menu. Screen will return to calendar. c.
  • Page 26 HB-711-OM-128-8270-Eng.qxp 6/5/08 Now, what do you want to do? To make this a one-time event… a. Leave “on” highlighted and press OK/menu. Screen will automatically return to event selection screen. A small orange box will appear on the date to indicate that your message has been saved for that date.
  • Page 27 HB-711-OM-128-8270-Eng.qxp 6/5/08 How do I erase a calendar event? 1. Press the OK/menu. 2. Press OK/menu again. 3. Select day and month in “calendar”. 4. Highlight the desired date and press OK/menu. 5. Highlight “event memos” and press OK/menu. 6. Highlight the event and press OK/menu and highlight “erase”; press OK/menu again. Screen will return to calendar memo screen and event will be missing.

  • Page 28: Countdown Timer

    HB-711-OM-128-8270-Eng.qxp 6/5/08 How do I set a countdown reminder? 1. Press OK/menu and the main “menu” will pop up. exit memo calendar timer photo settings 2. Highlight “timer” and press OK/menu. A split screen display appears with the countdown timer on the left and a slide show on the right.

  • Page 29: Photo Menu

    HB-711-OM-128-8270-Eng.qxp 6/5/08 The homebase can accept 6 different types of memory devices SD, MMC, MS, xD and CF cards as well as a USB flash drive. When you plug one of these devices into the appropriate receptacle the unit will go directly to step 6 below and display the photo icons on your memory device.
  • Page 30 HB-711-OM-128-8270-Eng.qxp 6/5/08 6. All photos will automatically be displayed as thumbnails on the screen. Highlight the photo you would like to copy by pressing the up and down arrows; when photo is selected, press OK/menu. 7. The photo will be displayed enlarged, followed by a menu that will automatically pop up with 5 options.
  • Page 31 HB-711-OM-128-8270-Eng.qxp 6/5/08 What can I do with my photos once they are in the Photo Library? 1. Press OK/menu and the main “menu” will pop up. 2. Highlight “photo” and press OK/menu. 3. Highlight “photo library” and press OK/menu. All photos stored in the photo library will automati- cally pop up.
  • Page 32 HB-711-OM-128-8270-Eng.qxp 6/5/08 Now, what would you like to do? To make this picture the only picture displayed… Highlight “single slide show” and press OK/menu. Confirm that “on” is highlighted and press OK/menu once more. Now that photo you selected will be displayed until you change back to the slideshow. NOTE: Turning single slide show on will stop home screen slide show.

  • Page 33: General Settings

    HB-711-OM-128-8270-Eng.qxp 6/5/08 GENERAL SETTINGS (cont’d) How can I change the way the slide show plays? 1. Press OK/menu and the main “menu” will pop up. 2. Highlight “photo” and press OK/menu. 3. Highlight “slide show” and press OK/menu; a menu will automatically pop up giving you 4 options. Now, what do you want to do? To enable the slide show…...
  • Page 34 HB-711-OM-128-8270-Eng.qxp 6/5/08 How can I choose between normal or widescreen for my photos? 1. Press OK/menu and the main “menu” will pop up. 2. Highlight “settings” and press OK/menu. 3. Highlight “general setup” and press OK/menu. exit general setup time/date setup alarm clock display family names...
  • Page 35 HB-711-OM-128-8270-Eng.qxp 6/5/08 GENERAL SETTINGS (cont’d) How can I clear all data stored in memory? NOTE: This will permanently delete ALL stored photos, voice and video memos, events, times and alarms. 1. Press OK/menu and the main “menu” will pop up. 2.

  • Page 36: How Do I Set The Alarm

    HB-711-OM-128-8270-Eng.qxp 6/5/08 GENERAL SETTINGS (cont’d) 7. Repeat to select the numerical day of the month, and press OK/menu. Note: When this is done correctly, the clock will automatically select the proper day name for the date entered. 8. The year is now flashing. Use the up and down arrows to select the proper year, and then press OK/menu.
  • Page 37 HB-711-OM-128-8270-Eng.qxp 6/5/08 GENERAL SETTINGS (cont’d) Now, what do you want to do? To turn alarm on… exit alarm on/off alarm set 1. Highlight “alarm on/off” and press OK/menu. 2 You can now set an alarm for today only by highlighting “on” and pressing OK/menu or you can set the alarm to activate everyday at this time by highlighting “on everyday”...
  • Page 38 HB-711-OM-128-8270-Eng.qxp 6/5/08 GENERAL SETTINGS (cont’d) How do I change where the time is displayed? 1. Press OK/menu and the main “menu” pops up. 2. Highlight “settings” and press OK/menu. 3. Highlight “clock display” and press OK/menu. exit general setup time/date setup alarm clock display family names...

  • Page 39: Language Selection

    HB-711-OM-128-8270-Eng.qxp 6/5/08 GENERAL SETTINGS (cont’d) How do I select my language? 1. Press OK/menu and the main “menu” pops up. 2. Highlight “settings” and press OK/menu. 3. Highlight “general setup” and press OK/menu. 4. Highlight “language select” and press OK/menu. 5.

  • Page 40: Technical Data

    HB-711-OM-128-8270-Eng.qxp 6/5/08 Specifications • Digital Picture Frame • Aspect Ratio • Resolution: • Internal Flash Memory • USB Connector • SD/MMC/MS/xD Card Slot • CF Connector • Date/Time • Video Messages • Voice Messages • Audio Output • Menu Navigation •...
