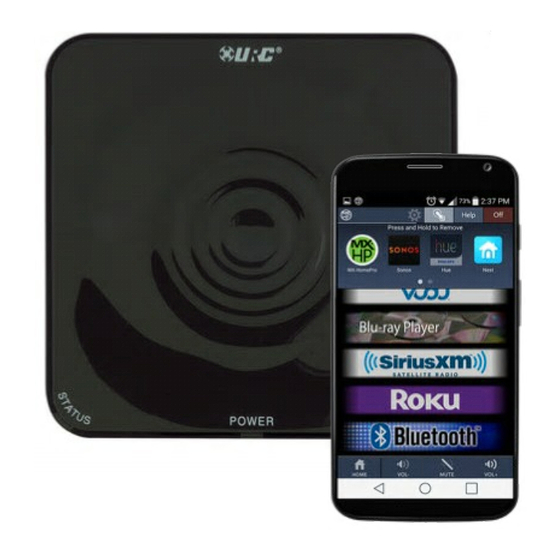

MX-HomePro

MXHP-H500 (Hub)

Owner's Manual v.1.0

Universal Remote Control, Inc.

Table of Contents

Need help?

Do you have a question about the MX-HomePro and is the answer not in the manual?

Questions and answers

Summary of Contents for URC MX-HomePro

Page 1 MX-HomePro MXHP-H500 (Hub) Owner’s Manual v.1.0 Universal Remote Control, Inc.
Page 2 The information in this manual is subject to change without prior notice. URC - Control the Experience is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
Page 3: Table Of Contents
MX-HomePro MXHP-H500 (Hub) Introduction.........................1 Features and Benefits....................1 Parts List........................1 Before Getting Started....................2 MXHP-H500 (Hub)......................2 MX-HomePro Mobile App (iOS/Android)..............3 MXHP-R500 (Remote)....................4 Rear Panel Descriptions....................5 Infrared Outputs....................5 Ethernet LAN Connection/Wi-Fi................5 Controlling Other Network Devices (IP Control)..........5 DC Power Input......................5 Front Panel Descriptions.....................6 Top Panel Descriptions Power LED.......................6...
Page 4: Introduction
Entertain mobile app. The MXHP-R500 is the perfect accessory companion for a television room or bedroom night table. It’s also possible to expand control to other rooms or areas of your home (refer to MX-HomePro Installation Guide). Hubs can be installed in up to five rooms using the same local network for Internet access.
Page 5: Before Getting Started
Prior to installing an MX-HomePro system, there are a few things to remember: ● MX-HomePro systems are designed for use on the home’s local network. The hub can be connected to the home network through an Ethernet cable or wirelessly using Wi-Fi.
Page 6: Mx-Homepro Mobile App (Ios/Android)
MX-HomePro MXHP-H500 (Hub) MX-HomePro Mobile App (iOS & Android) The Entertain app comes free with the purchase of an MXHP-H500 hub; it is available for iOS and Android. This mobile app provides full control of the audio/video components in a system without the need of a point and shoot infrared remote.
Page 7: Mxhp-R500 (Remote)
MX-HomePro MXHP-H500 (Hub) MXHP-R500 (Remote) Using the MX-HomePro MXHP-R500 remote (sold separately) with a hub allows for control of home accessories such as lighting, thermostats, and security. It also controls all of the home’s audio/video devices. This is a Wi-Fi only based remote and does not use infrared or RF to communicate to any devices.
Page 8: Rear Panel Descriptions
Controlling Other Network Devices (IP Control) The hub can control other IP controllable equipment (such as various AVRs) that are connected to the same network as the MX-HomePro system. One-way command of these devices can be performed via the Entertain app or MXHP-R500 remote.
Page 9: Front Panel Descriptions
An additional feature of the front blaster is the ability to use it for learned commands. If a device is not in the database, use the MX-HomePro Editor and the front blaster to learn commands from the original remote (see MX-HomePro Programming guide).
Page 10: Status Led
Blinking: Indicates that hub is being programmed by the MX-HomePro server. ● Red Steady: Indicates that the hub is connected to the MX-HomePro server, but has not been programmed to the home system. Blinking: Indicates that the hub cannot connect to the MX-HomePro server, please check the network connections/settings.
Page 11: Wi-Fi Led
MX-HomePro MXHP-H500 (Hub) Wi-Fi LED The Wi-Fi LED has six possible states: ● Blue Indicates excellent Wi-Fi signal. ● Red Steady: Indicates that the hub is connected with poor Wi-Fi signal strength. Blinking: Indicates that there is an error when connecting to the wireless network.
Page 12: Bottom Panel Description
MX-HomePro MXHP-H500 (Hub) Bottom Panel Description Reset Button A single press of the Reset button REBOOTS the hub, this is similar to unplugging and reapplying the AC power source. DO THIS ONLY IF INSTRUCTED TO DO SO BY YOUR INSTALLER OR BY MX-...
Page 13: Mac Address Stickers
MX-HomePro MXHP-H500 (Hub) MAC Address Stickers Two MAC address stickers are located at the bottom panel of the hub. Use this unique address to identify each hub on the system. WPS Button This button provides an easy one button press connection on a WPS (Wi-Fi Protected Setup) ready network.
Page 14: Network Installation
To set the network properties of the hub, insert the battery into the remote and follow the on- screen prompts (for more details refer to the MX-HomePro Installation Guide). Page 11...
Page 15: Hub Programming
HomePro Programming guide). Once the system has been programmed using the MX-HomePro Editor, a backup of the system file is stored within the MX-HomePro server. This file can be accessed and edited at any time by a smart home professional installer.
Page 16: Limited Warranty
Limited Warranty Statement Click on the section title above to read the full terms and conditions of the Limited Warranty Statement. Also available publicly on the URC home page. End User Agreement Click on the section title above to read the full terms and conditions of the End User Agreement.
Page 17: Fcc Caution
MX-HomePro MXHP-H500 (Hub) FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation.
