This product is sold and serviced exclusively by Prospec Electronic Inc. and must be returned
to Prospec for in and out of warranty repairs. It can not be serviced under warranty by other
MILENNIA service centers. All products sold and serviced exclusively by Prospec Electronics Inc.
For service contact us: 3325 South Morgans Point Road Mount Pleasant SC 29466
Tel 843-849-9037
Fax 843-849-9054

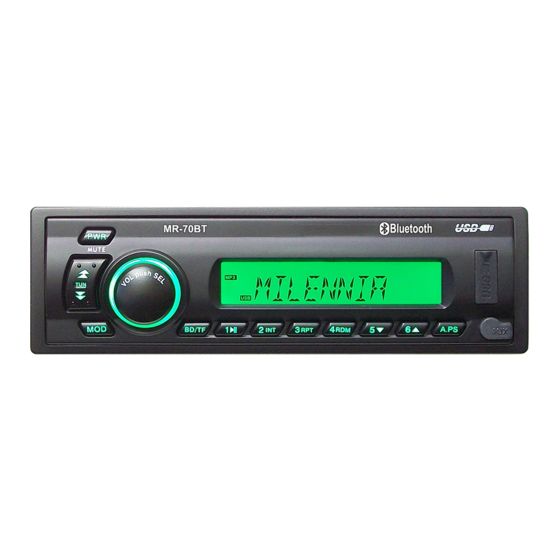

Model No.: MIL-MR70BT
A reset is accomplished by holding the
3 seconds at unit powered off.
It will display SYS CLR which indicates the system being
successfully reset.
button for
Advertisement
Table of Contents
Related Manuals for Prospec MIL-MR70BT
Summary of Contents for Prospec MIL-MR70BT
- Page 1 This product is sold and serviced exclusively by Prospec Electronic Inc. and must be returned to Prospec for in and out of warranty repairs. It can not be serviced under warranty by other MILENNIA service centers. All products sold and serviced exclusively by Prospec Electronics Inc.
- Page 2 Specifications Operation Voltage ------------------------------ 12 volts DC, Negative Ground Output Power ----------------------------------- watts maximum watts x 4 channels) Output Impedance ------------------------------ compatible with 4 ~8 ohm speakers Tuning Range USA AREA ----------------------------------- FM: 87.5 ~ 107.9MHz. (200KHz step) AM: 530 ~1710 KHz. (10KHz step) EUR AREA ----------------------------------- FM: 87.5 ~ 108MHz.
-
Page 3: Table Of Contents
Trouble shooting Guide Table of Contents Reset Function: In many respects, a stereo acts much like a computer and occasionally requires Table of Contents ------------------------------------------------------------ 1 a reboot. In the unlikely event of product malfunction, a reset can usually fix the issue. A reset is accomplished by holding the Preset 1 button for 3 seconds at unit powered off. -
Page 4: Installation
B. The use of auxiliary mode allows you to play the portable music device through 1. UNIT the headphone jack. An auxiliary adaptor will need to be purchased separately 2. HALF SLEEVE (Prospec offers part, SEAMINI2). 3. HEX NUT 4. LOCK WASHER RCA output 5. -
Page 5: Important Notes
USB Section Operation Important Notes Prior to the final installation, perform a sound check. If high distortion or intermittent sound is experienced, it is possible that the wiring from the radio to the vehicles electrical system is poor or that the battery needs recharging. If the battery and its charging circuit are OK, then rewire the red fused wire of the radio directly to the positive terminal (+) of the vehicle battery. -
Page 6: Wiring Identification
Wiring Identification BT Music Section Operation (ANT. socket) Your media device must incorporate the Bluetooth option in order to stream music. 12P CONNECTOR 1. Pairing your Stereo and Bluetooth Device - To pair your Bluetooth device, press MODE button on the stereo until BT MUSIC appears. - Press and hold A.PS button until PAIRING appears. -
Page 7: Identification Of Control Functions
Radio Section Operation Identification of Control Functions 1. Radio Operation Press MOD button (3) to select Radio mode. Station frequency is indicated on display. 1. POWER ON/OFF button, MUTE button 2. To Select Band 2. Electronic function SELECT button, Volume control knob Press the BAND button (4) to select the desired band FM1, FM2, FM3, AM1, or AM2. -
Page 8: Controls
Controls Controls (continued) 2) I-Vol, Area, Beep, Clock, Loud Selection When SEL button is pressed over 2 seconds to enter it’s second menu as below: Long Short Short Short I-VOL AREA BEEP LOUD push push push push a. I-VOL (Initial Volume Level) By pressing the button again, the unit will be in I- VOL mode.
