baby 43
baby 43 Li
05 2016
Use and maintenance
Attention! Please read the instructions before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the baby 43 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADIATEK baby 43

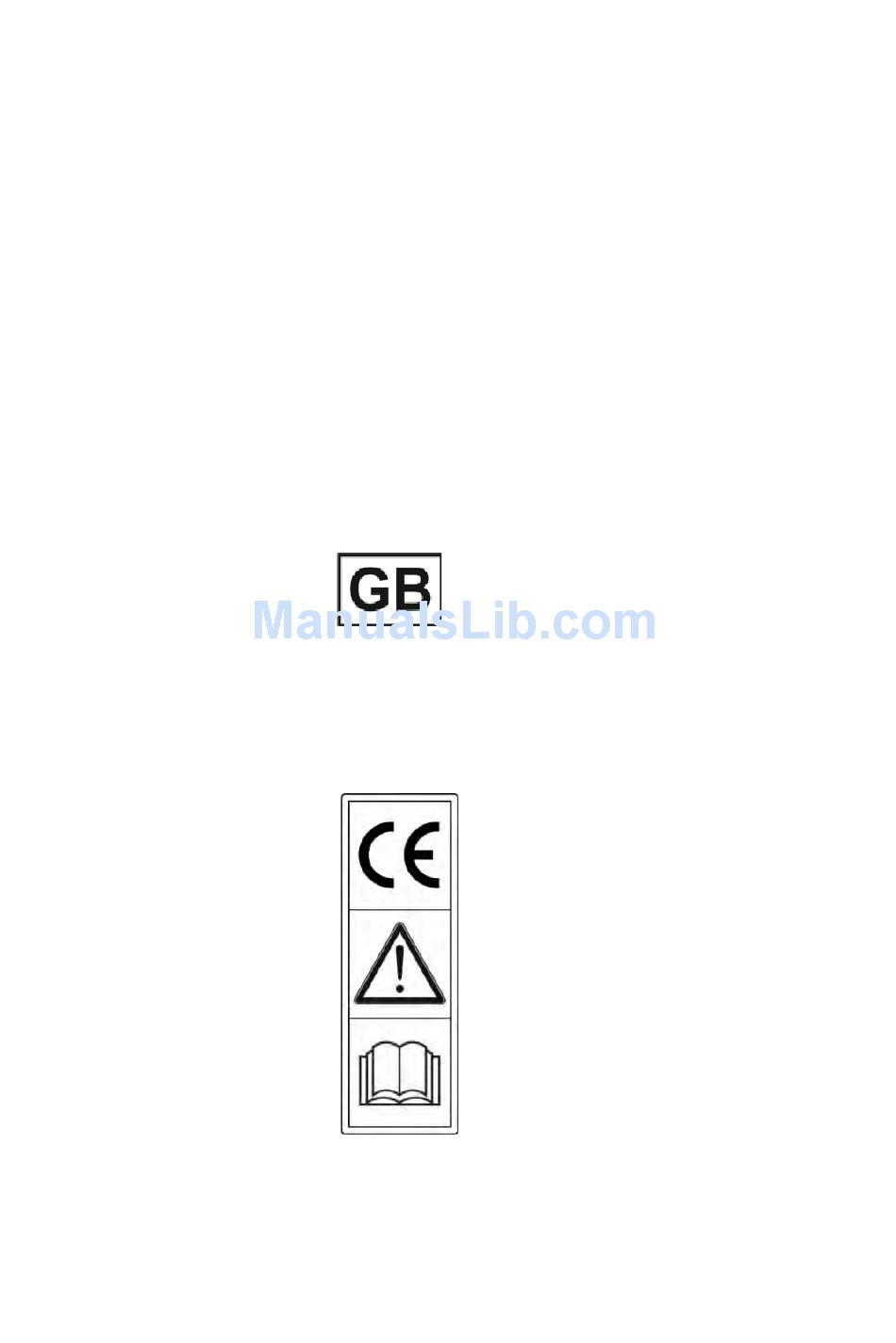

  • Page 1 43 baby 43 Li 05 2016 Use and maintenance Attention! Please read the instructions before use.
  • Page 2 TECHNICAL DESCRIPTION Cleaning width Squeegee width Battery voltage Battery capacity Power rating 31,5 31,5 1505 1505 Working capacity, up to sqft/h 11483 11483 Brush diameter Brush rpm Brush pressure lbs. mbar Suction vacuum water lift Type of drive semi autom. semi autom.
  • Page 3: Table Of Contents

    INTRODUCTORY COMMENT Thank you for having chosen our machine. This floor cleaning machine is used for the commercial cleaning and is able to clean most types of hard floor, except carpet cleaning (if unsure please consult your floor manufacturer/supplier). During its forward movement, the combined action of the brush and the detergent solution removes the dirt which is recovered through the rear suction assembly, giving a perfectly dry surface.
  • Page 4 TROUBLESHOOTING GUIDE The suction motor does not work The brush motor does not work Insufficient water on the brush The machine does not clean properly The squeegee does not dry perfectly Excessive foam production Led (2), (3) and (4) become red PROGRAMMED MAINTENANCE...
  • Page 5: General Rules Of Safety

    GENERAL RULES OF SAFETY CORRECT USE − Do not use the machine on surfaces covered The rules below have to be followed carefully in order to avoid injury to the operator and damage with inflammable liquids or dusts (for example to the machine.
  • Page 6: Legend Instrument Board And Controls

    LEGEND INSTRUMENT BOARD CONTROLS SQUEEGEE LIFT LEVER ON/OFF SWITCH WITH SIGNAL LAMP HANDLE BARS BRUSH MOTOR SWITCH WITH SIGNAL LAMP SCRUB CONTROL LEVERS SUCTION MOTOR SWITCH WITH SIGNAL LAMP HANDLE BAR RELEASE LEVER SOLENOID VALVE SWITCH WITH SIGNAL LAMP LEGEND MACHINE 16.
  • Page 7: Symbology Machine

    SYMBOLOGY MACHINE Symbol 0/1 indicating the Symbol that indicates the ON/OFF switch and its signal position of the outlet plug lamp. of the solution tank. Symbol denoting the switch This symbol indicates that for the water opening and the tanks are to be emptied the signal lamp that the before rotating...
  • Page 8: Before Use

    BEFORE USE Use the same procedure for further height adjustment of the handle bar in order to find the HANDLING OF THE PACKED MACHINE most comfortable working position. The machine is supplied with suitable packing. The total weight is 100 kg (221 lbs) max. Packing dimensions: Base: 84,5 cm x 57 cm (33”x22”) Height: 85 cm (33")
  • Page 9: Battery Charging

    During the recharging operations the machine's functions are disabled. To charge the batteries, park the machine on a level surface near to a mains single-phase socket. Switch off the machine at the on/off switch (3). Connect the mains cable supplied with the machine both to the machine (5) and to the outlet socket as indicated in the figure.
  • Page 10: Solution Tank

    Switch on the machine pressing the on/off switch (1). Check the battery charge level (see under “BATTERY CHARGING”). Lower the squeegee by rotating downwards the handle of the squeegee lifting lever (5) placed in the centre of the handle bar. Press the switch for the brush motor (2).
  • Page 11: Complete Squeegee Rotation

    COMPLETE SQUEEGEE ROTATION DRYING GOING BACKWARDS Thanks to the complete squeegee rotation, it is With the squeegee positioned in the front part of possible to wash and dry both in forwards and in the machine it is possible to dry where a backwards.
  • Page 12: Handle Bar Adjustment

    traditional squeegee does not manage. Here below some examples of how to use the functionalities complete squeegee rotation. During working operation, the lifting lever of the Wash the interested surface (1). squeegee has to be kept in the low position. HANDLE BAR ADJUSTMENT When approaching obstacles or near walls, it is possible to simplify the handling of the machine...
  • Page 13: Stopping The Machine After Cleaning Operation

    DAILY MAINTENANCE according to the standard norms for the liquid disposal. RECOVERY TANK CLEANING Hold the exhaust hose (9) of the recovery tank. Take off the exhaust plug and empty the recovery tank into appropriate containers (see under "OVERFLOW DEVICE"). Take off the suction cover (10) after rotating the blocking levers (11).
  • Page 14: Suction Filter Cleaning

    VERTICAL POSITIONING OF THE MACHINE Rotate manually the squeegee (15) towards the front part of the machine so to have The machine can assume a vertical positioning free access to the filter (16). tipped over at the back after having folded the Unscrew the filter cover (16), remove the handle bar onto the machine.
  • Page 15: Brush Removal/Fitting

    To reassemble the brush insert the coupling buttons into the slots of the brush holder plate and rotate counterclockwise until it locks. It is possible to use also other brush types, depending on the floor type to be cleaned and on its dirt conditions (see under “RECOMMENDED BRUSHES”).
  • Page 16: Ordinary Maintenance

    Check that the coupling and the squeegee hose are not obstructed and if necessary, clean the entire assembly. reassemble squeegee reverse operations above. ORDINARY MAINTENANCE REAR SQUEEGEE RUBBER REPLACEMENT FRONT SQUEEGEE RUBBER REPLACEMENT Check the squeegee rubber wear and eventually turn or replace it.
  • Page 17: Troubleshooting Guide

    THE BRUSH MOTOR DOES NOT WORK metal parts that form the squeegee body to take off the front rubber. Check the charge level of the batteries that Clean all the components with water. is visible when switching on (1) (see under reassemble squeegee reverse...
  • Page 18: The Machine Does Not Clean Properly

    LED (2) RED: the brush motor is having too big stress. LED (3) RED: the suction motor is aspirating water and therefore is forcing too much. LED (4) RED: the coil of the solenoid valve may be short-circuited. To reset, switch off the general switch (1), wait a few minutes and then switch on again.
  • Page 22 It is important that the height of the pad holder with its pad is the same as the one of the brush. MACHINE CODE QUANTITY DESCRIPTION baby 43 48903120 Brush PPL 0,6 Ø430/17" Smooth floors with small joints and persistent dirt. 48903130 Brush PPL 0,9 Ø430/17"...
  • Page 23 Tel. +39 045 877 9086 I-37057 San Giovanni Lupatoto (VR) Fax. +39 045 877 9195 Logistics and Production: Via Saturno, 25 Tel. +39 045 606 6289 I-37059 S. Maria di Zevio (VR) Fax. +39 045 605 0903 www.adiatek.com - info@adiatek.com...
