Summary of Contents for ANDERBERG KLIMA HP50

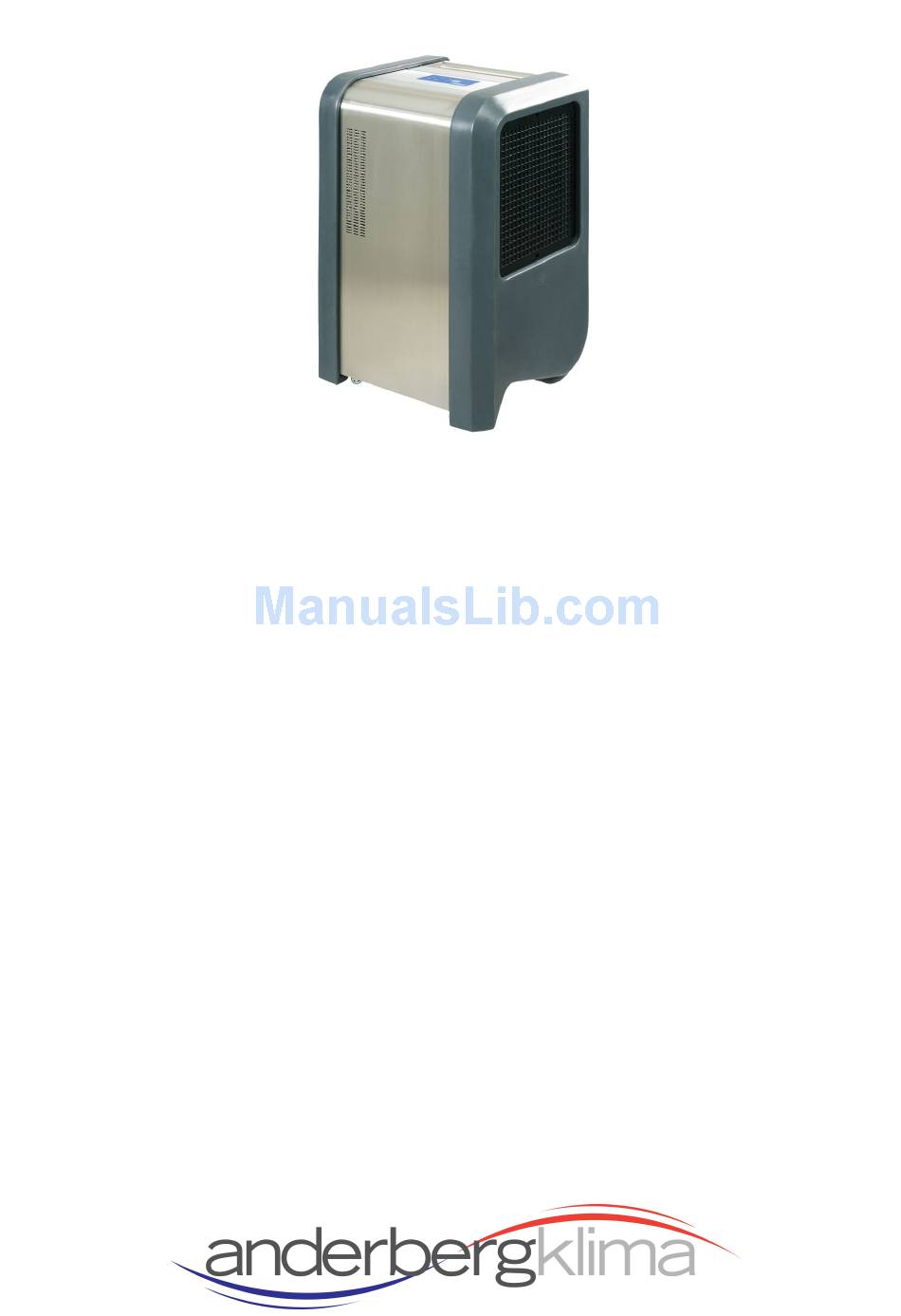

- Page 1 Instructions manual DEHUMID HP50...
-
Page 2: Table Of Contents
Table of contents Unpacking Intended use Disposal Safety instructions Functional principle Automatic defrosting system Set up and transportation Operation Radio operation Overheating protection Keylock Operating hours counter Emptying the water tanks Operation with direct drain hose Maintenance Specifications Troubleshooting Circuit diagram Exploded view Subassemblies... -
Page 3: Unpacking
Dear customer, 4. Safety instructions thank you for choosing the DEHUMID HP 50. You have purchased a high quality, state-of-the-art product. Keep away from children: Do not allow children to play with, or around this unit. It may result in injury. Please read this instruction manual carefully, before Be sure the unit is inaccessible to children when they putting the unit into service and keep it for future... -
Page 4: Functional Principle
5. Functional principle 7. Set up and transportation This dehumidifier is designed to reduce humidity from Regarding set up and transportation the following the air in a building or part of a building. The purpose instructions have to be followed: is to prevent humidity damage, and to dry out wet - Make sure, that the air filters as well as the materials such as carpet, carpet cushion, floors, walls,... -
Page 5: Operation
8. Operation 1) On/off switch Stage 1: High performance Puts the device into the standby mode and turns it The fan is running at maximum speed. back on. We recommend this setting when you desire high rapid 2) LED „ON“ dehumidification. -
Page 6: Radio Operation
9. Radio operation 13. Emptying the water tanks The dehumidifier is available with or without a radio Once the water tanks are filled to their maximum the sensor. device will stop to operate and on the control panel An error in radio reception (no reception for 10 the LED „FULL“... -
Page 7: Maintenance
15. Maintenance Remove the grating by unscrewing the screws (located as shown) ATTENTION ! Then remove the clamp Always pull the mains plug before doing any bracket on the back of maintenance work! each grating by gently bending it outwards Never try to repair the device in case of malfunction! You can now remove the... -
Page 8: Specifications
16. Specifications Model DHI Pro 50 n= 1700 rpm 1065 Nominal airflow (m³/H) n= 1400 rpm Supply voltage 230V – 50Hz Power consumption * 950 W Range of application ºC +1/+35°C Range of application RH 30% - 90% Weight 42 kg without tanks, 45 kg with tanks Dimensions (WxHxD) 54 x 78 x 48 cm Defrosting... -
Page 9: Circuit Diagram
Trouble Possible cause Remedy Room is too big Employ an additional unit. Device is dehumidifying but the ambient Too many sources of humidity remains constant Remove sources if possible. humidity in the room The circuit board is Contact your retailer. defective The ambient Make sure to only operate the unit in... -
Page 10: Exploded View
19. Exploded view... -
Page 11: Subassemblies
20. Subassemblies Pos. Benennung Pos. Benennung Circuit board Plastic cover left Compressor Plastic cover right Evaporator Water collection tub Motor fan Wheel Air filter Swivel caster Grating / filter bracket Plug holder Stainless steel front Water tank cover Base plate Stainless steel top cover Stainless steel rear Support for water tanks... - Page 12 Luftbefeuchtung Proklima GmbH Schwarzacher Straße 13 D-74858 Aglasterhausen Tel.: 06262/5454 Fax: 06262/3255 E-Mail: mail@brune.info Web: www.brune.info Anderberg Klima A/S Teglværksvej 8B 4200 Slagelse 43 999 888 - anderbergklima.dk...
