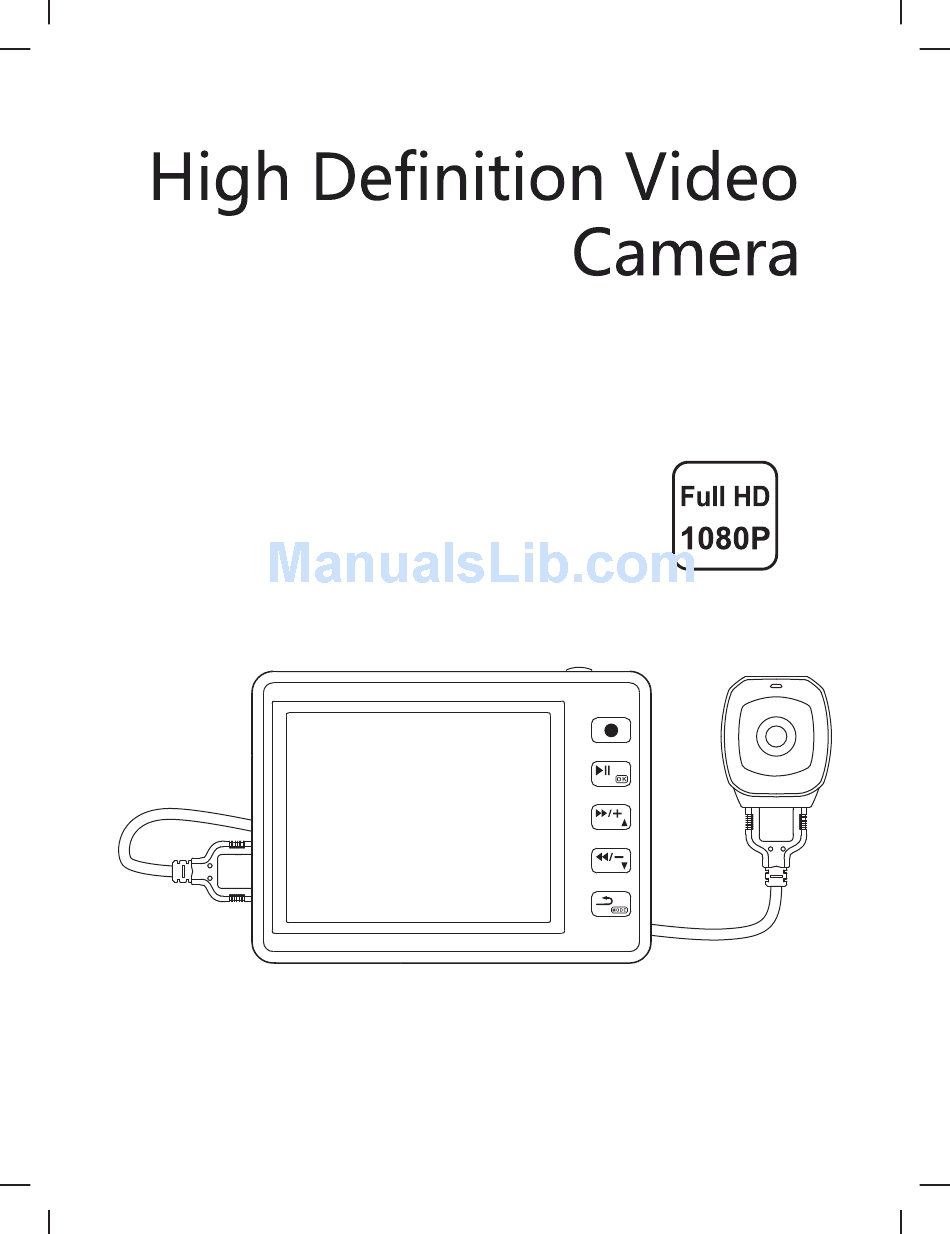

- Page 1 Split Type Mini Full HD DVR with 2.5"LCD (the camera will be different if you choose a non-pinhole HD camera)
-
Page 3: Table Of Contents
Table of Contents Getting Started Identifying the parts of the recorder Identifying the indicator on screen How to install the camera Basic Operations Installing the battery pack Installing the SD card Installing the camera Start/Stop recording EV adjustment Record with wired controller Using enhanced wired controller Taking photos Playback operations... - Page 4 Table of Contents System Setup Resolution setup Recording quality setup Recording mode setup White balance setup External/Internal microphone setup Record overwrite setup Motion detection setup TV type setup Beep sound setup Language Time and date setup Video rotation setup Format SD Card Default setting setup Vibration setup Time stamp setup...
-
Page 5: Getting Started
Getting started Identifying the parts of the recorder 1. Extra camera in 2. External microphone in 3. USB port (2.0USB transfer/AV-OUT/wired control/DC-in) 4. HD camera in 5. Record 6. Play/OK 7. Up/Fast forward/EV + 8. Down/Fast backward/EV- 9. Return Menu/ Preview mode/playback mode 10. -
Page 6: Identifying The Indicator On Screen
Getting started LCD screen indicators 1. Recording resolution 2. Picture quality FULL HD30 H 00:00:50 3. Remaining time of memory 4. Motion detection symbol 5. Cycle recording symbol 6. Battery indicator 7. Date indicator (year/month/date) 8. Time indicator (hour/min/sec) 2011/10/16 1500 15:38:10 9. -
Page 7: Basic Operations
Basic Operations Basic Operations A. Installing the battery pack: 1: Open the back cover (refer to picture 1). 2: Insert the battery pack in the right direction (refer to picture 2). 3: Close the battery cover (refer to picture 3). Remarks: If the recorder will not be used for a long time, please remove the battery. -
Page 8: Start/Stop Recording
Basic Operations A: Star t/Stop Recording Press button (hold on for 2 seconds) to switch on recorder. Press button to start recording. Press again button to stop recording and return to preview mode. B: EV Adjustment EV can be adjusted in record/preview mode (as in the picture). -
Page 9: Using Enhanced Wired Controller
Basic Operations D: Using the Enhanced Wired Control (optional) supports auto recording and stop recording on power 1: DC input: DC 10V~42V 2: Connect Enhanced Wired Controller to the DVR via USB port (refer to picture 1). 3: Connect Enhanced Wired Controller and DC 10V~42V power cable (refer to picture 2). picture 1 picture 2 Once device detects DC 10V~42V power supply, it will start recording automatically. -
Page 10: Playback Operations
Basic Operations How To Playback Only in standby mode the videos could be played back Press to go to the playback list. Press once again to shift the videos and photos (refer to picture 1). picture 1 Press arrow keys to choose the file to be played. Press to start playing. -
Page 11: Movie Playback
Basic Operations Movie playback Photo Playback Choose the movie and press OK Choose the photo and press OK to show the selected picture. (Movie playback-1) (Photo playback-1) Press OK to play/pause; Press OK to enter into a picture slide show; Press Right / Left to fast forward Press OK again to stop slide show;... -
Page 12: How To Connect
Basic Operations HOW TO CONNECT A. Power supply Connection DC IN Connect power supply to：DIGITAL jack on DVR B. Connect to Computer via USB Connect USB cable to： DIGITAL jack on DVR USB jack on Computer C. Connect to TV via AV / OUT AV OUT Connect AV / OUT cable to：... -
Page 13: Connecting External Microphone
Basic Operations D：External MIC Connection (Optional) MIC-IN Connect external MIC to take more and better audios... -
Page 14: System Setup
System Setup System Setup 1: Press [ ] times to enter system setup menu; 2: Use [UP] / [Down] to choose; 3: Press [OK] to confirm; 4: Press [ ] to quit. Resolution Setup Display Discription Definition WVGA60P50 WVGA 16：9 848x480 WVGA60P60 720P25... -
Page 15: Recording Quality Setup
System Setup Recording Quality Setup Resolution Display Resolution Display Bitrate Bitrate 12Mbps 8Mbps 720P30 FULL HD 10Mbps 720P25 6Mbps 1920x1080 （1280x720） 8Mbps 4Mbps 12Mbps 8Mbps 1080P WVGA 10Mbps 6Mbps 1440x1080 848x480 8Mbps 4Mbps Record Mode Setup Default Setting is PAL 25 fps 50 fps 30 fps... -
Page 16: White Balance Setup
System Setup White Balance Setup Choose different white balance value under different conditions. Default is AUTO. AUTO Sunny Cloudy WHITE BALANCE Fluorescent Incandescent External Microphone Volume Setup Set the external microphone volume from 1 to 7; Default is 7. When the external microphone is plugged in, audio from external microphone and internal microphone will be recorded together. -
Page 17: Record Overwrite Setup
System Setup Record Overwrite Setup When Record Setup is active, there will be C on the screen. Recorder will save a new file every 5 minute; When the SD card is nearly full, system will delete the oldest file and replace it with new file. Recommend to use this option together with the power adaptor. -
Page 18: Beep Sound Setup
System Setup Beep Sound Setup Time and Date Setup Press On to enter into time and date setup; Choose ON / OFF to turn on/off the beep sound use UP / Down to increase or decrease the number and press OK to confirm. Video Rotation Setup Language Setup Choose English/简体中文/繁體中文... -
Page 19: Default Setting Setup
System Setup Default Setting Setup Vibration Setup Choose Yes, to restore the factory settings Choose [ON]/[OFF] to turn on/off the vibration indicator Time Stamp Setup If you choose the time stamp, then there will be a stamp showing the time on the video clip. No time stamp Date/Time Date/Time format: 2011.01.01 21:21... -
Page 20: Split Mode Setup
System Setup Split Mode Setup System will save files every set time. Please note: if the SD card is full system will stop recording. Default System will save file only when stop Setting recording System will save files every 2minutes 2min System will save files every 5minutes 5min... -
Page 21: Specification
Specifications Digital Screen 2.5" 960×240 TFT LCD Recording Format Codec H.264 1920X1080(30/25 fps) 1440X1080(30/25 fps) Recording Resolution 1280X720(30/25 fps) 848X480(60/50 fps) Photo Resolution 2592*1944 3.7V 1400mAH Battery (2.5hours recording) Support Max: HCSD 64G(Class 4) Storage (30mins for 4GB card @ Full HD) AV Output Jack USB Port ø2.5mm, RCA, 5V 300mA Out... -
Page 22: Camera Specifications
Specifications Camera Camera Degree 62°(140°: for a non-pinhole camera) Low light Sensitivity 3LUX Cable Length 1.5m with back clip... - Page 23 Accessories AC Wall Charger Back clip cover USB Cable Wired Control Button Cover AV Out Cable *with 2 Magic pads (only for pinhole camera) *cable length:1.5m 2 bags of extra buttons 1400mAH Battery DVR Holster (only for pinhole camera)
- Page 24 Split Type Mini Full HD DVR with 2.5"LCD (the camera will be different if you choose a non-pinhole HD camera)
