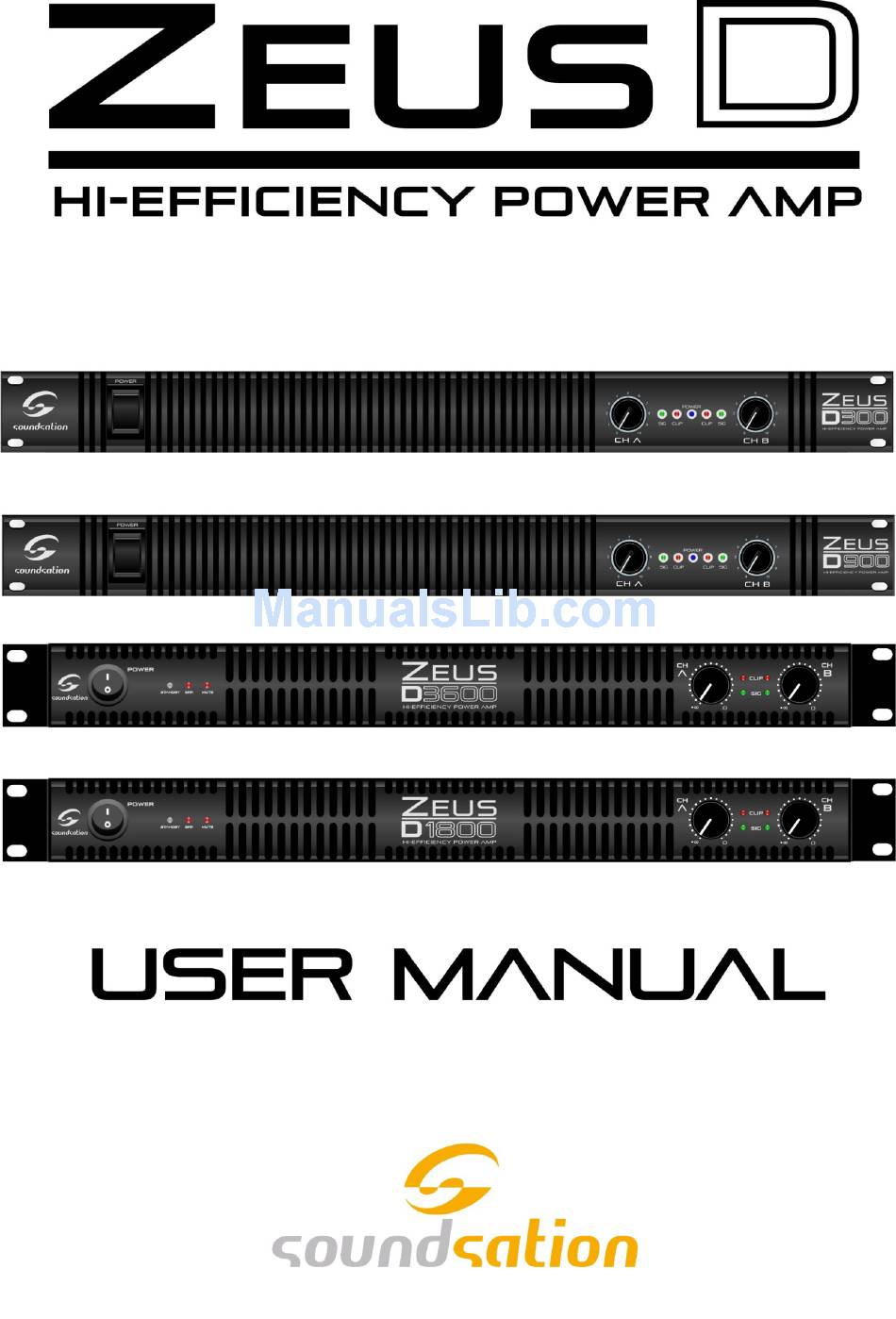

Summary of Contents for Sound Sation Zeus D
- Page 2 Dear customer, first of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all the possible needs of musical instrument and professional audio users offering a wide range of products using the latest technologies for a reasonable price. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and for possible improvements introduce the...
-
Page 3: Safety Instruction
SAFETY INSTRUCTION No user-serviceable parts inside! TO PREVENT POSSIBLE DAMAGES READ THE FOLLOWING LIST OF ACTIONS: Read these instructions. Do not expose the instrument to electro- magnetic interference. Keep these instructions. Do not expose the instrument to heat, cold, wet Heed all warnings. or dust. Follow all instructions. Do not leave the instrument in direct sunlight. Do not use this apparatus near water. Do not expose the instrument to electrostatic forces. Do not place the instrument in wet or dirty environments. Do not place items with flames, such as candles or lighters, on the instrument. Do not remove the protective coverings. - Page 4 Some products can feature a dual or multiple voltage transformers. If your country standards doesn’t match with the one pre- setted on your unit please contact our authorized dealer/technical assistance for conversion. ___________________________________________________________________________________________ You need assistance from qualified UK IMPORTANT NOTICE technician in the following cases: WARNING: THIS APPARATUS MUST BE EARTHED - If the power cord is damaged (i.e., cut or a bare IMPORTANT. The wires in this mains lead are colored in wire is exposed), accordance with the following code: ask your dealer for a replacement. Using the unit with a damaged GREEN-AND-YELLOW : EARTH power cord is a fire and electrical shock hazard.
- Page 5 UNBOXING When you’ll open the box you will find the following items: - 1 Power Amplifier (D300, D900, D1800 or D3600) - 1 Power Cord - User Manual The packaging bag is not a toy! Keep out of reach of children!!! Keep in a safe place the original packaging material for future use. ACCESSORIES SOUNDSATION can supply a wide range of quality accessories that you can use with the ZEUS D amplifiers like Cables, Microphones, Stands, Headphones etc. All the products from our catalogue has been long tested with this device so we recommend to use Genuine SOUNDSATION Accessories and Spare Parts. Ask your SOUNDSATION dealer for any accessories you could need to ensure best performance of the product.
-
Page 6: Operation
OPERATION D300 – D900 front and rear panels 1 – POWER ON : Toggle to switch on/off the power 2 – CH A VOLUME: Rotate the knob to increase/decrease the volume of Channel A 3 – LED Indicators: SIGNAL: It lights up when a signal arrives on the input of the related Channel CLIP: It lights up when the signal on the input is too high and so can cause a distortion POWER: It indicates that the unit is powered up. 4 – CH B VOLUME: Rotate the knob to increase/decrease the volume of Channel B 5 – GROUND – It helps to fix hum or noise problems due to ground problems. 6 – MODE – It switches from STEREO to BRIDGE configuration 7 – INPUTS – Each Channel is equipped with a balanced XLR connector as well as a balanced TRS Jack input. 8 – OUTPUTS – These are the connection for the passive speakers (Speakon and 5-way binding post standard) 9 – AC INPUT – This is the power supply connector. The unit accept 115V or 230V 50/60Hz. - Page 7 D1800 – D3600 front and rear panels 1 – POWER ON : Toggle to switch on/off the power 2 – LED Indicators: STANDBY: It lights up when the AC mains is connected. Once you switch on the unit it will become ERR: This LED indicates that something wrong is happening like a thermal protection, a broken components etc. MUTE: 3 – CH A VOLUME: Rotate the knob to increase/decrease the volume of Channel A 4 – CH B VOLUME: Rotate the knob to increase/decrease the volume of Channel B 5 – SIGNAL LED indicators: SIG: It lights up when a signal arrives on the input of the related Channel CLIP: It lights up when the signal on the input is too high and so can cause a distortion 6 – MODE – It switches from STEREO to BRIDGE configuration 7 – INPUTS – Each Channel is equipped with a balanced XLR Female connector 8 – LINKS – These are just a copy of the inputs (useful to send the same signal to another unit) 9 – OUTPUTS – These are the connection for the passive speakers (Speakon) 10 – AC INPUT – This is the power supply connector. The unit accepts from 90V to 260V 50/60Hz.
-
Page 8: Speaker Connection
SPEAKER CONNECTION... - Page 9 WIRING...
-
Page 10: Specification
SPECIFICATION ZEUS D300 ZEUS D900 ZEUS D1800 ZEUS D3600 D con alimentazione D con alimentazione D con alimentazione D con alimentazione Classe switching switching switching switching Canali Modalità di funzionamento 2 (Stereo, Bridge) 2 (Stereo, Bridge) 2 (Stereo, Bridge) 2 (Stereo, Bridge) Potenza Stereo 8 Ω... -
Page 11: Warranty And Service
WARRANTY & SERVICE All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specific to the date of purchase as shown on your purchase receipt. The following cases/components are not covered from the above warranty : Any accessories supplied with the product Improper use Fault due to wear and tear Any modification of the product effected by the user or a third party... - Page 12 WARNING PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive ( 2202/96/EC) and your national law. This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (WEEE) .
