Summary of Contents for Gilbarco PAM 5000

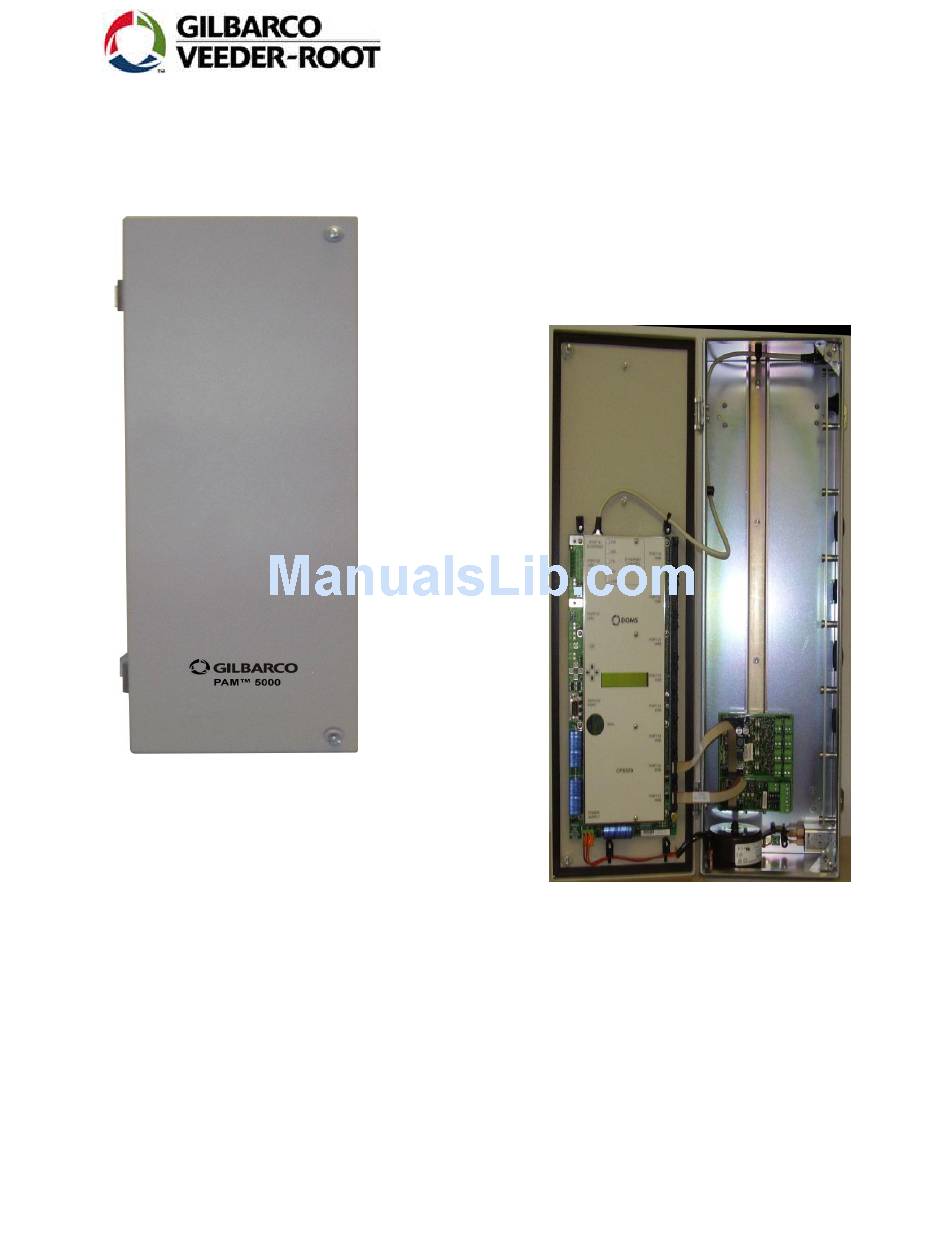

  • Page 1 Gilbarco PAM 5000 Launch Package...

  • Page 2: Table Of Contents

    Table of Contents  Glossary of Abbreviations/Terms  Manual References  Tools Required  System Overview What is a Gilbarco PAM 5000?  Where/when is it used?  Why the change?   Features/Benefits  Commissioning the Equipment  Parts/Descriptions...

  • Page 3: Glossary Of Abbreviations/Terms

    21 to 23 on the CPB board. The port can also be used as a DSB Port by using a special DSMB cable DMB Module- DOMS Multiplex Hardware Interface Module  Gilbarco PAM 5000- The latest interface system that replaces the PAM 1000  HIM- Hardware Interface Module (DSB/DMB) ...

  • Page 4: System Overview

    What is a Gilbarco PAM 5000? The PAM 5000 is a system based on the Gilbarco PAM 1000 Controller. It will be able to replace the old system with full compatibility. The PAM POS protocol is based on the PAM 1000 software version 32.1.60 and PAM 1000 Interface specification.

  • Page 5: Features/Benefits

    Features/Benefits of the PAM 5000 Better performance  Simple & easy to expand  Ethernet connection and Service port (RS-232) with TCP/IP available for remote  service and monitoring Built in web server  Easy software update to flash memory ...

  • Page 6: Parts/Descriptions

    Parts/Descriptions for the PAM 5000 Central Processor Board (CPB509) Part # M08037B010 18. JTAG Interface 19 & 20- Sockets (Not used) for LON options (not used) 15. Display 1. Port 11 DSB- This port is used for connecting to the PAM 2.
  • Page 7 18. JTAG Interface- This connector is not used at this time 19. & 20- Sockets for LON options (These are not used at this time) The CPB is a microprocessor-based controller for use in the PAM 5000 forecourt controller system. It is equipped with the following: 5 DSB ports ...
  • Page 8 Current Loop Interface Module (DSB 492) Part # M08037B001S Power LED DSB connection to DSB connection to Central Processor Board another module TX LED Receive LEDs (8) total Two-Wire connections The Current Loop Interface Board connects to the DIN-rail and the Central Processor Board.
  • Page 9 VDC indicates power is present. TX is flashing when data is transmitted from the DSB 500 and the RX is flashing if data is received from the connection. The DSB492 drives a total load of 5.0-volt idle voltage. This voltage makes the sum of the idle-pump-load, the connection wire drop and the noise margin.
  • Page 10 POS between 300 and 19200. This module supports RS-232 (any runs between the PAM 5000 and the POS longer that 50ft. require a line booster) as well as RS-422, current loop 45 mA, which if the POS supports it can run much longer distances without needing a line booster.
