  • Page 1 Wash 575 tm3 Wash 575 tm3 User Manual Rel 1.0...

  • Page 2: Wash 575 Tm3 Arc

    Teclumen Teclumen reserves the right to make any aesthetic, functional or design modifications to any of its products without prior notice. Teclumen assumes no responsibility for the use or application of the products or circuits described herein.

  • Page 3: Table Of Contents

    Wash 575 tm3 ARC 1200 INDEX: 1- TECHNICAL FEATURES 2- IMPORTANT SAFETY INFORMATION 2.1 Fire prevention 2.2 Prevention of electric shock 2.3 Protection against ultraviolet radiation 2.4 Safety 2.5 Level of protection against the penetration of solid and liquid matter 3- MOUNTING THE LAMP 3.1 Lamp alignment...

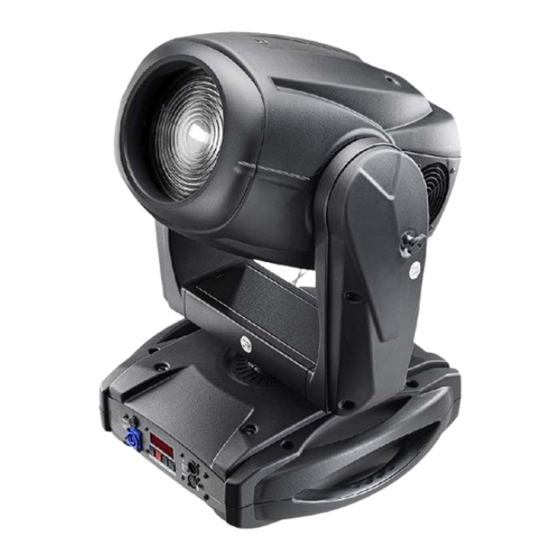

  • Page 4 Wash 575 tm3 ARC 1200 1- TECHNICAL FEATURES The Wash 575 tm3 is fitted with a Philips MSR 575/2 discharge lamp (GX9,5 lampholder base), with a colour temperature of 7,200 °K and a luminous flux of 49,000 Lumens. Duration is 750 hours, with replacement recommended before 1000 hours Other recommended lamps: Philips 575 MSD (6.000K°-49.000 Lumens-3.000 hours)

  • Page 5: Important Safety Information

    -The level of technology present in the Wash 575 requires the assistance of specialised personnel for all servicing. Please refer to an authorised Teclumen service centre. -A good earth connection is essential for proper functioning of the projector.

  • Page 6: Mounting The Lamp

    Wash 575 tm3 3- MOUNTING THE LAMPS Warning: Switch off the unit before replacing the lamp. Philips 575 MSR/2 Philips 575 MSD Power 575W Power 575W Luminous flux 49,000 lm Luminous flux 43,000 lm Colour temperature 7.200°K Colour temperature 6.000°K...

  • Page 7: Voltage And Frequency

    Wash 575 tm3 4- VOLTAGE AND FREQUENCY The Wash 575 with electronic ballast can operate at 90-245 VOLT 50 or 60 Hz. Wash 575 with electromagnetic ballast can operate at 230 V 50-60 Hz(Standard) On request: 100 V 50-60 Hz /120 V 60 HZ / 208 V 60 Hz 5- INSTALLATION Wash 575 may be either floor or ceiling mounted.

  • Page 8: Mains Connection

    Wash 575 tm3 5.3- Movement The projector has a maximum movement of 540° for Pan and 270° for Tilt. DO NOT place any obstructions in the path of the projector's movement. 270° 540° 5.4- Risk of fire Each fixture produces heat and must be installed in a well-ventilated place. The minimum recommended distance from flammable material is 1 MT.
  • Page 9 Wash 575 tm3 Ensure that the conductors do not touch each other.Do not connect the cable ground to the XLR chassy The plug housing must be isolated. Connect the mixer signal to the DMX IN projector plug and connect it to the next projector by connecting the DMX OUT plug on the first projector to the DMX IN plug of the second one.
  • Page 10 Wash 575 tm3 7.1-DMX Addresses Wash 575 tm3 have 16 DMX channels. Set the following addresses on the mixer: Projector 1 A001 Projector 2 A017 If you want to select the next projector, just add “16” Projector 3 A033 …..

  • Page 11: Display Functions

    The Wash 575 display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the Teclumen setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.
  • Page 12 Wash 575 tm3 8- DISPLAY FUNCTIONS MAGENTA MENU Up-Down ENTER Up-Down TEST MODE YELLOW Full test and single function test. TILT EFFECTS DIMMER ZOOM SHUTTER COLOR CYAN ENTER ENTER MENU Up-Down Up-Down ENTER Up-Down AUTOMATIC MODE Automatic game without DMX...
  • Page 13 Wash 575 tm3 8- DISPLAY FUNCTIONS ON / OFF VIA DMX (default) Up-Down MENU Up-Down ENTER ENTER LAMP FORCED ON Lamp always ON-always OFF ENTER Or lamp ON-OFF selectable via DMX FORCED OFF ENTER ADJUST To adjust the lamp with no mixer connected.

  • Page 14: Automatic Mode

    Wash 575 tm3 9- AUTOMATIC MODE (auto) Wash 575 can work in automatic mode without a DMX controller. First of all connect the projectors with a DMX cable (picture below). MASTER SLAVE 1 SLAVE 2 To activate Auto mode on the first unit, use the menu to run through the different modes until AUTO appears on the display, at this point press enter.

  • Page 15: Pan & Tilt Speed

    Wash 575 tm3 The three new DMX channels are: -Scene channel -From 0-255 are displayed the programmable scenes (max 16 scenes M.001 M016) -View channel: -From 1-19 the unit runs the scene that has been saved in the unit memory and it is possible to play through the other scenes using the scene channel.

  • Page 16: Hidden Menu

    Wash 575 tm3 13- HIDDEN MENU For technical personnel only. To operate this menu: -Connect the projector to the DMX controller (DMX SIGNAL MUST BE CORRECTLY RECEIVED) Reset the Wash 575 (reset from the MENU, not from the DMX controller!).

  • Page 17: Opening The Projector Housing

    Periodically check all mechanical parts, gears, guides, belts, etc. for wear and tear, replacing them if necessary. Periodically check the lubrication of all components, particularly the parts subject to high temperatures. If necessary, lubricate with suitable lubricant, available from your Teclumen distributor. Check the tension of the belts and adjust it if necessary.

  • Page 18: Dmx Protocol

    Wash 575 tm3 18- DMX PROTOCOL 16 CHANNEL MODE ( 16bit) PAN ms b ( 5 4 0°) PAN lsb TILT msb(320°) TILT l s b MOVEMENT SPEED D IM MER SHU T T ER C OL OUR C YAN...
  • Page 19 Wash 575 tm3 ARC 1200 DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) Black-out 10-23 Strobe random speed 24-37 Strobe speed 1 min. 38-51 Strobe speed 2 52-65 Strobe speed 3...
  • Page 20 Wash 575 tm3 ARC 1200 210-212 Right rotation speed 5 213-215 Right rotation speed 6 216-218 Right rotation speed 7 219-221 Right rotation speed 8 222-224 Right rotation speed 9 min 225-228 Stop 229-231 Left rotation speed 1 min. 232-234...
  • Page 21 Wash 575 tm3 ARC 1200 DMX CHANNEL MACRO CMY / COLOUR Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) No Function 10-14 Macro 1 15-19 Macro 2 Macro 3 20-24 25-29 Macro Macro 4...
  • Page 22 Wash 575 tm3 ARC 1200 DMX CHANNEL EFFECTS Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 0-19 No effect 20-39 Frost 40-255 Beam Shape DMX CHANNEL ZOOM Parameter: Move DMX range Mid point range...

  • Page 23: Colour Wheel

    Wash 575 tm3 ARC 1200 18- COLOUR WHEEL COL1 COL2 COL3 COL4 0507K003 0507K004 0507C046.D01 0507C051.D01 CONV. FILTER CTB CONV.FILTER CTO WOOD SW 460 ORANGE LW590 DL542 TC3256 COL5 COL6 COL7 COL8 0507C047.D01 0507C042.D01 0507C041.D01 0507C053.D01 RED LW 640 GREEN WB5055...

  • Page 24: Motors Control Card

    Wash 575 tm3 19- MOTORS CONTROL CARD Display 8 MOTORS PCB Zoom motor1 (BLACK) Magnetic Sensors ORANGE Line 1 Brown BROWN Line 2 Orange Yellow (WHITE) (DARK GREEN) J3 FROM Strobe J8 PAN & TILT (YELLOW) (VIOLET) Colour wheel (PINK) J5 FROM J10 PAN &...

  • Page 25: Pan & Tilt Card

    Wash 575 tm3 ARC 1200 20-PAN & TILT CARD TILT 30 VDC (WHITE) (BROWN) (BLACK) (RED) (WHITE) ENCODER PAN (RED) ENCODER TILT (ORANGE) FROM CN5 LAMP ON-OFF FROM J5 FROM J3 DMX IMPUT 8 MOTORS 8 MOTORS (WHITE) (LIGHT GREEN)
  • Page 26 Wash 575 tm3 ARC 1200 24- WIRING DIAGRAMS 125VA...

  • Page 27: Layout

    Wash 575 tm3 25- LAYOUT...
  • Page 28 Teclumen. Teclumen reserves the right to make any aesthetic, functional or design modifications to any of its products without prior notice. Teclumen assumes no responsibility for the use or application of the products or circuits described herein.
