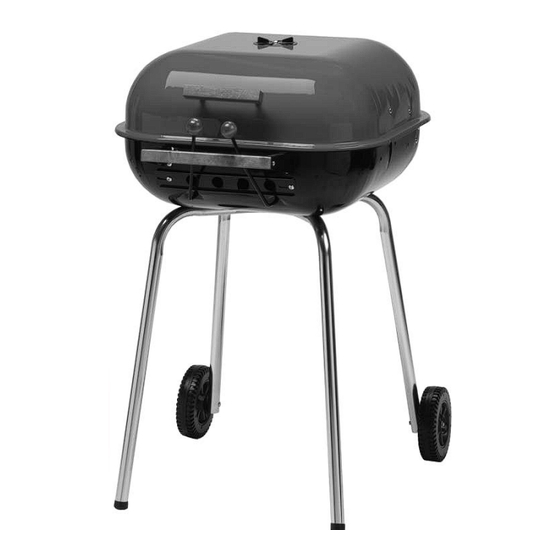

SWINGER 4100 User Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
SWINGER
Model 4100
Charcoal Grill User's Manual
For Outdoor Household Use Only. Not for Commercial Use.
Need Help? Need to Register Your Grill? Looking for Parts & Accessories?
Visit us online at www.onefiregrills.com Or call Customer Service at 1-800-251-7558
• This instruction manual contains important information necessary for the proper assembly and
safe use of this appliance. Failure to follow these instructions could result in death or serious
injury from explosion or fire.
• Read and follow all warnings and instructions carefully before assembling or using this appliance.
• Keep this manual for future reference.
WARNING
!
SAVE THESE INSTRUCTIONS.
P/N 03.6632.00 Rev. 20130522

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4100 and is the answer not in the manual?

Questions and answers

Summary of Contents for SWINGER 4100

  • Page 1 SWINGER Model 4100 Charcoal Grill User’s Manual For Outdoor Household Use Only. Not for Commercial Use. Need Help? Need to Register Your Grill? Looking for Parts & Accessories? Visit us online at www.onefiregrills.com Or call Customer Service at 1-800-251-7558 WARNING •...
  • Page 2 D A N G E R CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide, an odorless toxic gas. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space, such as a camper, tent, car, or home. This appliance is not intended for and should never be used as a heater.

  • Page 3: Preparation For Assembly

    Preparation for Assembly TOOLS NEEDED: Phillips head Screwdriver and a 3/8” open end wrench or a pair of pliers. LAY OUT AND IDENTIFY ALL PARTS. DO NOT DISCARD CARTON OR PACKING UNTIL YOUR GRILL IS COMPLETELY ASSEMBLED. READ ALL ASSEMBLY AND SAFETY INSTRUCTIONS IN THE OWNER’S MANUAL BEFORE YOU START. The extra holes in the side of the bowl are for mounting convenient accessories (side tables and rotisserie).
  • Page 4 Step 1 Slide Vent Cover FIG. 1 Bowl / Slide Vent Assembly 10-24 x 1/2” Bolt Attach Slide Vent Covers to front and rear of Bowl. (FIG. 1) Insert 10-24x1/2” Bolts through inside of Bowl and attach Acorn Locknuts to Bolts from opposite side. Control Label Do not tighten completely so Vent Covers will slide freely from right to left.
  • Page 5 Step 5 FIG. 5 Bowl / Leg Assembly Place Hood and Bowl Assembly on a protective pad or the carton cut out flat on the floor. (FIG. 5) Lay Hood and Bowl Assembly on its back side with Hood resting toward the floor. Align the leg holes with holes in bottom of bowl and install six 10-24 x 1 1/4”...

  • Page 6: Using Charcoal

    USING CHARCOAL To reduce the risk of serious injury or death from explosion or fire: • Be careful when burning charcoal to avoid getting burned from flame, heat or hot coals. • Be aware of the wind blown sparks. • The use of alcohol, prescription or non-prescription drugs could impair the consumer’s ability to properly assemble or safely operate this appliance.
  • Page 7 STARTING A CHARCOAL FIRE IN YOUR OneFire SWINGER GRILL STEP 1. Use a high quality hardwood charcoal to make sure you get a good fire. Charcoal briquettes made from maple, oak, birch or elm woods will burn clean with very little smoke and without unpleasant odors.
