- Page 1 DIALOG 20 Wireless Microphone System Antenna Installation Guide www.ClearOne.com...

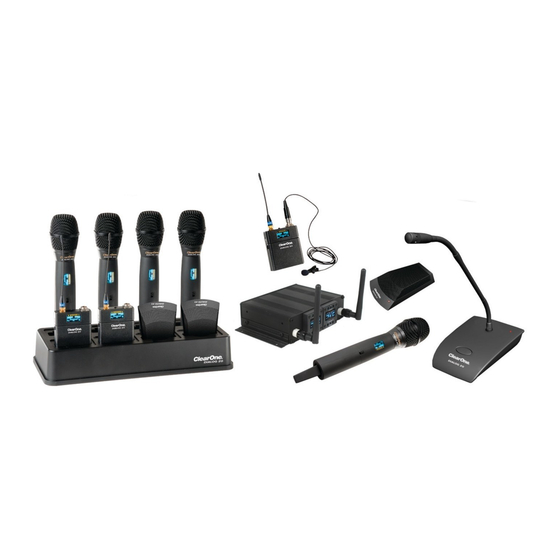

- Page 2 _____________________________ ClearOne DIALOG ® The ClearOne DIALOG Wireless Microphone System is a compact, feature- rich and complete 2 Channel Wireless Microphone System built on the 2.4 GHz RF band and utilizing spread spectrum, frequency hopping technologies to deliver a simple to use, robust and secure wireless microphone system. The system consists of a Receiver with two, built-in, passive antennas.
- Page 3 Antenna Cable Kits: DIALOG 20 Antenna Cable Kits are available in two lengths. The DIALOG 20 Antenna Cable kit can be used to extend the passive, dipole antennas that are included with the DIALOG 20 Receiver. Choose either a 10’ (ft) or 25’ (ft) Antenna Cable Kit.
- Page 4 _____________________________ ClearOne DIALOG ® Confirm the Box Contains the Following: #8-15 X 1-3/4" TNC Panel Mount Phillips Drive Wood Screw Antenna Extension Connector Bracket QTY 4 QTY 2 QTY 2 Hollow Wall Anchor 5/8-3/4" Grip Range QTY 4 10FT OR 25FT EXTENSION CABLE QTY 2 THIS SIDE UP...
- Page 5 _____________________________ ClearOne DIALOG ® Hollow Wall Antenna Installation: Determine required mounting location. Fig. 2 Using the antenna extension brackets or Wall the templates , mark the two (2) Anchor (fig. 1; Pg. 2) mounting hole locations. Drill two 5/16” (8mm) pilot holes (Fig 2) Fig.
- Page 6 _____________________________ ClearOne DIALOG ® Wood Stud Antenna Installation: Determine required mounting location. Using the antenna extension bracket or the template , mark two (fig. 1; pg. 2) (2) mounting hole locations. Drill two 7/64” (2.5mm) pilot holes to a depth of 1-3/4” (45mm). Secure the antenna extension bracket (A) to the structure using two (2) wood screws (B) (Fig.
- Page 7 _____________________________ ClearOne DIALOG ® Mounting Antennas to Wall, Ceiling or AV Rack: Mount antenna over-head and within line of site to transmitters. The dipole antenna’s reception is strongest at the sides of the antenna with a null point at the tip. Therefore, it is best to tilt the antenna so that the side faces the transmitters.
- Page 8 CLearOne LOCatIOns Headquarters: salt Lake City, ut usa eMea aPaC LataM techsales Tel: 44 (0) 1189.036.053 Tel: 852.3590.4526 Tel: 801.974.3621 5225 Wiley Post Way Tel: 800.707.6694 e-mail: global@clearone.com e-mail: global@clearone.com e-mail: global@clearone.com Suite 500 e-mail: techsales@clearone.com Salt Lake City, UT 84116 technical support Tel: 801.975.7200 Tel: 800.283.5936...
