Specification*
General
Power Supply
Current Consumption
Display Block
Display Type
Display Size
Pixel Layout
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 2.5A
7" wide TFT panel
234 × 1440 (dot)
Vertical Stripe
CN-TS6271A
Display Unit
TOYOTA PART No. : 86111-20010
VEHICLE : AVENSIS
DESTINATION : Europe
PRODUCTED AFTER : Nov., 2002
Dimensions**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
179 x 109 x 50 mm
740g
Advertisement
Table of Contents
Summary of Contents for Toyota CN-TS6271A
-
Page 1: Display Unit

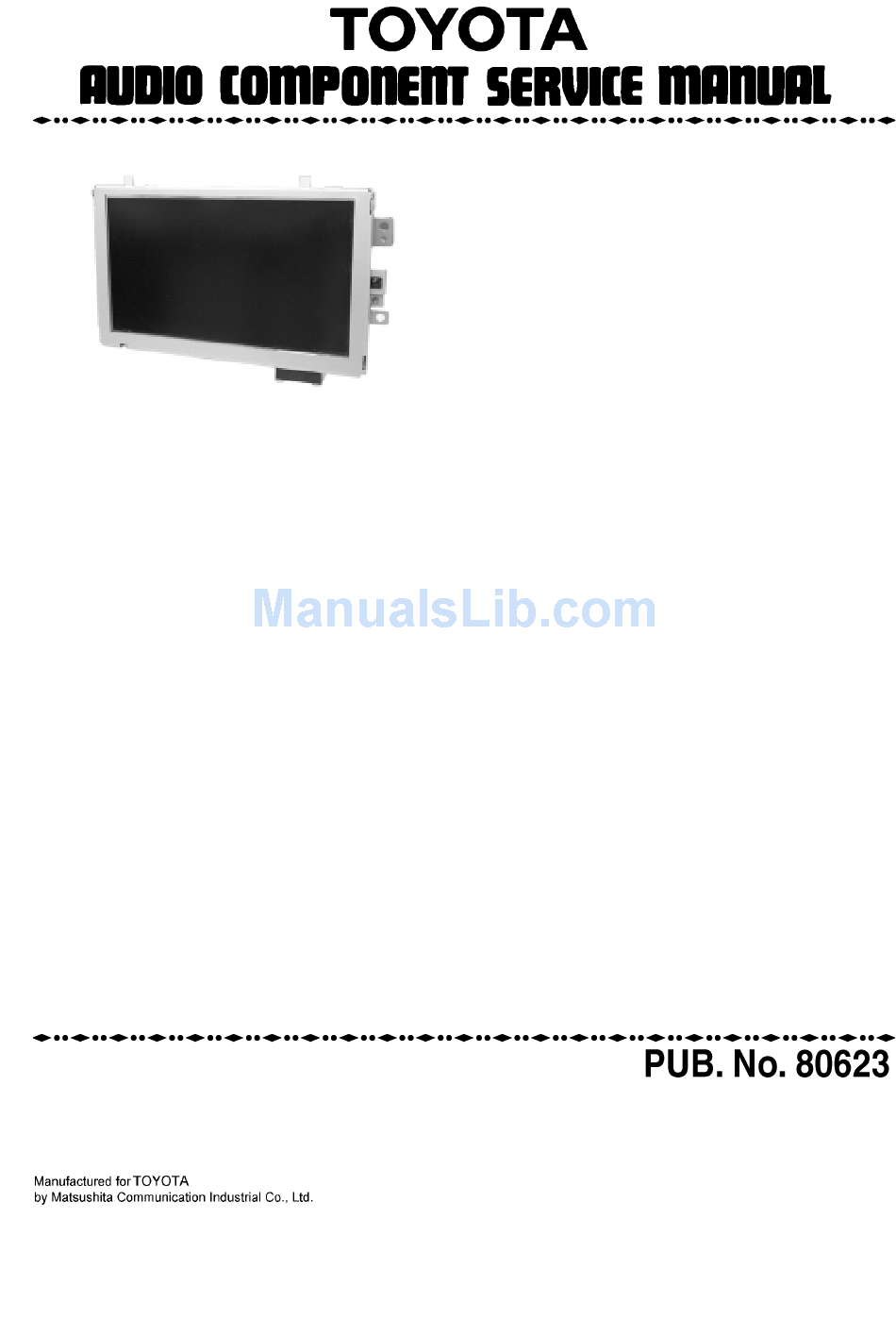

CN-TS6271A Display Unit TOYOTA PART No. : 86111-20010 VEHICLE : AVENSIS DESTINATION : Europe PRODUCTED AFTER : Nov., 2002 Specification* General Power Supply DC 12V (11V - 16V), Test Voltage 13.2V Dimensions** 179 x 109 x 50 mm Negative Ground... -
Page 2: Table Of Contents
8 EXPLODED VIEW (Unit) 4 REAR VIEW AND CONNECTORS 9 WIRING DIAGRAM 5 WIRING CONNECTIONS 10 SCHEMATIC DIAGRAM 1 FEATUERS · Compliance with TOYOTA AVC-LAN. · Low-reflection 7” color TFT LCD. · Compliance with NTCS input . 2 SYSTEM BLOCK DIAGRAM... -
Page 3: Front View
CN-TS6271A 3 FRONT VIEW 4 REAR VIEW AND CONNECTORS... -
Page 4: Wiring Connections
CN-TS6271A 5 WIRING CONNECTIONS... -
Page 5: Ic Block Diagram
CN-TS6271A 6 IC BLOCK DIAGRAM IC51 : YEAMSBX8035F IC103 : C0JBAA000291 IC102 : YEAMTC7W14UL... -
Page 6: Replacement Parts List
CN-TS6271A 7 REPLACEMENT PARTS Ref. Part No. Part Name & Description Remarks Chip, 100Ω Ω Ω Ω 1/16W ERJ3GEYJ101V LIST Chip, 2.2kΩ Ω Ω Ω 1/16W ERJ3GEYJ222V Chip, 1.5kΩ Ω Ω Ω 1/16W ERJ3GEYJ152V Chip, 1kΩ Ω Ω Ω 1/16W... -
Page 7: Exploded View (Unit)
CN-TS6271A 8 EXPLODED VIEW (Unit) -
Page 8: Wiring Diagram
CN-TS6271A 9 WIRING DIAGRAM 9.1. Main / Photo Sensor Block [E-9000a][Top View] [E-9000a][Bottom View] [E-9000b][Top View] [E-9000b][Bottom View] CN-TS6271A SUB P.C.B. -
Page 9: Schematic Diagram
CN-TS6271A 10 SCHEMATIC DIAGRAM 10.1. Main / Photo Sensor Block... - Page 10 CN-TS6271A...
