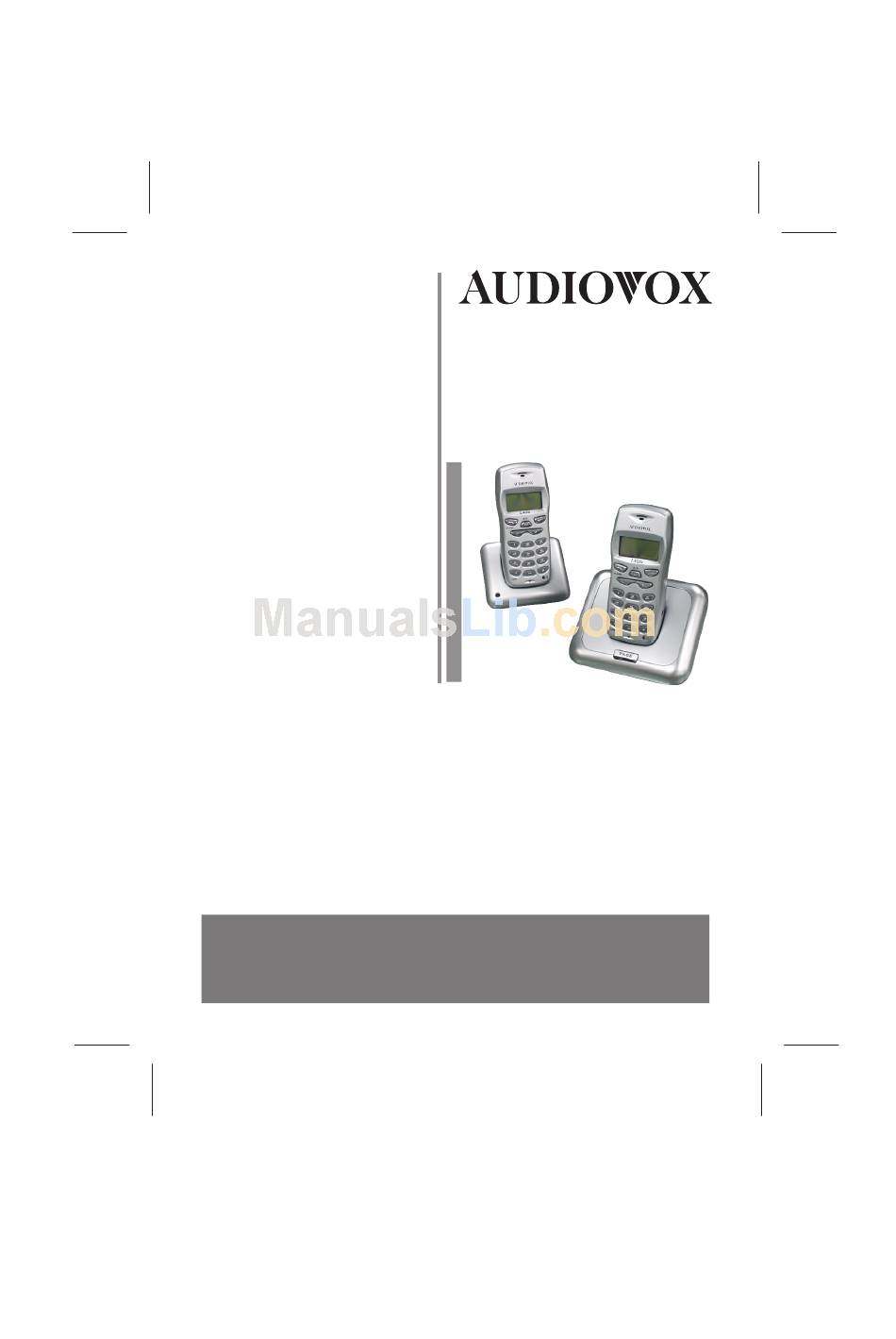

- Page 1 2.4GHz Digital Spread Spectrum Dual Handset Cordless Phone Téléphone numérique sans fil 2.4GHz à identification de l'appelant et haut-parleur Teléfono inalámbrico con dos auriculares y espectro digital de 2.4GHz OWNER'S MANUAL MANUEL D'UTILISATION MANUAL DEL USUARIO...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ... 2-3 BATTERY CAUTIONARY INSTRUCTIONS ... 3 IMPORTANT ELECTRICAL CONSIDERATIONS ... 4 - 6 • Telephone line problems • FCC Part 15 regulation • Customer information • Applicable for coin or pay phone only INTRODUCTION ... 7 INSTALLATION ... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please take a few moments to read the following instructions for your safety and to ensure that you get the maximum benefit from your product. When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following : Read and understand all instructions. -
Page 4: Battery Cautionary Instructions
IMPORTANT SAFETY INSTRUCTIONS d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the product to normal operation. -
Page 5: Important Electrical Considerations
IMPORTANT ELECTRICAL CONSIDERATIONS Unplug all electrical appliances when you know an electrical storm is approaching. Lighting an pass through your household wiring and damage any device connected to it. This telephone is no exception. Warning : Please do not attempt to unplug any appliance during an electrical storm. Caution : Changes or modifications to this product not expressly approved,or operation of this product in any way other than as detailed by this Operating Guide,... -
Page 6: Applicable For Coin Or Pay Phone Only
[equipment ID] does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. Should you experience trouble with this equipment, please contact (Audiovox Electronics Corporation, 150 Marcus Blvd. Hauppauge, New York 11788. Phone: 1-800-252-6123) for repair or warranty infor- mation. -
Page 7: Important Electrical Considerations
IMPORTANT ELECTRICAL CONSIDERATIONS “This product meets the applicable Industry Canada technical specifications.” Before installing this equipment, users should ensure that it is permissible to be con- nected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company’s inside wiring associated with a single line individual service may be ex- tended by means of a certified connector assembly (telephone extension cord). -
Page 8: Introduction
INTRODUCTION TELEPHONE FEATURES • Operating in 2400 MHz ~ 2483 MHz.(ISM band) with 45 Channels • Digital Spread Spectrum Technology (Frequency Hopping) • Up to 4 Handsets operate in one base. • Caller ID with call waiting function (Type II). •... -
Page 9: Installation
INSTALLATION LINE CORD CONNECTION : Plug the telephone line cord into the modular jack on the back of the telephone base and the other end into the modular jack of your telephone wall outlet. AC POWER CONNECTION : Use only the AC/DC adaptor provided with the telephone. First insert the DC adaptor plug into the DC adaptor socket provided on the telephone base. -
Page 10: Installation
INSTALLATION Install base unit & additional handset in a location where: - Away from electrical appliances, such as computer, TV, microwave ovens, wireless equipment or another cordless phone. - In a HIGH and CENTRAL location with no obstructions & barriers, - For maximum reception &... -
Page 11: Location Of Controls
LOCATION OF CONTROLS HANDSET SECTION 1) RECEIVER 2) DISPLAY 3) OFF HOOK / YES / FLASH KEY 4) INT / REDIAL / PAUSE KEY 5) ON HOOK / NO KEY 6) SCROLL KEYS 5/6 7) DIAL KEYS / ID#’s 8) SPEAKER KEY 9) MICROPHONE 10) STRAP HOLDER 11) SPEAKER... -
Page 12: Using The Menu System
USING THE MENU SYSTEM The user interface has been designed with simplicity of operation in mind. Functions that are not available from the keyboard directly are found within a shallow menu structure. The menu is available from the default screen simply by pressing either of the 5/6(6) arrow keys. -
Page 13: Telephone Operation
TELEPHONE OPERATION ANSWERING AN INCOMING CALL Internal call When the internal call comes ,the display shows the identity (ID) number of the calling handset. The user answers the call by pressing YES (3) and ends the call by pressing NO (5). Pressing NO (5) during ringing rejects the incoming call and both calling and called handsets return to standby state. - Page 14 TELEPHONE OPERATION Last Number Redial In the on hook mode, press the REDIAL (INT/PAUSE) (4) button to show the last dialing number on display. The user can select up to last ten external numbers by pressing the 5/6(6) buttons. These are stored in chronological order, with the most recent being displayed first. Then press the YES (3) button to dial the selected number.
-
Page 15: Memory Operation
MEMORY OPERATION This describes how memory is managed - how numbers are added, removed and edited. All of these memory functions use the menu system. ADDING A NEW ENTRY TO MEMORY • Enter the Phonebook mode by pressing scroll keys 5/6(6), then press YES (3). •... -
Page 16: Memory Entry
MEMORY OPERATION DELETING A MEMORY ENTRY Memory deletion is considerably simpler than adding new memory entries. • Enter Phonebook mode by pressing scroll keys 5/6(6) and YES (3). • Then select “DELETE” by pressing scroll keys 5/6(6) and YES (3). •... -
Page 17: Caller Id Operation
CALLER ID OPERATION These calls can also be dialed out and stored into the phone book. Remark: To use the caller-ID operation, you have to subscribe the caller-ID service from your operator. DIAL FROM CALL RECORD • Press scroll keys 5/6(6) to select “CLI RECORD”, then YES (3) to confirm. •... - Page 18 CALLER ID OPERATION DELETE ALL CALL RECORDS • Press scroll keys 5/6(6) to select “CLI RECORD”, then YES (3) to confirm. • Press scroll keys 5/6(6) to select “DELETE ALL”, then YES (3). • Display will show “SURE?” to confirm the deletion. •...
-
Page 19: Telephone Settings
TELEPHONE SETTINGS RINGER VOLUME Ringer volume is set by following procedure. • Press scroll keys 5/6(6) to select “RINGER” and press YES (3) to confirm. • Press scroll keys 5/6(6) to select “VOLUME” and press YES (3) to confirm. • Press scroll keys 5/6(6) to select Volume level (RING * to RING ******) •... - Page 20 TELEPHONE SETTINGS KEYPAD There are two user options for the keypad, The keypad can be locked to prevent unintended operation • Press scroll keys 5/6(6) to select “KEYPAD” and press YES (3) to confirm. • Press scroll keys 5/6(6) to select “KEY LOCK” and press YES (3) to lock the key pad. Once locked, all key presses cause the message ‘UNLOCK?’...
- Page 21 TELEPHONE SETTINGS Note that if Caller ID service is activated, this service will reset the time at every incoming call. FORMAT SETTING (12 HOUR) • Press scroll keys 5/6(6) to select “CLOCK” and press YES (3) to confirm. • Press scroll keys 5/6(6) to select “SET FORMAT” and press YES (3) to confirm. •...
-
Page 22: Walkie-Talkie Function
WALKIE-TALKIE FUNCTION Handset could be set to walkie-talkie mode. In walkie-talkie mode, handset could communicate with other handset even the base is unavailable. ENABLE WALKIE-TALKIE MODE - By manual • Press scroll keys 6/5(6) to select “W-TALKIE” and press YES (3) to confirm. •... -
Page 23: Walkie-Talkie Function
WALKIE-TALKIE FUNCTION ANSWER WALKIE-TALKIE CALL. • Press YES (3) to answer the call. Both handsets have to be set to walkie-talkie mode before talking walkie-talkie call. In walkie-talkie mode, handset could not make & response phone/intercom call. Note : Please check battery level in handsets before taking them away for Walkie Talkie function. -
Page 24: Other Function
OTHER FUNCTION DIALING MODE The dialing mode (DTMF/ Pulse) in base is decided by handsets independently. • Press scroll keys 5/6(6) to select “ADVANCED”, then press YES (3) to confirm. • Press scroll keys 5/6(6) again to select “DIAL MODE”, then press YES (3) to confirm. •... -
Page 25: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE In the event of your telephone NOT working or difficulty in opening, the following suggestion can be help you of solving the problem. Symptom Base unit doesn't work (Power "LED" does not light) Base LED doesn’t light up for battery charging Handset does NOT work at No dial tone... - Page 26 90 DAY LIMITED WARRANTY AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for parts and repair labor.
