SYP OR-HD62CD-4K22 Operation Manual

6 x 2 hdmi 4k uhd matrix with hdcp 2.2
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OR-HD62CD-4K22
CDPS-UA6H2HFS
6 x 2 HDMI 4K UHD Matrix with HDCP 2.2
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-HD62CD-4K22 and is the answer not in the manual?

Questions and answers

Summary of Contents for SYP OR-HD62CD-4K22

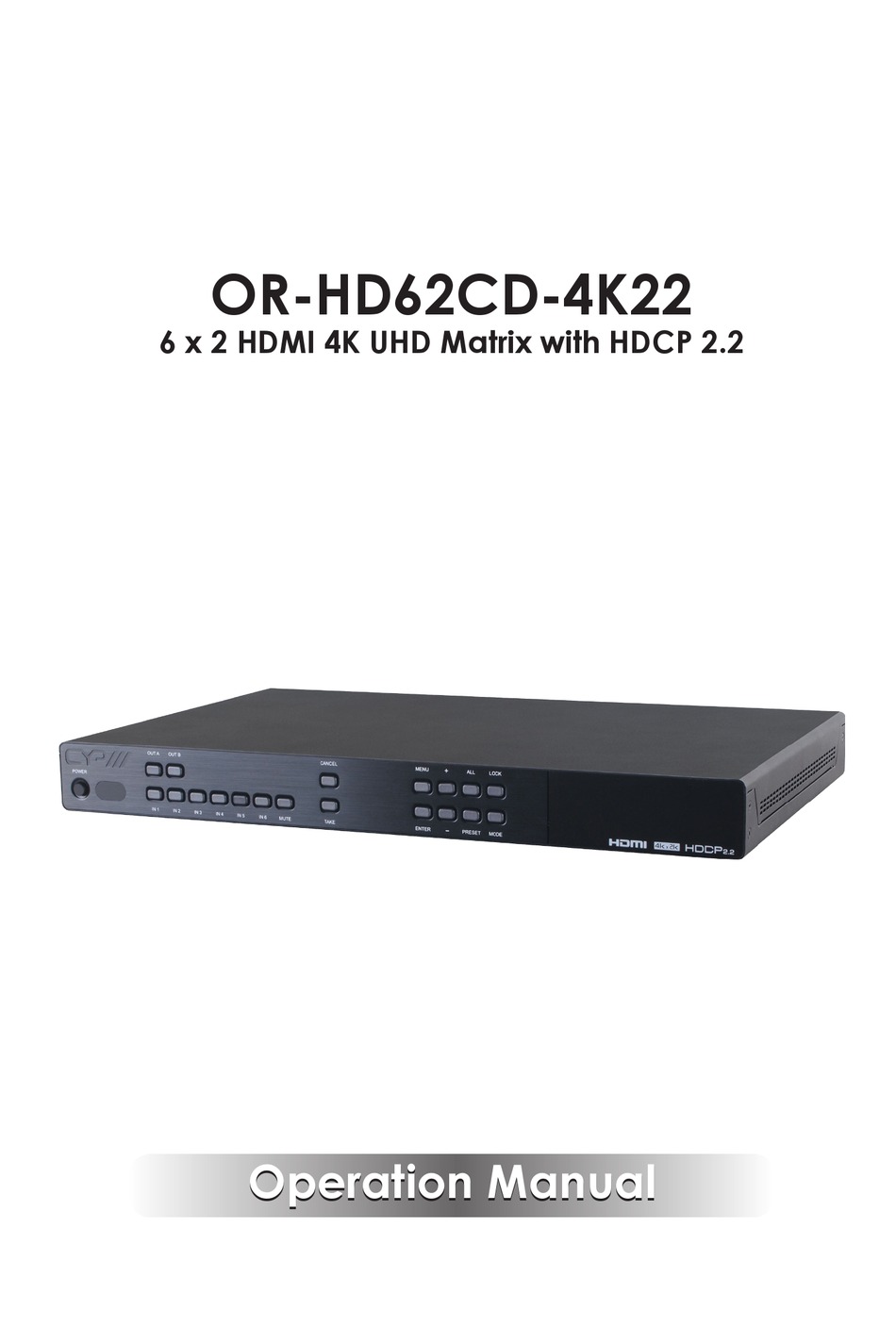

  • Page 1 OR-HD62CD-4K22 CDPS-UA6H2HFS 6 x 2 HDMI 4K UHD Matrix with HDCP 2.2 Operation Manual Operation Manual...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 IR Pin Defi nitions ........6 6.5 OSD Menu .........6 6.6 RS-232 Protocols ......12...

  • Page 5: Introduction

    1. INTRODUCTION The 6 by 2 HDMI 4K UHD Matrix with HDCP 2.2 and Fast Switch which allows HDMI signal from any of its 6 sources to be routed to and displayed on any of its 2 connected HDMI displays simultaneously with View All Mode and Picture-in-picture (PIP) supported.

  • Page 6: Features

    5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP 2.2 and DVI compliant • Supports 6 HDMI inputs and 2 HDMI outputs • Displays any of 6 High-Defi nition sources on 2 HDTV displays simultaneously with fast switch • When in Preview mode, the system will be treated as Switcher (2 HDMI output same images at the same time) •...

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 11 13 11 13 OUT A OUT A OUT B OUT B CANCEL CANCEL MENU MENU LOCK LOCK POWER POWER IN 1 IN 1 IN 2 IN 2 IN 3 IN 3 IN 4 IN 4 IN 5...

  • Page 8: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT S/PDIF OUT SERVICE CONTROL RS232 IR IN DC 5V HDMI IN: Connect from source equipment such as Blu-ray / DVD / PS3 player, Set-Top Box or any HDMI equipped source device for input signal sending. HDMI OUT: Connect to HDMI TV / display or HD amplifi er for output image and audio or audio display.

  • Page 9: Remote Control

    6.3 Remote Control POWER: Press Power key to turn on the device or set to standby mode. OUT A~B: Press these OUT buttons OUT A IN 1 once then to select an input source OUT B TAKE IN 2 for an output display. MODE CANCEL IN 3...

  • Page 10: Ir Pin Defi Nitions

    LOCK: Press to lock all button functions, press and hold 5 seconds to rescission lock mode. MUTE: Press to mute audio source. 6.4 IR Pin Defi nitions IR Receiver IR Signal Power Grounding 6.5 OSD Menu Main Menu Sub Menu Description Default EDID Mode...
  • Page 11 Main Menu Sub Menu Description Default 8/2D/PCM/ Standard EDID. Content: deep AC3/720P color/2D3D/audio/na- tive resolution. 8/2D/ Standard EDID. Content: deep PCM/1080P color/2D3D/audio/na- tive resolution. 8/2D/PCM/ Standard EDID. AC3/1080P Content: deep color/2D3D/audio/ native resolution. 8/2D/ Standard EDID. PCM/4K2K Content: deep color/2D3D/audio/ native resolution.
  • Page 12 Main Menu Sub Menu Description Default EDID IN3 Same as EDID Select Input 3 EDID. Same as All. EDID All. EDID IN4 Same as EDID Select Input 4 EDID. Same as All. EDID All. EDID IN5 Same as EDID Select Input 5 EDID. Same as All.
  • Page 13 Main Menu Sub Menu Description Default Preview View All 1 Main video source View All Mode and 5 Sub video sources. 1 Main video source and 1 Sub video source. Exit Preview View Preview 5 Sub screens Top Left Position position.
  • Page 14 Main Menu Sub Menu Description Default 5~20 Preview with OSD info show 5~20 Seconds then disappear OSD Always Preview with OSD always on Exit Network IP Mode DHCP, Static DHCP Setup Setup Static IP. Mask Setup Static Mask. Gate Setup Static Gateway Do Re-Link Re-Link After Setup Network, the System...
  • Page 15 Main Menu Sub Menu Description Default IN5 On/Off IN6 On/Off Detect IN5, IN6 source with/without signal. Exit Sink A Info Type, Manuf. Detect and analysis Output A display’s EDID. Content: Type(HDMI/ DIV/VGA), Manufactory/Model number. Native Content: Native resolution. Video Format Content: deep color, 2D/3D, 4K2K.

  • Page 16: Rs-232 Protocols

    6.6 RS-232 Protocols Matrix Remote Control Defi nition Defi nition ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.7 Telnet and RS-232 Commands Command Description Description of parameter Name Power Off (Standby) NONE Power On NONE...
  • Page 17 Command Description Description of parameter Name HTTPPORT N1 Set Http Port Number N1=0~65535 TELNETPORT Set Telnet port N1=0~65535 number RSTIP IP Confi guration Set NONE To <DHCP> A N1 Set Output A Source N1=1~6 to input N1 B N1 Set Output BSource N1=1~6 to input N1 I N1...
  • Page 18 Command Description Description of parameter Name EDIDIN N1 N2 Set Input N1 EDID N1=1~6 Source N2=0(Sink A), 1(Sink B), 2(8/2D/PCM/720p), 3(8/2D/ PCM/AC3/720p), 4(8/2D/ PCM/1080p), 5(8/2D/ PCM/AC3/1080p), 6(8/2D/ PCM/4K2K), 7(8/2D/PCM/ AC3/4K2K), 8(8/2D/PCM/ Y420), 9(8/2D/PCM/AC3/ Y420) HDCPIN Show All Input HDCP NONE Status HDCPIN N1 Show Input N1 HDCP...
  • Page 19 Command Description Description of parameter Name PVPOS N1 Set preview mode to In view all mode: N1=0(Top), 1(Right), 2(Bottom), 3(Left) In PIP mode: N1=0(Top), 1(Top right), 2(Bottom Right), 3(Bottom Left) PVSRC Show preview mode None source select PVSRC N1 In VIEWALL mode: In VIEWALL mode: Set Main Screen N1=1~6...
  • Page 20 Command Description Description of parameter Name SINKINFO N1 Show Output N1 N1=A~B Information Information: TYPE, Manuf. Name, Native Resolution, Color Depth, 3D, 4K2K, Audio Format INNAME Show all Input name NONE INNAME N1 Show Input N1 name N1=1~6 INNAME N1 N2 Set Input N1 Name N1=1~6 N2=ABCDEFGH(Max Length=8)

  • Page 21: Telnet Control

    6.8 Telnet Control To access the telnet control in Windows 7, click on ‘Start’ menu and type “cmd” in the Search fi eld then press enter. Under Windows XP go to the ‘Start’ menu and click on “Run”, type “cmd” and press enter. Under Mac OS X, go to Go→Application→Utilities→Terminal Once in the command line interface (CLI) type “telnet”, then the IP address of the unit and port "23"...
  • Page 22 Type HELP or ? to bring out all the commands.

  • Page 23: Web Gui Control

    6.9 Web GUI Control On a PC/Laptop which is connected to an active network system, open a web browser and type device’s IP address (available from LCM monitor or OSD menu) on the web address entry bar. The browser will display the device’s Status, IO Status, Matrix Control, and Network Confi guration pages for users to control.
  • Page 24 Click on Settings to set each input’s HDCP control and preset confi guration. Click on Network Confi guration to set the device’s IP confi guration. Once the changes are saved the system will reset the IP address on the device automatically and user will need to re-enter the IP address to continue the Web GUI function.

  • Page 26: Connection Diagram

    7. CONNECTION DIAGRAM Satellite Receiver Media Streamer DVD Player Blu-ray Player Set-top Box Games Console HDMI Inputs RS-232 Equipped PC/Laptop Internet Connected RS-232 Router Power HDMI IN HDMI OUT S/PDIF OUT SERVICE CONTROL RS232 IR IN DC 5V Supply IR Extender 60°...

  • Page 27: Specifi Cations

    8. SPECIFICATIONS Video Bandwidth 300MHz/9Gbps Input Ports 6 x HDMI 1 x USB(Service) 1 x RS232 1 x RJ45(Control) 1 x IR Output Ports 2 x HDMI 2 x Optical(S/PDIF) Supported Resolutions 480i~1080p@50/60 4K2K@24/25/30 4K2K@50/60(YUV 420) VGA~WUXGA(RB) IR Frequency 30~50kHz Baud Rate Up to 115200 bps Power Supply...
  • Page 28 DVI and HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50...
  • Page 29 DVI and HDMI Supported Resolutions Input Output 1920x1080p@60 1920x1200@60(RB) 3840x2160@30 4096x2160@24...
