Alcatel-Lucent vitalqip 5000 Quick Start Manual

VitalQIP
TM
QIP 5000 Appliance
Thank you for selecting Alcatel-Lucent VitalQIP
5000
up the QIP appliance and quickly connect it to the network. Refer to the table below to ensure
TM
that all items are included in the box.
Item
QIP
Quick Start Guide
Power cables
Slide Rail Kit
Mounting Bracket Package and Guide
Wiring Guide (DC Units Only)

Prerequisites

1. If this is your first appliance, become familiar with the QIP Appliance Overview (see Note below
for how to access). The guide provides an overview of the VitalQIP appliances and describes how to
configure the three types of appliances: AMS (Appliance Management Software), ESM (Enterprise
Server Module) and AMM (Appliance Management Module).
Note: A full set of VitalQIP Appliance documentation is available on the Alcatel-Lucent
download site (http://support.alcatel-lucent.com). You can download the documents by logging
in to the portal using your registered User Name and Password. The appliance-related
documents are contained in the VitalQIP Appliance Manager area. If you have any questions,
please contact Technical Support (listed at the end of this guide).
2. You need to have an appliance on your network configured as an AMS. The steps below describe
how to configure this appliance as an AMS.
3. If you want to make this appliance an ESM or AMM, your AMS administrator needs to create a
record for this appliance in the AMS and provide the appliance setup information in print or
electronic format. Setup of an appliance in the AMS is described in "View appliance setup
information" in Chapter 2 of the AMS User's Guide.

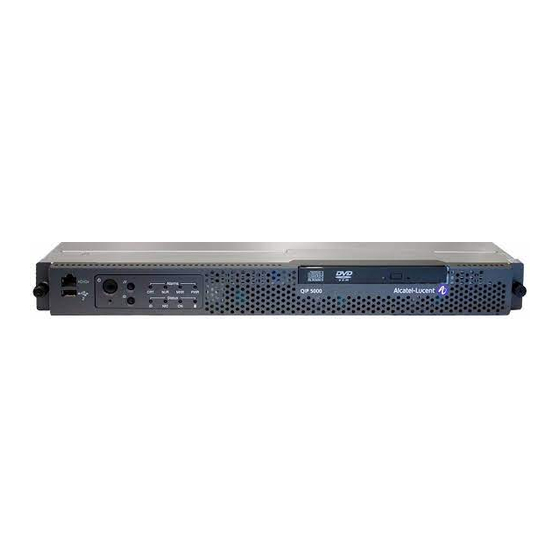

Figure 1. QIP 5000 front view
®
®
Appliances. This guide is intended to help you to set
5000
Appliance
Quantity
1
1
2
1
1
1
