Summary of Contents for LCG LCG-WF-5C

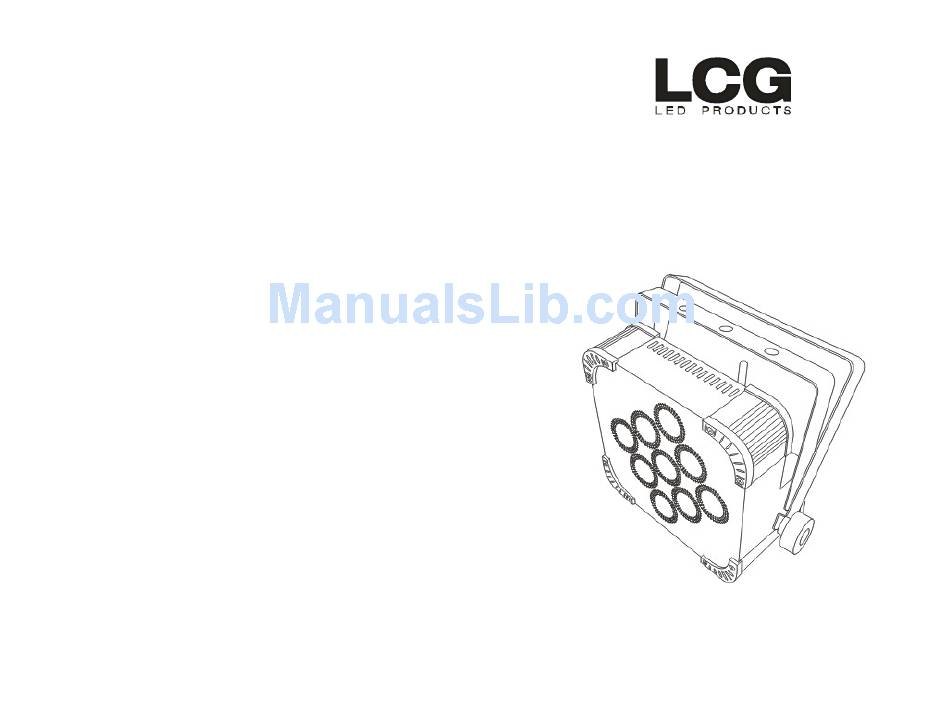

- Page 1 LCG-WF-5C 5 in 1 battery power & wireless DMX USER MANUAL Please read over this manual before operating the light...
- Page 2 1-255 Auto Run www.lc-group.ca LCG-WF-5C 5 IN 1 BATTERY & WIRELESS FLAT LCG-WF-5C 5 IN 1 BATTERY & WIRELESS FLAT www.lc-group.ca www.lc-group.ca 5CH Mode LED Operation Menu: VALUE FUNCTION No Function Touch Buttons Red Dimmer There are four touch buttons under the LED Alpha-numerical display: 1-255 Menu, Down, Up, Enter.
- Page 3 Do not return this unit to your dealer without first contacting. Introduction: The LCG-WF-5C is a DMX intelligent and battery powered LED par light. This par light is light weight and compact which makes it a great piece for mobile DJ s and clubs.
- Page 4 (including amplifiers) that produce heat. ● The fixture should be serviced by qualified service personnel when: LCG-WF-5C 5 IN 1 BATTERY & WIRELESS FLAT A. The power-supply cord or the plug has been damaged. B. Objects have fallen, or liquid has been spilled into the appliance.
- Page 5 1. Antenna 2. Power switch for wireless dmx 3. Power switch for battery power 4. Wireless dmx code 5. Wireless dmx code indicate 6.Battery power indicator （same color as transmitter） LCG-WF-5C 5 IN 1 BATTERY & WIRELESS FLAT LCG-WF-5C 5 IN 1 BATTERY & WIRELESS FLAT www.lc-group.ca www.lc-group.ca For Battery Function and Charge ●...
- Page 6 1. This function will allow you to control each individual fixtures traits with a standard DMX 512 controller. 2. The LCG-WF-5C use 5/9 DMX channels to operate. Please see “DMX channel and Functions” for the DMX traits. 3. To run your fixture in DMX mode, plug in the fixture via the XLR connections to any standard DMX controller.
