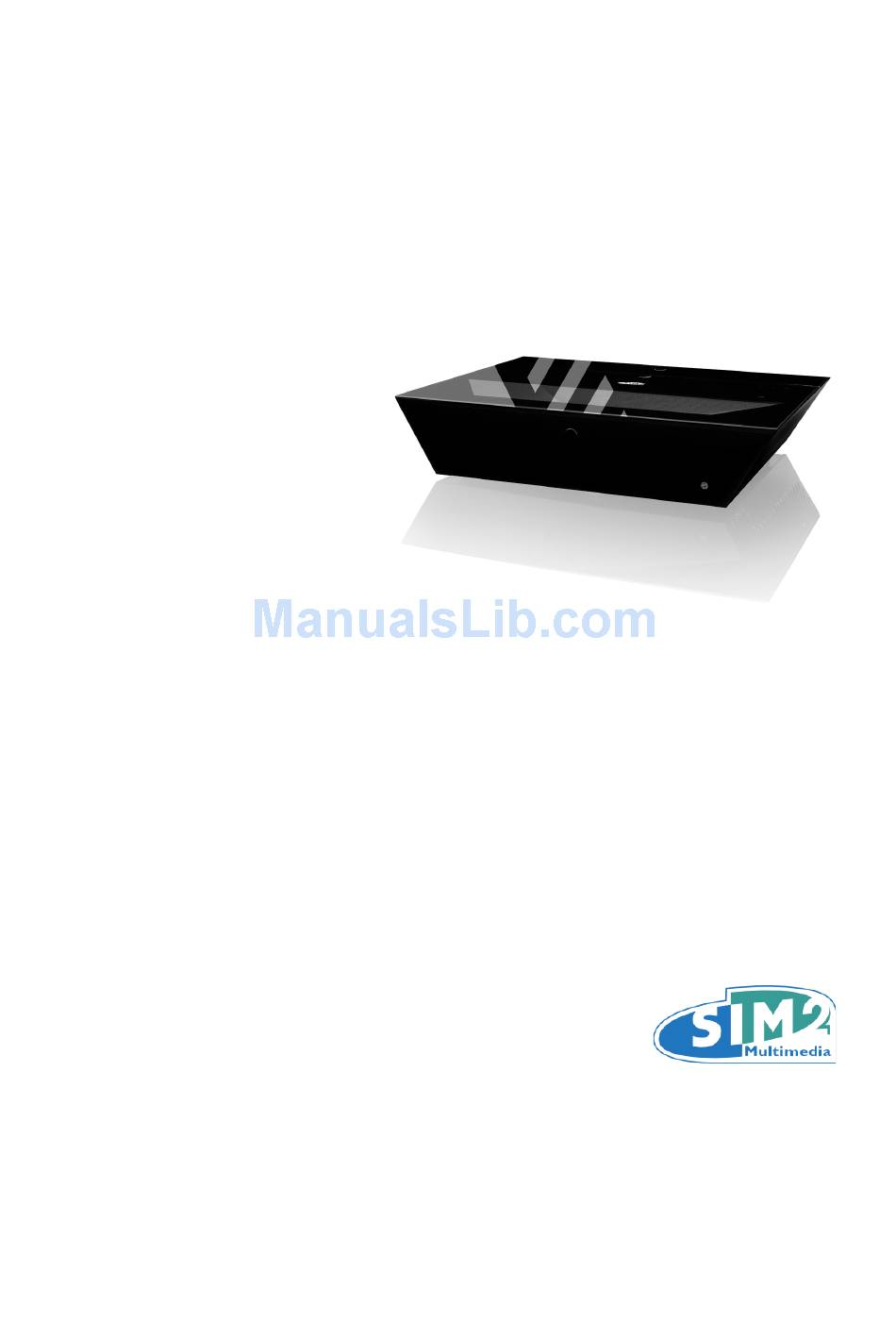

Page 1 SIM2xTV User Guide (EN/4.2)
Page 3: Table Of Contents
Contents Important Information About this User Guide Safety 3D Content Usage Notice Introduction Packaging Overview Product Overview Input/output connections Remote Control Installation Installing SIM2xTV Connections Connect to computer/notebook Connect to video sources Powering On/Off the projector Adjusting the projected image User Control Remote Control OSD Menu Operation Appendices Regulation & Safety Notices Trademarks Specifications SIM2 xTV User Guide...
Page 4: About This User Guide
1 Important information About this User Guide This User Guide describes how to set up and operate the following projectors: SIM2xTV (freestanding version) • Except where otherwise indicated, the information in this guide applies to all the projectors listed above, that will be referred to as “SIM2xTV”. Information contained in this User Guide may be updated from time to time due to product improvements and customer feedback. Visit www.sim2.com to find the latest version of this document. This document contains proprietary information protected by copyright. All rights are reserved.
Page 5 Power supply cord or plug has been damaged. • Liquid has been spilled on to the projector. • Projector has been exposed to rain or moisture. • Something has fallen in the projector or something is loose inside. • Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. 12. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock. 13. See projector enclosure for safety related markings. 14. The unit should only be repaired by appropriate service personnel. Adequate instructions for assembly, operation and maintenance, including clear warnings concerning precautions to avoid possible exposure to laser and collateral radiation in excess of the accessible emission limits in Class 2. SIM2 xTV User Guide...
Page 6: D Content
WARNING - Do not look into the projector’s lens when the LED is on. The bright light may hurt your eyes. WARNING - To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture. WARNING - Please do not open or disassemble the projector as this may cause electric shock. Turn off and unplug the power plug from the AC outlet before cleaning the product. • Use a soft dry cloth with mild detergent to clean the display housing. • Disconnect the power plug from AC outlet if the product is not being used for a long • period of time. Use under the following conditions: • 1. Ensure that the ambient room temperature is within 5°C ~ 35°C. 2. Relative humidity is 10% ~ 90% RH, not condensing. • SIM2 xTV User Guide...
Page 7 Do not Block the slots and openings on the unit provided for ventilation. • Use abrasive cleaners, waxes or solvents to clean the unit. • Use under the following conditions: • - In areas susceptible to excessive dust and dirt. - Near any appliance generating a strong magnetic field. - In direct sunlight. SIM2 xTV User Guide...
Page 8: Introduction
Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact the nearest customer service center. Note: Due to different applications in each country, some regions may have different accessories. Projector Power cord HDMI Detergent User Manual Microfiber cleaning cloth Documentation Remote Control Cleaning Kit SIM2 xTV User Guide...
Page 9: Product Overview
Product Overview Control Panel Focus Ring Ventilation (inlet) Infrared receiver Ventilation (outlet) Power Socket Lens SIM2 xTV User Guide...
Page 10: Input/Output Connections
Input/output connections USB Video In HDMI 1 input connector HDMI 2 input connector HDMI 3 input connector Power Socket Audio input connector (3.5 mm Mini Jack) Audio Output connector (3.5 mm Mini Jack) RS 232 connector (9 pin DIN type) 10. Service connector 11. Digital audio output SIM2 xTV User Guide...
Page 11: Remote Control
Remote Control Power Off Power On Brightness Contrast CMS Volume Mute Picture Light Motion Adj. 3D Mode Left / Volume - Right / Volume + Down OK/Select Menu Back Home Page HDMI1 HDMI2 HDMI3 Video Signal Source SIM2 xTV User Guide...
Page 12 Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to local regulations. Make sure you do not mix old and new batteries or different types of batteries. Remove the battery compartment cover by sliding the cover in the direction of the arrow. Insert the batteries paying attention to the positive pole. Reinsert the compartment cover by sliding the cover in the direction of the arrow. Warning: If you will not use the remote control for a long time, remove the batteries to avoid battery leakage. When you dispose of the battery, you must obey the law in the relative area or country. SIM2 xTV User Guide...
Page 13: Installation
3 Installation This section provides instructions for the installation of the SIM2xTV display. Important: Installation procedures should be performed by a qualified AV system specialist. Location When installing the SIM2xTV display, take the following considerations into account. Installation Type Select the installation type that best suits your needs: front or rear projection • floor or ceiling mount • Cooling Make sure that the planned location for the projector has adequate ventilation. Check that room temperature is below 35° C and that the projector is away from heating vents. Ensure a minimum 0.10 m (3.9 in.) clearance on the left and right sides of the projector. Power Outlets Verify that the powers outlets are grounded and preferably shielded from power surges and fluctuations. A UPS is optional. SIM2xTV power supply operates on any nominal line...
Page 14: Installing Sim2Xtv
Place the projector on a secure and flat surface (such as a table or a shelf). Adjust the three elevator feet at the bottom of the projector until the projector is level on all sides. Rotate the adjustable feet clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed. Ceiling Mounting Invert the projector and suspend it from the ceiling using a specific bracket. To fit the bracket unscrew and remove the 3 elevator feet • Attach bracket by using 3 x M6 screws not exceeding 15 mm in thread length • For ceiling mounting use only SIM2-approved ceiling brackets and adhere to the installation instructions and safety guidelines provided with the bracket. Do not over-tighten the screws. Orientation By default, the SIM2xTV is configured for a Front installation (projector installed upright and in front of the screen). If the projector is installed behind the screen or inverted, you can use the image orientation function of the projector. Installing SIM2xTV The installation distance between the SIM2xTV and the projection surface varies depending on the projection size. Install the SIM2xTV so that it fits the desired projection size. For details on the distance between the SIM2xTV and the projection surface and the...
Page 15 SIM2 xTV User Guide...
Page 16 Display an image on the projection surface and adjust the picture so that it fits the surface. Notes: 1. The projection picture may be distorted if the projection surface is not flat. 2. When using a projection surface with an uneven surface (i.e. wall), stripes may seldom appear on the surface depending on the distance between the projection surface and the SIM2xTV. This is not a malfunction of the SIM2xTV. SIM2 xTV User Guide...
Page 17: Connections
Connections Proceed as follows to connect the SIM2xTV to video sources, control devices, screen control systems, 3D sync emitter and AC power. When connecting your equipment: turn off all equipment before making any connections • use the correct signal cables for each source • make sure cables are routed so that people are not impeded or become a trip hazard • ensure that the cables are securely connected (tighten the thumbscrews on • connectors that have them). Video Often the sources (Blu-ray Players, Set Top Boxes, Game Consoles and so on) have several outputs. Choose HDMI whenever possible.
Page 18: Connect To Computer/Notebook
Connect to computer/notebook Audio Output Composite video cable HDMI cable Audio cable Audio output cable SPDIF cable Power cord NOTE: Due to the difference in applications for each country, some regions may have different accessories. SIM2 xTV User Guide...
Page 19: Connect To Video Sources
Connect to video sources DVD/Blu ray Player, STB (Set-tp Box), HDTV Receiver Audio Input Audio Output Audio cable Composite video cable HDMI cable Audio input/output cable SPDIF cable Power cord NOTE: Due to the difference in applications for each country, some regions may have different accessories. SIM2 xTV User Guide...
Page 20: Powering On/Off The Projector
“Temp.” LED indicator is lit red, this indicates the projector has overheated. Under • normal conditions, the projector can be switched back on. Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator is still lit, please contact the nearby service center for help. NOTE: Please contact the nearest service center if the projector appears such failure phenomenon. SIM2 xTV User Guide...
Page 21: Adjusting The Projected Image
Adjusting the projected image Adjusting the projector’s height The projector is equipped with elevator feet for adjusting the image height. Find the adjustable foot that you want to apply to fix the height of the projector. Rotate the adjustable ring clockwise to raise the projector or counterclockwise to lower it. Repeat with the remaining feet as needed. Adjusting the focus of the projector To focus on the image, slide the focus ring (placed at the bottom of the projector) to the left or to the right until the image is clear. The focusing range of projector is 15,4 - 29,7 cm (6,06”– 11,69” inches) • SIM2 xTV User Guide...
Page 22 118 46” 20,7 8,14” 18,6 7,32” 100” 221 87” 125 49” 23,6 9,29” 19,7 7,75” 105” 233 91” 131 51” 26,7 10,51” 21 8,26” 110” 243 96” 137 54” 29,7 11,69” 22,2 8,74” Note: - Diagonal: Diagonal length (inch) size of 16:9 screen - Distance: distance from the crystal glass border to the screen - Shift: length from the top crystal cover to the bottom of the screen - The product should be horizontally placed SIM2 xTV User Guide...
Page 23: User Control
Up arrow for Menu 12 Left / Volume - Left arrow for Menu or adjust to decrease the volume. 13 Right / Volume + Left arrow for Menu or adjust to increase the volume. 14 Down Down arrow for Menu 15 OK/Select Confirm the selected items Enable screen display (OSD) menu by pressing “Menu”. Press “Menu” 16 Menu again to exit OSD 17 Back Back to Channel 18 Home Page Back to Home's OSD Page and re-sync the signal 19 HDMI1 Press “HDMI 1” to choose source from HDMI 1 connector 20 HDMI2 Press “HDMI 2” to choose source from HDMI 1 connector 21 HDMI3 Press “HDMI 3” to choose source from HDMI 1 connector 22 Video Press “Video” to choose source from Video connector 23 Signal source Select signal based on the signal source SIM2 xTV User Guide...
Page 24: Osd Menu Operation
OSD Menu Operation 1. Connect to power cord, and press “ ” power key to start, you will see the start-up screen as below: 2. To enter the OSD menu, press “ ” Menu button on the remote control. 3. When displaying OSD, use the button to select an item on the main menu, and press the “ ” button to enter the sub menu. 4. Use the button to select the item required to be adjusted in the sub menu, and press the “ ” button to see more settings. 5. To exit, press the “ ” button. The OSD menu will be closed, and the projector will automatically save the new settings. A. Image Setting Image settings like "Picture Mode", "Pure Motion", "Aspect Ratio", "Image Noise Reduction", "MPEG Noise Reduction”, "Dynamic Light Source", and “Dynamic Luminance” are available. SIM2 xTV User Guide...
Page 25 Image Mode includes seven modes: natural, dynamic, cinema, game, computer, sports, and user. In the user mode, users can adjust settings by themselves, such as screen contrast, brightness, color, sharpness, saturation, light source, Pure Motion and Color temperature. SIM2 xTV User Guide...
Page 26 SIM2 xTV User Guide...
Page 27 B. Audio Setting Settings like “speaker output” and “SPDIF output” are available. C. 3D Setting Settings like “3D auto detection” and “3D format conversion” and “Left and right view switch” are available. SIM2 xTV User Guide...
Page 28 D. System Setting Settings like “Vertical keystone correction”, “Menu display time”, “ Ceiling installation, “High altitude mode” and “Language change” are available. “Light Source Hours” – To display the total operation hours of the projector. “Test Pattern” – The test picture can be used to adjust the screen for the initial installation of the projector. “Reset”- To restore default values. SIM2 xTV User Guide...
Page 29: Appendices
Federal Communications Commission, to operate this projector. Operation conditions This device complies with CCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Notice: Canadian users This Class B digital apparatus complies with Canadian ICES-003. Remarque à l’intention des utilisateurs canadiens Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. Declaration of Conformity for EU countries EMC Directive 2004/108/EC (including amendments). • Low Voltage Directive 2006/95/EC. • R & TTE Directive 1999/5/EC (if product has RF function). • Disposal Instructions Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it. SIM2 xTV User Guide...
Page 30: Trademarks
Trademarks • DLP is trademark or registered trademark of Texas Instruments. • HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • Other product and company names mentioned in this user’s manual may be the trademarks or registered trademarks of their respective holders. SIM2 xTV User Guide...
Page 31: Specifications
6 Specifications Projection Type Digital Light Processing (DLP), 1-chip DLP Type: 0.65 in., 1920 x 1080 Light source: LASER HYBRID (lifetime approx. 20.000 hours) Contrast: Adaptive Brightness: up to 2,900 Ansi lumens (in 2D mode) 3D features: 3D active technology - DLP Link 3D Features (1080p resolution) Audible noise: <28dB (Eco Mode) Picture size: 85" - 110" Projection Lens High-quality glass 0,25:1 Inputs/outputs 3x HDMI (v.1.4a - HDCP 1.3) 1x Composite Video (RCA) 1x RS-232 (D-sub 9 pins) 1x miniUSB (B type - Service) 1x USB (A type - host mode) 1x 3.5mm jack/stereo audio Size and Weight Depth: 383.15 mm (15.08 in. - lens included ) • Width: 537 mm (21.1 in.) • Height: 115 mm (4.5 in. - lever feet included) • Weight: 13.5 kg (29.8 lb.) approx. • SIM2 xTV User Guide...
Page 32 SIM2 xTV User Guide...
Page 33 SIM2 BV International S.r.l. Viale Lino Zanussi, 11 33170 Pordenone – ITALY Phone: + 39 0434 383292 Fax: +39 0434 383260 Email: info@sim2.it www.sim2.com SIM2 USA SIM2 USA Inc. 10216 NW 47th Street Sunrise, FL 33351 Phone: +1 (954) 442 2999 Email: sales@sim2usa.com www.sim2usa.com SIM2 BRIONVEGA Co., Ltd Room 303-304, No. 244 Liaoning Road Shanghai 200080 – CN Phone/Fax: 86 1 62881991 Email: InfoCHINA@sim2.com (EN/4.1) SIM2 xTV User Guide...
