STARVILLE MH-X50+ User Manual

Led spot moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

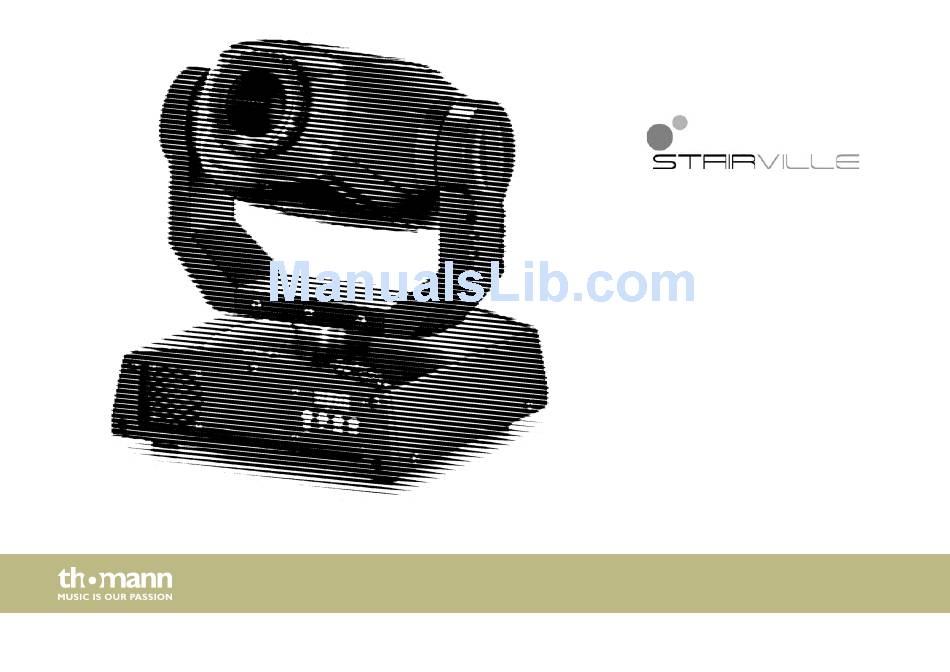

MH-X50+ LED Spot
moving head
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH-X50+ and is the answer not in the manual?

Questions and answers

Related Manuals for STARVILLE MH-X50+

Summary of Contents for STARVILLE MH-X50+

  • Page 1 MH-X50+ LED Spot moving head user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 13.08.2015, ID: 250558 (V2)

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 7 Safety instructions..........................10 Features............................... 16 Installation..............................17 Starting up..............................22 Components and functions........................ 25 Operating ..............................29 7.1 Starting up the device........................
  • Page 4 Table of contents 7.6 Functions in 14 channel DMX mode..................42 Technical specifications........................50 Plug and connection assignments....................51 Troubleshooting............................52 Cleaning............................... 54 Protecting the environment......................55 moving head...

  • Page 5: General Notes

    General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 6: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...
  • Page 8 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 9 General notes Warning signs Type of danger Warning – hot surface. Warning – suspended load. Warning – danger zone. MH-X50+ LED Spot...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as moving-head spotlight. The device is designed for profes‐ sional use and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 11 Safety instructions Sicherheit DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 12 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
  • Page 13 Safety instructions WARNING! Risk of burns The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and after switching off wait for at least 15 minutes. WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country.
  • Page 14 Safety instructions CAUTION! Risk of injury due to movements of the device The head of the device can move quickly (pan, tilt) and can produce very bright light. This is also valid immediately after you turn on the device, when the device operates in automatic mode or under remote control and when you turn off a DMX controller that is connected to the device.
  • Page 15 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. The device must not be moved while it is in use. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches...

  • Page 16: Features

    Features Features The moving head is especially suited for professional lighting tasks, e.g. during events, on rock music stages, in theatre and musical productions or in discotheques. Special features of this device: Control via DMX (8 or 14 channels) and buttons plus display on the unit itself. Built-in automatic show programmes Sound control Master/slave mode...

  • Page 17: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 18 Installation WARNING! Risk of injury by falling off Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. The carrying capacity of the truss or other mounting must be sufficient for the intended number of devices.
  • Page 19 Installation CAUTION! Risk of injury due to movements of the device The head of the device can move quickly (pan, tilt) and can produce very bright light. This is also valid immediately after you turn on the device, when the device operates in automatic mode or under remote control and when you turn off a DMX controller that is connected to the device.
  • Page 20 Installation NOTICE! Possible damage caused by movements of the device Always ensure that enough space is free around the device for the movements of the head (pan, tilt). NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables.
  • Page 21 Installation Mounting options The threads on the bottom side of the housing allow the secure attachment of the included mounting bracket. There, you can fasten adapters such as half couplers, trigger clamps, c- hooks etc. Safety ropes are routed through the notches on the bottom of the housing, as shown in the following figure.

  • Page 22: Starting Up

    Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. moving head...
  • Page 23 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 24 Starting up DMX indicator If the device and the DMX controller are in operation, the DMX indicator shows an incoming DMX signal at the input. Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show.

  • Page 25: Components And Functions

    Components and functions Components and functions Front panel MH-X50+ LED Spot...
  • Page 26 Components and functions 1 Display 2 DMX indicator The LED indicates an incoming DMX signal. 3 ENTER Selects an option of the respective operating mode. 4 DOWN Decreases the displayed value by one. 5 UP Increases the displayed value by one. 6 MODE/ESC Activates the main menu.
  • Page 27 Components and functions Rear panel MH-X50+ LED Spot...
  • Page 28 Components and functions 7 POWER IEC chassis connector with fuse holder 8 INPUT DMX input 9 OUTPUT DMX output moving head...

  • Page 29: Operating

    Operating Operating 7.1 Starting up the device CAUTION! Risk of injury due to movements of the device The head of the device can move quickly (pan, tilt) and can produce very bright light. This is also valid immediately after you turn on the device, when the device operates in automatic mode or under remote control and when you turn off a DMX controller that is connected to the device.

  • Page 30: Main Menu

    Operating 7.2 Main menu Press the [MODE/ESC] button to activate the main menu and to select a menu item. When the desired menu item appears in the display, confirm the selection using the [ENTER] button. The bottom line of the display starts flashing. Use the [UP] and [DOWN] buttons to change the currently displayed value.
  • Page 31 Operating DMX address Repeatedly press the [MODE/ESC] button until the display shows ‘dxxx’ . Now you can set the number of the first DMX channel used by the device (DMX address). Use the [UP] and [DOWN] buttons to select a value between 1 and 512. Make sure that this number matches your DMX controller configuration.
  • Page 32 Operating Operating mode ‘Auto-Show’ Repeatedly press the [MODE / ESC] button until the display shows ‘NASL’ . Using [UP] and [DOWN] you can now select one of the pre-programmed shows. Press the [ENTER] button to start the operation in the selected operating mode. Mode Description NASL...
  • Page 33 Operating Tilt reversal Repeatedly press the [MODE/ESC] button until the display shows ‘tit’ . Using [UP] and [DOWN] you can now choose between ‘rtit’ (reverse inclination direction) and ‘tit’ (normal inclination direction). When the display shows the desired value, press [ENTER]. Display reversal Repeatedly press the [MODE/ESC] button until the display shows ‘diS’...
  • Page 34 Operating Pan range Repeatedly press the [MODE/ESC] button until the display shows ‘PA54’ . Using [UP] and [DOWN] you can now determine the Pan range. Select between ‘PA54’ (Pan range = 540°), ‘PA36’ (Pan range = 360°) and ‘PA18’ (Pan range = 180°). When the display shows the desired value, press [ENTER].

  • Page 35: Menu Overview

    Operating 7.3 Menu overview MH-X50+ LED Spot...

  • Page 36: Gobos

    Operating 7.4 Gobos moving head...

  • Page 37: Functions In 8 Channel Dmx Mode

    Operating 7.5 Functions in 8 channel DMX mode Channel Value Function 0…255 Rotation (pan) (0° to max. value of Pan range: 180°, 270° or 540°) 0…255 Inclination (tilt) (0° to max. value of Tilt range: 90°, 180° or 270°) Colour wheel 0…6 White 7…13...
  • Page 38 Operating Channel Value Function 56…63 Dark blue 64…70 White + yellow 71…77 Yellow + pink 78…84 Pink + green 85…91 Green + peachblow 92…98 Peachblow + blue 99…105 Blue + kelly-green 106…112 Kelly-green + red 113…119 Red + dark blue 120…127 Dark blue + white 128…191...
  • Page 39 Operating Channel Value Function 0…3 Closed (blackout) 4…7 Open 8…215 Strobe effect, increasing speed 216…255 Open Gobo wheel 0…7 Open 8…15 Gobo 2 16…23 Gobo 3 24…31 Gobo 4 32…39 Gobo 5 40…47 Gobo 6 48…55 Gobo 7 56…63 Gobo 8 MH-X50+ LED Spot...
  • Page 40 Operating Channel Value Function 64…71 Gobo 8 shake, increasing speed 72…79 Gobo 7 shake, increasing speed 80…87 Gobo 6 shake, increasing speed 88…95 Gobo 5 shake, increasing speed 96…103 Gobo 4 shake, increasing speed 104…111 Gobo 3 shake, increasing speed 112…119 Gobo 2 shake, increasing speed 120…127...
  • Page 41 Operating Channel Value Function 148…231 Negative direction of rotation, increasing speed 232…255 Gobo bouncing Prism 0…7 Unused 8…247 Rotating prism, increasing speed 248…255 Fixed prism 0…255 Focus MH-X50+ LED Spot...

  • Page 42: Functions In 14 Channel Dmx Mode

    Operating 7.6 Functions in 14 channel DMX mode Channel Value Function 0…255 Rotation (pan) (0° to max. value of the Pan range: 180°, 270° or 540°) 0…255 Inclination (tilt) (0° to max. value of the Tilt range: 90°, 180° or 270°) 0…255 Fine adjustment for rotation (pan) 0…255...
  • Page 43 Operating Channel Value Function 35…41 Blue 42…48 Kelly-green 49…55 56…63 Dark blue 64…70 White + yellow 71…77 Yellow + pink 78…84 Pink + green 85…91 Green + peachblow 92…98 Peachblow + blue 99…105 Blue + kelly-green 106…112 Kelly-green + red 113…119 Red + dark blue 120…127...
  • Page 44 Operating Channel Value Function 128…191 Rainbow effect in positive rotation direction, increasing speed 192…255 Rainbow effect in negative rotation direction, increasing speed Shutter 0…3 Closed (blackout) 4…7 Open 8…215 Strobe effect, increasing speed 216…255 Open 0…255 Mechanical dimmer (0 to 100 %) Gobo wheel 0…7 Open...
  • Page 45 Operating Channel Value Function 32…39 Gobo 5 40…47 Gobo 6 48…55 Gobo 7 56…63 Gobo 8 64…71 Gobo 8 shake, increasing speed 72…79 Gobo 7 shake, increasing speed 80…87 Gobo 6 shake, increasing speed 88…95 Gobo 5 shake, increasing speed 96…103 Gobo 4 shake, increasing speed 104…111...
  • Page 46 Operating Channel Value Function 192…255 Rainbow effect in negative rotation direction, increasing speed Gobo rotation 0…63 Gobo fixed 64…147 Positive rotation direction, increasing speed 148…231 Negative rotation direction, increasing speed 232…255 Gobo bouncing Special functions 0…7 Unused 8…15 Blackout during pan or tilt movement 16…23 No blackout during pan or tilt movement 24…31...
  • Page 47 Operating Channel Value Function 48…55 No blackout during gobo wheel movement 56…87 Unused 88…95 Blackout during movement 96…103 Reset pan 104…111 Reset tilt 112…119 Reset colour wheel 120…127 Reset gobo wheel 128…135 Reset gobo rotation 136…143 Reset prism 144…151 Reset focus 152…159 Reset all channels 160…255...
  • Page 48 Operating Channel Value Function 0…7 Unused 8…23 Program 1 24…39 Program 2 40…55 Program 3 56…71 Program 4 72…87 Program 5 88…103 Program 6 104…119 Program 7 120…135 Program 8 136…151 Sound control 1 152…167 Sound control 2 168…183 Sound control 3 184…199 Sound control 4 moving head...
  • Page 49 Operating Channel Value Function 200…215 Sound control 5 216…231 Sound control 6 232…247 Sound control 7 248…255 Sound control 8 Prism 0…7 Unused 8…247 Rotating prism, increasing speed 248…255 Prism fixed 0…255 Focus MH-X50+ LED Spot...

  • Page 50: Technical Specifications

    Technical specifications Technical specifications Number of DMX channels 8, 14 50 W Operating voltage supply AC 230 V , 50 Hz Power consumption 135 W Fuse 5 mm × 20 mm, 2 A, 250 V, fast-blow Dimensions (W × D × H) when the light beam is 240 mm ×...

  • Page 51: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 52: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 53 Troubleshooting Symptom Remedy The unit does not work, no light, Check the mains power connection and the main fuse. the fan does not run No response to the DMX con‐ 1. The DMX indicator should light up. If it doesn't, check troller DMX connectors and cables for proper connection.

  • Page 54: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 55: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 56 Notes moving head...
  • Page 57 Notes MH-X50+ LED Spot...
  • Page 58 Notes moving head...
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
