Getting Started

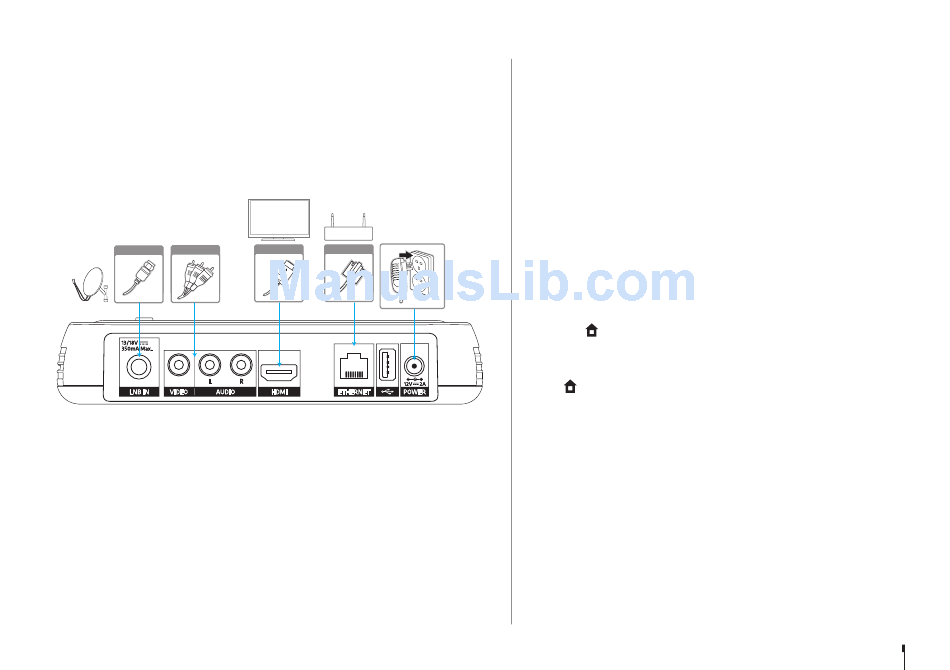

Connections

This section describes how to connect your product to match your particular devices and
to gain optimum signal quality.
Warning: Connect all devices before you plug any power cords into the wall outlet.
Always turn off the product, TV and other devices before you connect or
disconnect any cables.
Antenna RCA Cable
2-2
1
Note:
• If you encounter any problems setting up your product, please contact your local
retailer or HUMAX Customer Service.
• Connecting your TV directly to the audio/video output of the product will assure a
more vivid picture and enhance your viewing enjoyment.
TV
Router
6
HDMI Ethernet
2-1 3-1
Connecting the Antenna
1 Connect the Antenna to the LNB IN.
Connecting the TV
2-1 Using an HDMI cable
For the best picture quality, use an HDMI cable to connect to the TV.
2-2 Using an RCA cable
Using an RCA cable provides a lower resolution because the HD signal
cannot be received in full resolution.
Connecting the Network
3-1 Connecting to the LAN
1. Use the Ethernet cable to connect the product to the LAN router.
4
2. Set the options for the LAN.
> SETTINGS > Network Settings to set the network
(Go to
options.)
3-2 Connecting to the Wireless LAN
Go to > SETTINGS > Network Settings > Configure WLAN and set
the options for the wireless LAN.
Note:
• We recommend the network connection over a direct LAN.
• Make sure that the distance between the Wireless LAN access point
and the product is not too far away. This may lower the quality of
service.
Connecting the Power
4 Use the power adaptor to connect the power supply.
GB5
