Nissei NS-1220C User Manual

Power charger
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual

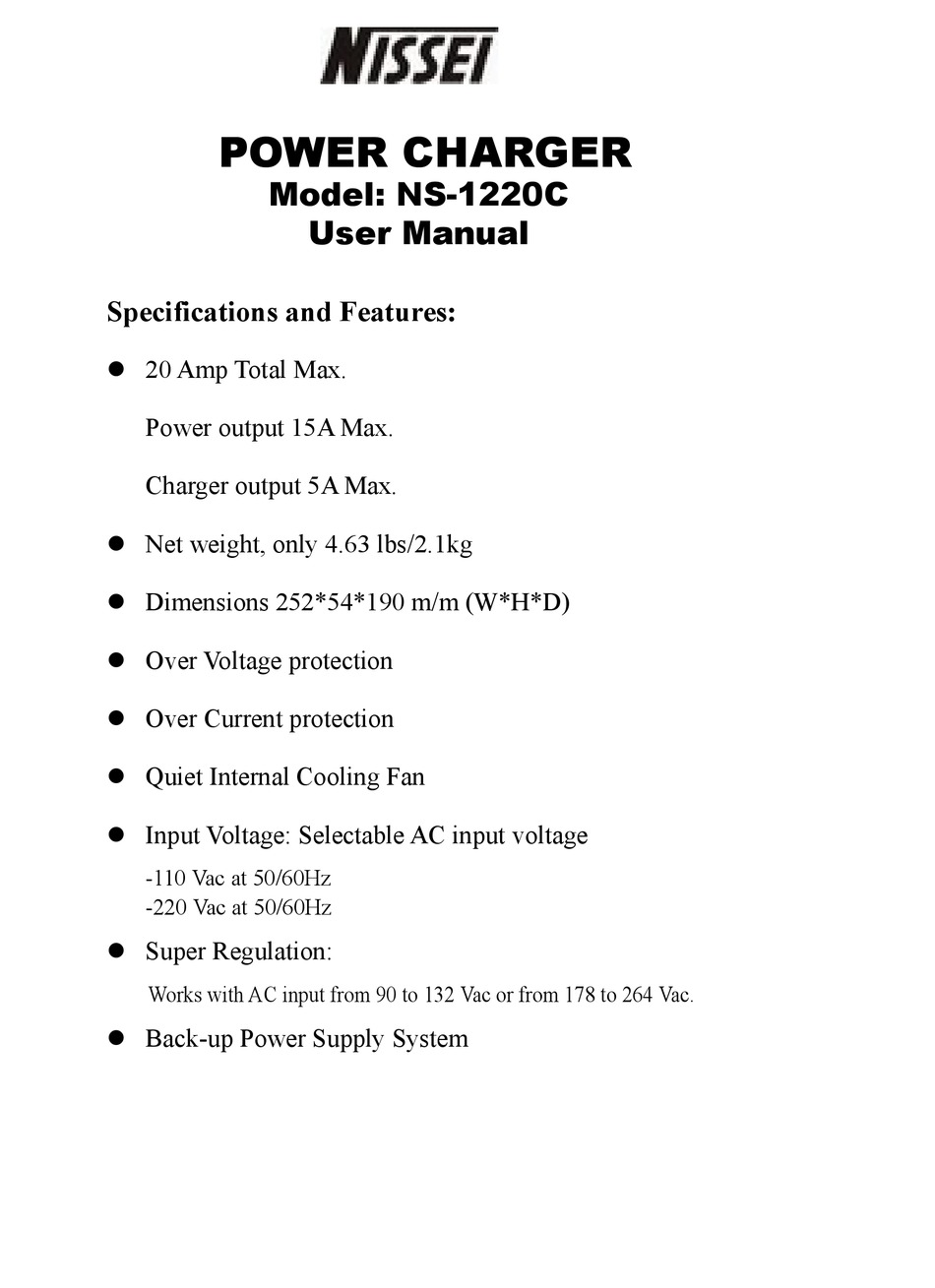

POWER CHARGER
Specifications and Features:
 20 Amp Total Max.
Power output 15A Max.
Charger output 5A Max.
 Net weight, only 4.63 lbs/2.1kg
 Dimensions 252*54*190 m/m (W*H*D)
 Over Voltage protection
 Over Current protection
 Quiet Internal Cooling Fan
 Input Voltage: Selectable AC input voltage
-110 Vac at 50/60Hz
-220 Vac at 50/60Hz
 Super Regulation:
Works with AC input from 90 to 132 Vac or from 178 to 264 Vac.
 Back-up Power Supply System
Model: NS-1220C

User Manual



Advertisement

loading
Need help?

Need help?

Do you have a question about the NS-1220C and is the answer not in the manual?

Questions and answers

Summary of Contents for Nissei NS-1220C

  • Page 1: User Manual

      POWER CHARGER Model: NS-1220C User Manual Specifications and Features:  20 Amp Total Max. Power output 15A Max. Charger output 5A Max.  Net weight, only 4.63 lbs/2.1kg  Dimensions 252*54*190 m/m (W*H*D)  Over Voltage protection  Over Current protection ...
  • Page 2 All LED indicators will turn off when AC fails except REV and battery type indicator (WET or GEL). The cooling fan on the NS-1220C will operate when the unit is turned on. The speed of the fan varies depending on the temperature control circuit.
  • Page 3 10V, it will also turn off. The NS-1220C has a 6 amp AC input fuse inside of the unit. To replace the fuse you should remove the old fuse by opening the case and replace it with a new 6 amp fuse.
  • Page 4 3-1 3-2 3-3 3-4 3-5 3-6 3-7 PANEL DESCRIPTION Item Name Descriptions Power Switch Control - main power On or Off, Flooded battery Battery Type Selector Gel battery LED Indicators Power Indicator Light on when the model is on FAN Indicator Light on when the FAN is working Light GREEN when BATTERY polarity connection is Battery Reverse Indicator...
