Eyeheight AR-2n User Manual

Multimode aspect ratio converter in a desktop chassis with software control application.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
eyeheight
AR-2n
Multimode Aspect Ratio Converter in a desktop chassis with
software control application.

user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR-2n and is the answer not in the manual?

Questions and answers

Summary of Contents for Eyeheight AR-2n

  • Page 1: User Manual

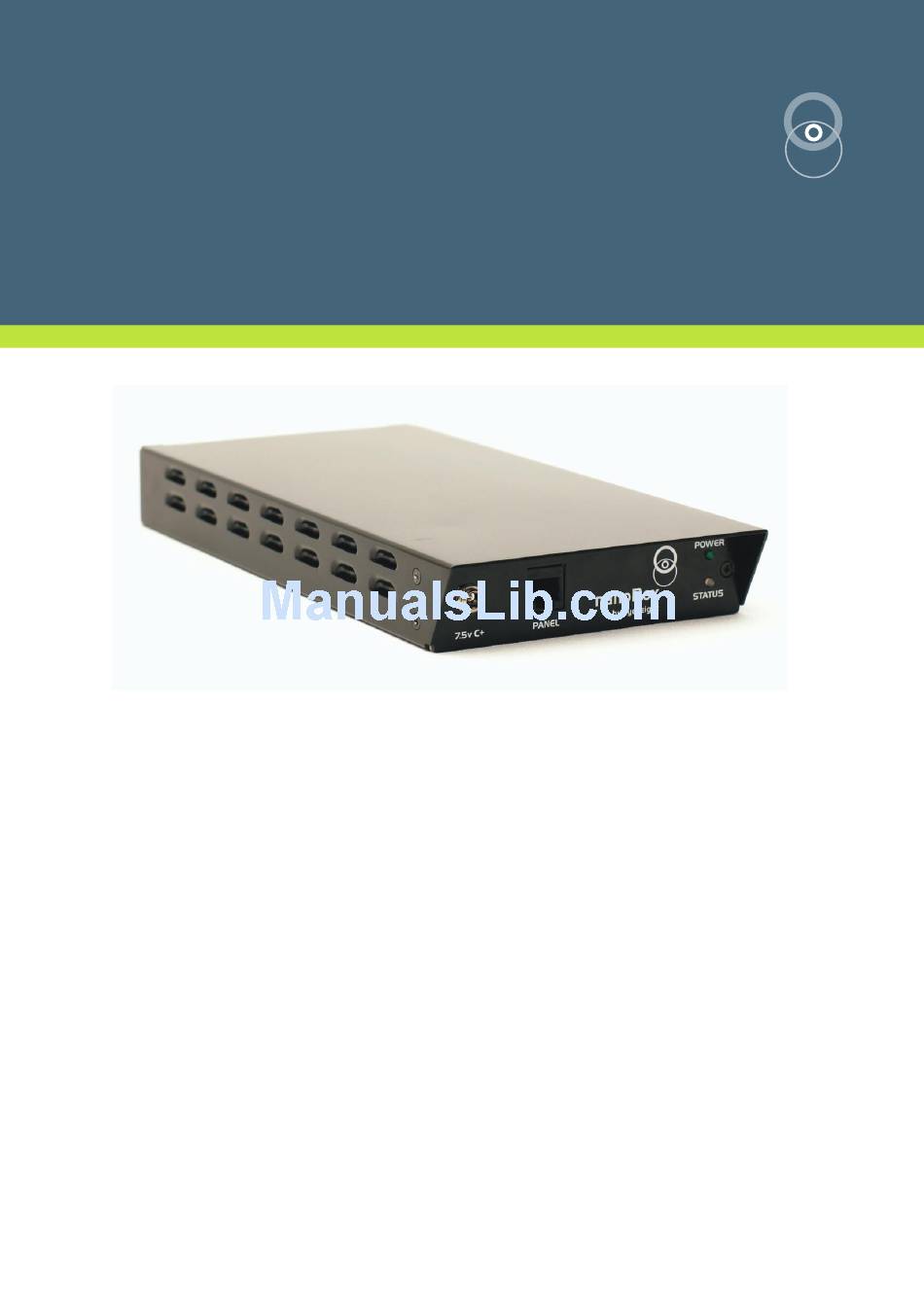

    AR-2n Multimode Aspect Ratio Converter in a desktop chassis with software control application. user manual...
  • Page 2 - 2 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 3: Table Of Contents

    4 Other Features/Messaging ................18 Messaging with the soft java panel............18 - 3 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 4 Technical Specifications ............... 73 Aspect Ratio Terminology ..............75 - 4 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 5: Table Of Figures

    Figure 6-2 GPI Splitter. Has 2 RJ-45 Sockets, one for the Comms and one for the GPI's ......................72 - 5 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 6: System Overview

    HD/SD auto-sensing and 3 field temporal processing. It is capable of high quality bi-directional conversion between different aspect ratios such as 4:3, 14:9, 16:9, etc. with full 10-bit resolution. In addition to the basic function of the AR-2n listed above, the unit also has the following features: WSS/VI control...

  • Page 7: Figure 1-2 The Ar-2N Front (Top) And Rear (Below)

    Figure 1-2 The AR-2n Front (top) and Rear (below). - 7 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 8: Setting Up The Ar-2N

    - 8 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 9: Installing The Software

    AR-2n. - 9 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 10: Screen Layout

    Like a standard Eyeheight panel (e.g., FP-9), the softPanel - 10 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 11: Device Info

    The four buttons, labelled A, B, C, and D act both as separate menu displays, and as larger combined displays, depending on context. - 11 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 12: Rotary Controls

    Menus are colour coded to show how to interact with them. - 12 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 13: Go To Another Menu

    The control and power connections are shown in the diagram - 13 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 14: Le-2N Power And Control Connection Using An Fp-9

    RR-9 (Rear box for the FP-9) to “LOC” (Local) and use the power supply supplied with the RR-9 to power the panel. - 14 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 15: Flexipanel Controls

    LCD window (A,B,C or D). The direction and speed of rotation enable numeric values to be set easily. - 15 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 16: Parameter Adjustment Of A Red Menu

    An example of this is the software version display. - 16 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 17: Connecting Video To The Ar-2N

    The In 1 Loop is a “reclocked input” loop output. Four GPI‟s can be used to recall user memories. Figure 3-2 AR-2n Connections. - 17 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 18: Other Features/Messaging

    Figure 4-1 UK keyboard reference diagram. - 18 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 19: Tamper Locking The Ar-2N

    4.3 Tamper Locking the AR-2n. The user can lock specific menus or all the menus on the AR-2n so that it cannot be adjusted with a manual control panel. This does not effect automation. To lock only menu 52. (General Noise Reduction (GNR)): 1.

  • Page 20: Loading A Memory

    625 cannot be loaded if the current input standard is 525, 720 or 1080. - 20 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 21 - 21 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 22: Setting Up The Gpis

    If LH = HL, then that memory value will be loaded on any change in state of that GPI - 22 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 23: Setting Up Embedded Video Signalling Parameters

    This menu sets how the transition between memories will look. It is found under “Utils  Global Setup  Fading” - 23 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 24: Setting The Power-On Default Values

    Adjustment of the output picture parameters uses the menu below, found under “Utils  ARC” - 24 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 25: Adjusting The Input Picture Blanking

    Use digipot A to adjust the audio delay to the value you require. The maximum delay allowed is 16 fields. - 25 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 26: Adjusting The Advanced Video Options

    = OFF Txture Txture Txture enable OC=0 = OFF - 26 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 27: Auto-Arc Mode And The Clear All Vars Function

    For SD in HD out: - 27 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 28: Saving A User Memory

    Saving a user memory starts with the menu below, found under “Softw‟r  Mems  Save” - 28 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 29 When you‟ve finished changing the name, you save the memory in the same way as described above. - 29 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 30: Viewing A Saved Memory

    (shown below) rather than the view memory menu. It will show that the memory you were viewing is now the active memory. - 30 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 31: The Software Upgrade Process

    Navigate to the following menu, under “Softw‟r  Resets” - 31 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 32 - 32 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 33: The Ar-2N Menu Set

    Menus 04-07 ARC Memory Select Top Menus -----> ACTIVE -----> - 33 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 34 ARC Memory Select Top Menus (Go To Menus 04-07) - 34 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 35 This will change the panel display to „please wait‟, and will - 35 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 36 This will change the panel display to „please wait‟, and will - 36 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 37 (Go To Menus 12-15) Menus 20-23 Change Active Memory 4/8 - 37 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 38 Pressing the prev button on the panel will take you to the previous - 38 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 39 - 39 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 40 Pressing the button takes you to the previous level of menus (Go - 40 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 41 ARC Memory Select Top Menus (Go To Menus 04-07) - 41 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 42 Pressing the button takes you to the previous level of menus (Go - 42 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 43: Frame Rate

    Menus 44-47 Video Input Menus Defini tion-> Frame form-> Frame rate-> - 43 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 44 Menus 52-55 Noise Reduction Menus Menu Num. Heading Function - 44 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 45 If set to off, the settings above are - 45 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 46 Menus 64-67 Misc. Sharpness and Texture menus Sh+Txt Sh+Txt Y only NA Lim = OFF - 46 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 47 (Go Menus 132-135) Menus 72-75 Picture Blanking Menus - 47 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 48 16F16 =OFF val=0 mem=1 16L12 Menu Num. Heading Function - 48 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 49: Audio Delay

    Units are in number of fields of the input video. - 49 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 50 GPI #4 Setup This menu sets up the state of - 50 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 51 (Go Menus 96-) - 51 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 52 Back Pressing the button takes you to - 52 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 53 Menus 108-111 Software Update Confirmation Menus ------ START?   Softwr SURE? ------  - 53 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 54 Pressing the button takes you to the previous level of menus (Go - 54 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 55  Factry SURE? ------  Menu Num. Heading Function - 55 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 56 A detailed explanation of this setting is given in section 4.5.5 - 56 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 57 Aspect Ratio Menus (Go Menus 68-71) - 57 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 58 (Go To Menus 132- 135) - 58 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 59 Misc. Global Settings Menus (Go To Menus 124-127) - 59 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 60 Menus 152-155 Advanced Video Settings Menus 1/2 next  *BACK* Menu Num. Heading Function - 60 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 61 Pressing the prev button on the panel will take you to the next - 61 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 62 Pressing this button will take you to the Resets Menus (Go To - 62 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 63 Menus 172-175 Performing Operation Menu ****** PLEASE WAIT ****** Menu Num. Heading Function - 63 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 64 This shows the output video Position picture position stored in the user memory. - 64 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 65 Y (Luma) the Y (Luma) channel, or to the - 65 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 66 (Go To Menus 188-191) - 66 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 67 Pressing this button will make the memory currently being viewed - 67 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 68 1 frame. If set to „off‟, the previously stored - 68 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 69 The default for this setting is off. Back Pressing the button takes you to - 69 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 70 (Go Menus 136-139) - 70 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 71: Technical Appendix

    If the user is interfacing with logic then - 71 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 72: Gpi Splitter

    Table 2 GPI Splitter, comms (Soft Panel) connection. GPI-1 White/Orange GPI-2 Orange - 72 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 73: Technical Specifications

    Option of local or remote FP-9 control Control Surfaces panel. FB-9E etherBox 1U enclosure Chassis - 73 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 74 100-240v AC. Less than 50W power consumption with 6 AR-2 units installed. - 74 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...

  • Page 75: Aspect Ratio Terminology

    (**Note that 16 therefore means 16:9, and 12 means 12:9, which is the same as 4:3.) An example of a conversion is: - 75 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
  • Page 76 A 14:9 picture viewed on a 16:9 monitor leaving black to the left and right. (Pillar-box) - 76 - Eyeheight Limited, Sutton Business Centre, Restmor Way, Wallington, Surrey SM6 7AH Reg. No. 2855535 Telephone: +44 (0) 208 255 2015 Fax: +44 (0) 208 241 6951 email: sales@eyeheight.com...
