Summary of Contents for dallmeier DDF3000A3

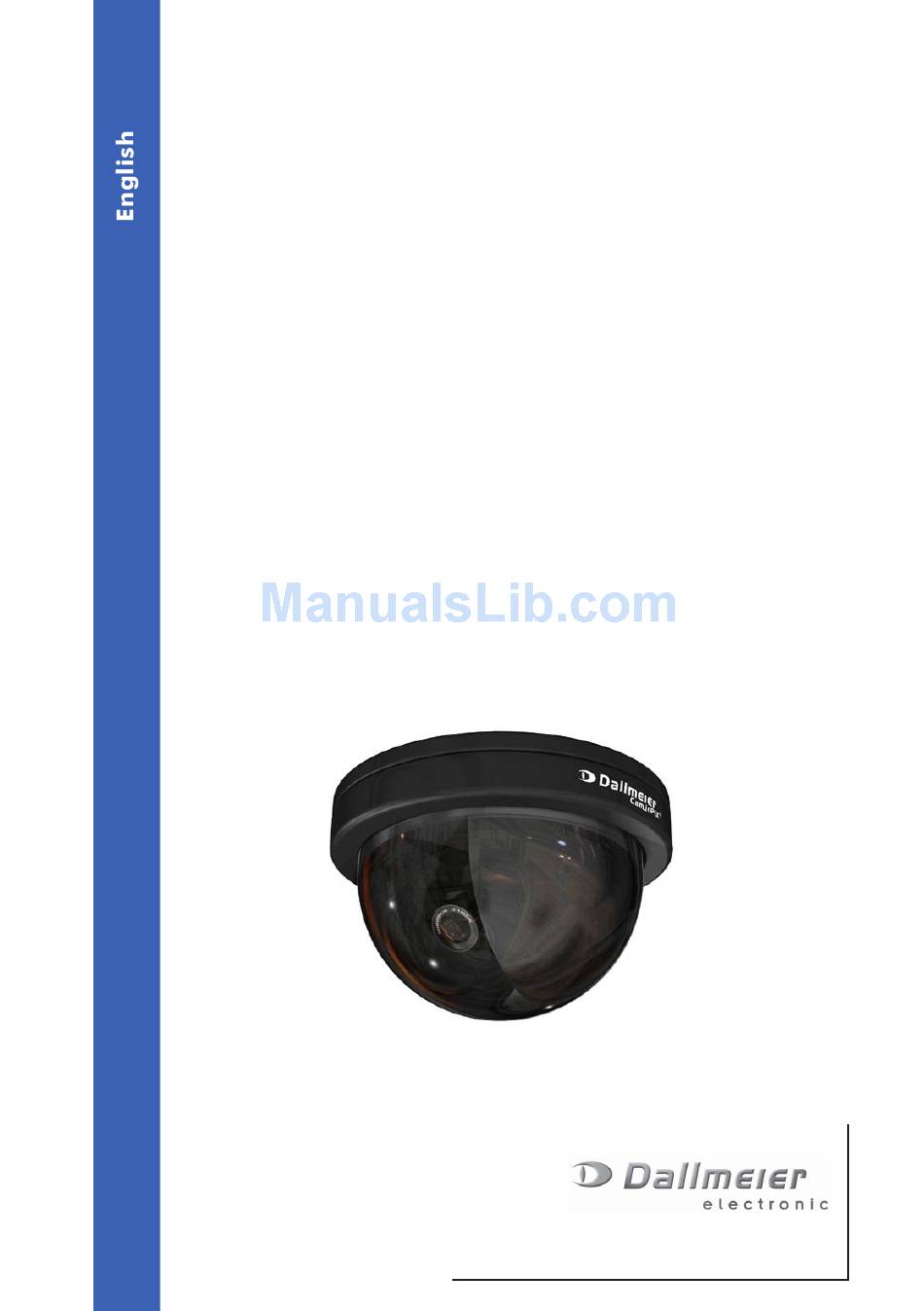

- Page 1 Installation and Configuration Mini Fixed Dome Color Video Camera DDF3000A3(-DN) DDF3000A3(-DN) (Casino version) Rev. 1.1.0 / 070702...
- Page 2 All rights reserved. This document may not be copied, photocopied, reproduced, translated, transferred to an electronic medium or converted to a machine-readable form either whole or in part without first receiving written permission from Dallmeier electronic GmbH & Co.KG. We reserve the right to make technical modifications.
-
Page 3: Table Of Contents
Table of contents About this document ................5 Validity ....................5 Documentation for DDF3000A3 ............5 Convention .................... 5 For your safety ..................7 General instructions ................. 11 Scope of supply ................... 11 Transportation and packaging .............. 11 Approved use ..................11 Features .................... - Page 4 DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Appendix ................... 37 Menu structure ..................37 Dimensions ..................38 Technical Data ..................39 Dallmeier electronic GmbH & Co.KG...
-
Page 5: About This Document
(Casino version) Mini Dome Color Camera. It has been procuded on the basis of version 1.7 (software). The descriptions in this document apply to both cameras. For simplification reasons, the term „DDF3000A3“ is thus used for all cameras. Documentation for DDF3000A3 Start-up The Quick Guide headed „Comissioning“... - Page 6 DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) DANGER The warning word DANGER denotes an immedi- ate danger that may cause death or serious injury if it is not averted. WARNING The warning word WARNING denotes a possible danger that may cause death or serious injury if it is not averted.
-
Page 7: For Your Safety
Do not make modifications Do not make any modifications to the unit (neither to the software nor the hardware) without consulting Dallmeier electronic. Improper modifications can cause malfunctions or damages. Dallmeier electronic accepts no liability for damages resulting from unauthorized or improper modifications to the unit. - Page 8 Furthermore, the use of peripheral devices that are not tested and approved by Dallmeier electronic results in loss of warranty. In case of doubt, contact the sales partner responsible for your area.
- Page 9 Disposal Disconnect the unit from the power supply. Remove all connected units and system components. Return the unit to your respective sales partner. Dallmeier electronic GmbH & Co.KG...
- Page 10 DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Dallmeier electronic GmbH & Co.KG...
-
Page 11: General Instructions
Approved use The DDF3000A3 is a Mini Fixed Dome Video Camera for color or b/w imaging. It is designed for indoor use. Features The DDF3000A3 offers a resolution of 540 TV lines and a volume range of 120 dB maximum. -
Page 12: Certificates
(Presets). NOTE For detailed information, please see Technical Data in the Appendix. Certificates The following certifications were in effect for the DDF3000A3 camera at the time this document was produced: C-Tick Warranty The warranty period is 36 months. The terms and conditions valid at the signing of the contract apply. -
Page 13: Notes On Operating The Camera
The quality of the video picture depends on the lens used, the lighting and the monitor used to display the video picture. Automatic white balance depends on the lighting used and can cause color distortions in artificial light. Poor lighting can lead to faulty white balance. Dallmeier electronic GmbH & Co.KG... - Page 14 DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Dallmeier electronic GmbH & Co.KG...
-
Page 15: Viewing And Connecting Up
Viewing and connecting up Viewing Camera mount Housing ring Camera module Housing base plate Plexiglas dome Camera support Fig. 5-1 Connecting up Video Ground (black) + 12V (red) Fig. 5-2 Dallmeier electronic GmbH & Co.KG... - Page 16 DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Dallmeier electronic GmbH & Co.KG...
-
Page 17: Installation
Installation Requirements at the installation site The DDF3000A3 is designed for indoor use. Unfavorable local conditions may shorten the life of the product or lead to malfunctions. Do not install/operate the camera in places: with large scale dust and dirt with steam or oil vapors (e.g. -
Page 18: Setting Up And Adjustment
DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) WARNING Danger of death from lightening strike. Do not connect the power supply/video cable during a thunderstorm. Video Ground (black) + 12V (red) Fig. 6-2 9. Fix the housing base plate to the wall or to the ceiling. - Page 19 Proceed with caution when aligning and adjusting the camera. Do not use any force. 2. Align the camera. Fig. 6-5 3. Set the focal distance (A) and focus (B). Fig. 6-6 Secure rings (A) and (B) using screws (C) after adjustment. Dallmeier electronic GmbH & Co.KG...
-
Page 20: Closing The Housing
DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Closing the housing 1. Place the dome and the housing ring onto the housing. IMPORTANT Possible damage to the lens and the dome with extreme alignment of the camera (vertical, hori- zontal). When mounting, ensure that the dome does not jam the lens. -
Page 21: Preparing To Configure
UTC Remote Box (or recorder or PView). NOTE Refer to the separate operator’s manuals for the devices or software used. UTC Remote Box Direct Fig. 7-1 Camera UTC Remote Box CVBS monitor Dallmeier electronic GmbH & Co.KG... -
Page 22: Dms Recorder
DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Via recorder Fig. 7-2 Camera Recorder CVBS monitor Remote Box DMS Recorder Fig. 7-3 Camera Recorder CVBS monitor NOTE This method requires recorder software version 5.3.1 or higher. Dallmeier electronic GmbH & Co.KG... -
Page 23: Pview
PView Fig. 7-3 Camera Recorder PView Station CVBS monitor NOTE This method requires recorder software version 5.3.1 or higher, using PView version 5.6.0 or higher. Dallmeier electronic GmbH & Co.KG... - Page 24 DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Dallmeier electronic GmbH & Co.KG...
-
Page 25: Configuration
To return from a submenu to the higher-order menu, select Previous Page and press the Set button. NOTE Please pay attention to 8.4 Exit Menu when saving/resetting settings already made or leaving the configuration. Dallmeier electronic GmbH & Co.KG... -
Page 26: Presets
DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Presets --------------- Presets ---------------- Previous Page. The presets allow you to very easily > Presets < Universal. > adapt the camera configuration to Brightness the on-site conditions to achieve the Gamma Auto best possible video picture. - Page 27 Brightness Select Brightness to adjust the image brightness. Gamma Gamma defines the brightness range within the color space and thus the differentiation between lights and shadows. Dallmeier electronic GmbH & Co.KG...
- Page 28 DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Choose Gamma = Auto for scenarios with strongly varying light conditions. Alternatively, the brightness range can also be set manually in 8 steps. Range Bias (for casino versions only) Range Bias allows you to shade or brighten the different brightness areas.
-
Page 29: Basic Functions
Setting the video standard --------- Basic Functions --------- Choose between PAL and NTSC Previous Page. to define the video signal. Camera ID. > CCTV System < PAL.. > Horizontal Flip Lens Select.. Color Day / Night Setup.. Dallmeier electronic GmbH & Co.KG... - Page 30 DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) The PAL and NTSC submenus allow the following settings to be made: Video level ----------------- PAL ------------------ After selecting the video signal Previous Page you can adjust the video level, if V-Level necessary. > Sync: <...
-
Page 31: Horizontal Flip
PAL.. Horizontal Flip Lens Select.. With B/W w/Burst the menu entries > Color < On > Day / Night Setup.. are displayed in color in the black- and-white mode and can thus be easier read. Dallmeier electronic GmbH & Co.KG... -
Page 32: Day / Night Setup
Night Mode Color day/night mode. Night: max. Gain Night Control = Auto is set by default for the DDF3000A3. NOTE Night Control = Off is set by default for the casino version. Do not change these settings when using the camera in a casino environment. -
Page 33: Image Functions
Off setting. NOTE To record camera images with maximum resolution the Dallmeier recorder should be operated in full picture mode and the camera should be set to Progressive Scan = On. -
Page 34: Digital Zoom
DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Predefined fields of view ------------- Backlight -------------- Choose between Up and Down to define the position of the field of view (in the example Down has been chosen). Freely-defined field of view Select Set.. and press the Enter button. -
Page 35: White Balance
The white balance is readjusted accordingly in different recording conditions. The WB Offset function can be used when the automatic white balance produces an unsatisfactory color display with "monochro- me“ scenarios. This function modifies the metered color temperature. Dallmeier electronic GmbH & Co.KG... -
Page 36: Exit Menu
DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) The limits within which the automatic white balance can move are set using Low Limit and High Limit. Manual Select Manual and press the Enter button to manually adjust the white balance. Exit Menu 3 options are available to exit the configuration menu. -
Page 37: A Appendix
Day / Night Setup.. -------- Image Functions --------- Previous Page. > Progressive Scan Backlight Digital Zoom On.. White Balance ATW.. ------------- Exit Menu -------------- Previous Page. > Last Changes Reject. Load Factory Settings 3000 Version Dallmeier electronic GmbH & Co.KG... -
Page 38: A2 Dimensions
DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Dimensions (All dimensions in mm) Fig. A-1 Fig. A-2 Dallmeier electronic GmbH & Co.KG... -
Page 39: A3 Technical Data
Languages English Lenses Mount Boardlens-mount: Ø 14 mm Lenses DC-Autoiris-lens: 1:1.2; 2.9 - 10 mm / 1:1.2; 2.9 - 10 mm DN / 1:1.5; 9 - 22 mm / 1:1.5; 9 - 22 mm DN Dallmeier electronic GmbH & Co.KG... - Page 40 DDF3000A3(-DN) / DDF3000A3(-DN) (Casino Version) Interfaces Video output Video Preview output phone jack Other hardware details Power supply (incl. permitted tolerance) 12V DC +/- 5% Power consumption 2 W max. Dimensions Ø approx. 140 mm; height approx. 95 mm Temperature 0 °...
-
Page 41: Declaration Of Conformity
Member States relating to Electromagnetic Compatibility (89/336/EEC) and the Council Directive relating to Low Voltage 73/23/EEC and 2006/ 95/EEC. The following company is responsible for this declaration: Dallmeier electronic GmbH & Co.KG Cranachweg 1 D - 93051 Regensburg The measurements were carried out in accredited laboratories.
