Summary of Contents for CyberMed H24 Series

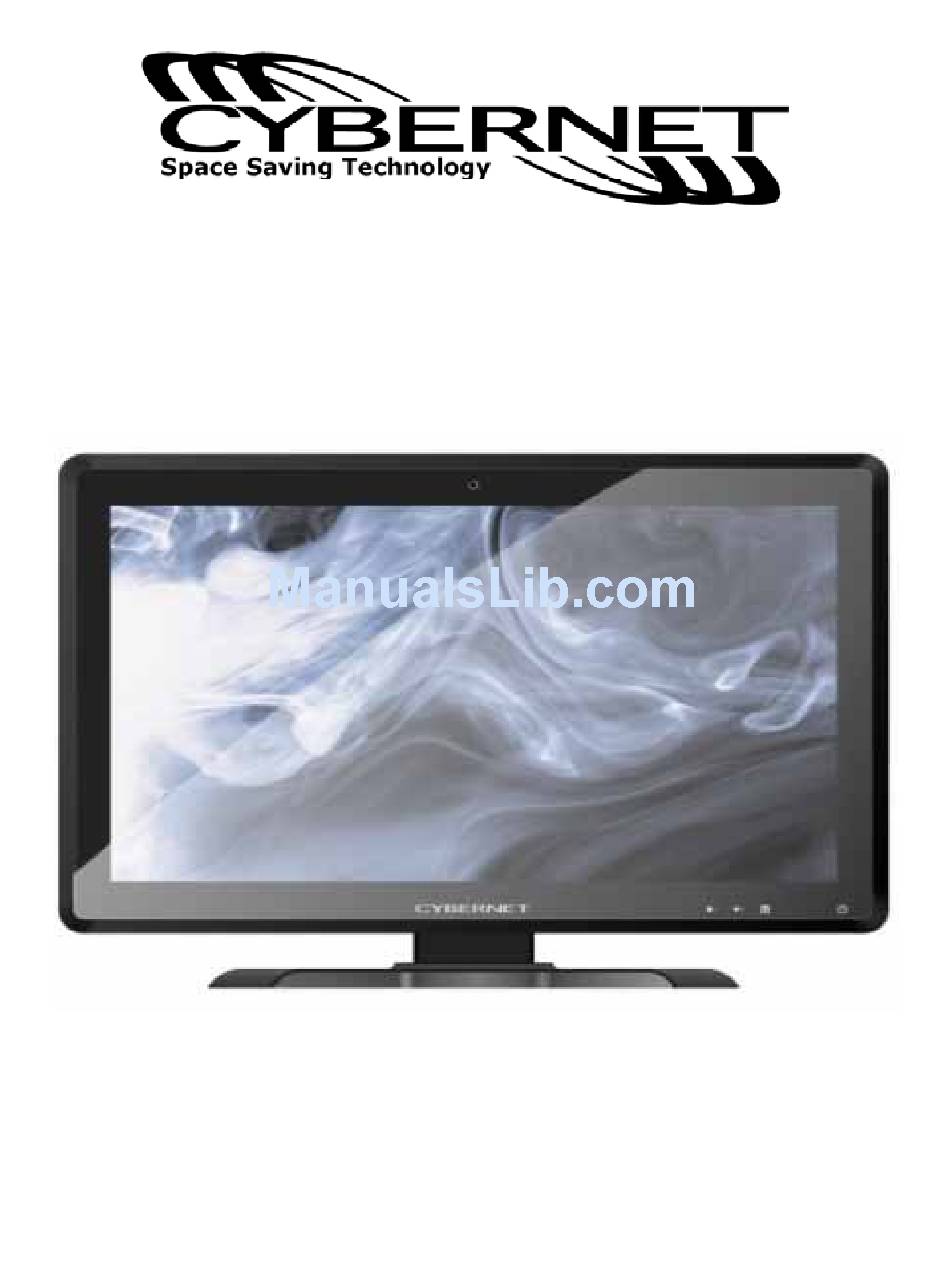

- Page 1 CyberMed H24 Series User Guide...
-
Page 2: Trademarks
FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Safety Instructions
Safety Instructions Always read the safety instructions carefully. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it The openings on the enclosure are for air convection hence protect the equipment from overheating. DO NOT COVER THE OPENINGS. Confirm the voltage of the power source and adjust accordingly to 110/220V before connecting the equipment to the power inlet. - Page 4 WEEE Statemen (Waste Electrical a and Electron nic Equipm ment) The WE EEE directiv ve places a n obligation n on EU-ba ased manuf facturers, d distributors, retailers s and impor rters to take e-back elec ctronics pro oducts at th e end of th eir useful li fe.
-
Page 5: Table Of Contents
FCC-B Radio Frequency Interference Statement ..............i Trademarks ........................... i Safety Instructions ........................ii WEEE Statement ........................iii Introduction ..........................1 CyberMed H24 Series (H6)Specifications ................. 1 Processor Support ........................1 Motherboard Core Logic ......................1 Memory Support ........................1 Networking ..........................1 ... - Page 6 Installing the Memory Module DDR3 SO-DIMM ..............25 Installing the Hard Disk Drive ....................26 Installing the Optical Disk Drive ................... 27 Installing the Mini-PCIe Card (Optional) ................29 Installing the Cover ....................... 30 Cybernet Recycling SOP…………………………………………………………………………….32 Figures Figure 1: Front View with Optional Webcam………….………………………..……...…………11 Figure 2: Left side view with Optical Drive……………………………………………….……….12 ...
-
Page 7: Introduction
Introduction Congratulations for purchasing the H24 Series. The CyberMed H24 Series is your best Slim LCD PC choice. With the fantastic appearance and small form factor, it can easily be set anywhere. The feature packed platform also gives you an exciting PC experience. -
Page 8: Lcd Panel
3 Audio jacks – Line in, Line Out and Mic in 4 TV Tuner ports - - Optional with TV Tuner (COAX Cable In, RCA Composite Video In, Audio Left & Audio Right), 1 CMOS clear button, 1 Reset button H24 Series Page 2... -
Page 9: Power Supply
120 Watt Power Adapter from EDAC POWER ELECTRONICS CO., LTD, model EM11011H, AC Input: 100~240V AC, 2.0-1.0A, 50-60Hz DC Output: 12V, 10.00A 120W Max. Dimensions 598mm (H) x 420mm (W) x 262mm (D)(with stand) 598mm (H) x 377mm (W) x 55mm (D)(without stand) H24 Series Page 3... - Page 10 Intended use The H24 Series is designed for general pc application purpose for hospital environment and for diagnosis. It could be used for Radiology, PACS (Picture Archiving Communication Systems),LIS (Lab Information Systems) and Electronic Medical Recordpurpose. It shall not be used for life-supporting system.
- Page 11 Various Factors of Environment 1. Operating Temperature: 0°C to 50°C; Non-operating temperature: -20°C to 60°C. 2. Operating Humidity (Non-Condensing): 10% to 90%. Non-operating Humidity (Non-condensing): 10% to 90%. 3.Do not insert objects into the openings. H24 Series Page 5...
- Page 12 2. Do not attempt to repair the LCD PC unit on yourown. Disassembling the cover exposes users’ to highvoltages and other dangerous conditions. Notify andrequest a qualified service technician for servicing the unit. H24 Series Page 6...
- Page 13 PCproducts, please follow the guidance of your localauthority, or ask the shop where you purchased theproduct, or if applicable, follow any agreementsmade between yourself.The mark on electrical and electronic products onlyapplies to the current European Union MemberStates. H24 Series Page 7...
-
Page 14: Power Management
Power Management in Windows OS [Power Options] in Windows OS allow you to control the power management features of your display and hard drive. Go to [Start] > [Control Panel]. Then click on the [Power Options] link. H24 Series Page 8... - Page 15 Select a power plan that suits your personal needs. You may also fine-tune the settings by clicking [Change plan settings]. The Shut Down LCD-PC Menu presents the options of Sleep (S3) & Shut Down (S5) for rapid and easy management of your system power. H24 Series Page 9...
-
Page 16: Waking The System Up
• Install power saving software to manage your PC’s energy consumption. • Always disconnect the AC power cord or switch the wall socket off if your LCD-PC would be left unused for a certain time to achieve zero energy consumption. H24 Series Page 10... -
Page 17: Cybermed H24 Series Overview
CyberMed H24 Series Overview Figure 1: Front View with Optional Webcam H24 Series Page 11... -
Page 18: Figure 2: Left Side View With Optical Drive
Figure 2: Left side view with Optical Drive H24 Series Page 12... -
Page 19: Figure 3: Side Usb Ports
Figure 3: Side USB Ports Figure 4: Touch Panel and Power button “ready to use button” H24 Series Page 13... -
Page 20: On Screen Display Buttons
Continuous send out pulse when user’s finger keeps pressing the button and increase the value Turn on the Brightness adjustment on display Brightness / - Immediately Continuous send out pulse when user’s finger keeps pressing the button and increase the value H24 Series Page 14... -
Page 21: On Screen Display Usage
On Screen Display Usage Figure 6: On Screen Display Usage H24 Series Page 15... -
Page 22: Figure 7: Back View
Figure 7: Back view Figure 8: Bottom Panel I/O Ports H24 Series Page 16... -
Page 23: Figure 9: Cpu Heat Sink Ventilation Fan
Figure 9: CPU Heat Sink Ventilation Fan H24 Series Page 17... -
Page 24: System Assembly
Rubber gloves can prevent injury from static charge. Electric screwdriver can be used to secure all screws more quickly. Paper clip to be used to eject the ODD when System is power off. H24 Series System Assembly Page 19... -
Page 25: Orientation Of Key Parts
Orientation of Key Parts Figure 10: System Fans, CPU Heat Sink Fan and Ventilation H24 Series System Assembly Page 20... -
Page 26: H24 Series Disassembly
H24 Series Disassembly ORIENTATION: Presumes the top of the LCD PC is away from you and the bottom or I/O controller board is nearest you. Do not put any pressure on the LCD PC to avoid adding pressure to the System or place any equipment/device on top of it during assembly/disassembly. -
Page 27: Figure 11: Open System
Figure 11: Open system without GPU Figure 12: Open system with GPU H24 Series System Assembly Page 22... -
Page 28: Installing The Cpu
4. Close the cover and the lever to complete installation. Replace the heat sink. NOTE: Any violation of the correct installation procedures may cause permanent damage to your motherboard. H24 Series System Assembly Page 23... -
Page 29: Installing The Cpu Heat Sink
Note: Do not fix any screws until the four screws are in their positions. 3. Secure the two screws at the opposite end near the top edge of the bezel. 4. Connect the power cable to CPU Fan on the Motherboardlabeled CPU FAN 1 connector. H24 Series System Assembly Page 24... -
Page 30: Installing The Memory Module Ddr3 So-Dimm
DIMM slot. 3. Press the memory module down and the metal clip at each side of the DIMM slot will automatically close. 4. Repeat the steps to install another memory module to meet your needs. H24 Series System Assembly Page 25... -
Page 31: Installing The Hard Disk Drive
Connect the SATA cable to the motherboard. SATA Cable 2. Connect the SATA cable, Connectthe Power cable 3. Connect the other end of the SATA/Power cable to the Hard Disk Drive as shown. SATA/Power Cable H24 Series System Assembly Page 26... -
Page 32: Installing The Optical Disk Drive
Remove back bezel as indicated in the LCD PC Disassembly. Remove the Optical Disk Drive frame. Put the ODD on the ODD frame and line up the four screw holes accordingly. 3. Secure the four screws on the ODD frame. H24 Series System Assembly Page 27... - Page 33 Connect the other end of the cable to the ODD. Install the ODD frame and line up the two screw holes over the Metal Support. Secure the two screws to fix the ODD frame and complete the installation. H24 Series System Assembly Page 28...
-
Page 34: Installing The Mini-Pcie Card (Optional)
Insert the mini-PCIe card at a 45° angle. Then, push it in until the golden fingers on the mini-PCIe card are deeply inserted in the mini-PCIe slots. 2.Press down the mini-PCIe card and securewith the small screws. H24 Series System Assembly Page 29... -
Page 35: Installing The Cover
1. Securing the metal cover and I/O plate with eighteen screws. 2. Secure the plastic cover with thirteen screws. 3. Install the ODD bezel back to the ODD. 4. Secure the stand with four screws. H24 Series System Assembly Page 30... - Page 36 System View H24 Series System Assembly Page 31...
