Summary of Contents for IKAM OBM-U170

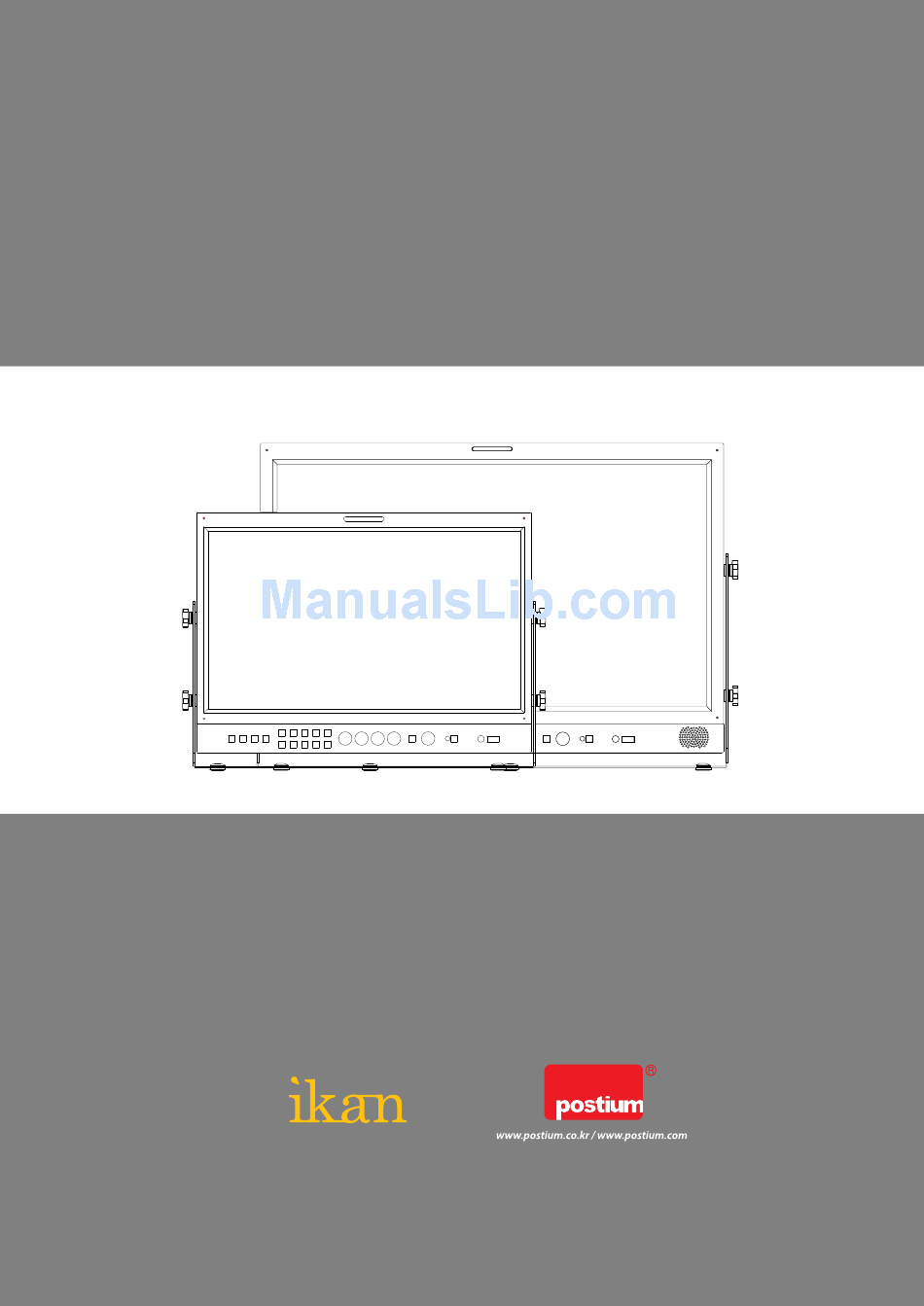

- Page 1 User Manual 4K LCD Professional Monitor with 12G-SDI Single Link 4K Operational Instructions OBM-U240 OBM-U170 www.ikancorp.com 10. 2016...
-
Page 2: Table Of Contents
Status Menu Color Temp/Color Space/Gamma Menu Zebra/Focus Menu User Con guration Menu Remote Menu 7. Scan Mode Image (OBM-U240) 8. Scan Mode Image (OBM-U170) 9. Connecting the SDI Signals 10. Available Signal Formats 11. Other Functions 12. Product Speci cation... -
Page 3: Precaution
When using other DC 12V(OBM-U170) or DC 24V(OBM-U240) adapters instead of the standard adapter provided by the manufacturer, please check the proper load capacity or current capacity and use an adapter with stable voltage. - Page 4 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 1. Precaution Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
-
Page 5: Main Features
OBM-U170/U240 with 12G-SDI, Quad Link 4K 2. Main Features 4K professional monitor OBM-U170/U240 Series unit has the following features: · Versatile 4K/QFHD Input Capability This monitor is equipped with standard 12G-SDI input interface(x2), 3G/HD-SDI input interface(x2) and support 4K 2-sample interleave signals and 4K square division signals. -
Page 6: Location And Function Of Parts And Controls
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 3. Location and Function of Parts and Controls Front Panel A : Input select Buttons/Lamp Press to monitor the signal input to each connector. [SINGLE] Button/Lamp - Press the button to select SDI input or SFP input for one channel. - Page 7 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K [CHROMA] knob Press this knob to display the adjustment screen and adjust the color intensity. Press again to hide the adjustment screen. Turn the knob right to increase the color intensity and turn left to decrease it.
-
Page 8: Rear Panel8
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K Rear Panel A : SDI IN (SDI Input) connectors (BNC) Input connectors for SDI signals. For details, see “Connecting the SDI Signals” (page 21). B : SDI OUT (SDI Output) connectors (BNC) Output connectors for SDI signals. - Page 9 I : DC IN terminal Connects the DC power supply to the monitor. - OBM-U170: 12V - OBM-U240: 24V Make sure to use DC 12V power supply for OBM-U170 and DC 24V power supply for OBM-U240. OBM-U170 OBM-U240 DC IN Socket...
-
Page 10: Using The Menu
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 4. Using the Menu This monitor is equipped with an OSD menu to make various adjustments and settings such as picture control, input setting, set setting change, etc. 1. Press the MENU button. -
Page 11: Adjustment Using The Menus
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 5. Adjustment Using the Menus The OSD menu of this monitor consists of the following items. Status menu (To indicate the current settings) User Configuration menu Format User Preset Color Temp... -
Page 12: Osd Menu Operations
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 6. OSD Menu Operations Status Menu Page 3/4 The Status menu displays the current status of the monitor. The following items are displayed. Page 1/4 SDI Input Identifier SDI Payload ID... -
Page 13: Color Temp/Color Space/Gamma Menu
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 6. OSD Menu Operations Color Temp/Color Space/Gamma Menu Page 2/2 These menus are used for adjusting or setting the color temperature, color space or gamma of the picture. Page 1/2... -
Page 14: Zebra/Focus Menu
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 6. OSD Menu Operations Zebra/Focus Menu Color Space Comparison - Allows you to divide the picture side by side, adjust the color space and gamma on the right half of the picture, and compare the color space and gamma between right half and left half. -
Page 15: User Con Guration Menu
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K User Con guration Menu Page 2/6 User Configuration consists of the adjustment menus such as [User Preset], [Function Button Setting], [Input Setting], [Camera Log], [SDI Audio Setting], [Audio Level Meter Setting], [Marker], [WFM/Vector], [System Setting]. - Page 16 Thickness Controls the speed rate of Peak Hold Decay Adjusts the thickness of the marker lines. Time occurring when the audio volume decreases. You can select it from 1 to 7. ** This menu is activated in OBM-U170 model only.
- Page 17 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K User Con guration Menu Page 6/6 Page 5/6 System Setting WFM/Vector Factory Reset - Sets to activate and deactivate Waveform Initializes OSD values to the factory default. monitor and Vectorscope.
-
Page 18: Remote Menu
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K Remote Menu *7 Pin: For Power On and Off only *8 Pin: For Ground only Parallel Remote Selects the Parallel Remote connector pins for which you want to change the function. -
Page 19: Scan Mode Image (Obm-U240)
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 7. Scan Mode Image (OBM-U240) OBM-U240 4K/QFHD Mode Panel 3840 x 2160 Input image 4096 x 2160 The LCD panel resolution of OBM-U240 is QFHD(16:9) 3840x2160, so if the input signal is 3840x2160, 1:1 mapping is supported. -
Page 20: Scan Mode Image (Obm-U170)
1920 x 1080 4096 x 2160 The LCD panel resolution of OBM-U170 is FHD(16:9) 1920x1080. So, when Zero Scan is selected, if the input signal is QHD(3840x2160) it is scaled to 1920x1080(16:9), and if the input signal is DCI 4K(1.89:1) 4096x2160 it is scaled to1920x1012(1.89:1). -
Page 21: Connecting The Sdi Signals
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 9. Connecting the SDI Signals Single Link 12G/6G/3G/HD-SDI, Dual-Link 3G-SDI, and Quad-Link 3G-SDI signals can be input to the SDI IN connectors of this monitor. Up to 2-channel Single Link 12-SDI signals, up to 4-channel 3G/HD-SDI signals, 1-channel Dual-Link 3G-SDI or 1-channel Quad-Link 3G-SDI signals can be input. -
Page 22: Available Signal Formats
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 10. Available Signal Formats This monitor is applicable to the following signal formats HD-SDI Signal System Signal Format 1920x1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i... - Page 23 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 10. Available Signal Formats Dual-Link (4K) 3G-SDI Signal System Signal Format 3840 x2160 / Level A / Level B-DL 4:2:2 YCbCr 10bit 50, 59.94, 60p 2-sample interleave division/ 4:4:4 RGB 10bit...
-
Page 24: Other Functions
Interleave signals and 4K Quad Link Square Division excellent grayscale. signals. You can select from color gamuts such as DCI-P3, The OBM-U170 and OBM-U240 can accept up to ITU-R BT.2020, ITU-R BT.709, SMPTE-C, EBU, Native. 3840x2160/24,25,30,50,60p and 4096x2160/24.25.30,50,60p signals. Color Space & Gamma Comparison... -
Page 25: Product Speci Cation
4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K 12. Product Speci cations ITEM OBM-U170 OBM-U240 4 x BNC 12G-SDI-1/2, 3G/HD-SDI-3/4 Input 1 x HDMI HDMI 2.0 1 x SFP Optical Output 4 x BNC 12G-SDI-1/2, 3G/HD-SDI-3/4 Active Loop Output SMPTE ST 2082M 2160p(60/59.94/50/30/29.97/25/24) - Page 26 4K LCD Professional Monitor OBM-U170/U240 with 12G-SDI, Quad Link 4K IKAN CORPORATION 11500 S. Sam Houston Pkwy West 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Houston, TX 77031 Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 TEL:+1.713.272.8822 FAX:+1.713.995.4994 Tel : +82.2.354.6055 / Fax : +82.2.354.6056 E-mail : sales@postium.com...
