SENSORS UNLIMITED SU320CSX Operation Manual

Mil-rugged, high sensitivity, small swap ingaas swir camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SU320CSX

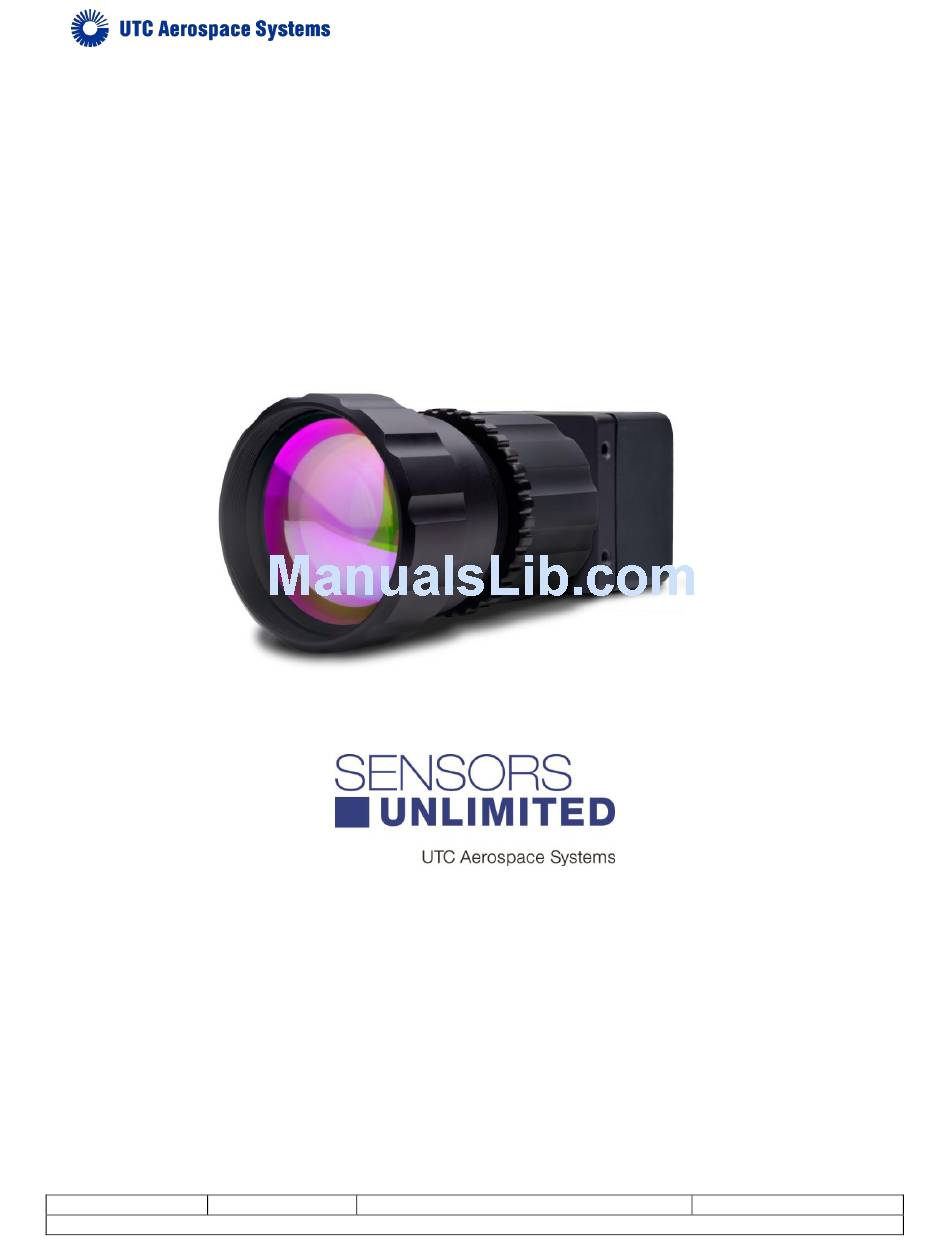

Operation Manual:
SU320CSX
Mil-Rugged, High Sensitivity, Small SWaP
InGaAs SWIR Camera
330 Carter Road
Suite 100
Princeton, NJ 08540 USA
Tel: (US) 609-333-8000
www.sensorsinc.com
4110-0446, Rev. C
Page 1 of 96
© 2017 UTC Aerospace Systems
Date Printed: 3-Jan-2017
This document does not contain any export controlled technical data.
