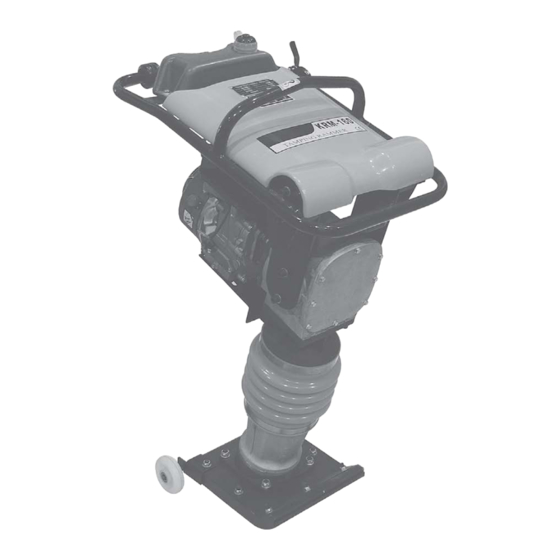

TABLE OF CONTENTS WARNING : This manual provides information regarding the operation and maintenance of these products. We have made every effort to ensure the accuracy of the information in this manual. We reserve the right to change this product at any time without prior notice. Please keep this manual available to all users during the entire life of the Vibratory Rammer.
2. EMISSION CONTROL SYSTEM INFORMATION Source of Emissions The combustion process produces carbon monoxide, oxides of nitrogen and hydrocarbons. Control of hydrocarbons and oxides of nitrogen is very important because, under certain conditions they react to form photochemical smog when subjected to sun- light.
Page 4
EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE This emission warranty is applicable in all States. Our Corporation (located at 12010 Dairy Ashford Road, Suite 160 Sugar Land, TX 77478) warrants to the initial retail purchaser and each subsequent owner, that this non-road engine(herein "engine") has been designed, built and equipped to conform at the time of initial sale to all applicable regulations of the U.S.
Model 350WSB & 350WSB With Stand Parts List If you have any questions regarding your warranty rights and responsibilities, you should contact our CORPORATION Product Support Department for the information. THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL SYSTEM WARRANTY: o MAINTENANCE AND REPAIRS You are responsible for the proper maintenance of the engine.
3.1.12 ALWAYS wear protective clothing appropriate to the job site when operating equipment. 3.1.13 ALWAYS wear hearing protection when operating equipment. 3.1.14 ALWAYS keep hands, feet and loose clothing away from moving parts of the machine. 3.1.15 ALWAYS use common sense and caution when operating the machine. 3.1.16 ALWAYS be sure the rammer will not tip over roll, slide or fall when not being operated.
3.5 Safety Labels The machines use international pictorial labels where needed. These labels are described below: For optimal control, performance and minimal hand/arm vibration, CAUTION! WARNING! This molded-in label contains grasp handle as shown. Use only clean filtered gasoline fuel. important safety and operating Hot surface! information.
5.5.1 Place throttle in the idle position (c3). 5.5.2 Turn engine switch to‘‘OFF’’(d). 5.5.3 Close fuel valve (e). 5.6 Low Oil Shutoff Switch (if equipped) The low oil shutoff switch is designed to prevent engine damage caused by an insufficient amount of oil. When starting the machine.
6. MAINTENANCE Periodic Maintenance Schedule Maintenance, replacement or repair of the emission control devices and systems may be performed by any non-road engine repair establishment or individual. Daily After Every Every Every 3 Every before first 5 week or month or months or Year starting...
Graphic 5 6.2.5 Cleaning. 6.2.5.1. Clean the air filter elements if they are to be reused. Paper air filter element. Tap the filter element several times on a hard surface to remove dirt or blow compressed air[not exceeding 207 kPa(2.1 kgf/cm ,30 psi)] through the filter element from the inside.
Graphic 7 Oil change: 6.4.5 Unscrew the oil drain plug (e) located below the oil sight glass. 6.4.6 Tip the rammer back until it is resting on its handle and allow oil to drain. Note: In the interests of environmental protection, place a plastic sheet and a container under the machine to collect any liquid which drains off.
6.7 Troubleshooting Problem/Symptom Reason/Remedy Engine does not start or stalls. oNo fuel in tank. oCheck engine oil level. oSpark plug fouled. oFuel valve closed. oEngine switch is in the ‘‘OFF’’ position. Engine does not accelerate, is hard to start or oSpark plug fouled.
