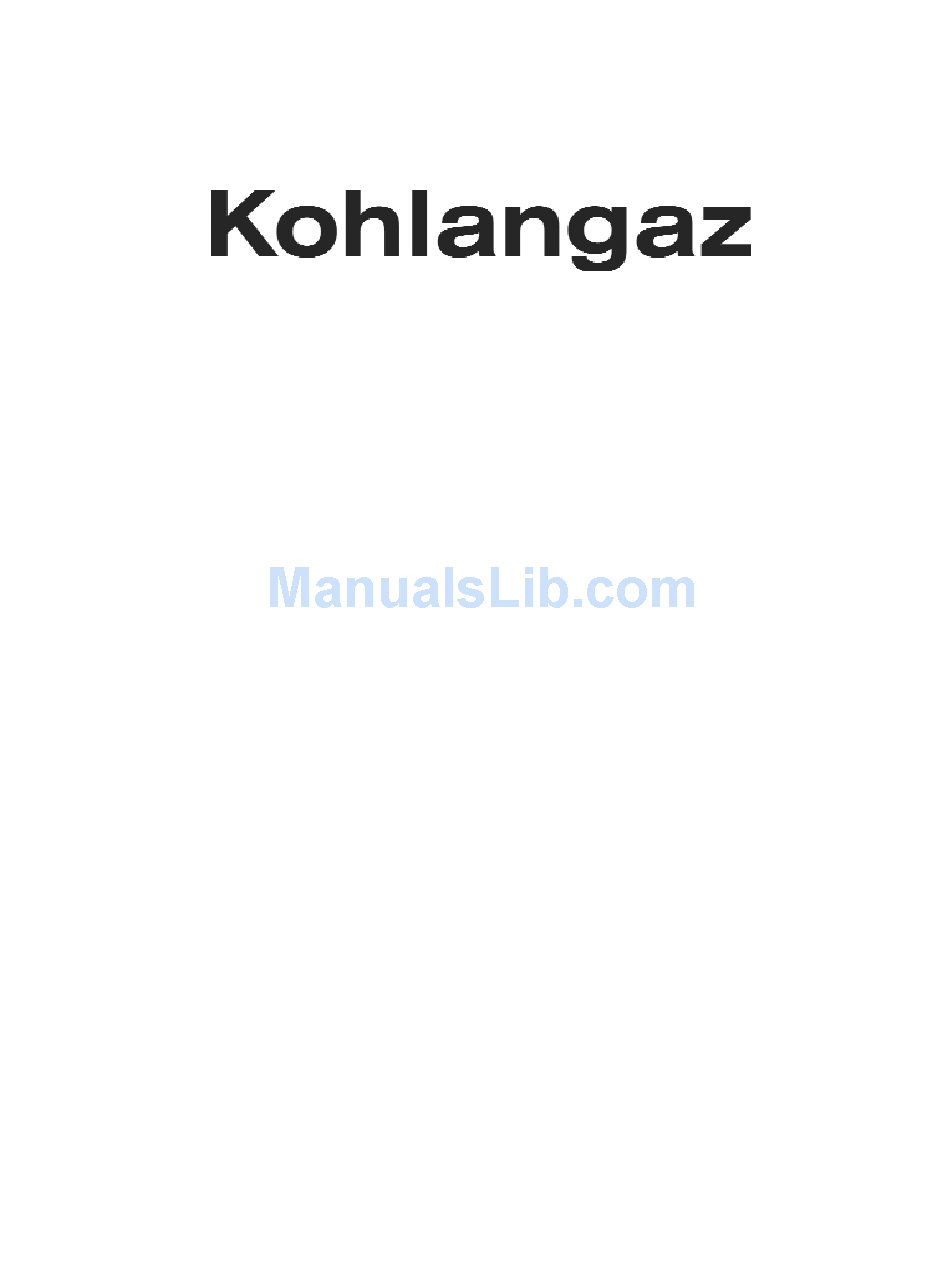

- Page 1 Evo RC DECORATIVE FUEL EFFECT GAS FIRE Installation and Maintenance Instructions Hand these instructions to the user Model No. KRDPB0RN is only for use on Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.
-
Page 2: Table Of Contents
CONTENTS Section 1 Information and Requirements PAGE Appliance Information Conditions of Installation Flue and chimney suitability Fireplace / surround suitability Shelf position Chimney inspection Fire place opening / catchment space Fitting to Pre-Cast Flues Metal Flue Boxes Hearths 1.10 Spillage Monitoring System Section 2 Installation of Fire Unpacking the fire... -
Page 3: Information And Requirements Page
SECTION 1 INFORMATION AND REQUIREMENTS APPLIANCE INFORMATION Model KRDPB0RN Gas Type Main injectors (2 off) Size 260 Pilot Type - Copreci Single Flame 21100 / 141 Max. Gross Heat Input : 6.9 kW Min. Gross Heat Input : 4.2 kW Cold Pressure : 20.0 +/-1.0 mbar Natural Gas Models... -
Page 4: Conditions Of Installation
INSTALLATION REQUIREMENTS CONDITIONS OF INSTALLATION It is the law that all gas appliances are installed only by a CORGI Registered Installer, in accordance with these installation instructions and the Gas Safety (Installation and Use) Regulations 1998 as amended. Failure to install appliances correctly could lead to prosecution. -
Page 5: Fireplace / Surround Suitability
FIREPLACE / SURROUND SUITABILITY The fire must only be installed on a hearth it must not be installed directly onto carpet or other combustible floor materials. The fire is suitable for fitting to non-combustible fire place surrounds and proprietary fire place surrounds with a temperature rating of at least 150 o c. If a heating appliance is fitted directly against a wall without the use of a fire surround or fire place all combustible material must be removed from behind the trim. -
Page 6: Fire Place Opening / Catchment Space
There must be no leakage of smoke through the structure of the chimney during or after the smoke pellet test and it is important to check inside upstairs rooms adjacent to the chimney / flue. Check the chimney pot / terminal and general condition of the brickwork or masonry. - Page 7 Table A - Installation Depth Requirements for a Kohlangaz Evo RC being installed into a brick built chimney, requiring 12.0 litres of debris collection volume (fig. 2). When installing this product into a builders opening / brick-built chimney, the depth required is a minimum of 140mm.
-
Page 8: Fitting To Pre-Cast Flues
12mm. HEARTHS This appliance must only be installed with either the Kohlangaz Evo semi-circular hearth panel (optional extra - part no. B-56940) or on to a concrete or non- combustible hearth. The hearth material must be a minimum thickness of 12mm with the top surface at least 50mm above the floor. -
Page 9: Spillage Monitoring System
1.10 SPILLAGE MONITORING SYSTEM This appliance is fitted with an atmosphere sensing spillage monitoring system in the form of an oxygen sensing pilot. This is designed to shut the fire off in the event of a partial or complete blockage of the flue causing a build up of combus- tion products in the room in which the fire is operated. -
Page 10: Installation Of Fire
SECTION 2 INSTALLATION OF FIRE UNPACKING THE FIRE Carefully lift the fire out of the carton. Remove the loose item packaging carefully from the front of the appliance. Check the contents as listed :- Packing Check List 1off Fire box / burner assembly 1off Boxed fuelbed base, ceramic front rail and 14 synthetic pebbles 1off... - Page 11 Proceed as follows :- Remove the burner heat shield from the front of the fire box to allow access to the burner. See fig. 3 below. Fig. 3 Ensure that the hearth is protected from damage and carefully lift the fire box into the fire opening, then slide it back into position.
- Page 12 Whilst the fire box is still in position, decide which side the gas supply is to enter the fire from. If concealed pipe work is required plan the pipe run to enter the fire box through one of the openings in the sides or rear of the fire box below the fuelbed support panel and connect to the isolating / inlet elbow.
- Page 13 There is a choice of methods of fixing the firebox which are provided to enable the installer to deal with any type of installation. The preferred method of fixing which is suitable for almost all situations is the cable fixing method which is described in the following section in detail. The fire may be secured using the cable method as described below, or alterna- tively, in installations where the cable method is not suitable (eg.
- Page 14 Position the fire carefully on the (protected) surface of the hearth and reach into the fire opening. Thread each of the cables vertically downwards through the pair of fixing eyes on the same side of the fire. Thread the free end of the cables through the corresponding circular hole on each side of the lower rear of the fire.
- Page 15 Fig. 9 Shows correct position of Foam Seal, between spacer channel and mounting face of firebox Spacer Channel Refit the front burner heat shield to the sides of the fire box (2 Screws) and secure the trim to the fire using the magnets provided. Before making the final gas connection, thoroughly purge the gas supply pipework to remove all foreign matter, otherwise serious damage may be caused to the gas control valve on the fire.
- Page 16 Fig. 10 Right hand side of Evo trim, locates over right hand side of spacer channel Fig. 11 Lift Evo trim Approximately 50mm before lowering into the final locating position...
-
Page 17: Gas Tightness And Inlet Pressure
The other firebox fixing method is as follows :- In installations where the cable method is not suitable (e.g. loose masonary in rear of fire opening) the firebox can be secured to the fire surround using four screws and wall plugs provided. Below (fig.12) is a diagram to indicate the hole centre positions available on the firebox to facilitate the screw fixing to the fireplace / surround. -
Page 18: Assembling Fuel Bed And Commissioning
SECTION 3 ASSEMBLING FUEL BED AND COMMISSIONING ASSEMBLING THE CERAMICS AND FUEL BED Place the ribbed ceramic fuelbed base on top of the fuelbed support and pull fully forwards to the burner. Make sure that the fuelbed base is located centrally in the fire box. Ensure that the fuelbed base fit fully down onto the fuel bed support and is not lodged on the burner. - Page 19 Pick pebbles A to E and arrange along the the front rail, ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. (See fig. 15 below) Fig. 15 Pebble D Pebble E Pebble A Pebble B Pebble C...
- Page 20 Select pebbles K, L & M and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement. (See fig. 17 below) Fig. 17 Pebble N Pebble J Pebble K Pebble L Pebble M Select the two small pebbles (J &...
-
Page 21: Fixing The Infrared Eye In Position
FIXING THE INFRARED SENSOR IN POSITION Due to the large amount of different fascia’s that can be supplied with these fires, the infrared sensor is supplied from the factory attached to a self adhesive pad. This pad can therefore be attached to the hearth in a position to suit the form of the fret or contemporary trim assembly that is chosen with the product. -
Page 22: Lighting The Appliance
LIGHTING THE APPLIANCE The Remote control handset generates an infrared signal, which will be received by the sensor situated at the front right of your fire, behind the black controls cover. This infrared signal requires direct line of sight from the handset to the sensor on the fire to ensure good operation. If the handset is lost or broken, the fire can be lit manually, see the user instructions for details on how to operate the fire manually. -
Page 23: Checking For Clearance Of Combustion
CHECKING FOR CLEARANCE OF COMBUSTION PRODUCTS Close all doors and windows in the room. Light the fire and allow to run for approximately 5 minutes on high position. After approximately 5 minutes hold a smoke match just inside and below the centre of the perforated canopy in the Evo trim (see fig. 21 below). -
Page 24: Maintenance
Servicing Notes Servicing should be carried out annually by a competent person such as a CORGI registered engineer. This is a condition of the Kohlangaz Fires guarantee schemes. The service should include visually checking the chimney and fire opening for accumulations of debris and a smoke test to check for a positive up-draught in the chimney. - Page 25 Removing the Valve / Solenoid Assembly 4.2.1 Remove the burner assembly as in section 4.1 4.2.2 Remove the thermocouple retaing nut from the solenoid. remove the main pipe, inlet pipe and pilot pipe from the solenoid. 4.2.3 Remove the solenoid retaining screws and remove. Re-assemble in reverse order and carry out a gas tightness test.
- Page 26 Replacement of parts must be carried out by a competent person such as a CORGI registered gas installer. The part numbers of the replaceable parts are as follows, these are available from Kohlangaz Fires who may be contacted at the address shown below.
