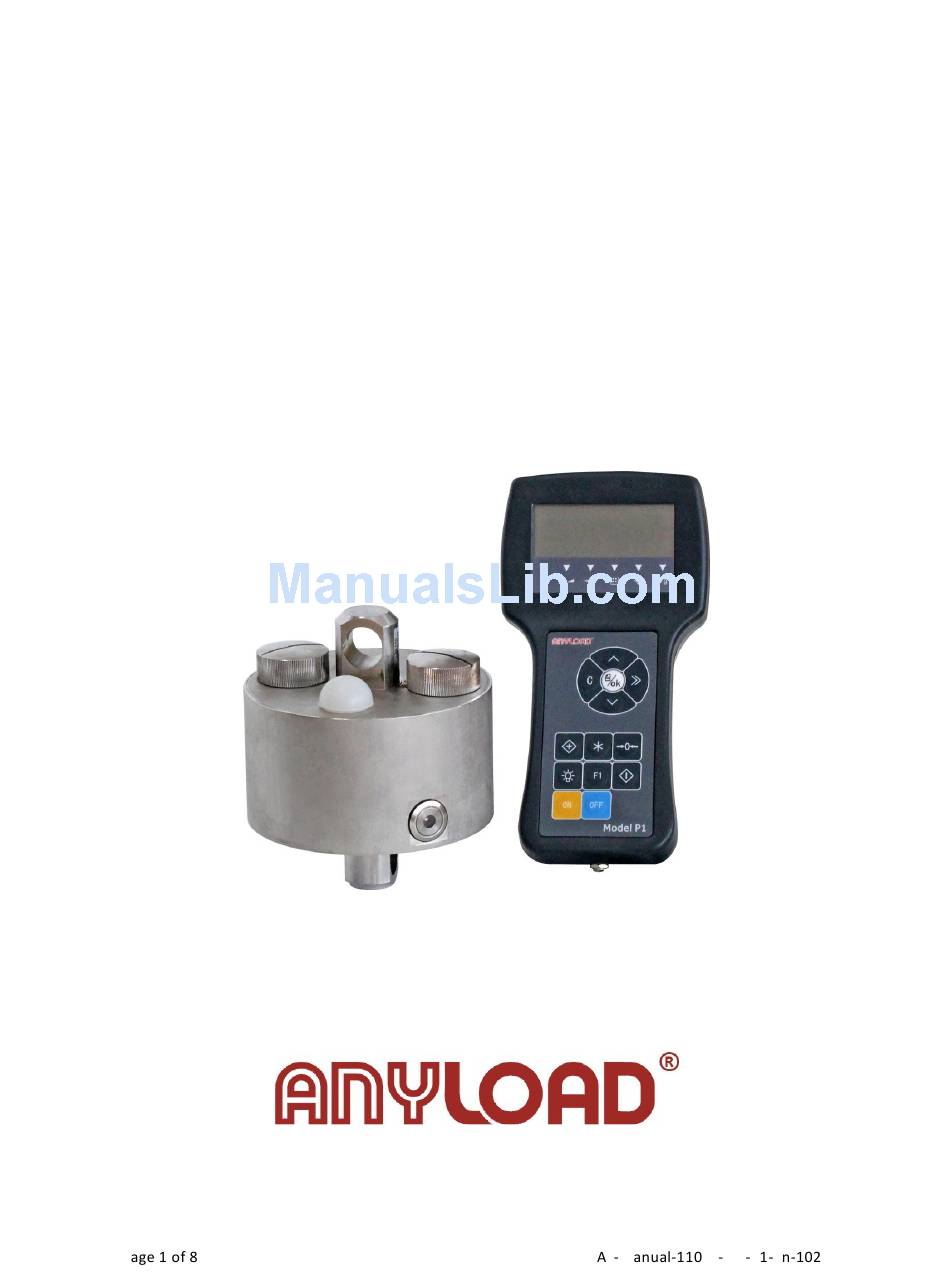

USER MANUAL http://www.anyloadgroup.com > D ^ t> W ... - Page 2 About This Manual This Manual is intended for use by service technicians responsible for installing and servicing 110ES-WL wireless scale and P1 weighing indicator. CAUTION 1. Don’t make lifts beyond rated recharging the battery every two capacity of the scale months to preserve the life-span 2.
- Page 3 Input signal range -3mV 15mV Load cell excitation DC 5V Division 1/2/5/10/20/50 optional Display LCD display with backlight Wireless Communication P1-01: 433MHz frequency P1-02: 915MHz Wireless transmission distance 50 meters (in wide place) Max internal code 1,000,000 A/D transfer speed 50 times/second...
- Page 4 1.4 Keyboard Key: Push to Enter the Configuration Mode while in the Weighing Mode or confirm the configuration setting in Configuration Mode. “ ” “ ”Key: Move up and down or increase and decrease the value. “ ”Key: Move right. “...
- Page 5 1.5 Battery Scale Indicator Battery Type Trust Fire RCR123A 7.2V 2800mAH Ni-MH Lithium Battery battery Charger Lithium battery NC1056 Charge Time 8hours 4 hours (Approximately) Work Time 24 hours 40 hours (without backlight) Charger 100~240VAC 50/60Hz 100~240VAC 50/60Hz Power supply 1.6 Error Message Err 05 Wireless communication is abnormal, check the antenna and the power...
- Page 6 2. General Configuration In this chapter, this manual will guide you how to configure the P1 indicator. Press to enter Configuration Mode. Press “ ”and“ ”Key to switch menu from F1 to F9. Press to enter setting. F 1: Peak Hold P 0 ------Enable Peak Hold;...
- Page 7 S9: Display Division Switching dd 1: Enable dd 0: Disable 3. Calibration The calibration of P1 indicator consists of the following steps: Zero calibration Entering the test weight value Capacity calibration Zero Calibration: Set the indicator to Normal Weighing Mode. Press to zero the scale.
- Page 8 weight value. Capacity Calibration: After the test weight is put on the scale and the scale is stable, press to save the calibration, then the indicator will return to Normal Weighing Mode, the calibration is completed. 4.Weighing Data Processing 4.1. Accumulate Weighing Data After the scale reading is stable and symbol is shown, press accumulate the weighing, the indicator will shown total weight and...
