ROGUE RF
Wireless Gamepad PC with headphones connection
MT1503
User's Guide (revised edition)
Thank you for purchasing ROGUE RF MT1503 wireless controller with headphones connection. This user's guide
will help you understand how to use your gamepad and get the most from the features it has to offer.

Package Contents

1. ROGUE RF MT1503 gamepad
2. RF receiver
3. Driver disc
4. User's guide
NOTE: AA batteries are not included

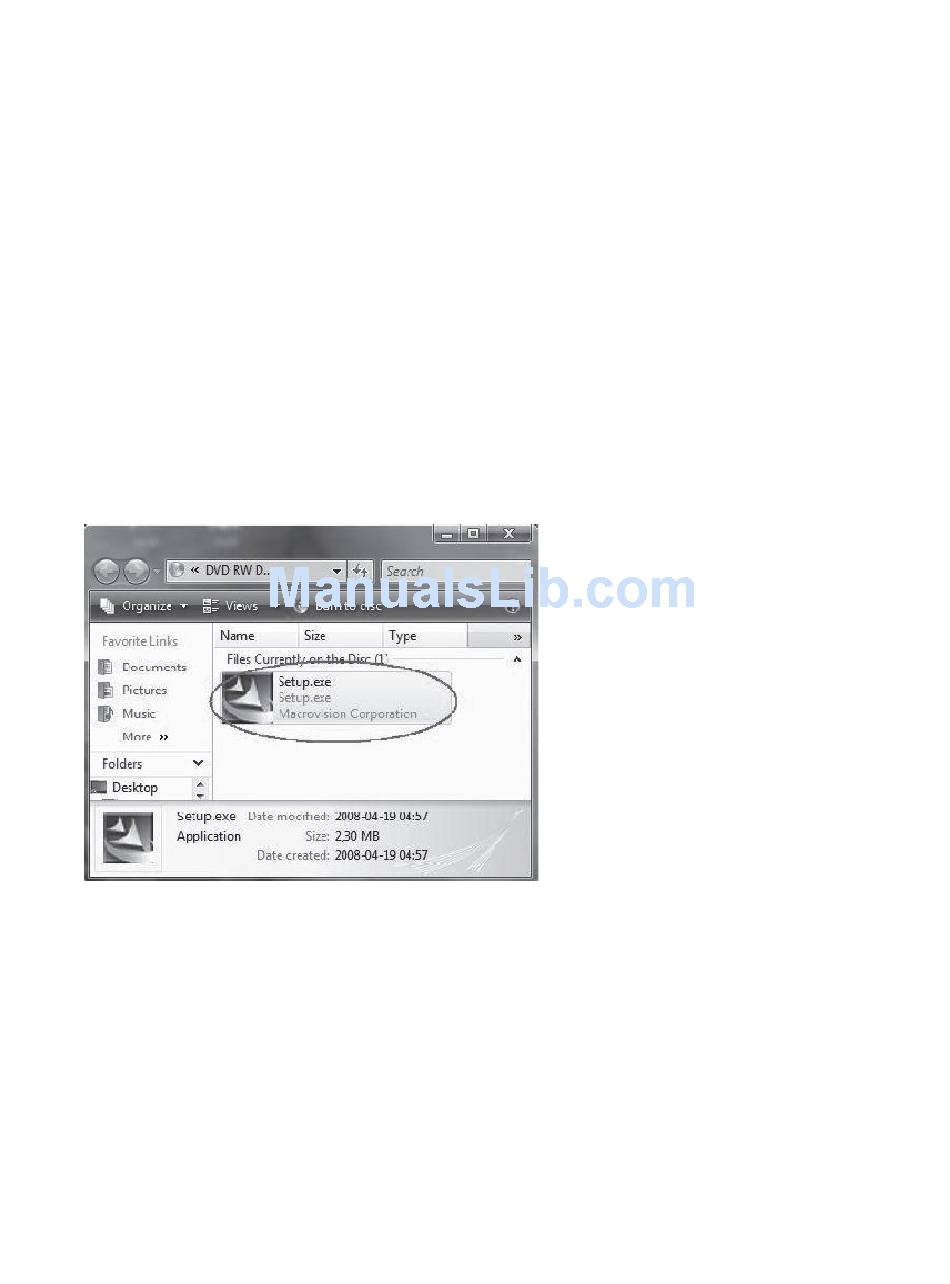

Software Installation

Insert DRIVER CD into computer driver and then proceed follow the steps:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROGUE RF MT1503 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for media-tech ROGUE RF MT1503

Summary of Contents for media-tech ROGUE RF MT1503

  • Page 1 MT1503 User’s Guide (revised edition) Thank you for purchasing ROGUE RF MT1503 wireless controller with headphones connection. This user’s guide will help you understand how to use your gamepad and get the most from the features it has to offer.
  • Page 2 Hardware Setup 1. Connect receiver to USB port in the Computer 2. Insert 2 AA alkaline batteries follow polarization (+/-) Marks 3. Switch ON the gamepad using ON/OFF Switch 4. Connection is confirmed when green LED stop blinking 5. Open Start > Control Panel > Game Controllers window, mark 1st controller and click “Properties”.
  • Page 3 6. Test gamepad features Note: Use only alkaline or Ni-MH rechargeable battery. Hardware Recognition GAMEPAD 1. Direction cross 2. Analog sticks with buttons 3. Digital buttons 4. Analog buttons 5. MODE button 6. VIBRATION ON/OFF button 7. TURBO button 8. CLEAR button 9.
  • Page 4 RECEIVER 11. Power LED (red) 12. Activity LED (green)
  • Page 5 Gamepad Using Changing working modes The ROGUE RF MT1503 supports two control modes: analog and digital. 1. Push MODE button (red light on the button) – gamepad turned to analog mode 2. Push MODE button again (no light on button) –...

  • Page 6: Troubleshooting

    Troubleshooting Problem: The unit does not respond, the red LED on the receiver is OFF. Solution: Connection between the receiver and the computer is not good. Insert the receiver to the USB port firmly. Problem: The unit does not respond, the green LED on the receiver is blinking. Solution: Replace new battery for the controller.
