VT300 Vehicle Tracker User Manual
SZSINO-SHINE (HK) LIMITED
华 炫 (香 港) 有 限 公 司
GPS Vehicle Tracker

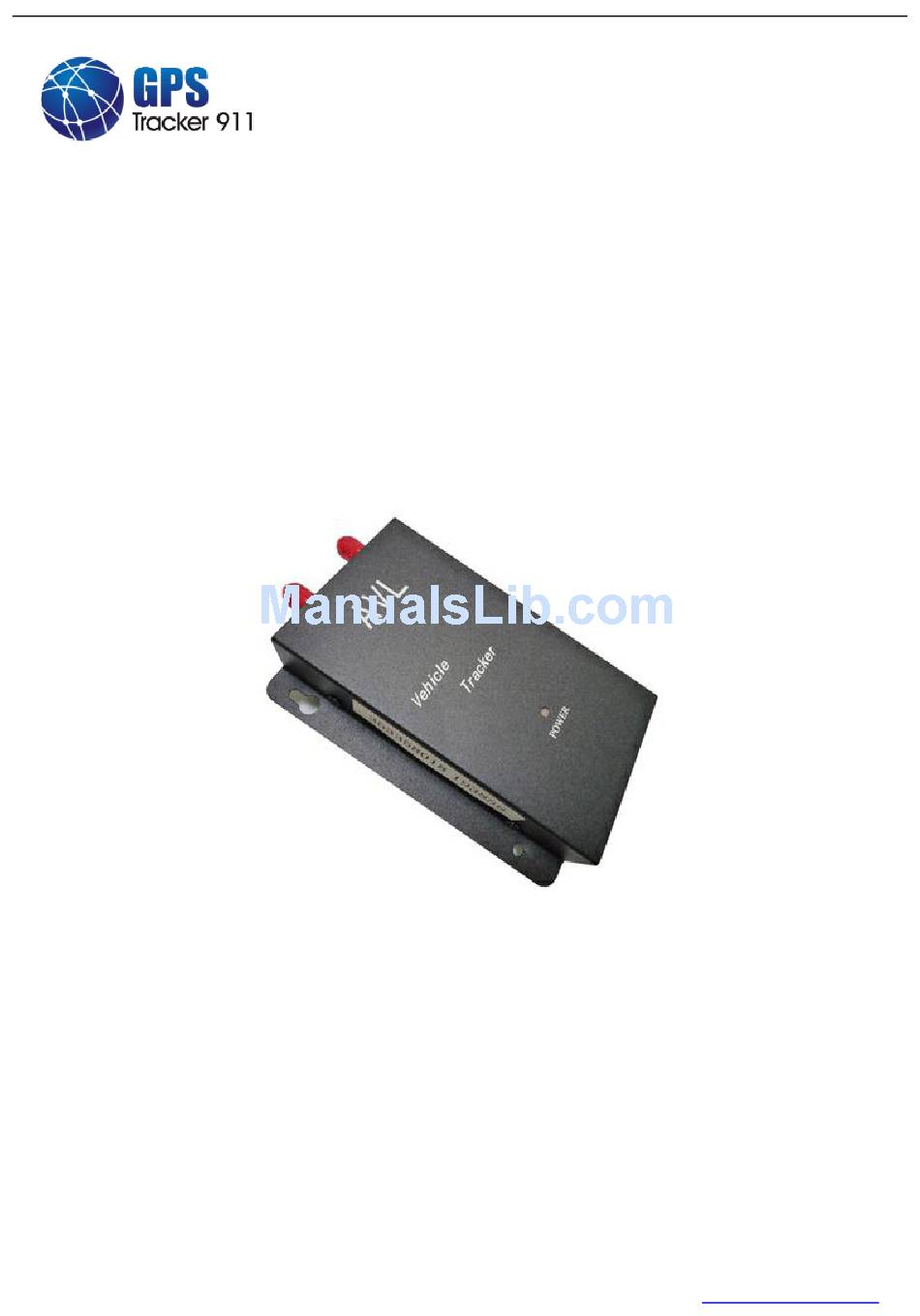

VT-300 User Guide
V2.9.1
Notice
This manual, as well as the software described in it, is furnished under license and may be used or copied only in accordance with
the terms of such license. The content of this manual is furnished for informational use only, is subject to change without notice,
and should not be construed as a commitment by GPS Tracker 911. GPS Tracker 911 assumes no responsibility or liability for any
inaccuracies that may appear in this book.
GPS Tracker 911 reserves the right to make changes to specifications at any time and without notice. The information furnished by
GPS Tracker 911 in this publication is believed to be accurate and reliable; however, GPS Tracker 911 assumes no responsibility
for its use, or for infringements of patents or other rights of third parties resulting from its use. No license will be granted under
any patents or patent rights owned by GPS Tracker 911.
www.gpstracker911.com
- 1 - / 18
Advertisement
Table of Contents
Summary of Contents for SZSINO-SHINE VT-300
- Page 1 SZSINO-SHINE (HK) LIMITED 华 炫 (香 港) 有 限 公 司 GPS Vehicle Tracker VT-300 User Guide V2.9.1 Notice This manual, as well as the software described in it, is furnished under license and may be used or copied only in accordance with the terms of such license.
-
Page 2: Table Of Contents
VT300 Vehicle Tracker User Manual Contents 1. Product Overview ……………………………………………………………3 2. Characteristics ……………………………………………….………………4 3. Installation …………………………………………………….………..……4 3.1 Hardware and Accessories ……………………………………….……4 3.2 View ……………………………………………………………..………5 3.3 Functional Parts ………………………..……...………………………5 3.4 Connecting and Installation ………………………………..…………6 4. Operating SMS Commands …………………..……...…….…………………8 5. Setting SMS Commands ………………………………………………………9 6. -
Page 3: Product Overview
VT300 Vehicle Tracker User Manual 1. Product Overview VT300 is GPS/GSM/GPRS tracking device developed and designed for vehicle real-time tracking. It’s combined with the global satellite positioning technology, SMS/GPRS wireless digital mobile communications. It’s also combined with advanced technologies such as GIS geographic information, global satellite positioning, and online trajectory information. -
Page 4: Characteristics
VT300 Vehicle Tracker User Manual 2. Characteristics Items Standard Power Supply +9V - +37V / 1.5A ≤35mA Normal power consumption Backup Battery 900mAh Dimension 114mm x 80mm x 20mm Installation Dimension 114mm x 83mm x 24mm Main-frame Weight 0.125 KG Wiring Weight 0.085 KG Relay Weight... -
Page 5: View
VT300 Vehicle Tracker User Manual 3.2View 3.3 Functional Parts List LED Indicator status GPS LED (Green) Flashing ( every 0.1 second) The unit is being initialized Flashing (0.1 second on and 2.9 seconds off) VT300 gets GPS Signal Flashing (1 second on and 2 seconds off) VT300 no GPS Signal GSM LED (Red) One call is coming in / one call is being made/ trigger the... -
Page 6: Connecting And Installation
VT300 Vehicle Tracker User Manual Color Function Power (DC IN) DC In (power input). Input voltage: 9V~37V. Black Ground Yellow Digital Inputs, is positive triggering. OUT1 Green Output. Low voltage (0V) when effective and open drain when ineffective. Output open drain sink voltage (ineffective): 45V max. Output low voltage sink current (effective): 500mA max. -
Page 7: Antenna Connection
VT300 Vehicle Tracker User Manual 3.4.2 Antenna Connection Connect the GSM Antenna to VT300. After connect GSM antenna to VT300, put GSM antenna perpendicular to sky, put other radio equipments away from the antenna to avoid mutual interference. Ensure that the signal in the normal reception (send) the first premise, hidden as far as possible. -
Page 8: Operating Sms Commands
VT300 Vehicle Tracker User Manual First send an arm command to allow the car drive into a state of alert. SW1 port can be used to check the engine condition, when the engine started or shutdown, VT300 will send an alarm message to the preset phone number and platform. -
Page 9: Setting Sms Commands
VT300 Vehicle Tracker User Manual 111111MON* VT300 call the For SOS preset number, press the answer button to listen. 111111MON:* Set the phone Use the preset number to call VT300, it can For wire-tapping number to listen, listen automatically. call VT300, can listen automatically. - Page 10 VT300 Vehicle Tracker User Manual time interval. 111111SEC:7:X Set time interval, 111111SEC:1:x,2:x,3:x,4:x,5:x,6:x,7: X,8:x unit: minute 111111OVF:X, Speeding setting, 111111OVF:X Default 200 km 111111SMS:1:1, Reply SMS in 111111SMS:1:1,2:x,3:x,4:x,5:x,6:x,7:x,8:x SMS in Chinese Chinese. Reply SMS in 111111SMS:1:0,2:x,3:x,4:x,5:x,6:x,7:x,8:x SMS in English 111111SMS:1:0, English. Open ACC time 111111RUN:1:x,2:x,3:x,4:x,5:x,6:x,7:1,8:x 111111RUN:7:1,...
-
Page 11: Real-Time Gprs Tracking Commands
VT300 Vehicle Tracker User Manual 111111RUN:3:1, Open GSM power 111111RUN:1:x,2:x,3:1,4:x,5:x,6:x,7: x,8:x saving mode. 6. Real-time GPRS Tracking SMS Commands 111111WWW:!/ 111111LOG:! * Default: GPRS start. Send command to confirm GPRS started or not. Command Explanation Reply Remark 111111WWW:IDN:str IDN:set ID: VT300 IMEI 111111WWW:IDN:53358015198975 Setup ;IPN:xxx.xxx.xxx.xxx;APN:‖CMNE... -
Page 12: Application Guide
VT300 Vehicle Tracker User Manual E=114.2101,V=0,D=349 car siren alarm car alarm ringing for Lamp alert！ more than 8 seconds, 263B2F2A,A,N=22.7268, trigger the alarm E=114.2101,V=0,D=349 Lower battery Alarm after the main Power fail！ alarm power off 263B2F2A,A,N=22.7268, E=114.2101,V=0,D=349 Over-speed alarm Alarm when exceeds Exceed limit 111111DSM the setting speed... -
Page 13: Change Password
VT300 Vehicle Tracker User Manual Note: Only smart phones and PDA supports this function. For example: W111111, 100 8.4. Set phone number for receiving the alarm message Command: 111111*10 phone number 1*20 phone number 2* ―111111*10 phone number 1*20 phone number 2*”... -
Page 14: Track By Client Software
VT300 Vehicle Tracker User Manual 111111SEC:7:X, X: SMS time interval. Unit: minute. This command is to setup reporting time interval. VT300 will reply a SMS with longitude and latitude to the user’s mobile phone. 111111RPT:1:0, to close reporting location by SMS interval. ... -
Page 15: Web Gprs Tracking Platform
VT300 Vehicle Tracker User Manual User name and password would be required when login the client-software, contact with the supplier can get user name and password. User name and password can be both used in client software and web tracking platform. Main function: Immediate positioning, history playback, 51map / Google map / satellite map for free switching, license plate display different color represent different status, red alarm line display alarm type, ACC time accumulating and mileage accumulating display. -
Page 16: Faq
VT300 Vehicle Tracker User Manual Enter Google map webpage of http://maps.google.com Free for download : Google earth software web of http://www.google.com/intl/en/earth/index.html 12. FAQ Firstly, use the screwdriver to unscrew the screws and open the SIM card slot cannot be found of the device surface case, unplug the SIM card slot of the device on the back, then insert the SIM card correctly. -
Page 17: After-Sales Service And Technical Support
VT300 Vehicle Tracker User Manual Device number doesn’t correspond Location cannot be seen on the Reset the number client software at the first time. Wrong IP setting. Enter the correct server IP address. APN incorrectly. Search the APN of the SIM card company. - Page 18 VT300 Vehicle Tracker User Manual 3) The following conditions are not covered under warranty for free. Ⅰ consumer mishandling damage. II out of product use conditions (such as flooding, deformation, power supply beyond the normal scope of work, etc.), vehicle maintenance and other circumstances accidentally leaving equipment damaged. III free warranty expires.
- Page 19 GPS Tracker 911 http://www.tradekey.com/product_view/id/1758089/.htm V i e w P r o d u c t s http://www.tradekey.com/profile_view/uid/5376663/.htm V i e w C o mp a n y P r o f i l e gps tracker, gps avl R e l a t e d P r o d u c t s : D i s c l a i me r : T h i s B r o c h u r e i s p r o v i d e d b y t h i s p a r t i c u l a r me mb e r .
